Manitowoc SPA162 Vending Ice Dispenser

1. ບົດແນະນຳ

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Manitowoc SPA162 Vending Ice Dispenser. Please read these instructions thoroughly before using the appliance and retain them for future reference.

The Manitowoc SPA162 is a floor model vending ice dispenser designed for commercial use, offering convenient and hygienic ice and water dispensing. Key features include:

• Convenient Water Dispensing: Built-in water valve for easy container filling.
• Versatile Ice Compatibility: Accommodates both dice and half-dice ice types.
• Spacious and Accessible: 120-lb capacity for high ice demand environments.
• Convenient Bucket Filling: Designed for easy collection and transport of large ice quantities.
• Durable and Compliant: Stainless steel exterior with vinyl trim, meeting cULus, CE, NSF, and ADA standards.

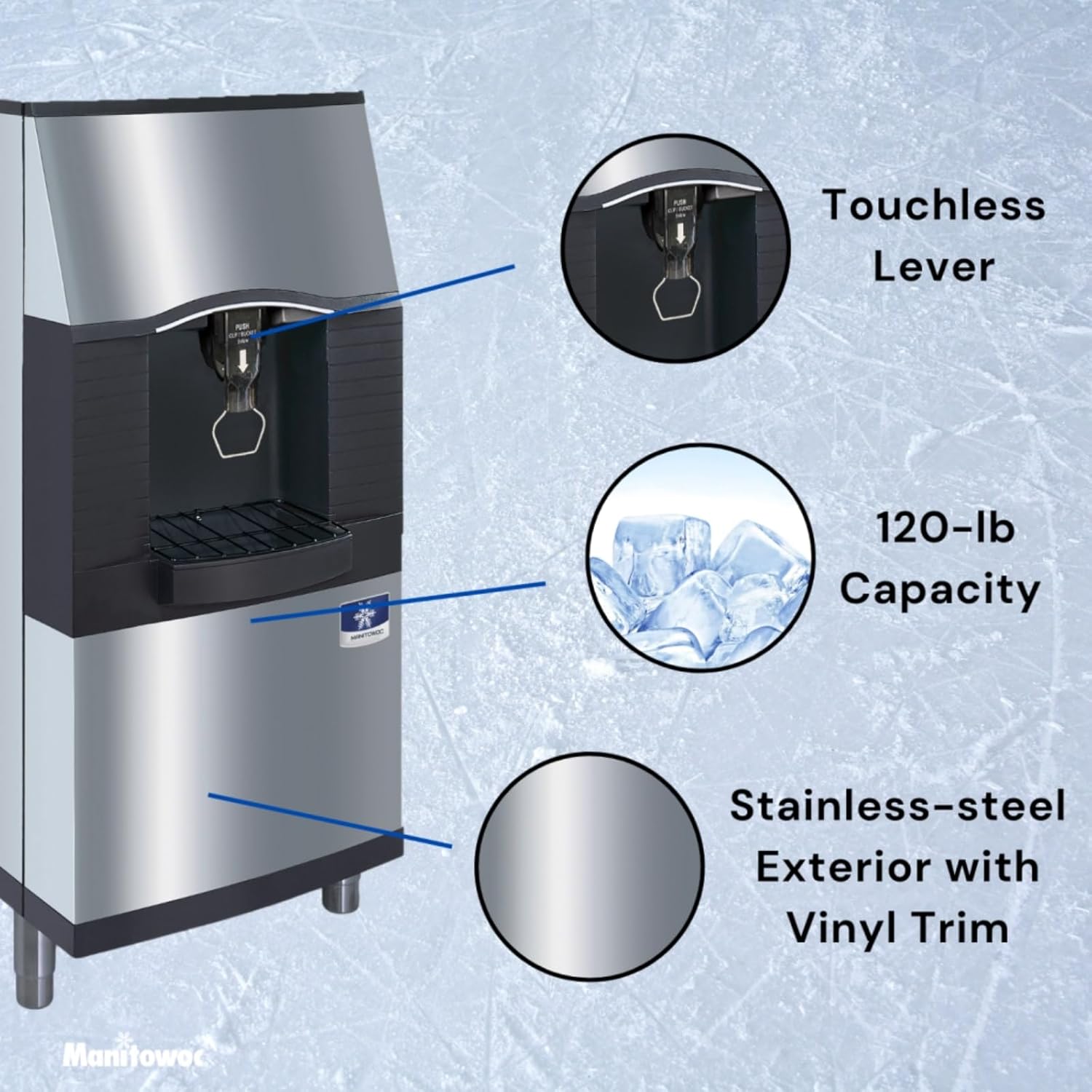

Image: The Manitowoc SPA162 ice dispenser highlighting its touchless lever, 120-lb capacity, and stainless-steel exterior with vinyl trim.

2. ຂໍ້ມູນຄວາມປອດໄພ

ປະຕິບັດຕາມຄວາມລະມັດລະວັງດ້ານຄວາມປອດໄພຕໍ່ໄປນີ້ສະເໝີເພື່ອປ້ອງກັນການບາດເຈັບ ຫຼືຄວາມເສຍຫາຍຂອງເຄື່ອງໃຊ້:

• Ensure the dispenser is installed by qualified personnel in accordance with local and national electrical and plumbing codes.
• Do not operate the dispenser with damaged power cords or plugs.
• ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າກ່ອນທີ່ຈະດໍາເນີນການບໍາລຸງຮັກສາຫຼືທໍາຄວາມສະອາດ.
• ຮັກສາມື ແລະ ວັດຖຸຕ່າງປະເທດໃຫ້ຫ່າງຈາກຊິ້ນສ່ວນທີ່ເຄື່ອນທີ່ ແລະ ບໍລິເວນຈ່າຍນ້ຳກ້ອນໃນລະຫວ່າງການປະຕິບັດງານ.
• Do not use flammable liquids near the dispenser.
• ເຄື່ອງໃຊ້ໄຟຟ້ານີ້ບໍ່ໄດ້ມີຈຸດປະສົງເພື່ອໃຊ້ໂດຍຄົນທີ່ມີຄວາມອ່ອນແອທາງຮ່າງກາຍ, ຄວາມຮູ້ສຶກ, ຫຼືຈິດໃຈ, ຫຼືຂາດປະສົບການແລະຄວາມຮູ້, ເວັ້ນເສຍແຕ່ວ່າພວກເຂົາໄດ້ຮັບການຊີ້ນໍາຫຼືຄໍາແນະນໍາກ່ຽວກັບການນໍາໃຊ້ເຄື່ອງໃຊ້ໂດຍບຸກຄົນທີ່ຮັບຜິດຊອບດ້ານຄວາມປອດໄພຂອງພວກເຂົາ.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

3.1 ການຫຸ້ມຫໍ່

Carefully remove the dispenser from its packaging. Inspect for any shipping damage. Report any damage to the carrier immediately. Remove all packing materials, tape, and protective films from the unit.

3.2 ຄວາມຕ້ອງການສະຖານທີ່

Place the dispenser on a level, sturdy surface capable of supporting its weight (approximately 165 lbs empty, plus ice). Ensure adequate clearance around the unit for ventilation and maintenance. Avoid direct sunlight or heat sources.

ຮູບພາບ: ດ້ານຫນ້າ view of the Manitowoc SPA162 ice dispenser, illustrating its overall design and dimensions.

The dispenser dimensions are approximately 22" W x 31.19" D x 54" H.

Image: The Manitowoc SPA162 ice dispenser positioned in a commercial kitchen environment, demonstrating typical placement.

3.3 ການເຊື່ອມຕໍ່ໄຟຟ້າ

The dispenser requires a dedicated 115 Volt electrical supply. Ensure the electrical outlet is properly grounded and meets all local electrical codes. Do not use extension cords.

3.4 ການເຊື່ອມຕໍ່ນ້ໍາ

Connect the dispenser to a potable cold water supply using appropriate plumbing. A water shut-off valve should be installed nearby for easy access. Ensure all connections are secure and leak-free.

3.5 ການທໍາຄວາມສະອາດເບື້ອງຕົ້ນ

Before first use, clean the ice storage bin and dispensing area with a mild, food-safe sanitizer solution. Rinse thoroughly with clean water and allow to air dry.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 ການເປີດເຄື່ອງ

Once installed and connected, plug the dispenser into the electrical outlet. The unit will power on and begin to cool the ice storage bin.

4.2 Dispensing Ice

To dispense ice, place your container (cup, bucket, etc.) under the dispensing chute. Gently push the container against the touchless lever. Ice will be dispensed until the lever is released or the container is removed. The dispenser is designed for convenient bucket filling.

ຮູບພາບ: A close-up view of the touchless lever mechanism for dispensing ice.

4.3 ການແຈກຢາຍນ້ໍາ

The dispenser features a built-in water valve. To dispense water, locate the water dispensing mechanism (if separate from ice) and activate it as instructed on the unit itself. This allows for convenient filling of containers with water alongside ice.

4.4 Ice Types

The SPA162 is compatible with both dice and half-dice ice types, providing flexibility for various applications.

Image: A visual comparison showing the distinct shapes and sizes of Half Dice and Dice ice cubes.

5. ບໍາລຸງຮັກສາ

Regular maintenance ensures optimal performance and longevity of your ice dispenser.

5.1 ການທໍາຄວາມສະອາດພາຍນອກ

Clean the stainless steel exterior and vinyl trim regularly with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads that could scratch the surface. Wipe dry to prevent water spots.

ຮູບພາບ: A ລາຍລະອຽດ view of the stainless steel exterior of the ice dispenser, highlighting its finish.

5.2 ການທໍາຄວາມສະອາດພາຍໃນ

Periodically clean and sanitize the ice storage bin and dispensing chute. Use a food-safe sanitizer solution according to the manufacturer's instructions. Rinse thoroughly to remove all cleaning agents. Ensure the unit is completely dry before resuming operation.

5.3 ການກວດສອບປົກກະຕິ

• ກວດເບິ່ງສາຍໄຟສໍາລັບສັນຍານຄວາມເສຍຫາຍໃດໆ.
• Check water lines and connections for leaks.
• Ensure the dispensing lever operates smoothly.

6. ການແກ້ໄຂບັນຫາ

Refer to the following table for common issues and their potential solutions. For problems not listed or if issues persist, contact qualified service personnel.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact Manitowoc customer service directly. Ensure you have your model number (SPA162) and serial number available when contacting support.
