1. ບົດແນະນຳ
The DNT Optics Zulus 4K 3-24X Digital Day Night Vision Scope is an advanced optical system designed for versatile use in various lighting conditions. Featuring a Sony 4K STARVIS 2 CMOS sensor, a 50mm f/1.8 ED glass lens, and an integrated laser rangefinder with DNT Ballistic Engine, this scope delivers high-resolution imaging and precise targeting capabilities for both day and night operations.

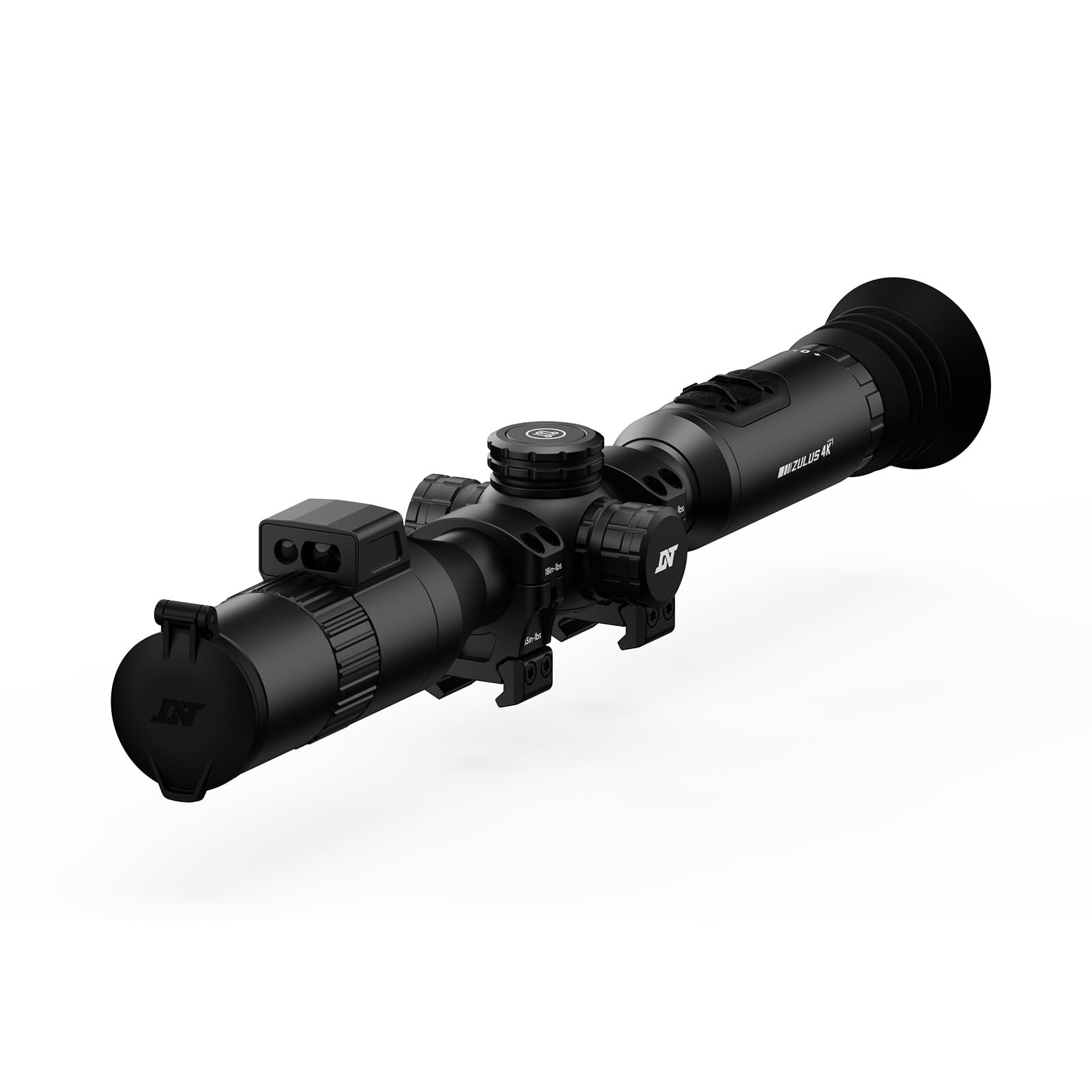

Image: The DNT Optics Zulus 4K Digital Day Night Vision Scope, showcasing ການອອກແບບ sleek, ສີດໍາຂອງຕົນ.
2. ເນື້ອໃນຊຸດ
Upon opening your DNT Optics Zulus 4K package, ensure all items listed below are present and in good condition. If any items are missing or damaged, please contact DNT Optics customer support.
- Zulus 4K Digital Day Night Vision Scope (x1)
- 30mm Scope Rings (x2)
- ຜ້າກັນແດດ (x1)
- Flip Up Cover (x1)
- Eye Cup (x1)
- ຜ້າເຊັດເລນ (x1)
- ຄູ່ມືຜູ້ໃຊ້ (x1)
- ຄູ່ມືເລີ່ມຕົ້ນດ່ວນ (x1)
- Data Cable (USB-C) (x1)
- 21700 Battery Pack (x1)
Video: An unboxing video demonstrating the contents of the DNT Optics Zulus 4K package, including the scope, accessories, and documentation.
3. ຕັ້ງຄ່າ
3.1. ການຕິດຕັ້ງຫມໍ້ໄຟ
- Locate the battery compartment cap, typically on the side or top of the scope.
- ຖອດໝວກໝວກຕາມເຂັມໂມງ.
- Insert the provided 21700 flat-top battery, ensuring correct polarity.
- Screw the cap back on clockwise until secure.
3.2. Mounting the Scope
The Zulus 4K is designed to fit standard 30mm mounting setups. Use the included 30mm scope rings for installation.
- Attach the scope rings to your rifle's Picatinny rail or compatible mounting system.
- Place the Zulus 4K scope into the rings, ensuring proper eye relief and alignment.
- Secure the top halves of the scope rings, tightening screws evenly to the manufacturer's recommended torque specifications (35 in-lbs indicated on rings).
Image: The DNT Optics Zulus 4K Digital Day Night Vision Scope securely mounted on a rifle, ready for use.
3.3. Attaching Sunshade and Eye Cup
- ຜ້າຮົ່ມ: Thread the sunshade onto the objective lens (front) of the scope.
- ຈອກຕາ: Thread the eye cup onto the eyepiece (rear) of the scope.
- Ensure both accessories are securely attached to prevent accidental detachment during use.
Image: The DNT Optics Zulus 4K scope with its sunshade and eye cup attached, enhancing usability and protection.
4. ການດໍາເນີນງານ
4.1. Powering On/Off & Standby
- ເປີດ/ປິດ: Long press the Power button to turn the unit on or off.
- ໂໝດ ສະແຕນບາຍ: Short press the Power button to enter or exit standby mode, conserving battery life when not actively in use.
4.2. Day and Night Modes
The Zulus 4K offers seamless transition between day and night vision modes.
- ໂໝດສະຫຼັບ: Long press the Day/Night button to switch between day and night vision modes.
- ການປັບຄວາມສະຫວ່າງ: Short press the Day/Night button to adjust screen brightness levels.
Image: Visual representation of the Zulus 4K's performance, showcasing clear imaging in both bright daylight and low-light moonlight conditions.
4.3. Magnification and Digital Zoom
The scope features 3-24x magnification with up to 6x lossless digital zoom for precise targeting.
- ການປັບຂະຫຍາຍການ: Rotate the Magnification Ring to zoom in or out.
- 4K-30FPS Mode: Provides over 8 million pixels for detailed viewing with 3-24x zoom.
- 1080P-60FPS Mode: Offers smooth, high-speed footage with 3-12x zoom for tracking fast-moving targets.
4.4. Laser Rangefinder and Ballistic Engine
The integrated Laser Rangefinder (LRF) provides instant, precise ranging from 5 to 1300 yards. The DNT Ballistic Engine resolves complex trajectories and projects the ballistic solution directly into your view.
- Activating LRF: Short press the Ranging button to activate the laser rangefinder and display distance.
- Ballistic Solution: With ballistic data synced via the DNT App, the scope will display the holdover point on the reticle.
Image: A hunter using the DNT Optics Zulus 4K, highlighting the active laser rangefinder beam for precise distance measurement.
4.5. Recording and Picture-in-Picture (PIP)
- ການບັນທຶກຄູ່ມື: Short press the Record button to start/end video recording.
- Recoil Activated Recording (RAV): Long press the Record button to activate RAV. The scope will automatically record video when recoil is detected.
- ຮູບພາບໃນຮູບ: Access PIP settings via the menu to display a magnified view in a smaller window on the screen.
4.6. ເມນູນໍາທາງ ແລະການຕັ້ງຄ່າ
- ເມນູການເຂົ້າເຖິງ: Long press the Menu button to enter the settings menu.
- ນຳທາງ: Use the Magnification Ring to scroll through menu options.
- ເລືອກ/ຢືນຢັນ: Short press the Menu button to select an option.
- ອອກ: Long press the Menu button to exit the menu.
- Reticle Settings: Customize reticle type and color within the menu.
- Zeroing Profiles: Set and save multiple zeroing profiles for different firearms or ammunition types.
5. ບໍາລຸງຮັກສາ
5.1. ການເຮັດຄວາມສະອາດເລນ
Regularly clean the lenses to ensure optimal image clarity.
- Use the provided lens cleaning cloth or a soft, lint-free cloth.
- Gently wipe the lens surfaces to remove dust and smudges. Avoid abrasive materials or harsh chemicals.
5.2. ການປົກປ້ອງສິ່ງແວດລ້ອມ
The Zulus 4K is built for durability in challenging conditions.
- ການຈັດອັນດັບ IP67: The scope is IP67 waterproof and dustproof, providing protection against immersion in water up to 1 meter for 30 minutes and complete dust ingress.
- Recoil Rating: Recoil-rated up to .50 BMG, ensuring robust performance with high-caliber firearms.
6. ການແກ້ໄຂບັນຫາ
If you encounter issues with your DNT Optics Zulus 4K, refer to the following common troubleshooting steps:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ອຸປະກອນບໍ່ເປີດ | ແບັດເຕີຣີຕໍ່າ ຫຼື ໝົດ; ການຕິດຕັ້ງແບັດເຕີຣີບໍ່ຖືກຕ້ອງ | Charge the battery using the provided USB-C cable. Ensure the battery is inserted with correct polarity. |
| ຄຸນນະພາບຮູບພາບບໍ່ດີ | Dirty lenses; Incorrect focus; Extreme environmental conditions | Clean lenses with the provided cloth. Adjust the focus ring. Ensure proper day/night mode is selected for current lighting. |
| Laser Rangefinder not working | Obstruction in front of LRF; Out of range; Software glitch | Ensure LRF is clear of obstructions. Confirm target is within 5-1300 yard range. Restart the device. |
| DNT App connectivity issues | Wi-Fi disabled on scope or phone; Incorrect password | Ensure Wi-Fi is enabled on both devices. Verify the correct Wi-Fi password. Restart both devices. |
7. ຂໍ້ມູນຈໍາເພາະ
- ເຊັນເຊີ: Sony 1/1.8" 4K STARVIS 2 CMOS
- ເລນ: 50mm f/1.8 ED (Extra-low Dispersion) glass
- ການຂະຫຍາຍ: 3-24x
- ຊູມດິຈິຕອນ: Up to 6x lossless
- ຄວາມລະອຽດວິດີໂອ: 4K-30FPS, 1080P-60FPS
- ການເກັບຮັກສາພາຍໃນ: 64 GB
- ແບັດເຕີຣີ: Replaceable 21700 flat-top battery (up to 6 hours operation)
- Laser Rangefinder Range: 5-1300 ເດີ່ນ
- ເສັ້ນຜ່າກາງທໍ່: 30ມມ
- ນ້ຳໜັກ: 24.3 ອອນ
- ລະດັບກັນນໍ້າ / ກັນຝຸ່ນ: IP67
- Recoil Rating: Up to .50 BMG
- ການບັນເທົາຕາ: 65mm (2.6")
- ອຸປະກອນທີ່ເຂົ້າກັນໄດ້: Rifle, Shotgun
8. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ
8.1. ຂໍ້ມູນການຮັບປະກັນ
The DNT Optics Zulus 4K comes with a ການຮັບປະກັນຜູ້ຜະລິດ 2 ປີ. ການຮັບປະກັນນີ້ກວມເອົາຂໍ້ບົກພ່ອງຂອງວັດສະດຸແລະການເຮັດວຽກພາຍໃຕ້ການນໍາໃຊ້ປົກກະຕິ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.
8.2. ການຊ່ວຍເຫຼືອລູກຄ້າ
For technical assistance, warranty claims, or general inquiries, please contact DNT Optics customer support. You can also utilize the DNT App to sync ballistic data, view live video feeds, manage your album, and share your adventures.
- DNT App: Available for download on your smartphone.
- ຊັບພະຍາກອນອອນໄລນ໌: Visit the official DNT Optics webເວັບໄຊສໍາລັບ FAQs, ຄູ່ມືການປັບປຸງ, ແລະຂໍ້ມູນການຕິດຕໍ່ສະຫນັບສະຫນູນ.
Image: A smartphone displaying the DNT App interface, connected to the Zulus 4K scope for enhanced control and data management.
