FOSSIBOT S5 Pro Android 15 Cellphone User Manual

1. ບົດແນະນຳ

Welcome to the FOSSIBOT S5 Pro user manual. This guide provides essential information to help you set up, operate, maintain, and troubleshoot your new Android 15 smartphone. The FOSSIBOT S5 Pro combines powerful performance with a durable design, featuring a large display, advanced camera system, and long-lasting battery.

2. ສິ່ງທີ່ຢູ່ໃນກ່ອງ

Upon opening your FOSSIBOT S5 Pro package, please ensure all items are present:

• 1 x FOSSIBOT S5 Pro Cellphone
• 1 x ຄູ່ມືຜູ້ໃຊ້ ແລະບັດຮັບປະກັນ
• 1 x PIN ຊິມກາດ
• 1 x USB Cable (Type-C, 2A)
• 1 x ອະແດບເຕີໄຟຟ້າ (5V2A)
• 1 x ກໍລະນີປ້ອງກັນ
• 1 x ຄູ່ມືເລີ່ມຕົ້ນດ່ວນ

Image: Contents of the FOSSIBOT S5 Pro retail package, including the phone, charger, cable, and documentation.

3. ການຕິດຕັ້ງເບື້ອງຕົ້ນ

3.1. ການຕິດຕັ້ງຊິມກາດ

1. Locate the SIM card tray on the side of your FOSSIBOT S5 Pro.
2. ສຽບ PIN ຊິມກາດທີ່ໃຫ້ມາເຂົ້າໄປໃນຮູນ້ອຍໆຂ້າງຖາດ ແລະ ຄ່ອຍໆຍູ້ຈົນກ່ວາຖາດຈະຖອດອອກ.
3. Place your Nano-SIM card(s) and/or microSD card (up to 2TB) into the tray, ensuring correct orientation.
4. ໃສ່ຖາດໃສ່ໂທລະສັບຄືນໃໝ່ຢ່າງລະມັດລະວັງ.

ໝາຍເຫດ: The FOSSIBOT S5 Pro supports Dual SIM functionality. It is compatible with T-Mobile but not AT&T SIM cards. Supported frequency bands include GSM 850/900/1800/1900, WCDMA B1/2/4/5/8, FDD B1/2/3/4/5/7/8/12/17/18/19/20/25/26/28AB/66, and TDD 38/39/40/41.

Image: Close-up of the FOSSIBOT S5 Pro's SIM card tray, showing slots for two Nano-SIM cards and a microSD card for expandable storage up to 2TB.

3.2. ການສາກໄຟເບື້ອງຕົ້ນ

Before first use, it is recommended to fully charge your device. Connect the USB cable to the phone's Type-C port and the power adapter, then plug the adapter into a wall outlet. The 6000mAh battery provides extended usage time.

Image: Illustration of the FOSSIBOT S5 Pro's internal battery, highlighting its 6000mAh capacity and charging capabilities.

3.3. ເປີດ/ປິດ

• To power on: Press and hold the Power button (usually on the right side) until the FOSSIBOT logo appears.
• ເພື່ອປິດເຄື່ອງ: ກົດປຸ່ມເປີດປິດຄ້າງໄວ້, ຈາກນັ້ນເລືອກ "ປິດເຄື່ອງ" ຈາກຕົວເລືອກໃນໜ້າຈໍ.

4. ປະຕິບັດການອຸປະກອນຂອງທ່ານ

4.1. ຈໍສະແດງຜົນແລະການໂຕ້ຕອບຜູ້ໃຊ້

The FOSSIBOT S5 Pro features a 6.88-inch HD+ display with a resolution of 720x1640 pixels and a 120Hz refresh rate for smooth visuals. It runs on the native Android 15 operating system, offering a cutting-edge and intuitive user experience.

Image: The FOSSIBOT S5 Pro's 6.88-inch HD+ display with a 120Hz refresh rate, showcasing vibrant visuals.

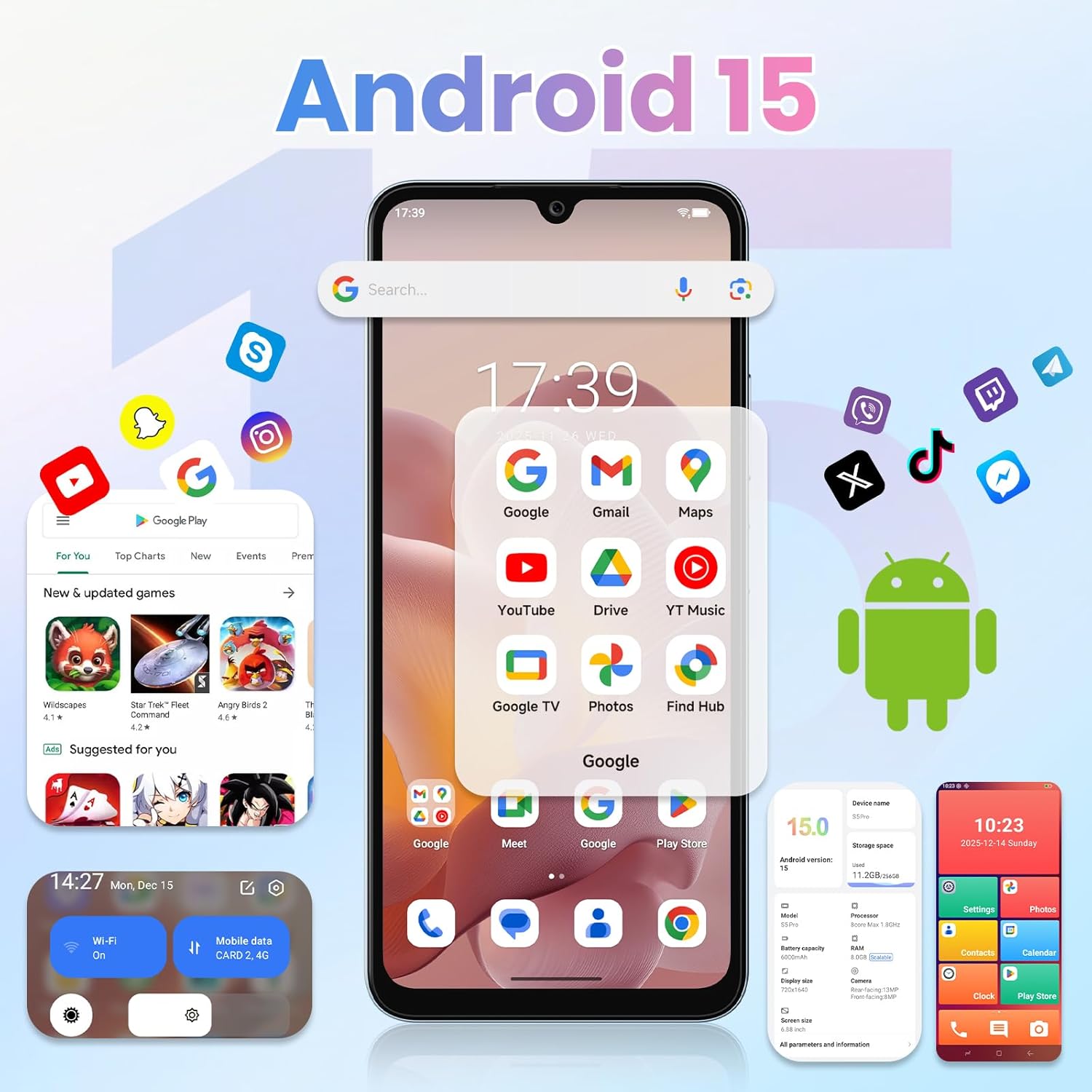

Image: The FOSSIBOT S5 Pro displaying the Android 15 user interface with various applications.

4.2. ປະສິດທິພາບແລະການເກັບຮັກສາ

Equipped with 32GB of RAM (8GB physical + 24GB virtual) and 256GB of internal storage, expandable up to 2TB via microSD, the S5 Pro handles multitasking and demanding applications with ease. The Octa-core Unisoc T615 processor ensures smooth operation.

Image: Visual representation of the FOSSIBOT S5 Pro's performance, highlighting 32GB RAM, 256GB ROM, and the Unisoc Octa-core processor.

4.3. ລະບົບກ້ອງຖ່າຍຮູບ

Capture high-quality photos and videos with the 50MP primary camera and 8MP ultra-wide dual-camera setup. The phone supports 4K HDR video recording and features enhanced night photography. The 8MP front camera is ideal for clear selfies and video calls.

Image: The FOSSIBOT S5 Pro's rear camera module with 50MP main sensor and 8MP front camera, demonstrating photo capabilities.

4.4. Gemini AI Features

The integrated Gemini AI 2026 localized model offers advanced smart experiences, including real-time multilingual translation, intelligent image composition, and document scanning.

ຮູບພາບ: Examples of Gemini AI features on the FOSSIBOT S5 Pro, such as smart chat, image creation, video creation, and coding assistance.

4.5. ຄວາມປອດໄພ ແລະ ການເຊື່ອມຕໍ່

Unlock your device quickly and securely using the fingerprint unlock feature. The S5 Pro supports Bluetooth, USB, Wi-Fi 6, and GPS+GLONASS+Beidou+Galileo for reliable navigation and connectivity.

5. ບໍາລຸງຮັກສາ

5.1. ຄວາມທົນທານແລະການປົກປ້ອງ

The FOSSIBOT S5 Pro boasts IP68 water and dust resistance, making it suitable for outdoor use and protection against splashes and dust. While durable, avoid intentional submersion or exposure to high-pressure water jets.

5.2. ການດູແລທົ່ວໄປ

• ຮັກສາອຸປະກອນຂອງທ່ານໃຫ້ສະອາດໂດຍການເຊັດດ້ວຍຜ້າອ່ອນ, ແຫ້ງ.
• ຫຼີກ​ລ້ຽງ​ການ​ເປີດ​ໂທລະ​ສັບ​ກັບ​ອຸນ​ຫະ​ພູມ​ທີ່​ຮ້າຍ​ແຮງ​ຫຼື​ແສງ​ແດດ​ໂດຍ​ກົງ​ເປັນ​ເວ​ລາ​ດົນ​ນານ​.
• Use only FOSSIBOT-approved accessories for charging and connectivity.

6. ການແກ້ໄຂບັນຫາ

If you encounter issues with your FOSSIBOT S5 Pro, try the following basic troubleshooting steps:

• ອຸປະກອນບໍ່ຕອບສະໜອງ: ກົດປຸ່ມເປີດປິດຄ້າງໄວ້ປະມານ 10-15 ວິນາທີເພື່ອບັງຄັບໃຫ້ຣີສະຕາດ.
• ບັນຫາການສາກໄຟ: Ensure the USB cable and power adapter are securely connected and functioning correctly. Try a different outlet or charger.
• ບັນຫາການເຊື່ອມຕໍ່ເຄືອຂ່າຍ: Check if your SIM card is properly inserted. Verify that mobile data or Wi-Fi is enabled. Restart your phone.
• ແອັບຂັດຂ້ອງ: ລຶບລ້າງແຄສ ແລະຂໍ້ມູນສຳລັບແອັບທີ່ມີບັນຫາໃນການຕັ້ງຄ່າ > ແອັບ. ຖ້າບັນຫາຍັງຄົງຢູ່, ຖອນການຕິດຕັ້ງ ແລະຕິດຕັ້ງແອັບຄືນໃໝ່.
• ປະສິດທິພາບຊ້າ: Close unnecessary background apps. Clear cached data regularly. Consider performing a factory reset as a last resort (back up your data first).

ສຳລັບການຊ່ວຍເຫຼືອເພີ່ມເຕີມ, ໃຫ້ອ້າງອີງເຖິງພາກສ່ວນການຮັບປະກັນ ແລະ ການສະໜັບສະໜູນ.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

Your FOSSIBOT S5 Pro comes with a ຮັບປະກັນ 2 ປີ. For any inquiries or assistance, FOSSIBOT provides 24/7 online after-sales support with real-time response.

For more information or to contact support, please visit the official FOSSIBOT webເວັບໄຊ ຫຼືອ້າງອີງໃສ່ບັດຮັບປະກັນລວມຢູ່ໃນຊຸດຂອງທ່ານ.

ນອກນັ້ນທ່ານຍັງສາມາດໄປຢ້ຽມຢາມໄດ້ FOSSIBOT Store on Amazon.
