LEKATO Mini Guitar Amp GA-4 Instruction Manual

ແນະນຳ

Thank you for choosing the LEKATO Mini Guitar Amp GA-4. This portable 10W electric guitar amplifier features a built-in drum machine, Bluetooth connectivity, and a rechargeable battery, making it ideal for practice and travel. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and longevity of your device.

ສິນຄ້າເກີນview

ການຄວບຄຸມກະດານດ້ານຫນ້າ

ລາຍລະອຽດຮູບພາບ: ໃກ້ຊິດ view of the LEKATO GA-4 Mini Guitar Amp's front panel. Visible controls include the Input jack, Volume knob, a button for Clean/Overdrive selection, Gain knob, Tone knob, TAP button, and a combined Reverb/Drum Volume/Rhythm knob. The LEKATO logo and model number GA-4 are also visible.

• Jack ຂາເຂົ້າ: Connect your guitar cable here.
• ປຸ່ມລະດັບສຽງ: ຄວບຄຸມປະລິມານຜົນຜະລິດໂດຍລວມຂອງ amplifier. Rotate clockwise to power on/increase volume, counter-clockwise to decrease volume/power off.
• Clean/Overdrive Button: Toggles between clean and overdrive tone channels.
• ໄດ້ຮັບປຸ່ມ: Adjusts the amount of distortion or saturation in the signal, particularly effective in Overdrive mode.
• ປຸ່ມໂທນ: ປັບລັກສະນະສຽງ, ຈາກສີເຂັ້ມໄປຫາສຽງທີ່ສະຫວ່າງກວ່າ.
• ປຸ່ມແຕະ: Multi-function button for drum machine and reverb control.
• Reverb/Drum Vol/Rhythm Knob: Adjusts reverb depth, drum volume, or drum pattern depending on the TAP button mode.

ພອດແຜງດ້ານຫຼັງ

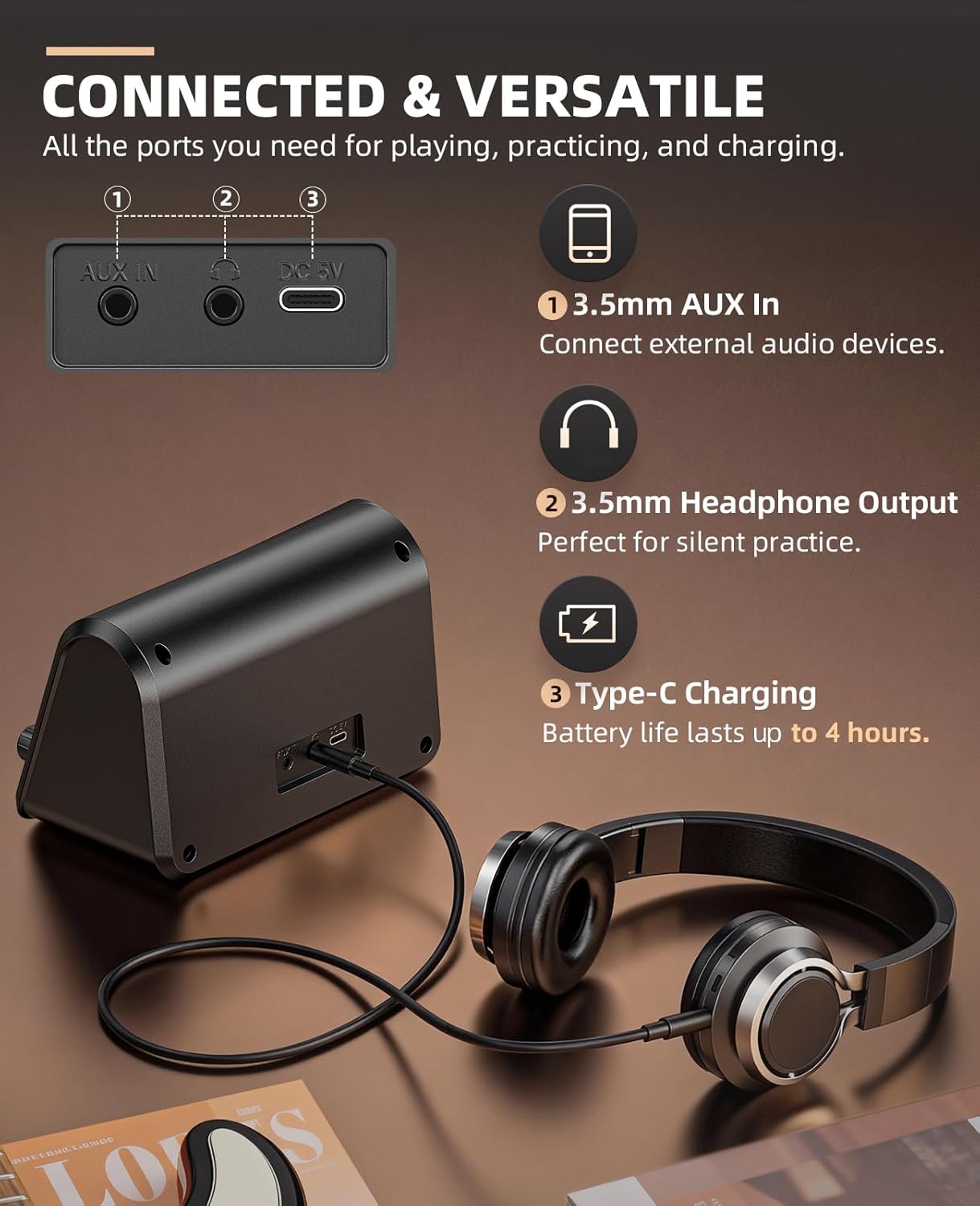

ລາຍລະອຽດຮູບພາບ: ໃກ້ຊິດ view of the rear panel of the LEKATO GA-4 Mini Guitar Amp. It clearly shows three ports: a 3.5mm AUX In, a 3.5mm Headphone Output, and a DC 5V Type-C Charging Port.

• 3.5mm AUX In: Connect external audio devices like smartphones or MP3 players to play backing tracks.
• ຮູຫູຟັງ 3.5 ມມ: ເຊື່ອມຕໍ່ຫູຟັງເພື່ອປະຕິບັດການງຽບ.
• DC 5V Type-C Charging Port: Connect the provided Type-C cable for charging the internal battery.

ຕັ້ງຄ່າ

ການສາກໄຟ Ampມີຊີວິດຊີວາ

ກ່ອນການນຳໃຊ້ຄັ້ງທຳອິດ, ໃຫ້ສາກໄຟໃຫ້ເຕັມ amplifier. Connect the provided Type-C charging cable to the DC 5V Type-C Charging Port on the rear panel and plug the other end into a compatible USB power adapter (not included). The charging indicator light will show charging status. A full charge takes approximately 2 hours and provides up to 4 hours of continuous play.

ລາຍລະອຽດຮູບພາບ: The LEKATO GA-4 Mini Guitar Amp is shown on a wooden table with a Type-C charging cable connected. Text overlays highlight 'Up to 4 Hours of Playtime', '2000mAh battery capacity', 'Type-C charging port', '2 hours charging time', and '4 hours battery life'.

ເປີດ/ປິດ

ເພື່ອພະລັງງານໃນ amplifier, rotate the ປະລິມານດັງ clockwise. To power off, rotate the ປະລິມານດັງ counter-clockwise until it clicks off.

ຄໍາແນະນໍາການດໍາເນີນງານ

ການເຊື່ອມຕໍ່ກີຕ້າຂອງທ່ານ

Plug your guitar cable into the ປ້ອນຂໍ້ມູນ Jack ໃນກະດານທາງຫນ້າ.

ຊ່ອງທີ່ສະອາດແລະຂັບເກີນ

ໄດ້ amplifier features two distinct tone channels: Clean and Overdrive. Press the Clean/Overdrive Button to switch between these modes. The Clean mode provides a clear, uncolored sound suitable for various genres, while the Overdrive mode delivers a more saturated, distorted tone for rock and punk styles.

ລາຍລະອຽດຮູບພາບ: A diagram illustrating the Clean and Overdrive channels of the LEKATO GA-4. It highlights the Volume, Gain, Tone, and Reverb knobs, indicating their role in shaping the sound for both channels.

• ໃຊ້ ຮັບປຸ່ມ to adjust the intensity of the overdrive effect.
• ໃຊ້ ປຸ່ມໂທນ to fine-tune the treble and bass frequencies.

Built-in Drum Machine and Reverb

The GA-4 includes a drum machine with 30 rhythm patterns and a tap tempo function, along with a dedicated reverb effect.

ລາຍລະອຽດຮູບພາບ: ລາຍລະອຽດ view of the LEKATO GA-4's TAP button and Reverb/Drum knob. Instructions are provided for the TAP button: 1 press to activate, 3 presses to set tempo, long press to turn off. It also explains how rotating the knob after pressing TAP controls Guitar Reverb (green LED), Drum Volume (red LED), and Drum Pattern (green LED).

• Activating/Deactivating Drum Machine: ກົດ ແຕະປຸ່ມ once to activate the drum machine. Press it again to deactivate.
• ການ​ຕັ້ງ​ຄ່າ Tempo​: ກົດ ແຕະປຸ່ມ three times in quick succession to set the tempo of the drum pattern. The LED indicator will flash to confirm the tempo.
• Adjusting Reverb: ກົດ ແຕະປຸ່ມ once (green LED for Guitar Reverb) and then rotate the Reverb/Drum Vol/Rhythm Knob to adjust the reverb depth.
• Adjusting Drum Volume: ກົດ ແຕະປຸ່ມ until the red LED illuminates (Drum Volume) and then rotate the Reverb/Drum Vol/Rhythm Knob to adjust the drum volume.
• Changing Drum Pattern: ກົດ ແຕະປຸ່ມ until the green LED illuminates (Drum Pattern) and then rotate the Reverb/Drum Vol/Rhythm Knob to cycle through the 30 available drum patterns.
• Turning off TAP functions: ກົດຄ້າງໄວ້ ແຕະປຸ່ມ to turn off all TAP-related functions.

ການເຊື່ອມຕໍ່ Bluetooth

The GA-4 features Bluetooth 5.3 for wireless audio streaming from your smartphone or other Bluetooth-enabled devices.

ລາຍລະອຽດຮູບພາບ: The LEKATO GA-4 Mini Guitar Amp is shown on a table next to a smartphone playing music, with a Bluetooth icon indicating wireless connection. Dimensions of the amp ຍັງຖືກສະແດງ.

• ຮັບປະກັນ amplifier ເປີດຢູ່.
• ໃນອຸປະກອນຂອງທ່ານ, ເປີດໃຊ້ Bluetooth ແລະຊອກຫາອຸປະກອນທີ່ມີຢູ່.
• ເລືອກ "LEKATO GA-4" from the list to pair.
• Once connected, you can stream music through the amplifier to play along with.

ການປ້ອນຂໍ້ມູນ AUX

Use the 3.5mm AUX In port to connect non-Bluetooth audio sources like MP3 players or older smartphones with a 3.5mm audio cable.

Headphone Output for Silent Practice

For private practice sessions, connect your 3.5mm headphones to the ອອກຫູຟັງ jack on the rear panel. This mutes the main speaker output, allowing you to practice without disturbing others.

ລາຍລະອຽດຮູບພາບ: A person is shown sitting on a couch, playing an electric guitar, with the LEKATO GA-4 Mini Guitar Amp placed on a coffee table. They are wearing headphones connected to the amp, illustrating the silent practice feature.

ບໍາລຸງຮັກສາ

• ຮັກສາ amplifier clean by wiping it with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• ຫຼີກເວັ້ນການເປີດເຜີຍ ampທົນທານຕໍ່ອຸນຫະພູມ, ຄວາມຊຸ່ມຊື່ນ ຫຼື ແສງແດດໂດຍກົງ.
• ເກັບຮັກສາໄວ້ amplifier in a dry, cool place when not in use.
• Do not attempt to disassemble or repair the unit yourself, as this will void the warranty and may cause damage.

ການແກ້ໄຂບັນຫາ

• ບໍ່ມີສຽງ:
  • ຮັບປະກັນ ampເຄື່ອງເປີດເຄື່ອງ ແລະ ປຸ່ມປັບລະດັບສຽງຖືກເປີດຂຶ້ນ.
  • Check that your guitar cable is securely connected to both the guitar and the amplifier's input jack.
  • If using headphones, ensure they are fully plugged into the headphone output.
  • Verify that the guitar's volume knob is turned up.
• Poor Sound Quality/Distortion (unexpected):
  • ກວດເບິ່ງ ຮັບປຸ່ມ setting; reduce if the sound is too distorted in Clean mode.
  • Ensure the guitar cable is not faulty.
  • ກວດເບິ່ງການລົບກວນຈາກອຸປະກອນເອເລັກໂຕຣນິກອື່ນໆ.
• ບັນຫາການເຊື່ອມຕໍ່ Bluetooth:
  • Ensure Bluetooth is enabled on your device and the amplifier is within range.
  • Forget "LEKATO GA-4" from your device's Bluetooth settings and try pairing again.
  • ເປີດໃໝ່ທັງສອງ ampເຄື່ອງຂະຫຍາຍສຽງ ແລະ ອຸປະກອນ Bluetooth ຂອງທ່ານ.
• Drum Machine Not Working:
  • ກົດ ແຕະປຸ່ມ once to activate the drum machine.
  • Ensure the drum volume is not set to zero.
• AmpLifier ບໍ່ໄດ້ສາກໄຟ:
  • Verify the Type-C cable is securely connected to both the amplifier ແລະແຫຼ່ງພະລັງງານ.
  • ລອງໃຊ້ສາຍ Type-C ຫຼືອະແດັບເຕີໄຟ USB ອື່ນ.

ຂໍ້ມູນຈໍາເພາະ

ແມ່ນຫຍັງຢູ່ໃນກ່ອງ

ລາຍລະອຽດຮູບພາບ: The image displays the LEKATO GA-4 Mini Guitar Amp, its retail box, a Type-C charging cable, and a printed manual, indicating the items included in the package.

• LEKATO Mini Guitar Amplifier (GA-4) x1
• ສາຍສາກໄຟ Type-C x1
• ຄູ່ມືຜູ້ໃຊ້ x1

ຂໍ້ມູນຄວາມປອດໄພທີ່ສໍາຄັນ

• ອ່ານຄໍາແນະນໍາທັງຫມົດກ່ອນທີ່ຈະນໍາໃຊ້ຜະລິດຕະພັນ.
• ຫ້າມບໍ່ໃຫ້ອຸປະກອນຖືກຝົນ, ຄວາມຊຸ່ມຊື່ນ, ຫຼືອຸນຫະພູມທີ່ຮຸນແຮງ.
• ຫ້າມປິດຊ່ອງລະບາຍອາກາດໃດໆ.
• ໃຊ້ພຽງແຕ່ໄຟລ໌ແນບ/ອຸປະກອນເສີມທີ່ລະບຸໂດຍຜູ້ຜະລິດ.
• ປົກປ້ອງສາຍໄຟຈາກການຖືກເປີດ ຫຼື ສຽບ.
• ຖອດອຸປະກອນນີ້ອອກໃນລະຫວ່າງການມີພາຍຸຟ້າຜ່າ ຫຼືເມື່ອບໍ່ໄດ້ໃຊ້ເປັນເວລາດົນນານ.
• ອ້າງອີງການບໍລິການທັງໝົດໃຫ້ກັບພະນັກງານບໍລິການທີ່ມີຄຸນວຸດທິ.

ວິດີໂອຜະລິດຕະພັນ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

LEKATO products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided on the LEKATO official website or contact your retailer. Please retain your proof of purchase for warranty claims.
