Dexnor Keyboard Case User Manual

1. ບົດແນະນຳ

Thank you for choosing the Dexnor Keyboard Case. This manual provides essential information for setting up, operating, and maintaining your keyboard case to ensure optimal performance and longevity.

ແມ່ນຫຍັງຢູ່ໃນກ່ອງ

• Slim Folio Magnetic Keyboard Case
• ສາຍ USB
• ຄູ່ມືເລີ່ມຕົ້ນໄວ
• ຄູ່ມືຜູ້ໃຊ້

ຄວາມເຂົ້າກັນໄດ້

ເຄສແປ້ນພິມນີ້ຖືກອອກແບບມາສຳລັບ iPad ລຸ້ນຕໍ່ໄປນີ້:

• iPad Air 11-inch 2025 M3 (Models: A3266/A3267/A3270)
• iPad Air 11-inch 2024 M2 (Models: A2902/A2903/A2904)
• iPad Pro 11-inch 2022 4th Gen (Models: A2435/A2759/A2761/A2762)
• iPad Pro 11-inch 2021 3rd Gen (Models: A2377/A2301/A2459/A2460)
• iPad Pro 11-inch 2020 2nd Gen (Models: A2228/A2068/A2231)
• iPad Pro 11-inch 2018 1st Gen (Models: A1980/A2013/A1934/A1979)
• iPad Air 5th Gen 2022 (Models: A2588/A2589/A2591)
• iPad Air 4th Gen 2020 (Models: A2072/A2316/A2324/A2325)

Please double-check the 'A' code on the back of your device for compatibility. This case is NOT compatible with iPad Pro 11 M4/M5 2024/2025 or iPad (A16) 11th/10th Gen. iPad and Apple Pencil are not included.

Image: Compatibility chart for Dexnor Keyboard Case.

2. ຕັ້ງຄ່າ

2.1 ການຕິດຕັ້ງ iPad ຂອງທ່ານ

1. ເປີດກໍລະນີແປ້ນພິມ.
2. Align your compatible iPad with the magnetic back cover of the case. The strong magnets will securely attach the iPad.
3. Position the bottom edge of your iPad into the designated slot on the keyboard for a stable viewing angle. The ergonomic 120-degree viewing angle is designed for comfort during study, work, and entertainment.

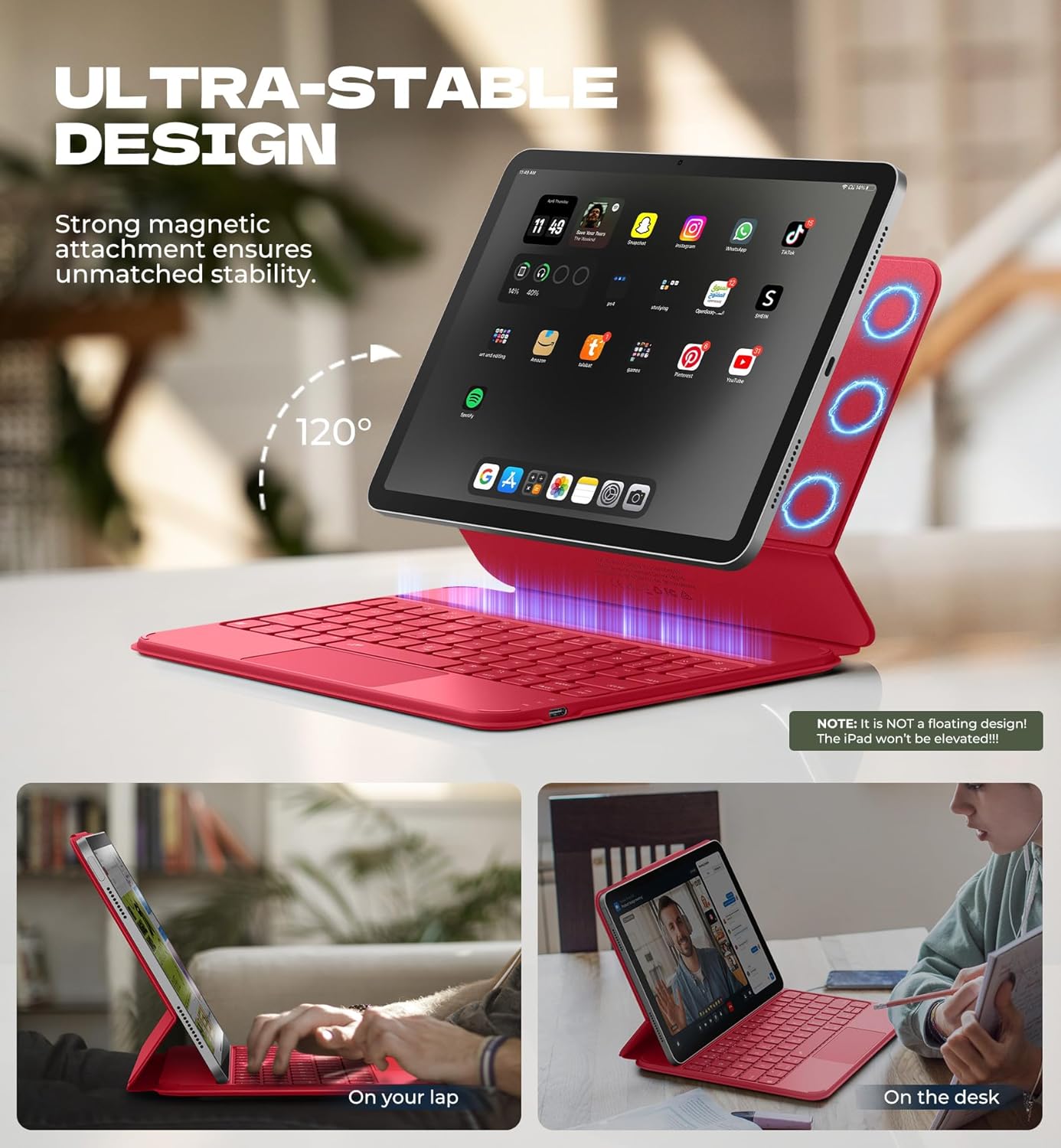

Image: iPad attached to the keyboard case, demonstrating the stable viewມຸມ ing.

2.2 ການຈັບຄູ່ Bluetooth

1. Ensure your keyboard case is charged.
2. Turn on the keyboard using the side power button.
3. ໃນ iPad ຂອງທ່ານ, ໄປທີ່ ການຕັ້ງຄ່າ > Bluetooth and turn Bluetooth ON.
4. ກົດ Fn ທີ່​ສໍາ​ຄັນ​ແລະ​ ຄູ່ key (often indicated by a Bluetooth symbol) simultaneously on the keyboard. The Bluetooth indicator light on the keyboard will flash.
5. On your iPad, locate "Dexnor Keyboard" in the "Other Devices" list and tap to connect. A pairing request pop-up will appear; tap "Pair".
6. Once connected, the Bluetooth indicator light on the keyboard will stop flashing, and your iPad will show "Connected" next to "Dexnor Keyboard".

3. ຄໍາແນະນໍາການດໍາເນີນງານ

3.1 ຄຸນສົມບັດແປ້ນພິມ

• ກະແຈ Backlit: The keyboard features a single-color backlight with 3 adjustable brightness levels for comfortable typing in low-light conditions. Use the dedicated backlight keys (often Fn + light icon) to adjust brightness.
• ປຸ່ມຟັງຊັນ: Utilize the function keys for quick access to iPad features such as media control, volume adjustment, and screen lock.
• Auto-Wake/Sleep: The case supports auto-wake/sleep functionality, preserving battery life by automatically turning your iPad screen on or off when the case is opened or closed.

3.2 Multi-touch Trackpad

The integrated multi-touch trackpad provides precise navigation and supports various gestures for a laptop-like experience on your iPad.

• ຊູມເຂົ້າ/ອອກ: Use pinch gestures on the trackpad.
• ຈັດການ Files: Utilize standard trackpad gestures for file ນໍາທິດແລະການຄັດເລືອກ.
• ຄົ້ນຫາ Webໜ້າ: Scroll and navigate with ease.
• ສະຫຼັບແອັບ: Use multi-finger gestures to switch between applications.
• Disable Trackpad: To prevent accidental touches during typing, press Fn + Spacebar to disable or enable the trackpad.

Image: Multi-touch trackpad with gesture illustrations.

Image: Backlit keyboard keys.

4. ບໍາລຸງຮັກສາ

4.1 ການດູແລຫມໍ້ໄຟ

The keyboard case is equipped with a 650mAh lithium polymer battery. To maximize battery life:

• Charge the keyboard using the provided USB cable when the battery indicator is low.
• ຫຼີກ​ລ້ຽງ​ການ​ປະ​ຈຸ​ຫມໍ້​ໄຟ​ຢ່າງ​ເຕັມ​ທີ່​ເລື້ອຍໆ​.
• ເກັບຮັກສາແປ້ນພິມໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງເມື່ອບໍ່ໄດ້ໃຊ້ເປັນເວລາດົນນານ.

Expected battery performance:

• ເວລາສະແຕນບາຍເຖິງ 720 ຊົ່ວໂມງ.
• Up to 200 hours of use without backlight.
• Up to 10 hours of continuous use with the brightest backlight setting.

4.2 ການທໍາຄວາມສະອາດ

To clean your keyboard case:

• ເຊັດພາຍນອກດ້ວຍຜ້າອ່ອນ, ງamp ຜ້າ.
• ຫຼີກເວັ້ນການນໍາໃຊ້ສານເຄມີທີ່ຮຸນແຮງຫຼືເຄື່ອງເຮັດຄວາມສະອາດຂັດ.
• Ensure no moisture enters the keyboard or charging port.

5. ການແກ້ໄຂບັນຫາ

ແປ້ນພິມບໍ່ໄດ້ເຊື່ອມຕໍ່ຜ່ານ Bluetooth

• ກວດ​ສອບ​ຫມໍ້​ໄຟ​: ໃຫ້ແນ່ໃຈວ່າແປ້ນພິມຖືກສາກໄຟພຽງພໍ.
• ປິດເປີດແປ້ນພິມຄືນໃໝ່: ປິດແປ້ນພິມແລ້ວເປີດອີກຄັ້ງ.
• ຈັບຄູ່ Bluetooth ຄືນໃໝ່: Go to your iPad's Bluetooth settings, forget the "Dexnor Keyboard" device if it appears, and then repeat the pairing steps in Section 2.2.
• ຣີສະຕາດ iPad: Sometimes a simple iPad restart can resolve connectivity issues.

ແທຣັກແພດບໍ່ຕອບສະໜອງ

• Check if Disabled: Ensure the trackpad is not disabled (press Fn + Spacebar ເພື່ອສະຫຼັບ).
• ແຜ່ນແທຣັກສະອາດ: ໃຫ້ແນ່ໃຈວ່າພື້ນຜິວແທຣັກແພັດສະອາດ ແລະບໍ່ມີສິ່ງເສດເຫຼືອ.
• Restart Keyboard/iPad: Perform a restart of both devices.

ປຸ່ມບໍ່ຕອບສະໜອງ

• ກວດ​ສອບ​ຫມໍ້​ໄຟ​: A low battery can cause keys to become unresponsive.
• ຈັບຄູ່ Bluetooth ຄືນໃໝ່: Follow the steps to re-pair the keyboard.
• ກະແຈທີ່ສະອາດ: ໃຫ້ແນ່ໃຈວ່າບໍ່ມີສິ່ງເສດເຫຼືອຢູ່ໃນກະແຈ.

6. ຂໍ້ມູນຈໍາເພາະ

7. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Dexnor is committed to providing high-quality products and customer satisfaction. For any inquiries or support needs, please refer to the following:

• ການຮັບປະກັນ: This product comes with a 10-year warranty for phone/tablet cases.
• ນະໂຍບາຍການສົ່ງຄືນ: A 60-day return policy is available.
• Customer Support Response: Expect a response within 24 hours on business days and 48 hours on weekends/holidays.

For further assistance, please visit the official Dexnor store or contact customer service through your purchase platform.
