LIWAN TC18 4G LTE Cellular Solar Security Camera Instruction Manual

ແນະນຳ

Thank you for choosing the LIWAN TC18 4G LTE Cellular Solar Security Camera. This advanced outdoor security solution offers reliable surveillance in locations without Wi-Fi access, utilizing 4G LTE connectivity and continuous solar power. Designed for ease of use and robust performance, it features 2K HD color night vision, 360° pan and tilt capabilities, smart AI human detection, and two-way audio communication. This manual will guide you through the setup, operation, and maintenance of your new security camera.

ເນື້ອໃນຊຸດ

ກະ​ລຸ​ນາ​ກວດ​ສອບ​ວ່າ​ລາຍ​ການ​ທັງ​ຫມົດ​ທີ່​ລະ​ບຸ​ໄວ້​ຂ້າງ​ລຸ່ມ​ນີ້​ແມ່ນ​ລວມ​ຢູ່​ໃນ​ຊຸດ​ຂອງ​ທ່ານ​:

• ກ້ອງຖ່າຍຮູບຄວາມປອດໄພໂທລະສັບມືຖື
• ແຜງແສງອາທິດ
• ຄູ່ມືການສອນ
• ອຸປະກອນເສີມ (ສະກູ, ສະມໍ)
• ສາຍສາກ USB

ສິນຄ້າເກີນview

Familiarize yourself with the main components of your LIWAN TC18 camera:

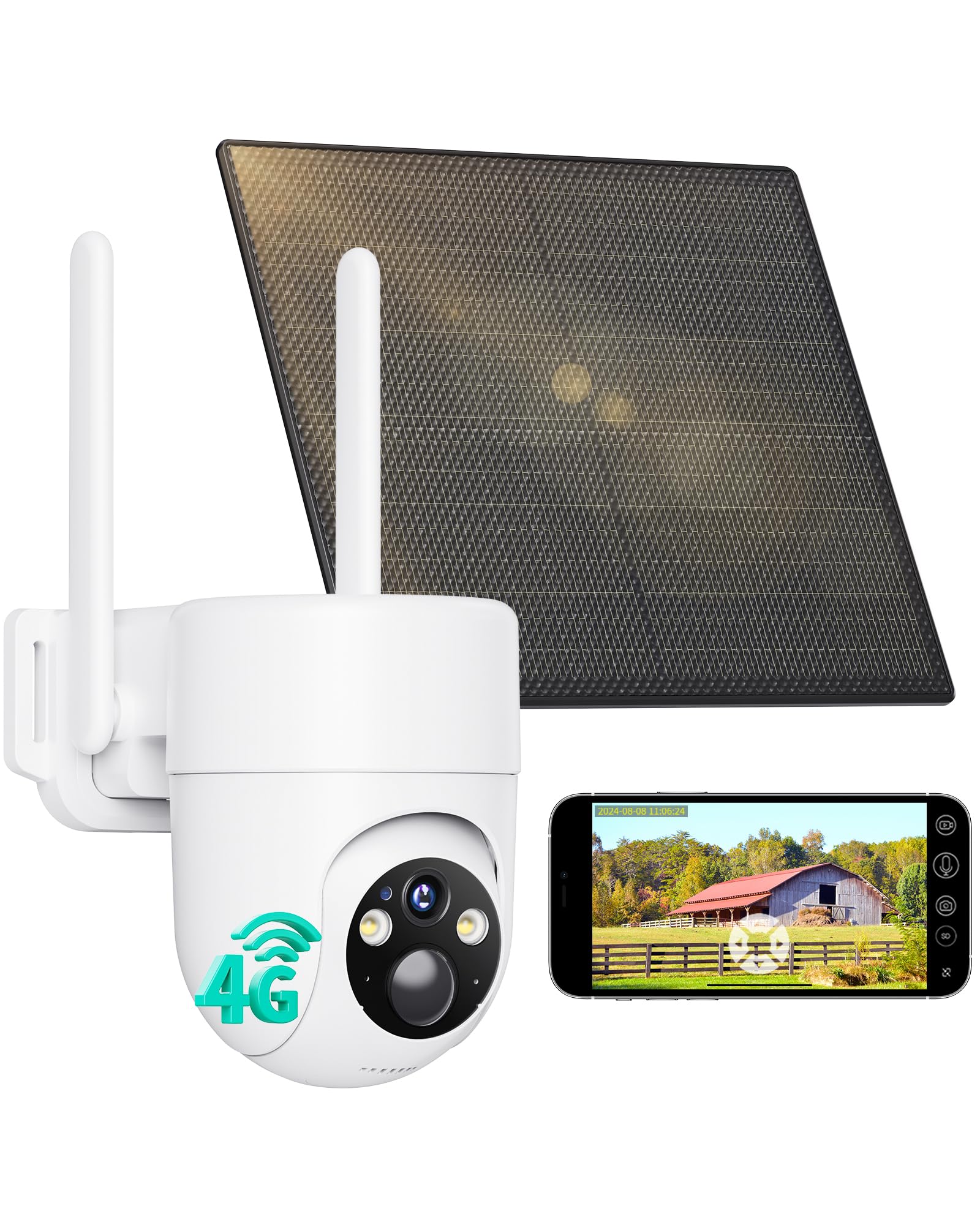

ຮູບພາບ: ດ້ານໜ້າ view of the LIWAN TC18 Cellular Solar Security Camera, showing the main lens, LED lights, and dual antennas.

ສ່ວນປະກອບຂອງກ້ອງຖ່າຍຮູບ

• ເລນກ້ອງຖ່າຍຮູບ: Captures 2K HD video footage.
• ໄຟ LED: ໃຫ້ແສງສະຫວ່າງສຳລັບການເບິ່ງເຫັນໃນຕອນກາງຄືນທີ່ມີສີສັນ ແລະ ເຮັດໜ້າທີ່ເປັນຕົວກີດຂວາງ.
• PIR Motion ເຊັນເຊີ: Detects heat signatures for accurate human detection.
• ໄມໂຄຣໂຟນ: Captures audio for two-way talk and recording.
• ລໍາໂພງ: Outputs audio for two-way talk and alarm siren.
• ເສົາອາກາດ: Enhance 4G LTE signal reception.
• Built-in SIM Card Slot: Pre-installed SIM card for 4G LTE connectivity (non-replaceable).
• ຊ່ອງໃສ່ Micro SD Card: Supports local storage up to 128GB (SD card not included).
• ປຸ່ມເປີດປິດ: ເປີດ/ປິດກ້ອງຖ່າຍຮູບ.
• ພອດສາກໄຟ USB-C: Connects to the solar panel or a USB power adapter for charging.
• ປຸ່ມຣີເຊັດ: ໃຊ້ເພື່ອຣີເຊັດກ້ອງຖ່າຍຮູບເປັນການຕັ້ງຄ່າໂຮງງານ.

ຮູບພາບ: ຂ້າງ view of the LIWAN TC18 camera, highlighting the SIM card slot, Micro SD card slot, and the power/reset buttons.

ຕັ້ງຄ່າ

1. ການຕິດຕັ້ງທາງດ້ານຮ່າງກາຍ

ເລືອກສະຖານທີ່ຕິດຕັ້ງທີ່ໃຫ້ການຮັບແສງແດດທີ່ດີທີ່ສຸດສຳລັບແຜງໂຊລາເຊວ ແລະ ຄວາມໂປ່ງໃສ view of the area you wish to monitor. Ensure the location has adequate 4G LTE signal strength.

• Mount the camera bracket securely to a wall or fence using the provided screws and anchors.
• Attach the solar panel bracket in a position that maximizes direct sunlight exposure throughout the day.
• Connect the solar panel's USB cable to the camera's USB-C charging port. Ensure the rubber stopper is properly sealed to maintain weather resistance.
• Adjust the camera's angle and solar panel's orientation for optimal performance.

ຮູບພາບ: LIWAN TC18 camera and solar panel mounted on an outdoor wall, illustrating a typical installation scenario.

2. Initial Power On & SIM Card Activation

The camera comes with a pre-installed SIM card. To activate and power on:

• Press and hold the power button until the indicator light turns red.
• Wait approximately 1 minute for the camera to establish a 4G LTE connection. The indicator light will turn solid blue once connected.
• The included SIM card offers a 7-day free data trial. After the trial, you can subscribe to unlimited data plans via the UBox app.

3. UBox App Setup

The UBox app is required to control and monitor your camera.

• ດາວ​ນ​໌​ໂຫລດ​ Ubox app ຈາກ app store ຂອງໂທລະສັບສະຫຼາດຂອງທ່ານ (iOS ຫຼື Android).
• ລົງທະບຽນສໍາລັບບັນຊີແລະເຂົ້າສູ່ລະບົບ.
• Tap "Add a Device" or the '+' icon in the app.
• Select "Setup 4G Device".
• Follow the on-screen prompts, ensuring the camera's blue indicator light is solid.
• Scan the QR code located on the camera using the app to pair the device.
• Once successfully paired, you can name your device and begin live viewing.

ຄໍາແນະນໍາການດໍາເນີນງານ

1. ມີຊີວິດ View and 360° Surveillance

Access the live video feed from your smartphone via the UBox app. Use the on-screen controls to pan 355° horizontally and tilt 100° vertically for comprehensive coverage. The camera also supports 4X digital zoom.

ຮູບພາບ: A smartphone screen showing the live 360-degree panoramic view from the LIWAN TC18 camera, with pan and tilt controls.

2. ສຽງສອງທາງ

Utilize the built-in microphone and speaker to communicate with visitors or deter intruders directly through the app's two-way talk feature.

3. 2K HD Color Night Vision

The camera provides crisp 2K HD footage day and night. It features a spotlight for full-color night vision, ensuring clear details even in low-light conditions. You can switch between different night vision modes (Color, IR, Smart) within the app.

ຮູບພາບ: Illustration of the three night vision modes: Color Night Vision (with spotlight), IR Night Vision (black and white), and Smart Night Vision (activates spotlight upon detection).

4. Smart AI Detection and Alerts

The camera's advanced PIR motion detection combined with AI human recognition reduces false alarms. Receive instant alerts on your phone when motion is detected. You can customize detection zones and schedule working times to limit alerts.

ຮູບພາບ: A smartphone displaying a motion detection alert from the LIWAN TC18 camera, showing a person walking in the detection zone.

5. Local and Cloud Storage

The camera supports both local storage via a Micro SD card (up to 128GB, not included) and cloud storage. A 30-day cloud storage trial is available for 10-second clips. View ສົດຫຼືບັນທຶກ footage anytime through the UBox app.

ບໍາລຸງຮັກສາ

1. ການດູແລຮັກສາແຜງໂຊລາເຊວ

Regularly clean the surface of the solar panel to ensure maximum sunlight absorption. Dust, dirt, or debris can reduce charging efficiency. Use a soft, damp cloth to wipe the panel.

2. ການຄຸ້ມຄອງຫມໍ້ໄຟ

The camera features a built-in high-capacity battery continuously charged by the solar panel. No manual charging is typically needed. Monitor battery levels via the UBox app to ensure continuous operation.

3. ທົນທານຕໍ່ສະພາບອາກາດ

The camera has an IP66 waterproof rating, ensuring reliable performance in various weather conditions. However, avoid submerging the camera in water.

ການແກ້ໄຂບັນຫາ

• ກ້ອງບໍ່ເປີດ: Ensure the power button is pressed and held. Check if the battery has sufficient charge (connect to a USB power source if needed).
• No 4G LTE connection: Verify that the indicator light is solid blue. If not, check your location for 4G LTE coverage. Ensure the SIM card data plan is active.
• App cannot find device: Ensure the camera is powered on and the blue indicator light is solid. Try resetting the camera using the reset button.
• ຄຸນນະພາບວິດີໂອບໍ່ດີ: Check your 4G LTE signal strength in the app. Ensure the camera lens is clean.
• ສັນຍານເຕືອນທີ່ບໍ່ຖືກຕ້ອງເລື້ອຍໆ: Adjust the AI detection sensitivity and customize detection zones within the UBox app.
• Solar panel not charging: Ensure the solar panel is clean and positioned for maximum direct sunlight exposure. Check the connection cable.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Your LIWAN TC18 Cellular Solar Security Camera is covered by the manufacturer's warranty. For detailed warranty information or technical support, please refer to the contact information provided in your product packaging or visit the official LIWAN webເວັບໄຊ.

ສໍາລັບການຊ່ວຍເຫຼືອເພີ່ມເຕີມ, ທ່ານອາດຈະໄປຢ້ຽມຢາມ LIWAN Store on Amazon.
