GODIYMODULES SMC05 Stepper/Servo Motor Driver Controller User Manual

1. ບົດແນະນຳ

The GODIYMODULES SMC05 is an integrated stepper and servo motor driver controller designed for precise control of motor rotation, speed, and angle. Featuring a 1.8-inch color screen and intuitive knob operation, this module supports a wide range of applications requiring accurate motor positioning and speed regulation. It offers multiple control modes and communication options for versatile integration into various systems.

SMC05 Stepper/Servo Motor Controller with 1.8-inch color screen and knob operation

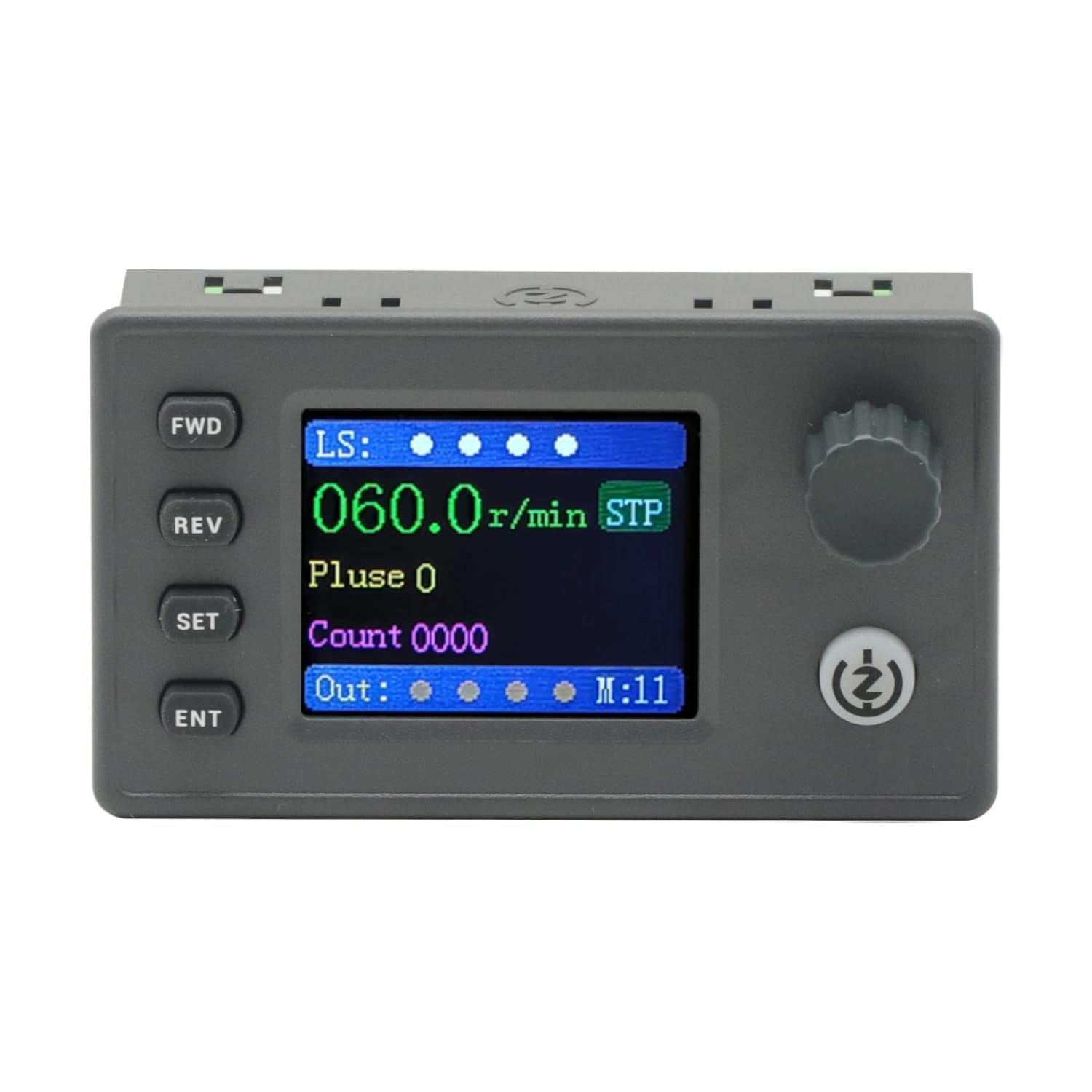

Figure 1: The SMC05 Stepper/Servo Motor Driver Controller, highlighting its 1.8-inch color screen, knob operation, and shortcut buttons.

2. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ

ການຄວບຄຸມປະສົມປະສານ: Combines stepper motor driver and servo motor control functionalities.
Vol ກວ້າງtage ຊ່ວງ: Operates with a working voltage ຂອງ 12-24V.
ການອອກແບບກະທັດຮັດ: Product dimensions are 83x48x35.5mm.
ສັນຍານອອກ: Features 4 output channels with 0V output voltage.
ສັນຍານເຂົ້າ: Includes 4 limit inputs and 3 extended key interfaces.
High Pulse Frequency: Supports motor pulse frequencies from 1Hz to 200,000Hz.
ຈໍສະແດງຜົນສີ: Equipped with a 1.8-inch color screen for clear information display.
Pulse Voltage: Motor pulse voltage is 0V output, collector output form.
ການສື່ສານ: Supports Modbus protocol via serial port/485.
ຫຼາຍໂໝດ: Supports 20 different motion control modes.
ສະຫນັບສະຫນູນພາສາ: Display in both Chinese and English.

SMC05 Stepper/Servo Motor Controller highlighting features like 20 sports modes, expansion button, limit switch, output control, and dual language display.

Figure 2: Key features of the SMC05 controller, including support for various modes and input/output capabilities.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

3.1 ການສະໜອງພະລັງງານ ແລະ ການເຊື່ອມຕໍ່

ຮັບປະກັນປະລິມານການເຮັດວຽກtage is within the specified range of 12-24V DC. Connect the power supply to the designated terminals. The controller features various input and output interfaces for connecting limit switches, expansion buttons, and motor drives.

Diagram showing the back interface of the SMC05 controller with labeled power supply, limit switch, expansion button, communication interface, output, and stepper/servo motor drive connections.

ຮູບທີ 3: ລາຍລະອຽດ view of the SMC05 controller's extension interface, indicating connections for power, limit switches, expansion buttons, communication, and motor outputs.

3.2 ສາຍໄຟມໍເຕີ

Proper wiring of the stepper or servo motor drive is crucial for correct operation. Refer to the wiring diagrams provided to ensure all connections are secure and correctly aligned with the motor and power source.

Wiring diagram illustrating the connection between the SMC05 controller, a microstep driver, and a stepper motor.

ຮູບທີ 4: ຕົວຢ່າງample wiring diagram for connecting the SMC05 controller to a microstep driver and a stepper motor.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

The SMC05 controller features a user-friendly interface with a 1.8-inch color screen, a rotary knob, and several control buttons for easy operation and parameter adjustment.

4.1 ກະດານຄວບຄຸມຫຼາຍກວ່າview

Labeled diagram of the SMC05 controller's front panel, showing the display, FWD, REV, SET, ENT buttons, rotary knob, and Start/Stop button, along with indicators for speed, communication, motor status, limit input, and output switch.

Figure 5: Front panel layout of the SMC05 controller with labels for all buttons, the rotary knob, and display indicators.

FWD Button: ເລີ່ມການຫມຸນໄປທາງໜ້າ.
REV Button: ເລີ່ມການຫມຸນກັບກັນ.
ປຸ່ມ SET: Enters the settings menu or exits current settings.
ENT Button: ຢືນຢັນການເລືອກ ຫຼືໃສ່ເມນູຍ່ອຍ.
ລູກປືນ Rotary: Adjusts parameters such as speed, pulse count, and navigates menus.
ປຸ່ມເລີ່ມ/ຢຸດ: Starts or stops motor operation.
ຈໍສະແດງຜົນ: Shows current speed, pulse count, motion mode, and various indicators.

4.2 ການດໍາເນີນງານພື້ນຖານ

ເປີດ: Connect the 12-24V DC power supply. The screen will light up.
ການຕັ້ງຄ່າພາລາມິເຕີ: ກົດ SET button to enter the settings menu. Use the rotary knob to navigate through options like ການປະຕິບັດ, ມໍເຕີ, ແລະ ລະບົບ. ກົດ ENT ເພື່ອເລືອກ.
Adjusting Speed/Pulse: ພາຍໃນ ການປະຕິບັດ or ມໍເຕີ settings, you can adjust parameters such as forward pulse, forward speed, reverse pulse, and reverse speed using the rotary knob.
Starting Motor: Once parameters are set, press the ເລີ່ມ/ຢຸດ button to begin motor operation. The motor will rotate according to the configured speed and direction.
ການປ່ຽນແປງທິດທາງ: ໃຊ້ FWD ແລະ REV buttons to change the motor's rotation direction during operation.
Stopping Motor: ກົດ ເລີ່ມ/ຢຸດ button again to halt motor movement.

4.3 Advanced Features Demonstration

The following video demonstrates various operational aspects and advanced features of the SMC05 controller, including interface navigation, stepper motor control, use of expansion buttons, limit switches, and output control, as well as servo motor drive integration.

Video 1: Demonstration of the SMC05 controller's interface, stepper motor drive, expansion button functionality, limit switch activation, output control, and servo motor drive operation.

5. ຂໍ້ມູນຈໍາເພາະ

ຄຸນສົມບັດ	ຂໍ້ມູນຈໍາເພາະ
ຂະໜາດສິນຄ້າ	3.27 x 1.89 x 1.4 ນິ້ວ (83x48x35.5mm)
ນ້ໍາຫນັກລາຍການ	3.27 ອອນ
ການເຮັດວຽກ Voltage	12-24V ຊິງຕັນດີຊີ
ສັນຍານອອກ	4 channels, 0V output voltage
ສັນຍານການປ້ອນຂໍ້ມູນ	4 limit inputs, 3 extended key interfaces
ຄວາມຖີ່ຂອງກຳມະຈອນມໍເຕີ	1Hz - 200,000Hz
ປະເພດການສະແດງ	ຈໍສີ 1.8 ນິ້ວ
ແຮງດັນຂອງກຳມະຈອນມໍເຕີtage	ຜົນຜະລິດ 0V, ຮູບແບບຜົນຜະລິດຂອງຕົວເກັບກຳ
ອະນຸສັນຍາການສື່ສານ	Modbus (serial port/485)
ອົງປະກອບລວມ	1PCS SMC05 Controller

6. ບໍາລຸງຮັກສາ

To ensure the longevity and optimal performance of your SMC05 controller, follow these maintenance guidelines:

ຮັກສາອຸປະກອນໃຫ້ສະອາດ ແລະບໍ່ມີຂີ້ຝຸ່ນ ແລະສິ່ງເສດເຫຼືອ. ໃຊ້ຜ້າອ່ອນໆ, ແຫ້ງເພື່ອທໍາຄວາມສະອາດ.
ຫຼີກເວັ້ນການເປີດເຜີຍຕົວຄວບຄຸມກັບອຸນຫະພູມທີ່ຮຸນແຮງ, ຄວາມຊຸ່ມຊື່ນ, ຫຼືແສງແດດໂດຍກົງ.
Ensure all connections are secure and free from corrosion. Periodically check wiring for any signs of wear or damage.
ຢ່າພະຍາຍາມເປີດ casing or modify the internal components, as this may void the warranty and cause damage.

7. ການແກ້ໄຂບັນຫາ

If you encounter issues with your SMC05 controller, refer to the following common troubleshooting steps:

ບໍ່ມີພະລັງງານ: Check the power supply connection and ensure it provides the correct voltage (12-24V DC). Verify the power adapter is functioning.
ມໍເຕີບໍ່ເຄື່ອນທີ່:
- Ensure the motor is correctly wired to the driver and the driver to the controller.
- Check if the motor parameters (speed, pulse) are set correctly on the controller.
- Verify that the Start/Stop button has been pressed to initiate movement.
- Check for any active limit switch inputs that might be preventing movement.
Incorrect Speed/Direction: Review the speed and direction settings in the controller's menu. Ensure the FWD/REV buttons are used appropriately.
ສະແດງບັນຫາ: If the screen is blank or shows errors, try restarting the device. If the problem persists, contact support.
Communication Errors (Modbus): Verify the serial port/485 connections and ensure the communication parameters (baud rate, parity, etc.) are correctly configured on both the controller and the connected device.

For persistent issues not resolved by these steps, please contact GODIYMODULES customer support.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Information regarding specific warranty terms for the GODIYMODULES SMC05 controller is not available in the provided product data. Please refer to the product packaging or the manufacturer's official webເວັບໄຊທ for ສໍາລັບຂໍ້ມູນການຮັບປະກັນລະອຽດ.

For technical support, troubleshooting assistance, or inquiries about the product, please contact GODIYMODULES customer service through their official channels.
