ແນະນຳ
Thank you for choosing the HUINA 1/14 RC Electric Excavator 1535. This remote-controlled digger is designed for enthusiasts aged 14 and up, offering a realistic and engaging experience with its 15-channel 2.4G radio control, sound effects, and light features. This manual provides essential information for safe setup, operation, and maintenance to ensure optimal performance and longevity of your model.

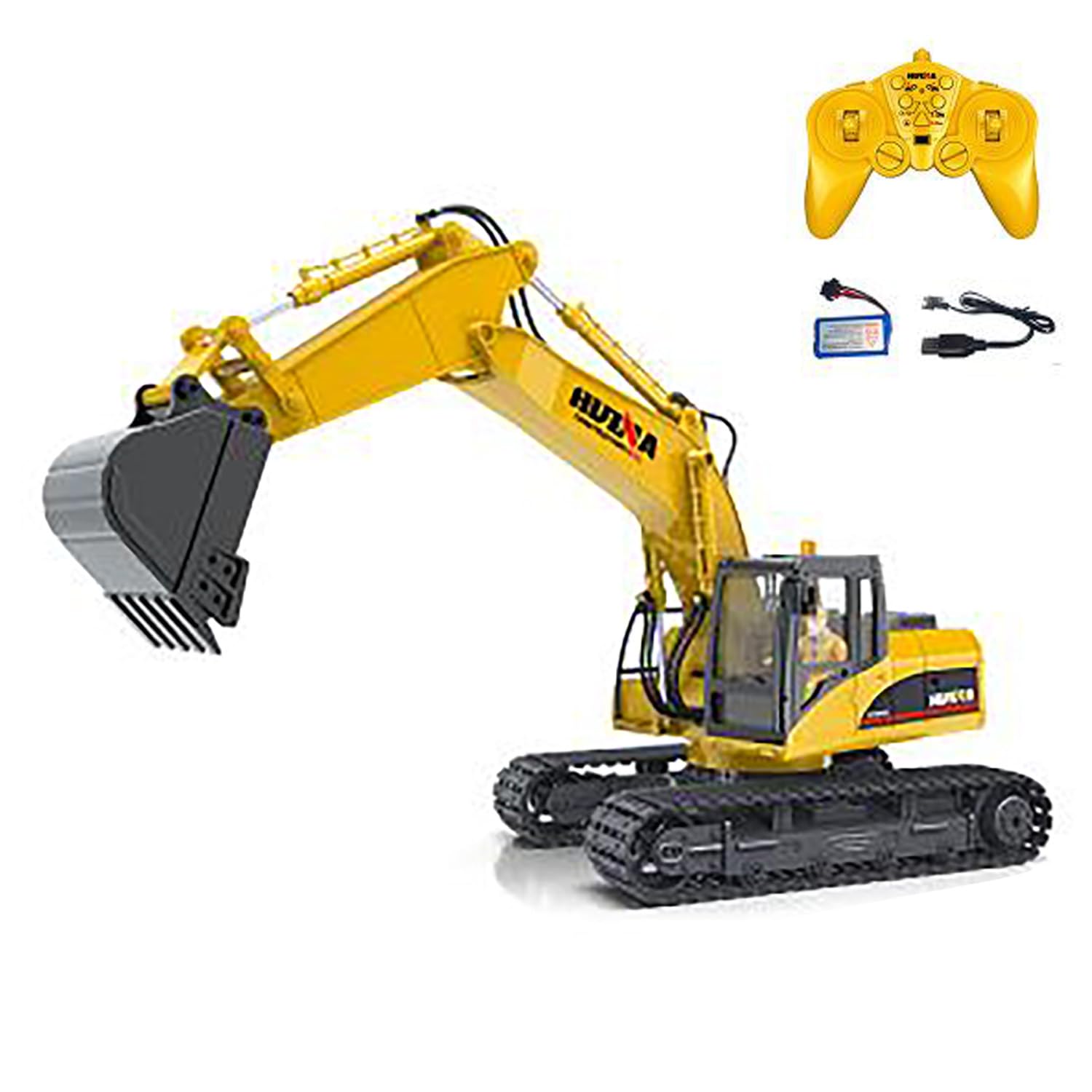

Figure 1: HUINA 1/14 RC Electric Excavator 1535.
ເນື້ອໃນຊຸດ
- 1/14 RC Excavator Truck Toy
- 2.4G Radio Controller (AA*2 batteries not included)
- Vehicle Battery (7.4V Li-Po)
- ສາຍສາກ USB
- Light & Sound Unit
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຜູ້ຜະລິດ | HUINA (wheelfun) |
| ຂະໜາດ | 1/14 |
| ໝາຍເລກຕົວແບບ | 1535 (TH25807-AMZUS2-S) |
| ວັດສະດຸ | ໂລຫະ, ພາດສະຕິກ |
| ຂະໜາດລົດ | ປະມານ. 48 x 30 x 17.5 cm (18.9 x 11.8 x 6.9 ນິ້ວ) |
| ນ້ໍາຫນັກລາຍການ | 6 ປອນ |
| ໝໍ້ໄຟລົດ | 7.4V Li-Po (Included) |
| ຫມໍ້ໄຟຄວບຄຸມໄລຍະໄກ | AA*2 (Not Included) |
| ເວລາຫຼິ້ນ | ປະມານ. 20-30 ນາທີ |
| ເວລາສາກໄຟ | 2 ຊົ່ວໂມງ |
| ໄລຍະໄກການຄວບຄຸມ | ປະມານ. 25 ແມັດ |
| ອາຍຸທີ່ແນະນໍາ | 14 ປີຂຶ້ນໄປ |
Figure 2: Excavator dimensions for reference.
ຂໍ້ມູນຄວາມປອດໄພ
- Always operate the excavator in a safe, open area away from people, pets, and obstacles.
- ຫ້າມໃຊ້ງານໃກ້ນ້ຳ ຫຼື ໃນສະພາບທີ່ປຽກເພື່ອປ້ອງກັນຄວາມເສຍຫາຍຈາກໄຟຟ້າ.
- ຮັກສານິ້ວມື, ຜົມ, ແລະເຄື່ອງນຸ່ງວ່າງໄວ້ຫ່າງຈາກພາກສ່ວນທີ່ເຄື່ອນຍ້າຍ.
- ກວດໃຫ້ແນ່ໃຈວ່າໄດ້ສາກແບັດເຕີຣີເຕັມກ່ອນການນຳໃຊ້ແຕ່ລະຄັ້ງເພື່ອປະສິດທິພາບສູງສຸດ.
- Supervise younger users, even if the recommended age is met.
- Turn off both the excavator and remote controller when not in use.
ຕັ້ງຄ່າ
1. ການຕິດຕັ້ງຫມໍ້ໄຟ
ໝໍ້ໄຟລົດ:
- Locate the battery compartment on the excavator.
- Carefully connect the provided 7.4V Li-Po battery to the excavator's power connector.
- Place the battery securely into the compartment and close the cover.
ຫມໍ້ໄຟຄວບຄຸມໄລຍະໄກ:
- Open the battery cover on the back of the 2.4G radio controller.
- ໃສ່ແບັດເຕີຣີ AA 2 ກ້ອນ (ບໍ່ລວມ), ຮັບປະກັນວ່າຂົ້ວທີ່ຖືກຕ້ອງ (+/-).
- ປິດຝາປິດຫມໍ້ໄຟ.
2. ການສາກແບັດເຕີຣີລົດ
- Connect the 7.4V Li-Po battery to the USB charging cable.
- ສຽບສາຍສາກໄຟ USB ເຂົ້າກັບແຫຼ່ງພະລັງງານ USB ທີ່ເຂົ້າກັນໄດ້ (ເຊັ່ນ: ຄອມພິວເຕີ, ອະແດບເຕີຕິດຝາ USB).
- ໄຟສະແດງການສາກໄຟຢູ່ໃນສາຍ USB ຈະສະແດງສະຖານະຂອງການສາກໄຟ (ເບິ່ງຄໍາແນະນໍາເຄື່ອງສາກສໍາລັບພຶດຕິກໍາແສງສະຫວ່າງສະເພາະ).
- Charging typically takes about 2 hours. Disconnect once fully charged.
3. Remote Controller Pairing
- Ensure the excavator's battery is installed and the power switch is OFF.
- ເປີດເຄື່ອງຄວບຄຸມໄລຍະໄກ.
- Turn ON the excavator's power switch.
- The remote controller and excavator should automatically pair. A successful connection is usually indicated by a solid light on the remote or a specific sound from the excavator.
- If pairing fails, turn both devices OFF, then repeat steps 2-4.
ການດໍາເນີນງານຂອງ Excavator
ການຄວບຄຸມພື້ນຖານ
The 15-channel remote controller allows for precise and full-function control of the excavator. Familiarize yourself with the joystick and button layout for optimal operation.
- ການເຄື່ອນໄຫວໄປໜ້າ/ຖອຍຫຼັງ: ໃຊ້ຈອຍສະຕິກເບື້ອງຊ້າຍເພື່ອຍ້າຍເຄື່ອງຂຸດໄປຂ້າງໜ້າ ຫຼື ທາງຫຼັງ.
- ການຊີ້ນໍາຊ້າຍ/ຂວາ: Use the left joystick to steer the excavator left or right while moving.
- Arm and Boom Control: The right joystick and various buttons control the independent movements of the bucket, boom, and arm for digging and lifting.
- Rotating Platform: Use dedicated buttons or joystick movements to rotate the excavator's cabin and arm assembly 360 degrees.
ຫນ້າທີ່ພິເສດ
- ແສງອັດສະລິຍະ: Activate the one-touch powerful illumination for clear vision during night operations or in low-light conditions.
- ຜົນກະທົບສຽງ: The excavator features realistic engine sounds and operational noises.
- ໂໝດສາທິດອັດຕະໂນມັດ: Press the auto-demo button to initiate a pre-programmed sequence of movements, showcasing the excavator's capabilities.
Figure 3: The excavator demonstrating its range of motion.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: After each use, especially if operated in dirt or sand, gently clean the excavator with a soft, dry cloth. Avoid water or harsh chemicals.
- ການເກັບຮັກສາ: Store the excavator and remote controller in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries from the remote controller if storing for extended periods.
- ການດູແລຫມໍ້ໄຟ: Do not overcharge or completely discharge the Li-Po battery. Follow charging guidelines to prolong battery life.
- ສະຫນັບສະຫນູນດ້ານວິຊາການ: For complex repairs or technical guidance, a professional after-sales and technical maintenance team is available to provide assistance in English via video or text.
ການແກ້ໄຂບັນຫາ
| ສະບັບ | ການແກ້ໄຂທີ່ເປັນໄປໄດ້ |
|---|---|
| ເຄື່ອງຂຸດບໍ່ເປີດ. | Ensure the vehicle battery is fully charged and correctly connected. Check the power switch. |
| ຣີໂໝດຄວບຄຸມບໍ່ຕອບສະໜອງ. | Check if AA batteries are correctly installed and have sufficient power. Ensure the remote is paired with the excavator. |
| Excavator loses connection. | Move closer to the excavator. Ensure no strong interference sources are nearby. Re-pair the remote controller. |
| Movements are sluggish or weak. | The vehicle battery may be low. Recharge the battery. |
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
The manufacturer uses solid packaging for all items. In case of damage upon arrival, a free replacement part can be resent. For any issues or technical assistance, a professional after-sales and technical maintenance team is available to provide guidance in English through video or text for repairs. Please contact the seller or manufacturer's support channels for further assistance.
