BRIKSMAX 2.0 Light Kit for Lego Harry Potter Hogsmeade Village 76457 Instruction Manual

ແນະນຳ

This manual provides detailed instructions for installing and operating your BRIKSMAX 2.0 LED Light Kit, designed specifically for the Lego Harry Potter Hogsmeade Village Collectors' Edition 76457 building set. This kit enhances your Lego model with integrated lighting, creating a vibrant display.

Image: Comparison of the Lego Hogsmeade Village set with the BRIKSMAX light kit turned on versus off, illustrating the visual enhancement.

ຂໍ້ມູນຄວາມປອດໄພ

• Ensure all connections are secure before powering on the kit.
• Do not expose wires or components to excessive force or sharp objects.
• Keep the kit away from water and high humidity.
• ຜະລິດຕະພັນນີ້ມີສ່ວນຂະຫນາດນ້ອຍແລະບໍ່ເຫມາະສົມສໍາລັບເດັກນ້ອຍອາຍຸຕ່ໍາກວ່າ 3 ປີ.
• Use only the specified power source (AA Battery Box or compatible USB power).

ມີຫຍັງແດ່

Your BRIKSMAX 2.0 Light Kit package includes the following components:

• LED Light Kit components
• Paper instructions (detailed installation guide)
• ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
• AA Battery Box (for power)
• ສາຍ USB (ສໍາລັບພະລັງງານ)

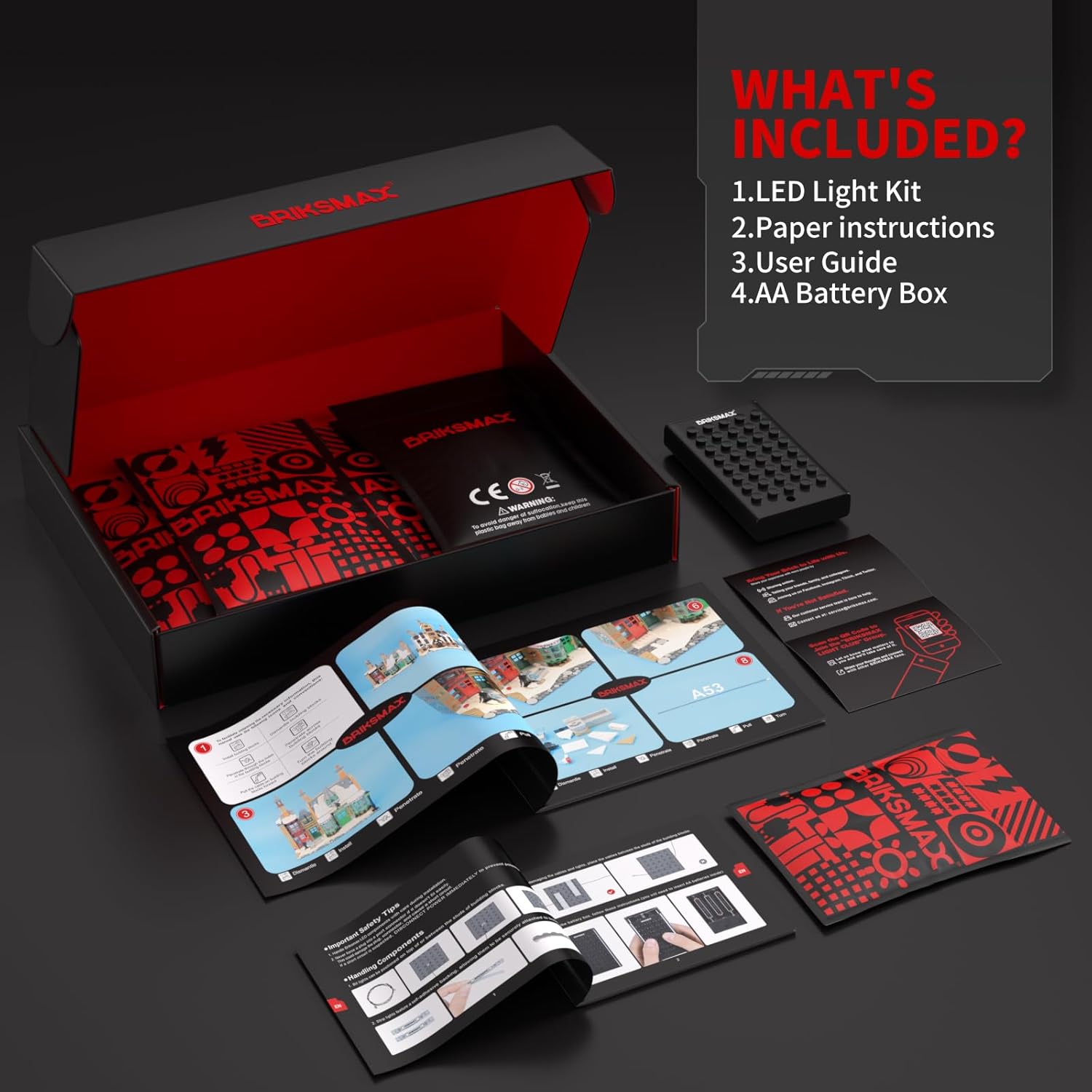

ຮູບພາບ: ຫຼາຍກວ່າview of the items included in the BRIKSMAX light kit package.

ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

Follow these steps to integrate the BRIKSMAX 2.0 Light Kit with your Lego Harry Potter Hogsmeade Village 76457 set. Refer to the included paper instructions for detailed, step-by-step visual guidance.

1. ການກະກຽມ: Ensure your Lego Hogsmeade Village set is fully assembled according to its original instructions.
2. ກໍານົດການຈັດວາງແສງສະຫວ່າງ: The paper instructions will guide you on where each LED light and wire should be placed within your Lego model.
3. ເຊື່ອມຕໍ່ໄຟ: Carefully connect the LED lights to the designated connection points. The larger plug heads are designed for easier connection.
4. ການຄຸ້ມຄອງສາຍໄຟ: Utilize the specially designed cable-hider bricks and modular light strips to route wires neatly and discreetly. This helps maintain the aesthetic integrity of your Lego model and prevents wire damage.
5. ການເຊື່ອມຕໍ່ພະລັງງານ: Connect the light kit to the provided AA Battery Box or a compatible USB power source using the USB cable.
6. ການທົດສອບ: Before fully securing all components, briefly connect power to test all lights. Adjust as necessary.

ຮູບພາບ: Example of cable-hiding technology, demonstrating how wires are integrated for a clean appearance.

Image: Illustration of BRIKSMAX's unique design features, including secure light bricks and larger, easier-to-install connectors.

ຄໍາແນະນໍາການດໍາເນີນງານ

Once the light kit is fully installed and connected to a power source:

• ເປີດ/ປິດ: If using the AA Battery Box, ensure batteries are correctly inserted and use the switch on the box to turn the lights on or off. If using a USB power source, connect/disconnect the USB cable to power the lights.
• ຜົນກະທົບແສງສະຫວ່າງ: The BRIKSMAX 2.0 kit provides a warm, inviting light. Specific light effects are pre-programmed into the individual LED components to highlight different areas of your Hogsmeade Village.

Image: Detailed interior lighting of the Hogsmeade Village set, highlighting different sections and rooms.

ບໍາລຸງຮັກສາ

• ທໍາຄວາມສະອາດ: Gently dust the light components and wires with a soft, dry cloth. Avoid using liquid cleaners directly on the electrical components.
• ການກວດກາສາຍ: Periodically check wires for any signs of wear or damage. Ensure they remain securely tucked away using the cable-hider bricks.
• ການປ່ຽນແບັດເຕີຣີ: If using the AA Battery Box, replace batteries when lights dim or cease to function. Ensure correct polarity when inserting new batteries.

ການແກ້ໄຂບັນຫາ

• ໄຟບໍ່ເປີດ:
  • Check if the power source (AA Battery Box or USB) is properly connected and functional.
  • If using batteries, ensure they are new and correctly inserted.
  • Verify all light kit connectors are firmly seated.
• ໄຟບາງອັນບໍ່ເຮັດວຽກ:
  • Inspect the connections for the specific non-working lights.
  • ໃຫ້ແນ່ໃຈວ່າບໍ່ມີສາຍໄຟຖືກສຽບຫຼືເສຍຫາຍ.
  • If a specific light component is faulty, contact customer support for a replacement.
• Lights are Dim:
  • If using batteries, they may be low and require replacement.
  • Ensure the USB power source provides sufficient power.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

BRIKSMAX offers comprehensive customer support for your light kit:

• ການ​ຮັບ​ປະ​ກັນ​ຄຸນ​ນະ​ພາບ​: All BRIKSMAX products undergo quality checks.
• ຊິ້ນສ່ວນທົດແທນຟຣີ: In case of any faulty or missing components, free replacement parts are available.
• ການຊ່ວຍເຫຼືອລູກຄ້າ: For any questions, installation assistance, or issues, please contact BRIKSMAX customer service. Refer to the contact information provided in your product packaging or on the official BRIKSMAX webເວັບໄຊ.
