LEDOne Corp LED Wall Pack Instruction Manual

1. ບົດແນະນຳ

This manual provides comprehensive instructions for the installation, operation, and maintenance of the LEDOne Corp Multi-Watt LED Wall Pack. This fixture is designed for demanding outdoor lighting applications, offering selectable wattage (80W, 100W, 120W) and adjustable color temperature (3000K, 4000K, 5000K) to meet various lighting requirements efficiently.

2. ຂໍ້ມູນຄວາມປອດໄພ

WARNING: Risk of electric shock. Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.

• ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າຢູ່ທີ່ຕົວຕັດວົງຈອນກ່ອນທີ່ຈະຕິດຕັ້ງຫຼືໃຫ້ບໍລິການ.
• ຮັບປະກັນການສະຫນອງ voltage is compatible with the fixture's operating voltage (120-277V).
• ຢ່າຈັບອຸປະກອນທີ່ມີພະລັງງານດ້ວຍມືປຽກ ຫຼື ເມື່ອຢືນຢູ່ເທິງພື້ນປຽກ ຫຼື ແຫ້ງamp ດ້ານ.
• Use only UL/ETL approved components and wiring methods.
• ຮັບປະກັນວ່າອຸປະກອນຖືກຕິດຕັ້ງຢ່າງປອດໄພເພື່ອປ້ອງກັນການຕົກ.
• ຢ່າເບິ່ງໂດຍກົງໃນແຫຼ່ງໄຟ LED ເມື່ອສະຫວ່າງ.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ອົງ​ປະ​ກອບ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ກ່ອນ​ທີ່​ຈະ​ເລີ່ມ​ຕົ້ນ​ການ​ຕິດ​ຕັ້ງ​:

• LEDOne Corp LED Wall Pack Fixture
• ຄູ່ມືແນະ ນຳ (ເອກະສານນີ້)
• ຮາດແວຕິດຕັ້ງ

4. ຂໍ້ມູນຈໍາເພາະ

5. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The LEDOne Corp Wall Pack is designed for wall mounting and compatibility with standard junction boxes. Follow these steps for secure installation:

1. ການກະກຽມ: Ensure power is disconnected at the circuit breaker. Gather necessary tools (screwdriver, wire strippers, drill, mounting hardware).
2. ສະຖານທີ່ຕິດຕັ້ງ: Select a suitable wall surface capable of supporting the fixture's weight (approximately 10.63 lbs). The fixture features reinforced mounting points.
3. ວົງເລັບຕິດຕໍ່: Attach the wall mount bracket (if separate) or position the fixture directly over the junction box. Mark and drill pilot holes for the mounting screws.
4. Secure Fixture: Secure the fixture to the wall using the provided mounting hardware. Ensure it is firmly attached and level.
5. ສາຍໄຟ: Open the wiring compartment. Connect the fixture's wires to the supply wires from the junction box:
   • Black wire to Line (L)
   • White wire to Neutral (N)
   • Green wire to Ground (G)
   Use the provided waterproof wire nuts for secure outdoor connections. For 0-10V dimming, connect the purple wire to DIM+ and the gray wire to DIM-.
6. ຊ່ອງປິດ: Carefully tuck all wires into the junction box and wiring compartment. Close and seal the compartment cover to maintain IP65 rating.
7. ເປີດ: ຟື້ນຟູພະລັງງານຢູ່ທີ່ breaker ວົງຈອນແລະທົດສອບ fixture ໄດ້.

ຮູບພາບ 1: ດ້ານຫລັງ view of the LED wall pack, illustrating the mounting points and the central access for electrical wiring connections.

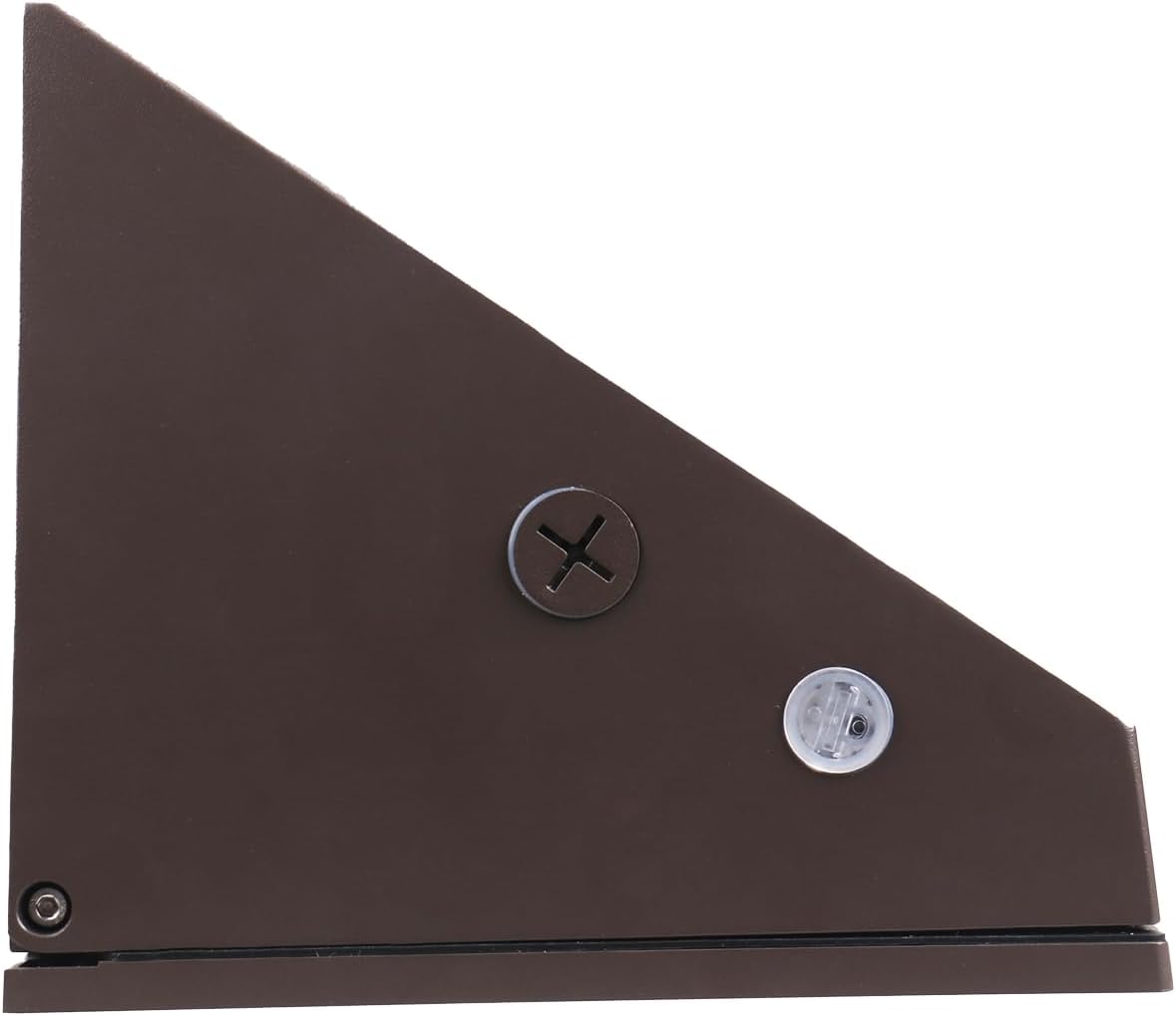

ຮູບພາບ 2: Side profile of the LED wall pack, showing the robust construction and a visible screw for secure mounting.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

The LEDOne Corp Wall Pack features adjustable wattage and color temperature settings, typically controlled by internal switches. These switches are usually located within the wiring compartment or on the side of the LED driver housing, accessible after opening the fixture.

ຮູບພາບ 3: ດ້ານຫນ້າ view of the LED wall pack with the protective lens removed, revealing the array of LED chips and the internal switches for adjusting wattage ແລະ CCT.

1. ປັບວັດtage:
   • Ensure power is disconnected before opening the fixture.
   • ຄົ້ນຫາວັດtage selection switch (often labeled WATT or POWER).
   • ເລືອກວັດທີ່ຕ້ອງການtage: 80W, 100W, or 120W.
   • Close the fixture securely before restoring power.
2. ການປັບອຸນຫະພູມສີ (CCT):
   • Ensure power is disconnected before opening the fixture.
   • Locate the CCT selection switch (often labeled CCT or TEMP).
   • Select the desired color temperature: 3000K (warm white), 4000K (cool white), or 5000K (daylight).
   • Close the fixture securely before restoring power.
3. 0-10V Dimming: This fixture supports 0-10V dimming. Connect a compatible 0-10V dimmer to the purple (DIM+) and gray (DIM-) wires during installation.
4. Photocell/Motion Sensor: The fixture may include or be compatible with external photocells or motion sensors for automated operation. Refer to the specific sensor's instructions for integration.

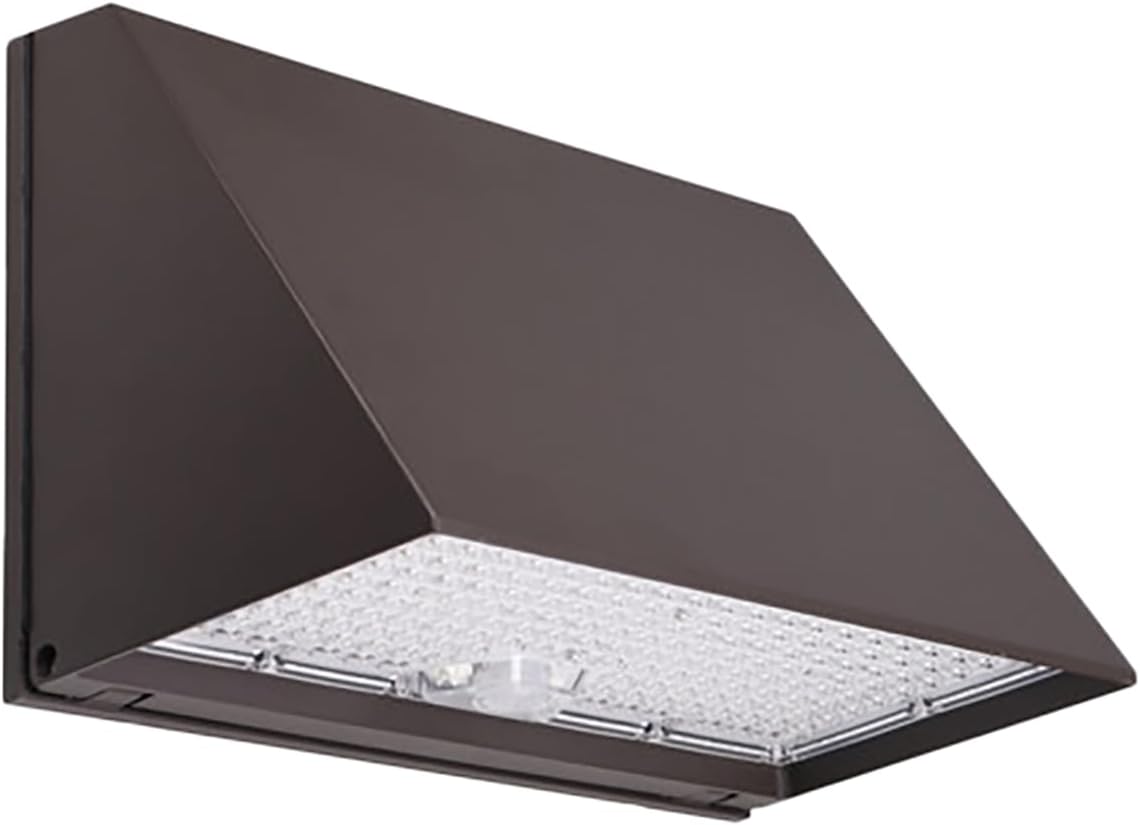

ຮູບພາບ 4: ມຸມ view of the LED wall pack, showcasing its complete assembly and the illuminated LED array.

7. ບໍາລຸງຮັກສາ

The LEDOne Corp Wall Pack is designed for minimal maintenance. Regular inspection and cleaning will ensure optimal performance and longevity.

• ທໍາຄວາມສະອາດ: Periodically clean the outer lens and housing with a soft, damp cloth to remove dirt, dust, and debris. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
• ການກວດກາ: Annually inspect the fixture for any signs of physical damage, loose connections, or wear on the wiring. Address any issues promptly.
• ປະທັບຕາ: Ensure all seals and gaskets are intact to maintain the IP65 weatherproof rating.

8. ການແກ້ໄຂບັນຫາ

If the fixture is not operating correctly, refer to the following common issues and solutions:

If troubleshooting steps do not resolve the issue, contact LEDOne Corp customer support.

9. ຂໍ້ມູນການຮັບປະກັນ

The LEDOne Corp Multi-Watt LED Wall Pack is backed by a comprehensive ຮັບປະກັນ 5 ປີ. This warranty covers defects in materials and workmanship under normal use and service. For warranty claims or detailed terms and conditions, please contact LEDOne Corp customer support.
