uwant D700 Wet Dry Vacuum Cleaner Instruction Manual

1. ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ

Please read all safety instructions carefully before using the uwant D700 Wet Dry Vacuum Cleaner. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• ເຄື່ອງໃຊ້ນີ້ແມ່ນສຳລັບໃຊ້ໃນຄົວເຮືອນເທົ່ານັ້ນ. ຫ້າມໃຊ້ກາງແຈ້ງ ຫຼື ເທິງພື້ນຜິວທາງການຄ້າ.
• ຫ້າມ​ເອົາ​ເຄື່ອງ​ດັ່ງກ່າວ​ໃສ່​ໃນ​ນ້ຳ ຫຼື​ຂອງ​ແຫຼວ​ອື່ນໆ.
• ຮັກສາຜົມ, ເຄື່ອງນຸ່ງວ່າງ, ນິ້ວມື, ແລະທຸກພາກສ່ວນຂອງຮ່າງກາຍໃຫ້ຫ່າງຈາກຊ່ອງເປີດ ແລະພາກສ່ວນທີ່ເຄື່ອນຍ້າຍ.
• Use only uwant recommended attachments and accessories.
• ຫ້າມ​ໃຊ້​ເພື່ອ​ເກັບ​ເອົາ​ຂອງ​ແຫຼວ​ທີ່​ຕິດ​ໄຟ​ໄດ້​ຫຼື​ໄຟ​ໄໝ້​ໄດ້, ເຊັ່ນ​ນ້ຳມັນ​ເຊື້ອ​ໄຟ, ຫຼື​ໃຊ້​ໃນ​ບ່ອນ​ທີ່​ມີ​ຢູ່.
• ຫ້າມ​ເອົາ​ສິ່ງ​ຂອງ​ທີ່​ເປັນ​ໄຟ​ໄໝ້ ຫຼື​ສູບ​ຢາ​ເຊັ່ນ​ຢາ​ສູບ, ໄມ້​ຂີດ​ໄຟ, ຫຼື​ຂີ້ເຖົ່າ​ຮ້ອນ.
• Always turn off the appliance before connecting or disconnecting the brush roll or other accessories.
• ເກັບຮັກສາເຄື່ອງໃຊ້ໃນເຮືອນໃນບ່ອນແຫ້ງແລ້ງ.

2. ຜະລິດຕະພັນເກີນview

The uwant D700 is a versatile wet dry vacuum cleaner designed for efficient cleaning of various floor types. It features advanced technologies for superior performance and ease of use.

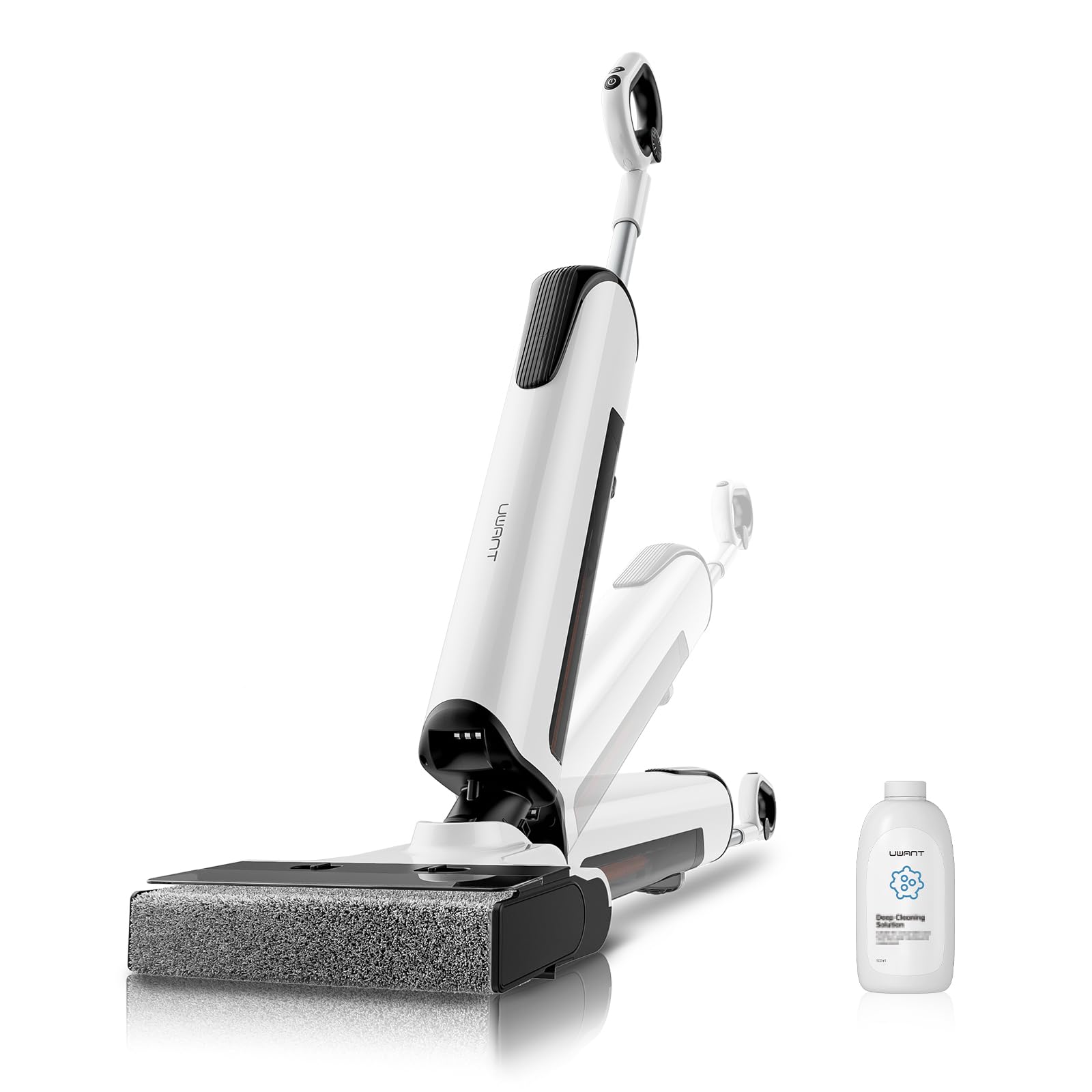

Figure 2.1: uwant D700 Wet Dry Vacuum Cleaner main unit.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• Intelligent Stain Detection: Automatically adjusts suction and water flow based on dirt level.
• ການອອກແບບຮາບພຽງ 180°: Allows cleaning under low furniture with ease.
• 2mm Edge Cleaning: D-shaped brush head ensures thorough cleaning along edges and corners.
• Push-in Self-Cleaning Station: Automated 100°C hot water wash and 75°C hot air drying for the brush roll.
• Electrolyzed Water Sterilization: Generates electrolyzed water to eliminate 99.99% of germs without chemical disinfectants.
• ພະລັງງານດູດ 20,000 Pa: Powerful suction for both wet and dry messes.
• ຊີວິດຫມໍ້ໄຟຍາວ: Up to 45 minutes of runtime for cleaning areas up to 300 m².

Figure 2.2: The D-shaped rotating brush offers a 6 times wider cleaning surface and 0mm edge cleaning on 3 sides.

3. ຕັ້ງຄ່າ

3.1 ການຫຸ້ມຫໍ່ແລະການປະກອບ

Carefully remove all components from the packaging. Ensure all parts are present before assembly.

1. ສຽບມືຈັບເຂົ້າໄປໃນຕົວເຄື່ອງດູດຝຸ່ນຫຼັກຂອງເຄື່ອງດູດຝຸ່ນຈົນກ່ວາມັນກົດເຂົ້າໄປໃນສະຖານທີ່ຢ່າງປອດໄພ.
2. Place the clean water tank and dirty water tank into their respective compartments.
3. Ensure the brush roll is correctly installed in the brush head.

Figure 3.1: Illustration of the assembly process, showing components being connected.

3.2 ການສາກໄຟເບື້ອງຕົ້ນ

ກ່ອນການນຳໃຊ້ຄັ້ງທຳອິດ, ໃຫ້ສາກເຄື່ອງດູດຝຸ່ນໃຫ້ເຕັມ.

1. Place the vacuum cleaner onto the self-cleaning station. The station is designed for easy push-in docking.
2. Connect the power adapter to the charging port on the station and plug it into a wall outlet.
3. ໜ້າຈໍຈະສະແດງສະຖານະການສາກໄຟ. ການສາກໄຟເຕັມໂດຍປົກກະຕິແລ້ວໃຊ້ເວລາປະມານ 4-5 ຊົ່ວໂມງ.

Figure 3.2: The vacuum cleaner easily docks into its station with a single movement for charging and self-cleaning.

3.3 ການຕື່ມໃສ່ຖັງນໍ້າສະອາດ

The clean water tank supplies water for cleaning. For optimal performance, use tap water.

1. ເອົາຖັງນໍ້າສະອາດອອກຈາກຕົວເຄື່ອງຫຼັກ.
2. Open the tank cap and fill with clean tap water up to the MAX line.
3. Close the cap securely and reinsert the tank into the vacuum cleaner.

Figure 3.3: Filling the clean water tank with tap water.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 ການເປີດ/ປິດ ແລະການເລືອກໂໝດ

Press the power button on the handle to turn the vacuum cleaner on or off. Use the mode button to switch between cleaning modes.

• Smart Mode: The vacuum automatically detects dirt levels and adjusts suction power and water flow. Ideal for general cleaning.
• ໂໝດທີ່ມີປະສິດທິພາບ: ໃຫ້ການດູດ ແລະ ການໄຫຼຂອງນໍ້າສູງສຸດສຳລັບພື້ນທີ່ທີ່ເປື້ອນຫຼາຍ.
• ແບບແຫ້ງແລ້ງ: Suction only, suitable for picking up dry debris without water.

Figure 4.1: The intelligent dirt detection system automatically adjusts suction and water flow for different stain levels.

4.2 Cleaning Techniques

For best results, move the vacuum cleaner slowly forward and backward over the area to be cleaned.

• Under Low Furniture: Utilize the 180° flat design by tilting the vacuum cleaner back to reach under sofas, beds, and other low-clearance areas.
• ການອະນາໄມຂອບ: The D-shaped brush head is designed to clean within 2mm of edges, ensuring no spots are missed. Guide the vacuum along baseboards and furniture edges.
• Electrolyzed Water Function: The D700 automatically generates electrolyzed water for sterilization during cleaning. No additional disinfectants are needed.

Figure 4.2: The 180° flat design allows easy cleaning under low furniture and in tight corners.

Figure 4.3: The D-shaped rotating brush provides superior edge cleaning, reaching within 2mm of walls.

5. ບໍາລຸງຮັກສາ

Regular maintenance ensures optimal performance and extends the lifespan of your uwant D700.

5.1 ວົງຈອນການທຳຄວາມສະອາດດ້ວຍຕົນເອງ

After each use, it is recommended to run the self-cleaning cycle.

1. Place the vacuum cleaner on the self-cleaning station.
2. Press the self-clean button on the handle or station.
3. The station will perform a 100°C hot water wash of the brush roll, followed by 75°C hot air drying. This process helps prevent odors and bacterial growth.

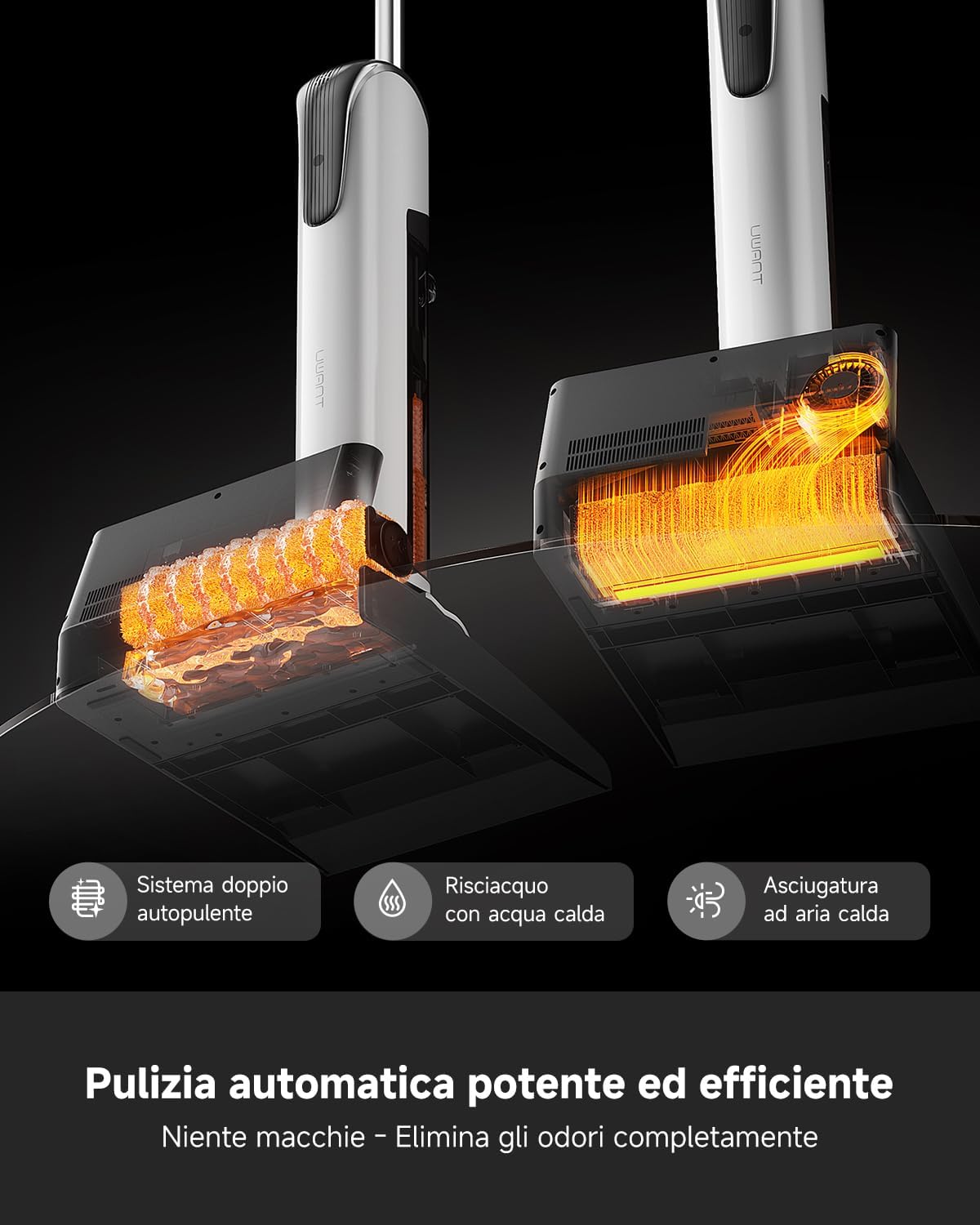

Figure 5.1: The self-cleaning station performs a 100°C hot water wash and 75°C hot air drying for thorough brush maintenance.

Figure 5.2: The ultra-silent high-temperature drying chamber ensures quick and quiet drying of the brush roll.

5.2 ການລ້າງ ແລະທໍາຄວາມສະອາດຖັງນໍ້າເປື້ອນ

Empty the dirty water tank after each use to prevent odors and maintain hygiene.

1. ເອົາຖັງນໍ້າເປື້ອນອອກຈາກໜ່ວຍຫຼັກ.
2. Open the tank lid and carefully pour out the dirty water and debris.
3. Rinse the tank thoroughly with clean water. You can use the innovative deodorizing device to neutralize odors.
4. ປະ​ໃຫ້​ຖັງ​ແຫ້ງ​ສະ​ອາດ​ກ່ອນ​ທີ່​ຈະ​ໃສ່​ຄືນ​ໄປ​ບ່ອນ​ອື່ນ.

Figure 5.3: The innovative deodorizing device helps eliminate unpleasant odors from the dirty water tank.

5.3 Cleaning the Brush Roll and Filter

Even with self-cleaning, occasional manual cleaning of the brush roll and filter is recommended.

1. Turn off the vacuum cleaner and remove the brush roll cover.
2. Remove the brush roll. Rinse it under running water to remove any tangled hair or debris. The brush roll is IPX6 waterproof.
3. Remove the HEPA filter from the dirty water tank. Tap it gently to remove dust or rinse it if heavily soiled. Ensure it is completely dry before reinstallation.
4. Reassemble all parts once dry.

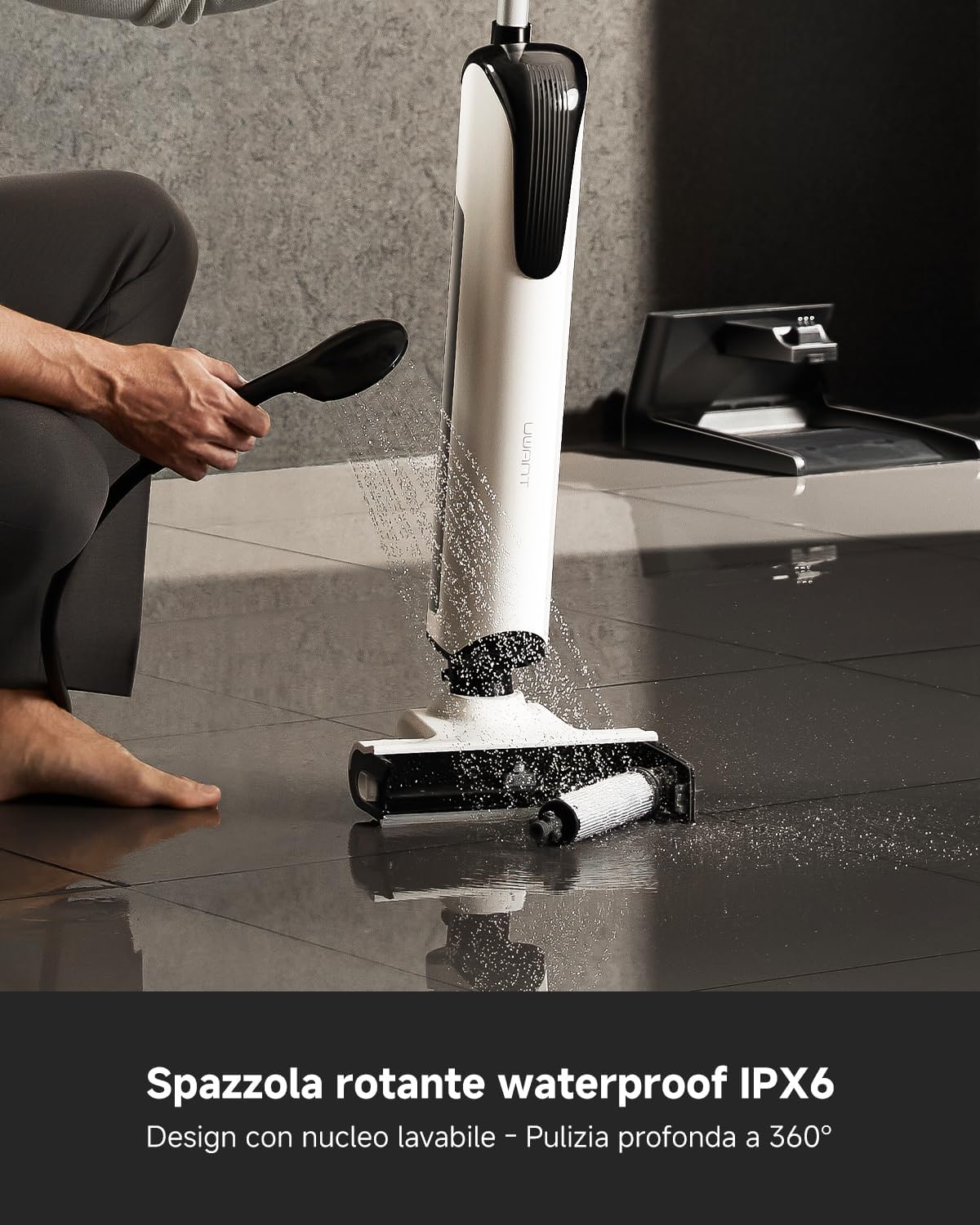

Figure 5.4: The IPX6 waterproof rotating brush can be easily rinsed for deep cleaning.

6. ການແກ້ໄຂບັນຫາ

If you encounter any issues with your uwant D700, please refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact uwant customer support for assistance.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The uwant D700 Wet Dry Vacuum Cleaner comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact uwant customer service. Contact information can typically be found on the official uwant webສະຖານທີ່ຫຼືຢູ່ໃນການຫຸ້ມຫໍ່ຜະລິດຕະພັນ.

Please have your model number (D700) and purchase date ready when contacting support.
