ແນະນຳ
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Maxax Nickel 12" Ceiling Light. Please read this manual thoroughly before installation and retain it for future reference. This fixture features a nickel finish, hammered glass shades, and accommodates three E26 bulbs.

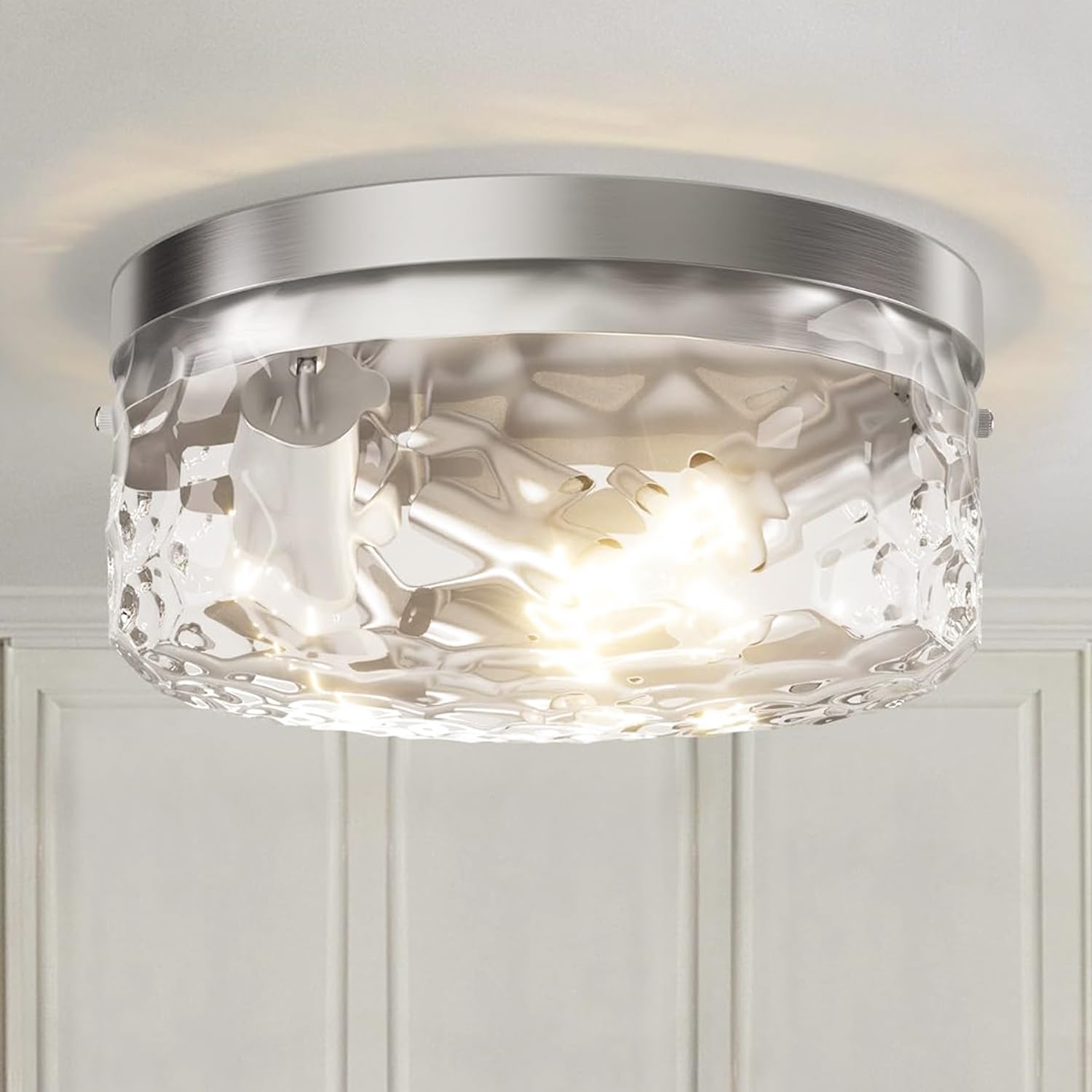

ຮູບພາບ: ທາງຫນ້າ view of the Maxax Nickel 12" Ceiling Light, showcasing its hammered glass and nickel finish.
ຂໍ້ມູນຄວາມປອດໄພ
ຄຳເຕືອນ: ມີຄວາມສ່ຽງທີ່ຈະເກີດໄຟຟ້າຊັອດ. ໃຫ້ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າຢູ່ກ່ອງຟິວ ຫຼື ເບຣກເກີກ່ອນການຕິດຕັ້ງ ຫຼື ບໍລິການ.
- ຮັບປະກັນການເຊື່ອມຕໍ່ໄຟຟ້າທັງໝົດປະຕິບັດຕາມລະຫັດ ແລະ ກົດລະບຽບທ້ອງຖິ່ນ, ເຊັ່ນດຽວກັນກັບລະຫັດໄຟຟ້າແຫ່ງຊາດ (NEC).
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- ຢ່າຕິດຕັ້ງອຸປະກອນດັ່ງກ່າວໃນສະຖານທີ່ປຽກ. ມັນຖືກອອກແບບມາສໍາລັບການນໍາໃຊ້ພາຍໃນເຮືອນເທົ່ານັ້ນ.
- Use only E26 base bulbs, maximum 60 watts per bulb.
- ບໍ່ເກີນ wat ແນະນໍາtage.
- ຈັດການອົງປະກອບຂອງແກ້ວດ້ວຍຄວາມລະມັດລະວັງເພື່ອປ້ອງກັນການແຕກຫັກ.
ເນື້ອໃນຊຸດ
ກວດສອບວ່າມີອົງປະກອບທັງໝົດຢູ່ກ່ອນເລີ່ມການຕິດຕັ້ງ. ຖ້າມີຊິ້ນສ່ວນໃດຂາດຫາຍໄປ ຫຼື ເສຍຫາຍ, ໃຫ້ຕິດຕໍ່ຝ່າຍຊ່ວຍເຫຼືອລູກຄ້າ.
- 1 x Maxax Nickel 12" Ceiling Light Fixture
- 1 x ແກ້ວ Lampຮົ່ມ
- 1 x Mounting Hardware Kit (screws, wire nuts, mounting bracket)
- 1 x ຄູ່ມືແນະນຳ (ເອກະສານນີ້)
Image: Components of the ceiling light, including the glass lampshade, metal frame, and E26 bulb bases.
ການຕັ້ງຄ່າ (ການຕິດຕັ້ງ)
- ປິດໄຟ: Before starting, ensure the power to the circuit is turned off at the main fuse box or circuit breaker to prevent electrical shock.
- ກະກຽມການຕິດຕັ້ງ: Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure the bracket is securely fastened.
- ການເຊື່ອມຕໍ່ສາຍ:
- ເຊື່ອມຕໍ່ ສີດໍາ ສາຍຈາກ fixture ກັບ ສີດໍາ (live) wire from the ceiling using a wire nut.
- ເຊື່ອມຕໍ່ ສີຂາວ ສາຍຈາກ fixture ກັບ ສີຂາວ (neutral) wire from the ceiling using a wire nut.
- ເຊື່ອມຕໍ່ ດິນ ສາຍຈາກ fixture ກັບ ດິນ wire from the ceiling (or to the green ground screw on the mounting bracket) using a wire nut.
- Mount Fixture: Carefully push the wired fixture up towards the ceiling, aligning the fixture's base with the mounting bracket. Secure the fixture to the mounting bracket using the provided screws.
- ຕິດຕັ້ງດອກໄຟ: Screw three E26 base bulbs (not included, max 60W each) into the sockets.
- ຕິດໃສ່ຮົ່ມແກ້ວ: Carefully place the hammered glass lampshade onto the fixture and secure it according to the design (typically with small screws or a twist-lock mechanism, refer to visual cues on the product).
- ຟື້ນຟູພະລັງງານ: Once installation is complete and all components are secure, restore power at the fuse box or circuit breaker.
Image: Dimensional diagram of the ceiling light, indicating a 12-inch diameter and 5.7-inch height.
ຄໍາແນະນໍາການດໍາເນີນງານ
The Maxax Nickel 12" Ceiling Light is designed for simple operation.
- ເປີດ/ປິດ: ດໍາເນີນການໄຟໂດຍໃຊ້ສະວິດຝາມາດຕະຖານທີ່ເຊື່ອມຕໍ່ກັບວົງຈອນຂອງ fixture.
- ການທໍາງານ Dimmable: This fixture is dimmable. To utilize dimming capabilities, ensure you use dimmable E26 bulbs and a compatible dimmer switch (both sold separately).
- ການທົດແທນດອກໄຟ: To replace bulbs, first turn off power at the circuit breaker. Allow bulbs to cool, then carefully unscrew old bulbs and replace with new E26 bulbs (max 60W each).
Image: The ceiling light depicted in both off and illuminated states, showing the effect of the hammered glass when lit.
ບໍາລຸງຮັກສາ
ການບໍາລຸງຮັກສາເປັນປົກກະຕິຈະຊ່ວຍຮັກສາຮູບລັກສະນະແລະການທໍາງານຂອງ fixture ແສງສະຫວ່າງຂອງທ່ານ.
- ທໍາຄວາມສະອາດ: Disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or glass.
- ການດູແລແກ້ວ: The hammered glass shade can be gently wiped with a damp cloth and then dried with a soft, lint-free cloth.
- ການກວດກາ: ກວດສອບຄວາມແໜ້ນໜາຂອງຈຸດເຊື່ອມຕໍ່ທັງໝົດ ແລະ ຮາດແວຕິດຕັ້ງເປັນໄລຍະ.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ແສງບໍ່ໄດ້ເປີດ. |
|
|
| ແສງສະຫວ່າງ flickers. |
|
|
| ຮົ່ມແກ້ວແມ່ນວ່າງ. |
|
|
ຂໍ້ມູນຈໍາເພາະ
| ຍີ່ຫໍ້ | Maxax |
| ຊື່ຕົວແບບ | 27007A-3NT-P |
| ສີ | ນິເກິລ |
| ວັດສະດຸ | ແກ້ວ, ໂລຫະ |
| ຂະໜາດສິນຄ້າ | 12"L x 12"W x 5.5"H |
| ຮູບແບບ Fixture ແສງສະຫວ່າງ | ໃກ້ກັບເພດານ |
| ຈໍານວນແຫຼ່ງແສງສະຫວ່າງ | 3 |
| Bulb Base | E26 |
| ວັດສູງສຸດtage ຕໍ່ Bulb | 60 ວັດ |
| ສະບັບtage | 110 ໂວນ |
| ປະເພດການຕິດຕັ້ງ | Flush Mount |
| ຄຸນນະສົມບັດພິເສດ | ຕ້ານການເປັນສະນິດ |
| ການນຳໃຊ້ພາຍໃນ/ນອກ | ພາຍໃນ |
| ສະເພາະເຈາະຈົງ | ETL |
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
This Maxax product comes with a ການຮັບປະກັນຈໍາກັດ. Specific terms and conditions of the warranty are typically provided with your purchase documentation or can be obtained by contacting the manufacturer directly.
For technical assistance, missing parts, or warranty inquiries, please contact Maxax customer support through their official channels. Please have your model number (27007A-3NT-P) and purchase information ready when contacting support.
