1. ຂໍ້ມູນຄວາມປອດໄພ
Please read and understand all instructions before beginning assembly and use. Keep this manual for future reference.
- ຄວາມອາດສາມາດນ້ໍາຫນັກ: The loft bed is designed to support a maximum weight of 250 lbs (113 kg). Do not exceed this limit.
- Guardrails: Ensure all guardrails are securely installed and maintained to prevent falls.
- ຄວາມໜາທີ່ນອນ: Use a mattress no thicker than 6 inches (15 cm) to ensure adequate guardrail height.
- ສະພາແຫ່ງ: This product requires assembly. Ensure all parts are correctly installed and fasteners are tightened before use.
- ເດັກນ້ອຍ: This bed is intended for use by children and teens. Adult supervision is recommended during initial use.
2. ເນື້ອໃນຊຸດ
Verify that all components are present before assembly. If any parts are missing or damaged, contact customer support.
- ອົງປະກອບກອບໂລຫະ
- MDF Panels for Desk, Staircase, and Wardrobe
- LED Light Strip and Power Adapter
- Hardware Pack (screws, bolts, nuts, washers)
- ເຄື່ອງມືປະກອບ (ຖ້າມີ)
- ຄູ່ມືການສອນ
3. ການຕິດຕັ້ງແລະການປະກອບ
Assembly is required for this loft bed. Follow the step-by-step installation manual provided in the package. Ensure you have adequate space for assembly and a helper if needed.
3.1 ຂັ້ນຕອນການປະກອບview
- ຖອດຊິ້ນສ່ວນທັງໝົດອອກແລ້ວວາງໄວ້ເທິງພື້ນຜິວທີ່ສະອາດ, ອ່ອນນຸ້ມເພື່ອປ້ອງກັນຮອຍຂີດຂ່ວນ.
- Identify all parts using the provided parts list in your separate assembly manual.
- Assemble the main bed frame structure, ensuring all connections are secure but not fully tightened until the frame is complete.
- Attach the desk, staircase, and wardrobe components according to the diagrams.
- Install the metal slats onto the bed frame.
- Install the LED light strip under the bed frame, ensuring it is properly adhered and connected.
- Once all components are in place, fully tighten all fasteners.
- Place your mattress on the bed frame.
3.2 ຂະຫນາດຜະລິດຕະພັນ

ຮູບທີ 1: Overall dimensions of the loft bed. Length: 94.1 inches, Width: 56 inches, Height: 67.9 inches. Desk clearance is 29.6 inches.
- Overall Product Dimension: 94.1''L x 56''W x 67.9''H
- Loft Bed Sleeping Area: 75.2'' x 54''
- Total Height: 67.9''
4. ຄໍາແນະນໍາການດໍາເນີນງານ
4.1 ການເຮັດວຽກຂອງໄຟ LED
The integrated LED light strip provides ambient lighting under the loft bed. It features multiple color options to suit your preference.
- ເປີດ/ປິດ: Connect the LED light strip to the provided power adapter and plug it into a standard electrical outlet. Use the inline controller or remote (if included) to turn the light on or off.
- ການເລືອກສີ: The LED light offers 7 different colors. Use the controller to cycle through the colors or select a specific one.
- ການປັບຄວາມສະຫວ່າງ: Adjust the brightness levels using the controller.

ຮູບທີ 2: Loft bed with LED light illuminated in red.

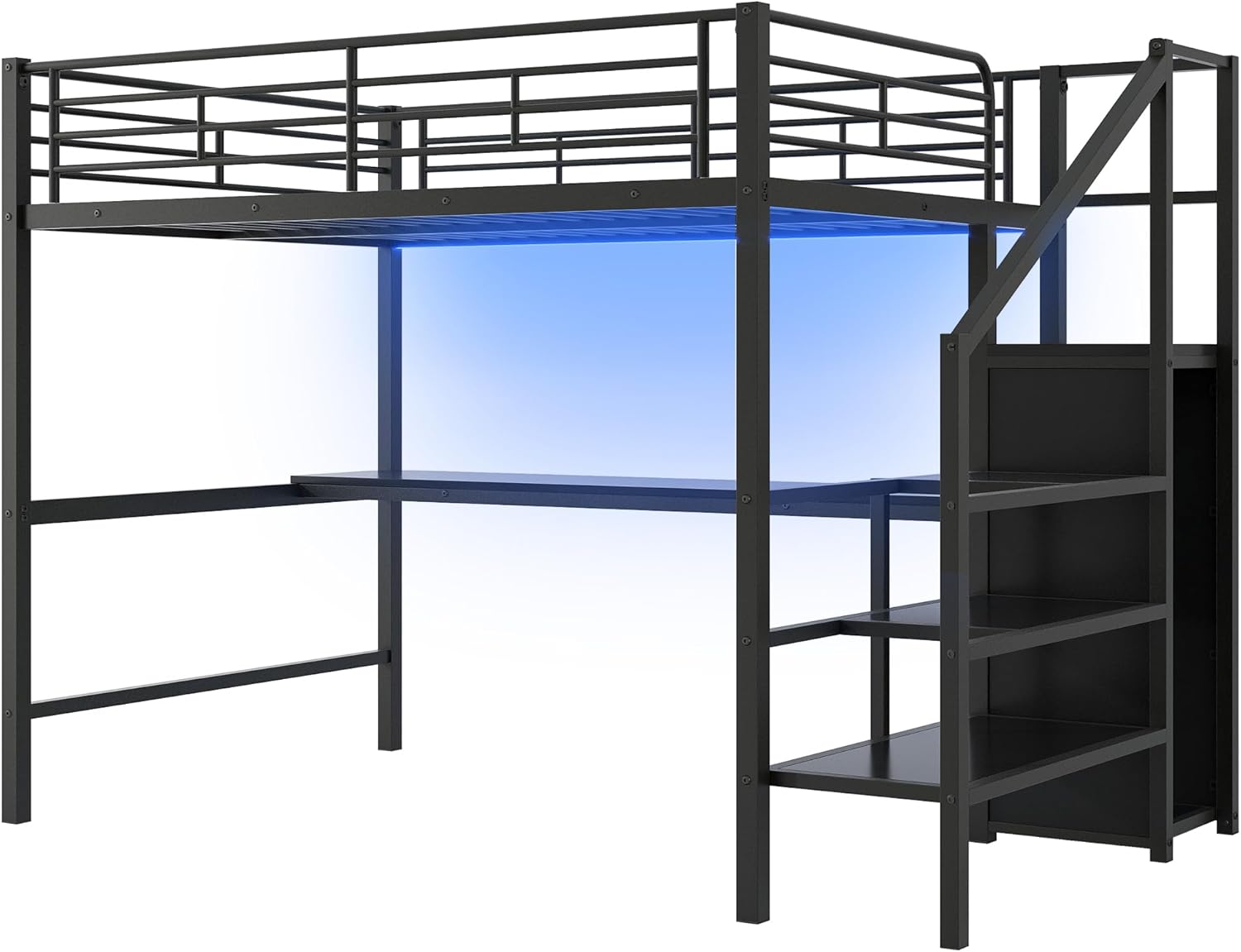

ຮູບທີ 3: Loft bed with LED light illuminated in blue.
4.2 Desk and Storage Features
The loft bed includes a built-in desk, a staircase with storage compartments, and a small wardrobe.
- ໂຕະ: Utilize the spacious desk area for studying, working, or creative activities.
- ການເກັບຮັກສາຂັ້ນໄດ: Each step of the staircase doubles as a storage compartment. Open the steps to store books, toys, or other personal items.
- ຕູ້ເສື້ອຜ້າ: The small wardrobe includes a clothes rack for hanging garments and additional shelving for folded items.

ຮູບທີ 4: Loft bed in use, showcasing the desk and LED light.

ຮູບທີ 5: Close-up of the desk and storage compartments.

ຮູບທີ 6: Detail of the integrated wardrobe.
5. ບໍາລຸງຮັກສາ
5.1 ການທໍາຄວາມສະອາດ
- ກອບໂລຫະ: ເຊັດພື້ນຜິວໂລຫະດ້ວຍຜ້າອ່ອນໆ, ຜ້າເຊັດໂຕamp ຜ້າ. ຫຼີກລ້ຽງການເຮັດຄວາມສະອາດຂັດຫຼືສານເຄມີທີ່ຮຸນແຮງທີ່ອາດຈະທໍາລາຍການສໍາເລັດຮູບ.
- ພື້ນຜິວ MDF: Clean the desk, staircase, and wardrobe surfaces with a soft, dry, or slightly damp ຜ້າ. ຢ່າໃຊ້ຄວາມຊຸ່ມຊື່ນຫຼາຍເກີນໄປ.
- ໄຟ LED: Gently wipe the LED strip with a dry cloth. Ensure the power is disconnected before cleaning.
5.2 ການກວດສອບຕົວຍຶດ
Periodically check all bolts, screws, and other fasteners to ensure they remain tight. Re-tighten as necessary to maintain stability and safety.
5.3 ການເບິ່ງແຍງທົ່ວໄປ
- Avoid dragging the bed to prevent damage to the frame or flooring. Lift it when moving.
- Do not place excessively heavy items on the desk, shelves, or within the storage compartments.
6. ການແກ້ໄຂບັນຫາ
- Bed is Wobbly: Check all assembly bolts and screws. Ensure they are fully tightened. Verify that the bed is on a level surface.
- ໄຟ LED ບໍ່ເຮັດວຽກ: Ensure the power adapter is securely plugged into both the light strip and the wall outlet. Check if the outlet is functional. If using a remote, check its battery.
- ສຽງດັງ: Re-tighten all fasteners. Apply a small amount of lubricant (e.g., silicone spray) to metal-on-metal contact points if the noise persists.
- ຊິ້ນສ່ວນສູນຫາຍ / ເສຍຫາຍ: Refer to the 'Package Contents' section and contact customer support with your model number and a description of the issue.
7. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ຂໍ້ມູນຈໍາເພາະ |
|---|---|
| ວັດສະດຸ | Metal + MDF |
| ຂະໜາດ | ເຕັມ |
| ຂະ ໜາດ ຜະລິດຕະພັນໂດຍລວມ | 94.1''L x 56''W x 67.9''H |
| Loft Bed Sleeping Area | 75.2'' x 54'' |
| ຄວາມສູງທັງໝົດ | 67.9'' |
| ຈໍານວນຂອງ Slats | 20 pcs |
| ນ້ໍາຫນັກລວມຂອງຜະລິດຕະພັນ | 155 lbs |
| ຄວາມອາດສາມາດນ້ໍາຫນັກຕຽງ | 250 lbs |
| ຄວາມໜາທີ່ນອນທີ່ແນະນຳ | 6'' |
| ສີ | Black (With LED) |
| ຄຸນນະສົມບັດພິເສດ | No Box Spring ຕ້ອງການ |
| ຕ້ອງການສະພາແຫ່ງ | ແມ່ນແລ້ວ |
| ຕົ້ນກໍາເນີດ | ຫວຽດນາມ |
8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For specific warranty information, please refer to the documentation included with your purchase or contact the manufacturer directly. Warranty terms may vary.
If you require assistance with assembly, missing parts, or have any questions regarding your Ball & Cast Full Size Loft Bed, please contact Ball & Cast customer support through their official channels or the retailer where the product was purchased.
