1. ການແນະນໍາ ແລະຫຼາຍກວ່າview
Welcome to the Vibox V-525 Gaming PC. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your new computer. The Vibox V-525 is a high-performance gaming system featuring an AMD Ryzen 5 5500 processor, an Nvidia RTX 4060 8GB graphics card, 16GB of DDR4 RAM, and a 1TB SSD, pre-installed with Windows 11.
Please read this manual carefully before using your PC to ensure optimal performance and longevity.

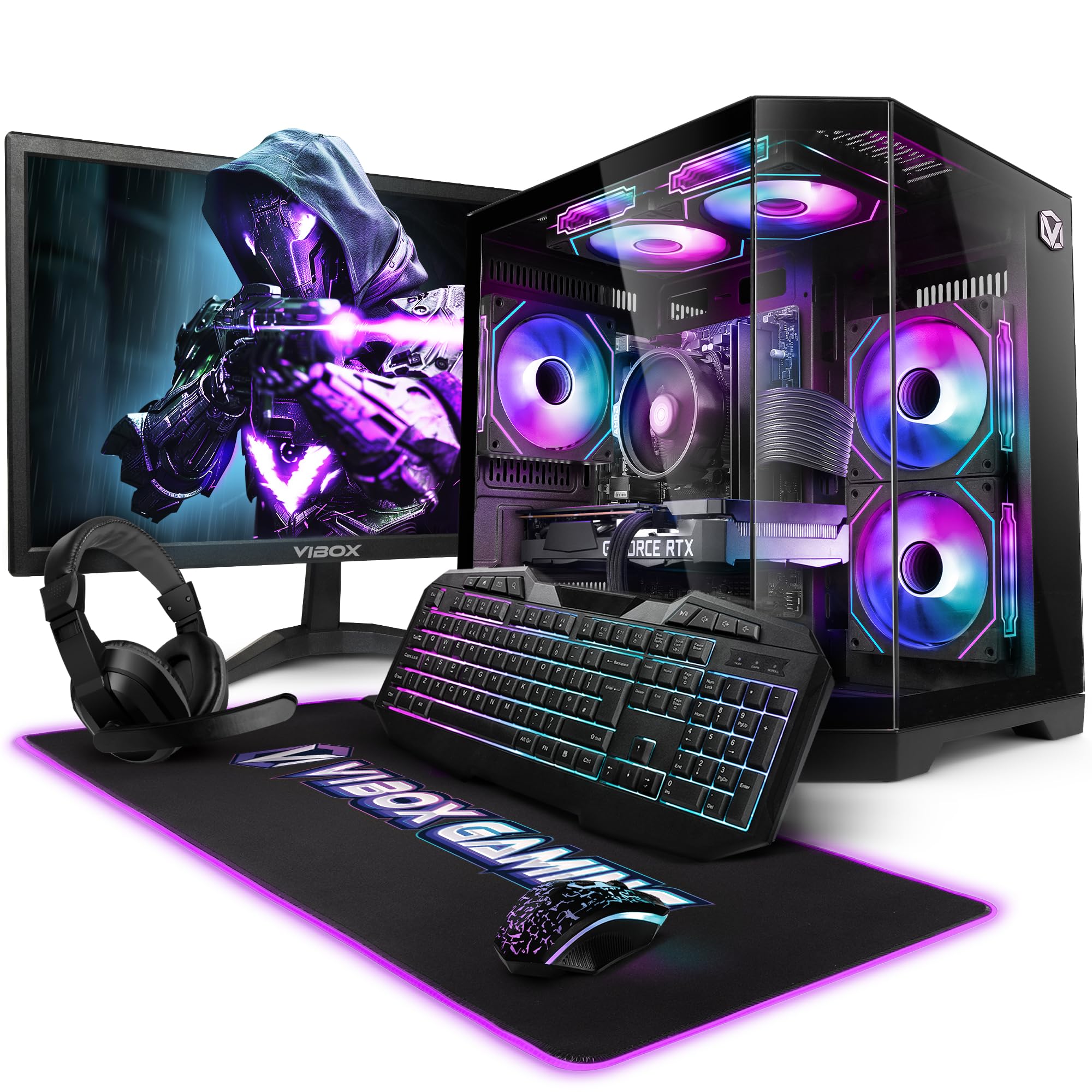

Figure 1.1: Vibox V-525 Gaming PC
2. ຄູ່ມືການຕິດຕັ້ງ
2.1 ການຫຸ້ມຫໍ່
Carefully remove all components from the packaging. Ensure you have the PC tower, 23-inch monitor, gaming keyboard, gaming mouse, headset, mouse pad, Wi-Fi adapter, and power cables.
2.2 ການເຊື່ອມຕໍ່ອຸປະກອນຕໍ່
- ຈໍພາບ: Connect the 23-inch monitor to the graphics card (Nvidia RTX 4060) using an HDMI or DisplayPort cable. Ensure the cable is securely fastened.
- ແປ້ນພິມແລະຫນູ: Connect the gaming keyboard and mouse to the available USB ports on the rear or front of the PC.
- ຫູຟັງ: Plug your headset into the dedicated audio jacks on the front panel or rear I/O.
- ອະແດບເຕີ Wi-Fi: Insert the 300 Mbps Wi-Fi adapter into an available USB port.
- ພະລັງງານ: Connect the power cable to the PC's power supply unit (PSU) and then to a wall outlet. Connect the monitor's power cable as well.
Figure 2.1: Front Panel Connectivity (Power, USB 2.0, USB 3.0, Headset, Reset, RGB Change)
2.3 ການ Boot-Up ເບື້ອງຕົ້ນ ແລະການຕິດຕັ້ງ Windows 11
- ກົດປຸ່ມເປີດປິດຢູ່ດ້ານໜ້າຂອງຄອມພິວເຕີ.
- Follow the on-screen instructions to complete the Windows 11 setup process. This typically involves selecting your region, language, creating a user account, and connecting to a network.
- Once Windows 11 is set up, ensure all drivers are installed. You can check this in Device Manager.
Figure 2.2: Windows 11 Home Features
3. ຄໍາແນະນໍາການດໍາເນີນງານ
3.1 ເປີດ/ປິດ
- ເພື່ອເປີດເຄື່ອງ: ກົດປຸ່ມເປີດປິດຢູ່ແຖບດ້ານຫນ້າ.
- ເພື່ອປິດ: Click the Start button in Windows, then select Power > Shut down. Avoid simply holding the power button to turn off, as this can lead to data loss.
- ເພື່ອເລີ່ມຕົ້ນໃໝ່: ຄລິກທີ່ປຸ່ມ Start, ຈາກນັ້ນເລືອກ Power > Restart.
3.2 ການນໍາທາງ Windows 11 ພື້ນຖານ
Windows 11 features a redesigned user interface. The Start menu is centrally located, and widgets provide quick access to information. Explore the settings menu to personalize your experience.
3.3 ການເຊື່ອມຕໍ່ Wi-Fi
- Ensure your USB Wi-Fi adapter is plugged in.
- Click the network icon (Wi-Fi symbol) in the taskbar.
- ເລືອກເຄືອຂ່າຍ Wi-Fi ທີ່ທ່ານຕ້ອງການຈາກລາຍຊື່ ແລະ ຄລິກ 'ເຊື່ອມຕໍ່'.
- ໃສ່ກະແຈຄວາມປອດໄພເຄືອຂ່າຍ (ລະຫັດຜ່ານ) ຖ້າຖືກຖາມ.
3.4 ການຄວບຄຸມແສງ RGB
Your Vibox V-525 features Hex RGB Infinity 120mm fans. Use the 'RGB Change' button on the front panel to cycle through various lighting modes and colors. Refer to the software provided by Vibox (if applicable) for more advanced customization.
Figure 3.1: Hex RGB Infinity 120mm Fans
4. ບໍາລຸງຮັກສາ
4.1 Cleaning Your PC
Regular cleaning helps maintain optimal performance and extends the lifespan of your components.
- ພາຍນອກ: ໃຊ້ອ່ອນ, ງamp ຜ້າເຊັດດ້ານນອກຂອງກ່ອງ. ຫຼີກລ່ຽງສານເຄມີຮຸນແຮງ.
- Interior (Dust): Periodically, and with the PC powered off and unplugged, use compressed air to remove dust from inside the case, especially from fans, heatsinks, and vents. Pay attention to the Hex RGB Infinity fans and the GPU heatsink.

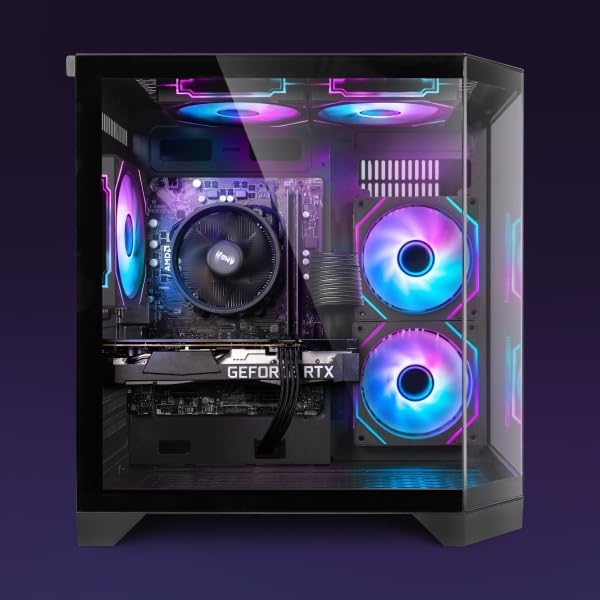

ຮູບທີ 4.1: ພາຍໃນ View of PC Components
Figure 4.2: Reverse Airflow Next Generation Cooling Diagram
4.2 ການປັບປຸງຊອບແວ
- ອັບເດດ Windows: ກວດເບິ່ງ ແລະຕິດຕັ້ງການອັບເດດ Windows ເປັນປະຈຳຜ່ານ Settings > Windows Update.
- ອັບເດດໄດເວີ: Keep your graphics card drivers (Nvidia GeForce Experience) and other component drivers up to date for optimal performance and stability.
4.3 ການສໍາຮອງຂໍ້ມູນ
ສໍາຮອງຂໍ້ມູນທີ່ສໍາຄັນຂອງທ່ານເປັນປົກກະຕິ files ໄປຍັງໄດຣຟ໌ພາຍນອກ ຫຼືບ່ອນເກັບຂໍ້ມູນຄລາວ ເພື່ອປ້ອງກັນການສູນເສຍຂໍ້ມູນ.
5. ການແກ້ໄຂບັນຫາ
ພາກສ່ວນນີ້ແກ້ໄຂບັນຫາທົ່ວໄປທີ່ທ່ານອາດຈະພົບ.
5.1 ບໍ່ມີພະລັງງານ
- ໃຫ້ແນ່ໃຈວ່າສາຍໄຟຖືກເຊື່ອມຕໍ່ຢ່າງປອດໄພກັບທັງ PC ແລະເຕົ້າສຽບໄຟ.
- Check if the power switch on the PSU (at the back of the PC) is in the 'On' position.
- ລອງປລັກສຽບໄຟອື່ນ.
5.2 ບໍ່ມີຈໍສະແດງຜົນໃນຈໍສະແດງຜົນ
- ກວດສອບວ່າສາຍໄຟຂອງຈໍພາບໄດ້ເຊື່ອມຕໍ່ແລ້ວ ແລະ ຈໍພາບໄດ້ເປີດຢູ່.
- Ensure the video cable (HDMI/DisplayPort) is securely connected to both the graphics card (Nvidia RTX 4060) and the monitor.
- ລອງສາຍວິດີໂອອື່ນ ຫຼືຈໍພາບຖ້າມີ.
5.3 ການປະຕິບັດຊ້າ
- ກວດສອບຕົວຈັດການໜ້າວຽກ (Ctrl+Shift+Esc) ສຳລັບແອັບພລິເຄຊັນທີ່ໃຊ້ CPU, RAM ຫຼືຊັບພະຍາກອນແຜ່ນດິດຫຼາຍເກີນໄປ.
- ໃຫ້ແນ່ໃຈວ່າ Windows ແລະໄດເວີແມ່ນອັບເດດແລ້ວ.
- ດໍາເນີນການສະແກນໄວຣັສ.
- Ensure adequate airflow and clean any dust buildup (refer to Section 4.1).
5.4 ບັນຫາການເຊື່ອມຕໍ່ເຄືອຂ່າຍ
- Verify the Wi-Fi adapter is properly installed and recognized by Windows.
- ຣີສະຕາດ router/modem ຂອງທ່ານ.
- ດໍາເນີນການແກ້ໄຂບັນຫາເຄືອຂ່າຍ Windows.
6. ຂໍ້ມູນຈໍາເພາະ
The following table details the key specifications of your Vibox V-525 Gaming PC:
| ອົງປະກອບ | ຂໍ້ມູນຈໍາເພາະ |
|---|---|
| ໂຮງງານຜະລິດ | AMD Ryzen 5 5500 (6 Cores, Max 4.2 GHz) |
| ບັດກາຟິກ | Nvidia GeForce RTX 4060 (8 GB GDDR6 RAM, HDMI 2.1, DisplayPort 1.4a) |
| RAM | 16 GB DDR4 Dual Channel (3200 MHz) |
| ການເກັບຮັກສາ | 1 TB SSD |
| ລະບົບປະຕິບັດການ | ໜ້າຫຼັກ Windows 11 |
| ຕິດຕາມກວດກາ | 23-inch (Max Resolution: 1920 x 1080) |
| ການເຊື່ອມຕໍ່ | Wi-Fi (300 Mbps adapter included), 4 Total USB Ports |
| ຫນ່ວຍຄວາມຈໍາ Cache | 16 MB |
| ການອອກແບບກໍລະນີ | 3-Panel Tempered Glass |
Figure 6.1: PC Case Dimensions
7. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Your Vibox V-525 Gaming PC comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Vibox customer service through their official webເວັບໄຊ ຫຼືຂໍ້ມູນການຕິດຕໍ່ທີ່ສະໜອງໃຫ້ໃນເອກະສານການຊື້ຂອງທ່ານ.
Always provide your product model (V-525) and purchase date when contacting support.
