MiBOXER ML5 5-in-1 LED Controller User Manual

1. ບົດແນະນຳ

The MiBOXER ML5 5-in-1 LED Controller is designed for versatile smart lighting applications, integrating Matter over WiFi and 2.4GHz wireless control. This controller supports five output modes: RGB, RGBW, RGB+CCT, CCT, and single color, offering flexibility for various LED strip configurations. It is compatible with the Matter protocol, enabling broad interoperability with smart home ecosystems such as Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. This manual provides essential information for the safe installation, operation, and maintenance of your ML5 controller.

2. ຂໍ້ມູນຄວາມປອດໄພ

• ໃຫ້ແນ່ໃຈວ່າໄຟຟ້າໄດ້ຖືກຕັດກ່ອນການຕິດຕັ້ງ ຫຼື ການບຳລຸງຮັກສາເພື່ອປ້ອງກັນໄຟຟ້າຊັອດ.
• This device is designed for indoor use only. Avoid exposure to moisture or extreme temperatures.
• ບໍ່ໃຫ້ເກີນປະລິມານທີ່ລະບຸໄວ້tage (DC12V~48V).
• Consult a qualified electrician if you are unsure about any installation steps.
• ຮັກສາອຸປະກອນໃຫ້ຫ່າງຈາກເດັກນ້ອຍ.

3. ຜະລິດຕະພັນເກີນview

3.1 ລັກສະນະທີ່ສໍາຄັນ

• Certified Matter Over WiFi: Supports Matter standard protocol for multi-platform collaboration.
• Wide Compatibility: Works with products from different brands that comply with the Matter ecosystem.
• Simple Configuration: Easy pairing via QR code.
• 5-in-1 Functionality: Supports RGB, RGBW, RGB+CCT, CCT, and single color LED strips.
• 2.4G RF Wireless Control: Allows control via MiBOXER 2.4GHz remotes.
• ການປ້ອນຂໍ້ມູນ Voltage: DC12V~48V.

3.2 ສິ່ງທີ່ຢູ່ໃນກ່ອງ

• 1 x MiBOXER ML5 5-in-1 LED Controller

3.3 ສ່ວນປະກອບຂອງຜະລິດຕະພັນ

ຮູບພາບ 3.3.1: ເທິງ view of the MiBOXER ML5 controller, showing input terminals, output terminals, and control buttons (Link, Frequency, Mode).

ຮູບພາບ 3.3.2: ມຸມ view of the MiBOXER ML5 controller, highlighting its compact design and connection points.

ຮູບພາບ 3.3.3: The MiBOXER ML5 controller alongside its retail packaging and a small instruction leaflet.

4. ຂໍ້ມູນຈໍາເພາະ

ຮູບພາບ 4.1: Dimensional drawing of the ML5 controller (124mm x 38mm x 23mm) and its packaging (125mm x 39mm x 29mm), with a gross weight of 0.078 KGS.

5. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

5.1 ແຜນວາດສາຍ

The ML5 controller supports various LED strip configurations. Ensure correct polarity and voltage matching for your LED strips. Connect the DC12V~48V power supply to the input terminals and the LED strip to the corresponding output terminals.

ຮູບພາບ 5.1.1: Connection diagrams for Single Color (V+, W), Dual White (V+, CW, WW), and RGB (V+, R, G, B) LED strip configurations. An AC to DC power adapter is shown connecting to the controller's input.

ຮູບພາບ 5.1.2: Connection diagrams for RGBW (V+, R, G, B, W) and RGB+CCT (V+, R, G, B, CW, WW) LED strip configurations. An AC to DC power adapter is shown connecting to the controller's input.

5.2 Pairing and Network Connection

The ML5 controller supports Matter over WiFi and 2.4GHz RF pairing.

• ການຈັບຄູ່ບັນຫາ: Long press the "Link" button for 3 seconds to activate Matter pairing mode. Follow the instructions in your Matter-compatible smart home app (e.g., Apple Home, Google Home, Amazon Alexa, Samsung SmartThings) to scan the QR code on the device for easy pairing.
• 2.4GHz RF Remote Pairing: Short press the "Link" button 3 times to activate 2.4GHz remote pairing mode. Refer to your MiBOXER 2.4GHz remote's manual for specific pairing instructions.

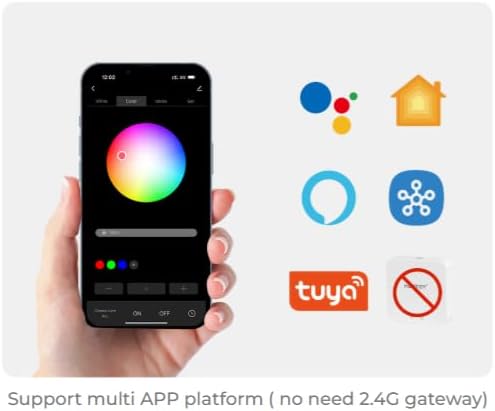

ຮູບພາບ 5.2.1: Illustration of a smartphone app interface for controlling LED lighting, featuring a color wheel and compatibility logos for Google Home, Apple Home, Amazon Alexa, Samsung SmartThings, and Tuya.

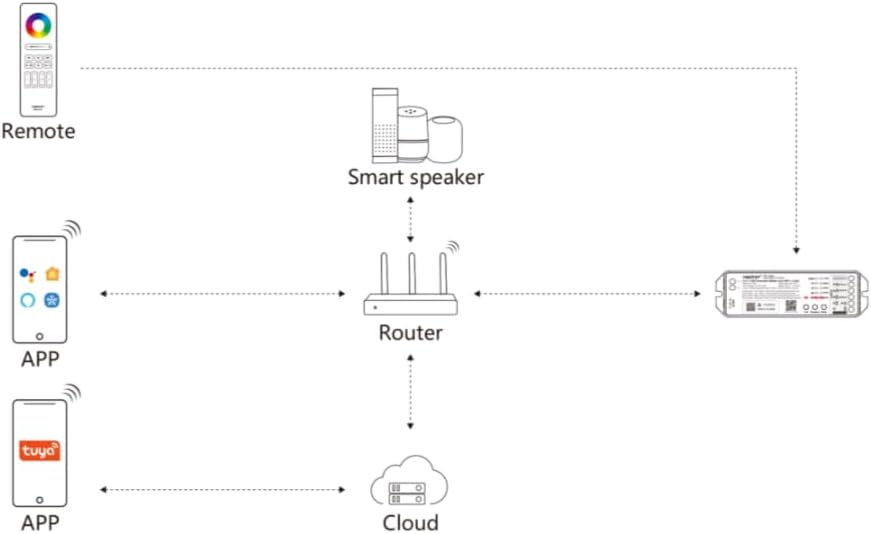

ຮູບພາບ 5.2.2: Diagram illustrating the ML5 controller's connectivity: it connects to a router, which then allows control via mobile apps (Matter-compatible and Tuya) and smart speakers (e.g., Alexa, Google Assistant).

6. ຄໍາແນະນໍາການດໍາເນີນງານ

6.1 ການເລືອກໂໝດ

• ສະຫຼັບໂໝດການສົ່ງອອກ: Short press the "Mode" button to cycle through the five output modes (RGB, RGBW, RGB+CCT, CCT, Single Color). Ensure the connected LED strip matches the selected mode.

6.2 ການຄວບຄຸມແອັບ

Once paired with your smart home ecosystem via Matter, you can control the ML5 controller using your preferred smart home app. Functions typically include:

• Turning lights On/Off.
• Adjusting brightness (dimming).
• Changing colors (for RGB, RGBW, RGB+CCT modes).
• Adjusting color temperature (for CCT, RGB+CCT modes).
• Setting scenes and schedules.

6.3 2.4GHz RF Remote Control

If paired with a MiBOXER 2.4GHz RF remote, you can control the controller directly. Refer to your specific remote's manual for detailed button functions, which typically include:

• ເປີດ/ປິດ.
• ການປັບຄວາມສະຫວ່າງ.
• Color selection.
• Mode switching (e.g., dynamic effects).

7. ບໍາລຸງຮັກສາ

• ເຮັດຄວາມສະອາດອຸປະກອນດ້ວຍຜ້າອ່ອນໆ, ແຫ້ງ. ຢ່າໃຊ້ສານເຄມີທີ່ຮຸນແຮງຫຼືເຄື່ອງເຮັດຄວາມສະອາດຂັດ.
• ຮັບປະກັນການລະບາຍອາກາດທີ່ເຫມາະສົມຮອບຕົວຄວບຄຸມເພື່ອປ້ອງກັນຄວາມຮ້ອນເກີນ.
• ກວດສອບການເຊື່ອມຕໍ່ທັງໝົດເປັນປະຈຳເພື່ອຄວາມປອດໄພ ແລະ ຄວາມສົມບູນ.

8. ການແກ້ໄຂບັນຫາ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

MiBOXER products are designed for reliability and performance. For warranty information and technical support, please refer to the official MiBOXER webເວັບໄຊ ຫຼືຕິດຕໍ່ຮ້ານຂາຍຍ່ອຍຂອງທ່ານ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.

ສໍາລັບການຊ່ວຍເຫຼືອເພີ່ມເຕີມ, ທ່ານສາມາດໄປຢ້ຽມຢາມໄດ້ ຮ້ານ MiBOXER ໃນ Amazon.
