HEINNER HDW-FSM60714AWD+++ Freestanding Dishwasher User Manual

1. ບົດແນະນຳ

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your HEINNER HDW-FSM60714AWD+++ freestanding dishwasher. Please read these instructions carefully before using the appliance and keep them for future reference.

ຮູບທີ 1: ດ້ານໜ້າ view of the HEINNER HDW-FSM60714AWD+++ freestanding dishwasher. This image shows the anthracite finish and the control panel.

2. ຄໍາແນະນໍາຄວາມປອດໄພ

ເພື່ອຮັບປະກັນການເຮັດວຽກທີ່ປອດໄພ, ປະຕິບັດຕາມຄໍາແນະນໍາດ້ານຄວາມປອດໄພຕໍ່ໄປນີ້ສະເໝີ:

• ຄວາມປອດໄພທາງໄຟຟ້າ: ໃຫ້ແນ່ໃຈວ່າອຸປະກອນໄດ້ຮັບການຕໍ່ສາຍດິນຢ່າງຖືກຕ້ອງ. ຢ່າໃຊ້ສາຍໄຟຕໍ່. ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າກ່ອນການບຳລຸງຮັກສາ ຫຼື ການທຳຄວາມສະອາດໃດໆ.
• ຄວາມປອດໄພນ້ໍາ: The AquaStop system automatically blocks water supply in case of a leak. Regularly check hoses for damage.
• ຄວາມ​ປອດ​ໄພ​ຂອງ​ເດັກ​ນ້ອຍ​: Activate the child lock to prevent accidental changes to settings or opening of the door during operation. Keep detergents out of reach of children.
• ການນໍາໃຊ້ທົ່ວໄປ: Do not sit or stand on the dishwasher door. Load sharp items with points down to prevent injury.
• ປິດອັດຕະໂນມັດ: The appliance features an automatic shutdown after 15 minutes of inactivity to conserve energy.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

3.1 ການຫຸ້ມຫໍ່

ເອົາອຸປະກອນການຫຸ້ມຫໍ່ທັງຫມົດອອກຢ່າງລະມັດລະວັງ. ກວດເບິ່ງເຄື່ອງລ້າງຈານສໍາລັບຄວາມເສຍຫາຍໃດໆທີ່ເກີດຂຶ້ນໃນລະຫວ່າງການຂົນສົ່ງ. ລາຍງານຄວາມເສຍຫາຍໃດໆກັບຜູ້ຂາຍຍ່ອຍຂອງທ່ານທັນທີ.

3.2 ຕໍາ ແໜ່ງ

Place the dishwasher on a flat, stable surface. The standard dimensions are 850 mm (H) × 600 mm (W) × 600 mm (D). Adjustable feet allow for leveling and integration under a countertop. Ensure sufficient space for the door to open fully (1175 mm with door open).

3.3 ການເຊື່ອມຕໍ່ນ້ໍາແລະໄຟຟ້າ

Connect the water inlet and drain hoses according to local plumbing codes. Ensure the electrical connection matches the appliance's requirements (220V). Consult a qualified technician if you are unsure about any connections.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1 ການໂຫຼດເຄື່ອງລ້າງຈານ

This dishwasher has a capacity for 10 place settings. Arrange dishes to allow water to reach all surfaces. The upper basket is height-adjustable to accommodate taller items. Load sharp items with points facing downwards.

ຮູບທີ 2: Proper loading of dishes into the dishwasher. Note the arrangement for optimal cleaning.

ຮູບທີ 3: Example of a 10 place setting load, including dinner plates, bowls, glasses, cutlery, and serving utensils.

4.2 ການເພີ່ມຢາຊັກຟອກ ແລະເຄື່ອງຊ່ວຍລ້າງອອກ

Fill the detergent dispenser with the appropriate amount of dishwasher detergent. Check the rinse aid indicator and refill as needed for optimal drying results.

4.3 ການຄັດເລືອກໂຄງການ

The dishwasher offers 7 wash programs to suit various needs:

• ສຸມ: ສໍາລັບຖ້ວຍ, ຫມໍ້, ແລະຫມໍ້ທີ່ມີດິນຫຼາຍ.
• ແອັກໂກ້: Energy and water-efficient program for normally soiled dishes. Consumes less than 10 liters of water per cycle.
• Rapid 30 min: Quick wash for lightly soiled items without drying.
• ແກ້ວ: ລ້າງຢ່າງອ່ອນໂຍນສໍາລັບເຄື່ອງແກ້ວທີ່ລະອຽດອ່ອນ.
• ປົກກະຕິ: Standard program for daily soiled dishes.
• ອັດຕະໂນມັດ: Automatically adjusts temperature and duration based on soil level detected by sensors.
• ລ້າງກ່ອນ: ສຳ ລັບລ້າງຖ້ວຍທີ່ລ້າງອອກຈະຖືກລ້າງພາຍຫລັງ.

Select the desired program using the control panel. The intuitive panel allows for easy selection.

4.4 ໜ້າທີ່ພິເສດ

• ເລີ່ມຊັກຊ້າ: Schedule the wash cycle up to 24 hours in advance to take advantage ຂອງອັດຕາໄຟຟ້າ off-peak.
• Salt and Rinse Aid Indicators: Luminous indicators alert you when salt or rinse aid levels are low, ensuring optimal performance.
• ການອົບແຫ້ງອັດຕະໂນມັດ: Condensation drying ensures dishes are ready to put away after the cycle.
• ໂໝດ Eco: Limits resource consumption for more responsible daily use.

5. ການບໍາລຸງຮັກສາແລະການທໍາຄວາມສະອາດ

5.1 ການທໍາຄວາມສະອາດຕົວກອງ

The triple-layer filtration system effectively retains food particles. Regularly clean the filters to prevent blockages and ensure efficient washing. Refer to the detailed diagrams in the full manual for filter removal and cleaning instructions.

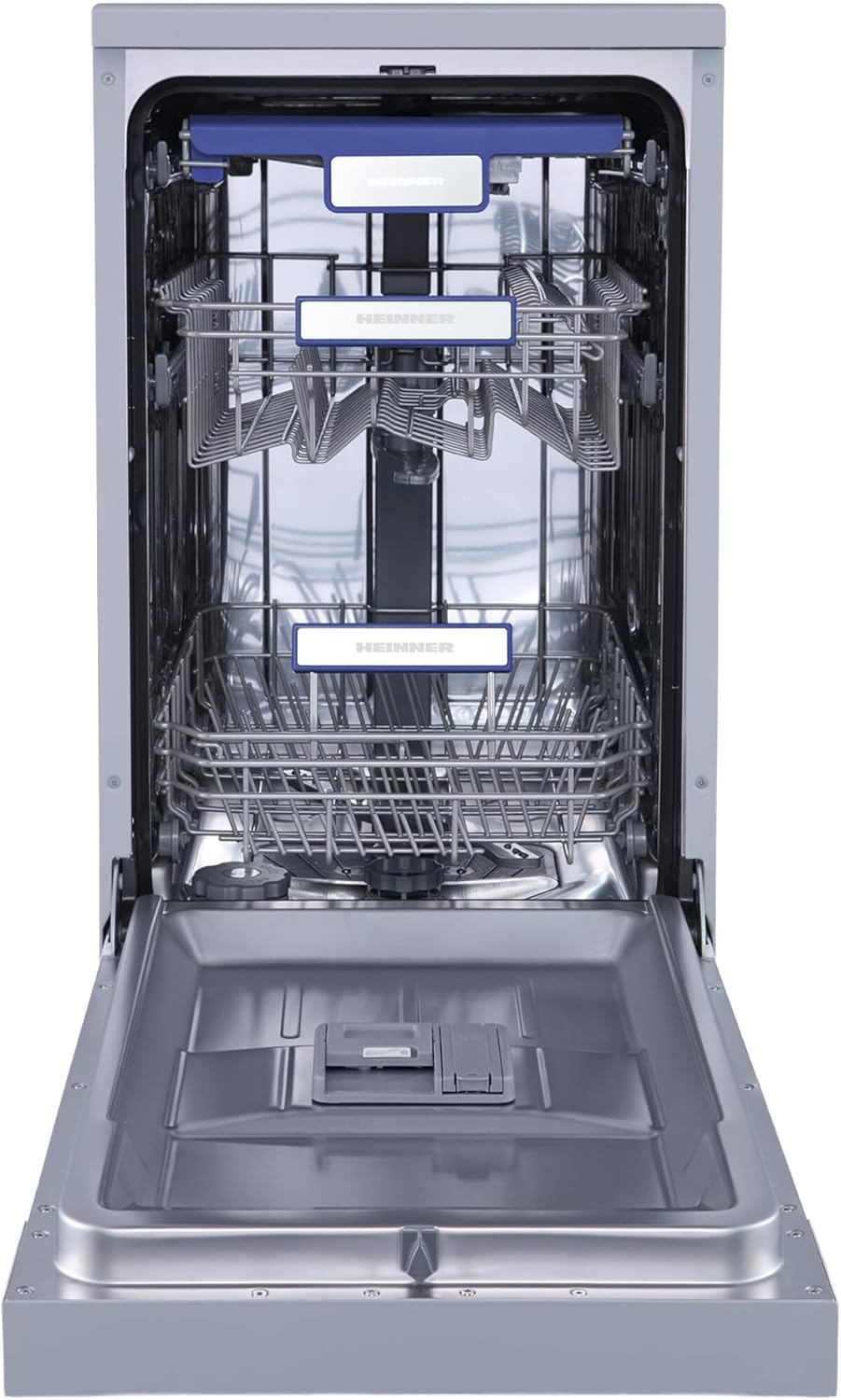

ຮູບທີ 4: ພາຍໃນ view of the dishwasher, highlighting the baskets, spray arms, and the filter system at the base.

5.2 ການເຮັດຄວາມສະອາດແຂນສີດ

The double rotating spray arms ensure thorough water coverage. Periodically check the spray arm nozzles for any blockages and clean them if necessary.

ຮູບທີ 5: The 360° rotating spray arms ensure comprehensive water distribution for effective cleaning.

5.3 ການທໍາຄວາມສະອາດພາຍນອກແລະພາຍໃນ

ເຊັດພາຍນອກດ້ວຍຜ້າອ່ອນ, ງamp cloth. The stainless steel interior is resistant to corrosion; clean it periodically with a dishwasher cleaner or a mixture of vinegar and water to maintain its shine.

6. ການແກ້ໄຂບັນຫາ

ກ່ອນ​ທີ່​ຈະ​ຕິດ​ຕໍ່​ຫາ​ບໍ​ລິ​ການ​ລູກ​ຄ້າ​, ເບິ່ງ​ບັນ​ຫາ​ທົ່ວ​ໄປ​ດັ່ງ​ຕໍ່​ໄປ​ນີ້​ແລະ​ການ​ແກ້​ໄຂ​:

• ເຄື່ອງລ້າງຈານບໍ່ເລີ່ມ: Check if the power cord is properly plugged in, the door is fully closed, and the child lock is not activated.
• ອາຫານບໍ່ສະອາດ: Ensure spray arms are not blocked, filters are clean, and dishes are loaded correctly. Check detergent and rinse aid levels.
• ນ້ຳ​ບໍ່​ໄຫຼ: Inspect the drain hose for kinks or blockages. Clean the filter system.
• ສິ່ງລົບກວນຜິດປົກກະຕິ: Check for foreign objects in the pump area or spray arms. Ensure dishes are not rattling against each other.
• ລະຫັດຜິດພາດ: Consult the full user manual for specific error code meanings and troubleshooting steps.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

8.1 ຂໍ້ມູນການຮັບປະກັນ

Your HEINNER HDW-FSM60714AWD+++ dishwasher comes with a ຮັບປະກັນ 5 ປີ. This warranty covers essential components and labor. Please retain your proof of purchase for warranty claims.

8.2 ສະຫນັບສະຫນູນລູກຄ້າ

For technical assistance, spare parts, or warranty service, please contact HEINNER customer support. Refer to the official HEINNER website or your purchase documentation for contact details. The HEINNER after-sales service ensures prompt and professional support.
