ແນະນຳ
This manual provides essential instructions for the safe and efficient operation of your Renogy 24V 10A AC-to-DC LFP Portable Battery Charger. Please read this manual thoroughly before use and retain it for future reference. This charger is specifically designed for 24V Lithium-Iron Phosphate (LiFePO4) batteries.
Image: The Renogy 24V 10A AC-to-DC LFP Portable Battery Charger with its cables.
ຄໍາແນະນໍາຄວາມປອດໄພ
Adhering to these safety guidelines is crucial for preventing injury and damage to the charger or battery.
- This charger is exclusively designed for 24V Lithium-Iron Phosphate (LiFePO4) batteries. Do not attempt to charge other battery types.
- Ensure the charger is connected to a grounded AC outlet within the specified voltage range (100-240V AC, 50/60Hz).
- ຫຼີກລ້ຽງການລັດວົງຈອນສັ້ນຢູ່ປາຍຍອດຜົນຜະລິດໄດ້.
- ຢ່າປ່ອຍໃຫ້ສາຍສາກຖືກຝົນ, ຄວາມຊຸ່ມຊື່ນ, ຫຼືອຸນຫະພູມທີ່ຮຸນແຮງ.
- ປະຕິບັດການສາກໄຟຢູ່ໃນພື້ນທີ່ລະບາຍອາກາດໄດ້ດີ.
- If the charger's positive and negative output terminals are accidentally reversed, the built-in blade fuse will burn out to protect the charger. Replace the fuse with one of the same rating (15A) if this occurs.
- The charger includes multiple safety protections: short-circuit, over-current, over-temperature, over-voltage, under-voltage, ແລະການປົກປ້ອງ polarity ປີ້ນກັບກັນ.
Image: Diagram illustrating the multi-layer safety protections of the charger, including short circuit, over-current, over-temperature, over-voltage, under-voltage, ແລະການປົກປ້ອງ polarity ປີ້ນກັບກັນ.
ສິນຄ້າເກີນview ແລະຄຸນສົມບັດ
The Renogy 24V 10A AC-to-DC LFP Portable Battery Charger is designed for efficient and safe charging of lithium-iron phosphate batteries. Key features include:
- Lithium Battery Specific Design: Tailored for LiFePO4 batteries, including a lithium activation function to wake up batteries from BMS protection.
- Wide AC Input: Compatible with 100-240V AC, 50/60Hz power sources.
- Smart 3-Stage ການສາກໄຟ: Utilizes Constant Current (CC), Constant Voltage (CV), and Trickle charging stages for optimized battery health and efficiency up to 92%.
- ການດໍາເນີນງານງຽບ: Fanless design ensures zero-noise charging and efficient heat dissipation.
- Plug-and-Play: Simple connection for user-friendly operation.
Image: The Renogy charger highlighting its compatibility with 24V lithium batteries, showing both ring terminal and alligator clip connection options. Charging voltage is 28.8V and current is ≤10A.

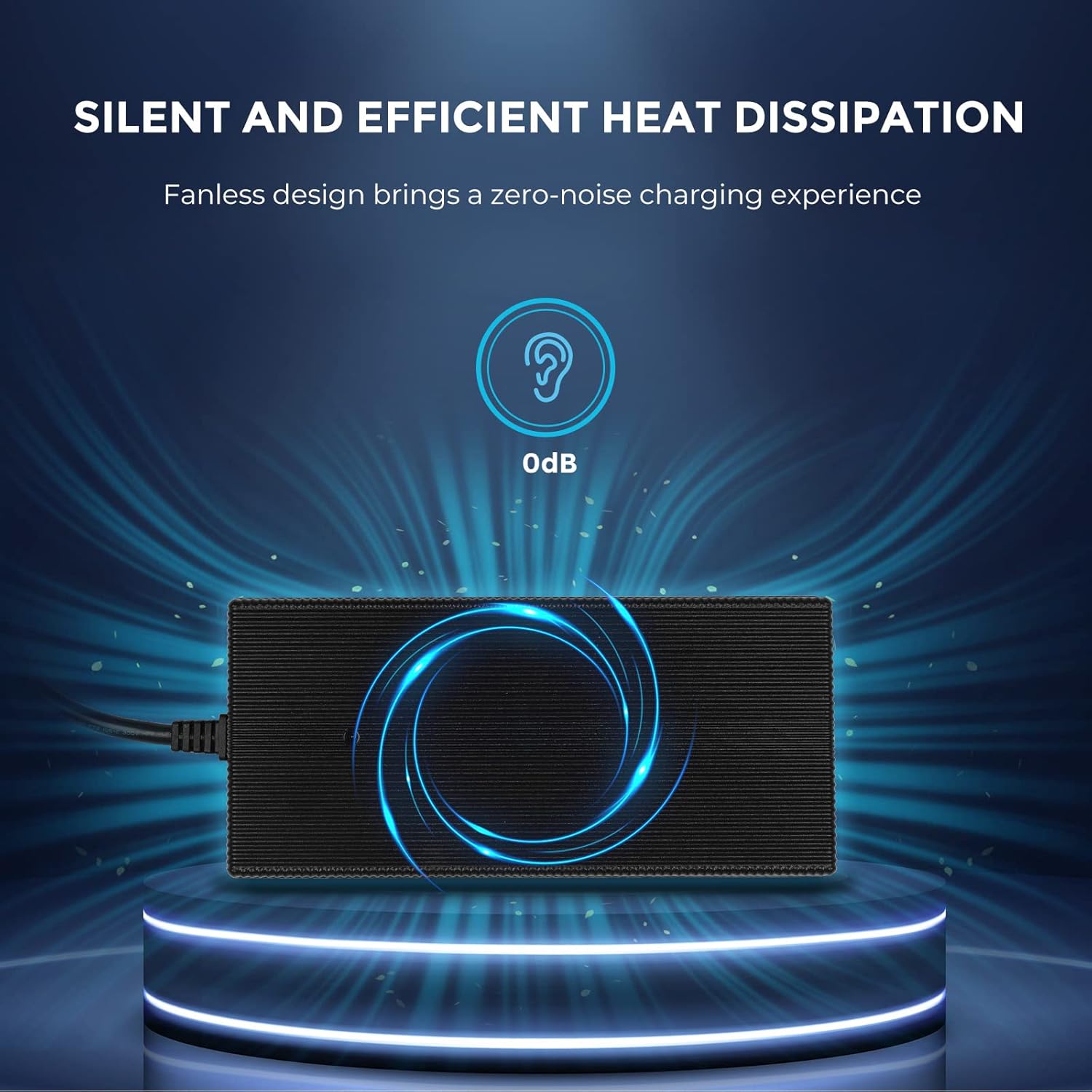

Image: The Renogy charger emphasizing its fanless design for silent operation and efficient heat dissipation, indicated by a 0dB icon.
ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດແມ່ນມີຢູ່ໃນຊຸດ:
- ເຄື່ອງສາກແບັດເຕີຣີ: Main unit (Dimensions: 9.17 x 4.25 x 2.52 inches / 233 x 108 x 6.4 mm).
- AC Charger Power Adapter Cable: For connecting to a wall outlet (Length: 47.24 inches / 1200 mm, 18AWG).
- Alligator Clips Cable: For temporary battery connections (Length: 23.32 inches / 600 mm, 14AWG).
- Ring Terminal Cable: For permanent or semi-permanent battery connections (Length: 23.62 inches / 600 mm, 14AWG).
- Blade Automotive Fuse Holder: Integrated into the output cable (15A).
- Blade Fuse: Spare fuse (15A).

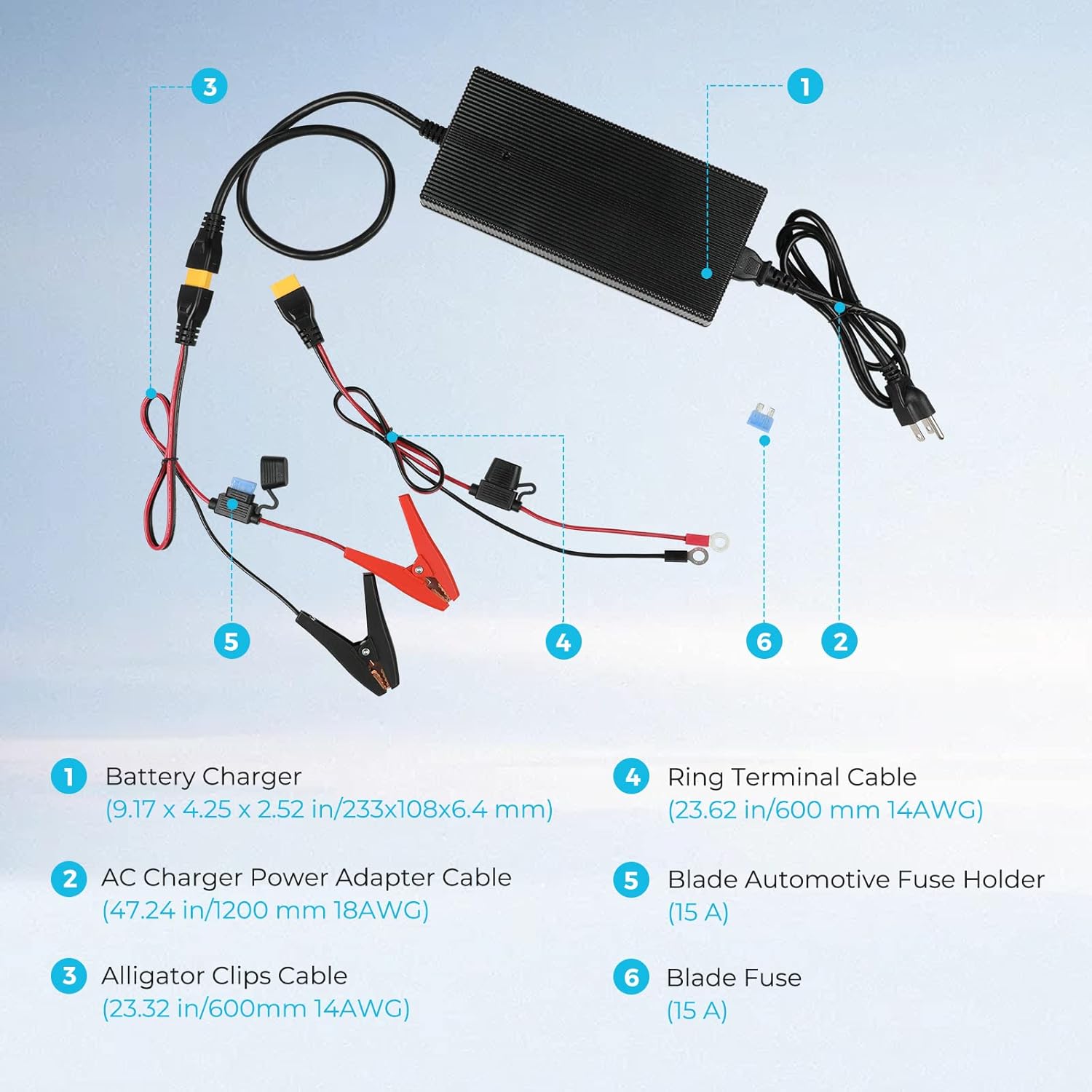

Image: An exploded diagram showing the Renogy battery charger and its components: the main charger unit, AC power adapter cable, alligator clips cable, ring terminal cable, blade automotive fuse holder, and a spare blade fuse.
ການຕິດຕັ້ງແລະການເຊື່ອມຕໍ່
Follow these steps to connect your charger:
- ເລືອກວິທີການເຊື່ອມຕໍ່: Select either the alligator clips cable for temporary connections or the ring terminal cable for more secure, long-term installations.
- ເຊື່ອມຕໍ່ຫາແບັດເຕີຣີ:
- ເຊື່ອມຕໍ່ ສີແດງ (+) terminal of the chosen cable to the ບວກ (+) terminal of your 24V LiFePO4 battery.
- ເຊື່ອມຕໍ່ ສີດໍາ (-) terminal of the chosen cable to the ລົບ (-) terminal of your 24V LiFePO4 battery.
- ໃຫ້ແນ່ໃຈວ່າການເຊື່ອມຕໍ່ປອດໄພ.
- ເຊື່ອມຕໍ່ກັບພະລັງງານ AC: Plug the AC charger power adapter cable into the charger, then plug the other end into a standard 100-240V AC wall outlet.
- The charger will automatically begin the charging process.
ການດໍາເນີນງານ
The charger features a 3-stage charging process and indicator lights to show the charging status.
ການສາກໄຟ Stages and Indicator Lights:
- Fast High-Current Charging (CC - Constant Current): The charger provides a maximum charging current of 10A. The indicator light will be ສີແດງແຂງ, indicating active charging.
- Vol ຄົງທີ່tage Charging (CV): ໃນຖານະເປັນຫມໍ້ໄຟ voltage approaches full, the charging current will gradually decrease. The indicator light remains ສີແດງແຂງ, indicating active charging.
- Trickle Charging: When the battery is nearly full, the charging current will drop below 1A. The indicator light will turn ສີຂຽວ, indicating that the battery is fully charged.
Lithium Battery Activation Function:
This charger can activate a lithium battery that has entered BMS (Battery Management System) protection mode due to low voltage or other conditions. Simply connect the charger to the battery and AC power; the charger will attempt to reactivate the battery and resume normal charging.
Image: A diagram showing the Renogy charger connected to a LiFePO4 battery, illustrating fast charging (25Ah battery fully charged in 2.5 hours) and the indicator light states: red for charging, green for fully charged.
ບໍາລຸງຮັກສາ
Proper maintenance ensures the longevity and performance of your charger:
- ຮັກສາເຄື່ອງສາກໃຫ້ສະອາດ ແລະບໍ່ມີຝຸ່ນ ແລະສິ່ງເສດເຫຼືອ. ໃຊ້ຜ້າແຫ້ງ, ອ່ອນໆເພື່ອເຮັດຄວາມສະອາດ.
- Regularly inspect cables and connectors for any signs of damage or wear. Replace damaged components immediately.
- ເກັບຮັກສາສາຍສາກໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງເມື່ອບໍ່ໄດ້ໃຊ້.
- Ensure proper ventilation around the charger during operation to facilitate heat dissipation.
ການແກ້ໄຂບັນຫາ
ຖ້າທ່ານພົບບັນຫາກັບເຄື່ອງສາກຂອງທ່ານ, ໃຫ້ອ້າງອີງເຖິງບັນຫາທົ່ວໄປ ແລະວິທີແກ້ໄຂບັນຫາຕໍ່ໄປນີ້:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Charger indicator light is off. | No AC power, faulty connection, or internal issue. | Check AC power outlet and cable connections. Ensure the charger is securely plugged in. |
| Charger not charging (red light not on). | Battery not connected correctly, battery in BMS protection, or reverse polarity. | Verify battery connections (positive to positive, negative to negative). The charger has a lithium activation function; ensure the battery is not severely damaged. Check the blade fuse for reverse polarity protection. |
| Charger light is green but battery is not fully charged. | Incorrect battery type or battery fault. | Ensure you are charging a 24V LiFePO4 battery. If the issue persists, the battery may be faulty. |
| ເຄື່ອງສາກຮ້ອນເກີນໄປ. | Poor ventilation or internal fault. | Ensure the charger is in a well-ventilated area. If overheating continues, discontinue use and contact support. |
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ຂໍ້ມູນຈໍາເພາະ |
|---|---|
| ຕົວແບບ | RBC10A2P |
| ການປ້ອນຂໍ້ມູນ Voltage | 100-240V AC, 50/60Hz |
| ຜົນໄດ້ຮັບ Voltage | 24V DC |
| ກຳລັງສາກໄຟ | 10A |
| ກຳ ລັງສາກໄຟtage (ສູງສຸດ) | 28.8V |
| ປະສິດທິພາບ | ສູງເຖິງ 92% |
| ຂະໜາດສິນຄ້າ | 9.17 x 4.25 x 2.52 ນິ້ວ (233 x 108 x 6.4 ມມ) |
| ນ້ໍາຫນັກລາຍການ | 5 ປອນ |
| UPC | 840315237667 |
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For detailed warranty information and customer support, please refer to the official Renogy website or contact Renogy customer service directly. This manual does not contain specific warranty terms.
