Serta Torrington Big & Tall Office Chair User Manual

1. ບົດແນະນຳ

Thank you for choosing the Serta Torrington Big & Tall Office Chair. This chair is designed to provide ample space and ultra-comfortable cushioning, featuring ComfortCoils seat technology and durable vegan faux leather. It is built to support users up to 400 lbs, offering ergonomic support for extended periods of work or activity. This manual provides essential information for the proper assembly, operation, and maintenance of your new office chair.

2. ຂໍ້ມູນຄວາມປອດໄພ

• ຢ່າຢືນຢູ່ເທິງເກົ້າອີ້. Use the chair only for its intended purpose of seating.
• Ensure the chair is placed on a ລະດັບແລະຫນ້າດິນທີ່ຫມັ້ນຄົງ ເພື່ອປ້ອງກັນ tipping.
• ເປັນປົກກະຕິ check and tighten all screws and connections, ideally every 90 days, to maintain stability and safety.
• Do not use the chair if any parts are damaged or missing. Contact customer support for replacement parts.
• Avoid using the chair as a step ladder or for lifting/moving heavy objects.
• Keep casters clean and free of debris to ensure smooth and safe movement across surfaces.

3. Product Highlights & Dimensions

The Serta Torrington chair offers a range of features designed for comfort and durability. Below are key highlights and detailed dimensions to help you understand your chair's design.

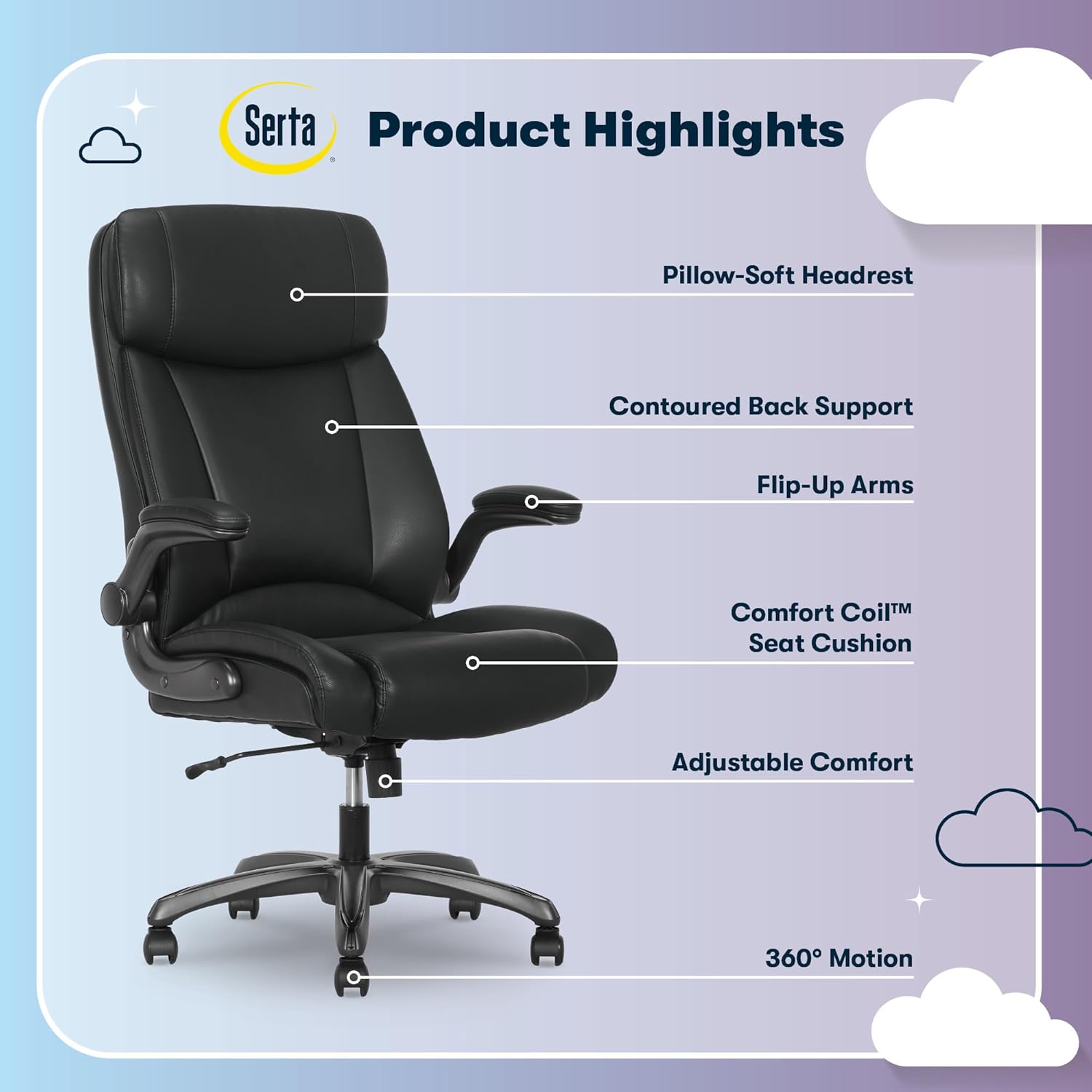

ຈຸດເດັ່ນຂອງຜະລິດຕະພັນ: This image illustrates the key features of the Serta Torrington chair, including the pillow-soft headrest, contoured back support, flip-up arms, ComfortCoil™ seat cushion, adjustable comfort mechanisms, and 360° motion casters.

ຂະໜາດຜະລິດຕະພັນ: This diagram provides detailed measurements for the chair's width (28.75"), depth (30.25"), back height (27.75"), inner seat width (22.75"), seat depth (19.5"), and adjustable chair/seat/arm heights. It also highlights the 400 lb. weight capacity.

4. ຄໍາແນະນໍາຂອງສະພາແຫ່ງ

The Serta Torrington office chair is designed for easy assembly. Two people are recommended for optimal ease and safety during the assembly process. Please refer to the detailed step-by-step instructions included in your product packaging for a comprehensive guide. A general overview ຂະບວນການປະກອບແມ່ນສະຫນອງໃຫ້ຂ້າງລຸ່ມນີ້:

1. Unpack ອົງປະກອບ: ເອົາຊິ້ນສ່ວນທັງໝົດອອກຈາກການຫຸ້ມຫໍ່ຢ່າງລະມັດລະວັງ ແລະ ວາງພວກມັນໄວ້ເທິງພື້ນຜິວທີ່ສະອາດ ແລະ ອ່ອນນຸ້ມເພື່ອປ້ອງກັນຮອຍຂີດຂ່ວນ. ກວດສອບໃຫ້ແນ່ໃຈວ່າຊິ້ນສ່ວນທັງໝົດມີຢູ່ຕາມລາຍການຊິ້ນສ່ວນທີ່ລວມຢູ່.
2. ຄັດຕິດ Casters ກັບຖານ: Insert the five casters into the holes at the end of each leg of the star base.
3. ໃສ່ Gas Lift: ວາງກະບອກຍົກອາຍແກັສເຂົ້າໄປໃນຂຸມກາງຂອງຖານດາວ.
4. Attach Seat Plate: Secure the seat plate to the underside of the seat cushion using the provided screws. Ensure the 'FRONT' label on the seat plate faces the front of the seat cushion.
5. ຕິດທີ່ວາງແຂນ: Connect the armrests to both the seat cushion and the backrest using the designated screws.
6. Connect Seat and Back: Attach the assembled seat and armrests to the backrest.
7. Place Assembled Top onto Gas Lift: Carefully place the assembled seat and back onto the gas lift cylinder.

For visual guidance, please refer to the official product video below, which demonstrates the chair's features and design, including its robust construction.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

Your Serta Torrington office chair offers several adjustable features to customize your comfort. Familiarize yourself with these controls for an optimal seating experience.

ການປັບຄວາມສູງ: To adjust the chair's height, lift the lever located on the side of the chair. While seated, lift your body slightly to raise the chair, or apply weight to lower it. Release the lever to lock the height.

ການ​ປັບ​ເອ​ກະ​ສານ: Pull the lever on the side of the chair outwards to unlock the recline mechanism. You can then lean back to your desired angle. Twist the tension knob (usually located under the seat) to adjust the resistance of the recline. Push the lever inwards to lock the chair in an upright position.

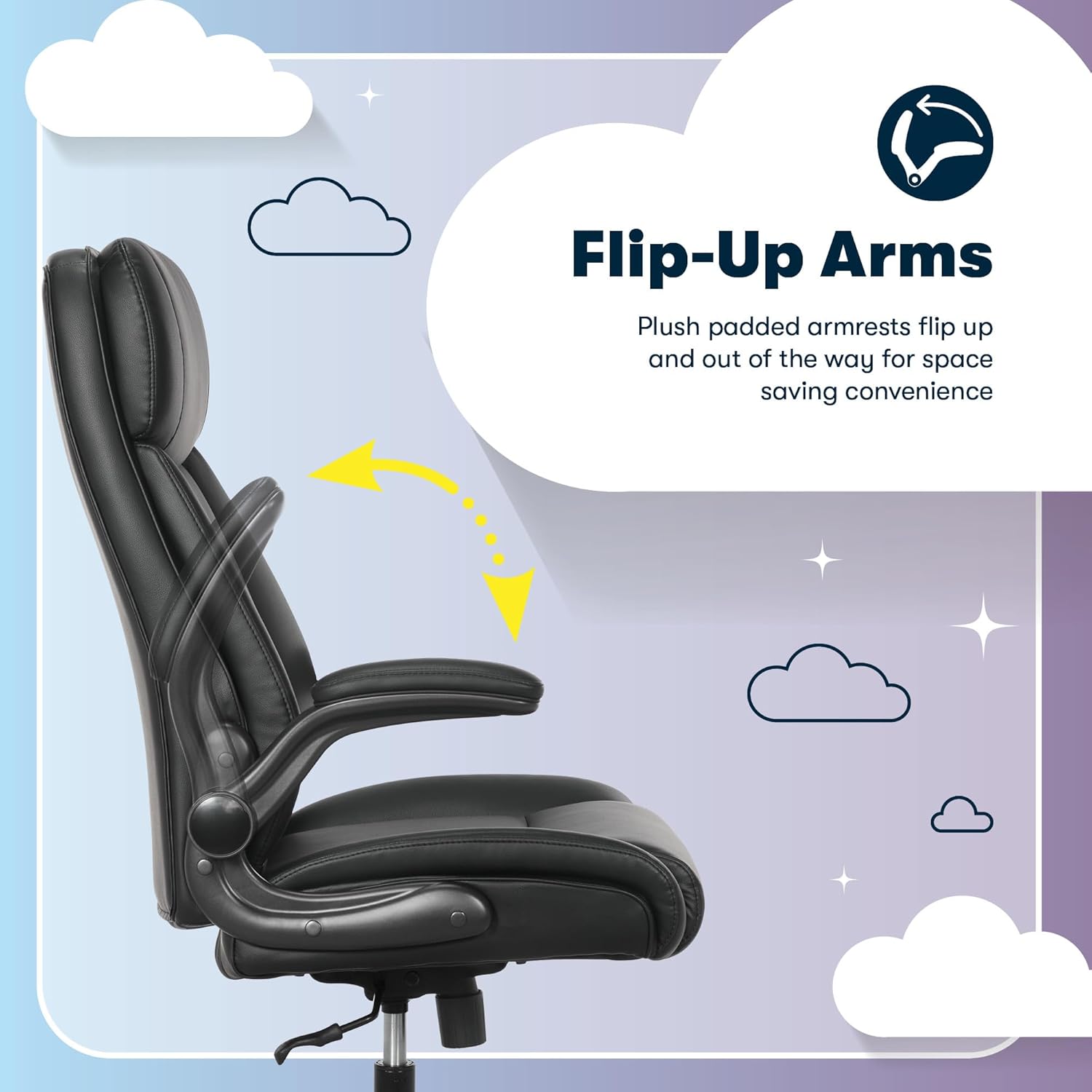

Flip-Up Armrests: The chair features plush padded armrests that can be flipped up and out of the way. This provides space-saving convenience and allows for easier access to your desk or a wider range of motion.

360° Motion Casters: The chair is equipped with smooth-rolling casters that allow for 360-degree rotation and easy gliding across most carpet types and hard surfaces.

6. ບໍາລຸງຮັກສາ

• ທໍາຄວາມສະອາດ: The vegan faux leather upholstery can be spot cleaned with a damp ຜ້າ. ຫຼີກເວັ້ນການສານເຄມີທີ່ຮຸນແຮງຫຼືເຄື່ອງເຮັດຄວາມສະອາດຂັດ.
• ການກວດກາປົກກະຕິ: Periodically inspect all bolts and screws to ensure they are tight. Re-tighten as necessary to maintain the chair's structural integrity.
• ການ​ດູ​ແລ Caster​: Keep the casters free of hair, dust, and debris to ensure smooth movement and prevent damage to flooring.

7. ການແກ້ໄຂບັນຫາ

• ເກົ້າອີ້ຮູ້ສຶກບໍ່ສະຖຽນລະພາບ: Ensure all assembly screws are securely tightened. Verify the chair is on a flat, level surface.
• ການປັບຄວາມສູງບໍ່ເຮັດວຽກ: Check that the lever is fully engaged or disengaged. Ensure the gas lift cylinder is correctly seated in the base and seat plate.
• Recline not functioning: Confirm the recline lever is pulled out to unlock. Adjust the tension knob to find your preferred recline resistance.
• Casters ບໍ່ມ້ວນກ້ຽງ: Inspect casters for any trapped debris (hair, lint, etc.) and clean them thoroughly.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

For any questions, assistance with assembly, or support regarding your Serta Torrington office chair, please contact our dedicated U.S.-based customer support team.

ສະຫນັບສະຫນູນອອນໄລນ໌: trueinnovations.com/support

ສະຫນັບສະຫນູນອີເມວ: service@trueinnovations.com

Our team is ready to assist you with any inquiries or help needed.
