Urageuxy Wireless Indoor/Outdoor Thermometer with 3 Sensors

1. ບົດແນະນຳ

ຂອບໃຈສໍາລັບການຊື້asing the Urageuxy Wireless Indoor/Outdoor Thermometer with 3 Sensors. This device provides accurate, real-time temperature and humidity readings for up to four locations simultaneously (one indoor, three outdoor/remote). It features a clear LCD display with backlight, comfort indicators, and records of daily maximum and minimum values. This manual will guide you through the setup, operation, and maintenance of your new thermometer.

2. ຂໍ້ມູນຄວາມປອດໄພ

• Do not expose the main unit or sensors to extreme force, shock, dust, temperature, or humidity.
• Do not immerse the main unit in water. The remote sensors are splash-proof but should not be submerged.
• Do not attempt to open the main unit or sensors. This will void the warranty.
• Use only fresh batteries of the specified type. Do not mix old and new batteries.
• ຖິ້ມແບັດເຕີລີທີ່ໃຊ້ແລ້ວຢ່າງມີຄວາມຮັບຜິດຊອບ, ປະຕິບັດຕາມກົດລະບຽບທ້ອງຖິ່ນ.
• ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.

3. ເນື້ອໃນຊຸດ

ກະ​ລຸ​ນາ​ກວດ​ສອບ​ເນື້ອ​ໃນ​ຂອງ​ຊຸດ​ເພື່ອ​ໃຫ້​ແນ່​ໃຈວ່​າ​ລາຍ​ການ​ທັງ​ຫມົດ​ມີ​ຢູ່​:

• 1 x Main Display Unit (Indoor Console)
• 3 x ເຊັນເຊີໄລຍະໄກໄຮ້ສາຍ
• 1 x ຄູ່ມືການສອນ

4. ຜະລິດຕະພັນເກີນview

ໜ່ວຍສະແດງຫຼັກ

The main display unit shows indoor temperature and humidity, along with readings from up to three remote sensors. It features a large LCD screen with a backlight for easy viewing.

Wireless Remote Sensors

Each remote sensor measures temperature and humidity and transmits data wirelessly to the main unit. They are designed for outdoor use but should be placed in a sheltered location to avoid direct rain or prolonged sun exposure.

5. ຕັ້ງຄ່າ

5.1 ການຕິດຕັ້ງຫມໍ້ໄຟ

For the Main Display Unit:

1. ເປີດຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟຢູ່ດ້ານຫຼັງຂອງໜ່ວຍຫຼັກ.
2. Insert 3 AAA batteries (not included) according to the polarity markings (+ and -).
3. ປິດຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟ.

For the Wireless Remote Sensors:

1. Open the battery compartment cover on the back of each sensor.
2. Insert 2 AAA batteries (not included) according to the polarity markings (+ and -).
3. ປິດຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟ.

5.2 ການຈັບຄູ່ເຊັນເຊີ

The main unit will automatically search for and connect to the remote sensors once batteries are installed. Ensure both the main unit and sensors are within range during initial setup.

• Place the main unit and sensors close to each other during the initial pairing process.
• The main unit will display readings for each connected sensor (CH1, CH2, CH3).
• If a sensor does not connect, press the 'CHANNEL' button on the main unit to cycle through channels or press the 'RESET' button on the sensor to re-initiate pairing.

5.3 Sensor Placement Guidelines

For optimal performance and accurate readings, consider the following:

• ໄລຍະສາຍສົ່ງ: The wireless sensors have a transmission range of up to 328 feet (100 meters) in open areas. Walls, metal structures, and other electronic devices can reduce this range.
• ການຈັດວາງກາງແຈ້ງ: While splash-proof, place outdoor sensors under a roof or in a sheltered area to protect them from direct rain and prolonged direct sunlight.
• ຫຼີກເວັ້ນແຫຼ່ງຄວາມຮ້ອນ: Do not place sensors near heat sources (e.g., vents, appliances) or in direct sunlight, as this can lead to inaccurate temperature readings.
• ຫຼາຍສະຖານທີ່: Utilize the three sensors to monitor different areas such as a greenhouse, baby room, wine cellar, kitchen, or garage.

6. ຄໍາແນະນໍາການດໍາເນີນງານ

6.1 Display Readings

ໜ້າຈໍ LCD ສະແດງຂໍ້ມູນຕໍ່ໄປນີ້:

• ອຸນຫະພູມ ແລະ ຄວາມຊຸ່ມຊື່ນພາຍໃນ: Shown at the top of the display.
• Remote Sensor Readings: Temperature and humidity for each connected sensor (CH1, CH2, CH3) are displayed below the indoor readings.
• Comfort Icons: Indicates the current humidity level (DRY, COMFORT, WET).
• ຕົວຊີ້ວັດແນວໂນ້ມ: Arrows next to temperature and humidity values show if they are rising, falling, or stable.

6.2 °C/°F Switcher

To switch between Celsius (°C) and Fahrenheit (°F), press the '°C/°F' button located on the back of the main unit.

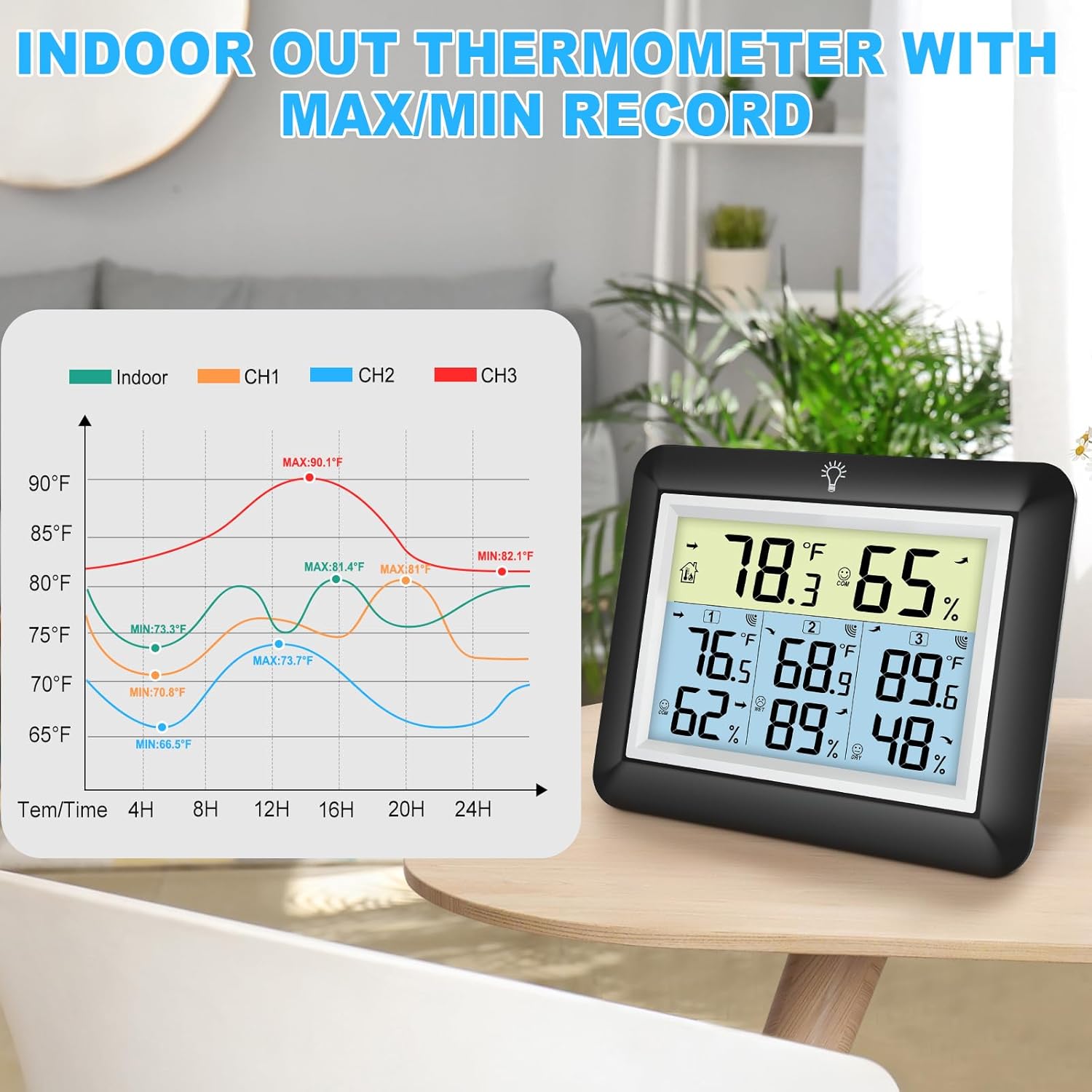

6.3 MAX/MIN Records

The device automatically records the daily maximum and minimum temperature and humidity values for both indoor and all remote sensors. These records reset every 24 hours.

• Press the 'MIN/MAX' button on the back of the main unit to view ຄ່າສູງສຸດທີ່ບັນທຶກໄວ້.
• Press the 'MIN/MAX' button again to view ຄ່າຕໍ່າສຸດທີ່ບັນທຶກໄວ້.
• Press a third time to return to current readings.

6.4 ການດໍາເນີນງານ Backlight

The main unit features an adjustable backlight for improved visibility in low-light conditions.

• Touch the light bulb icon on the top of the main unit to activate the backlight for 5 seconds.
• Press and hold the light bulb icon for more than 5 seconds to keep the backlight on for 30 minutes.

6.5 ຕົວຊີ້ວັດຄວາມສະດວກສະບາຍ

The comfort indicator provides a quick visual reference for the current humidity level, helping you maintain an ideal environment.

• ແຫ້ງ: ຄວາມຊຸ່ມຊື່ນ < 45%
• ຄວາມສະດວກສະບາຍ: 45% ≤ ຄວາມຊຸ່ມຊື່ນ ≤ 65%
• ຊຸ່ມ: ຄວາມຊຸ່ມຊື່ນ > 65%

7. ບໍາລຸງຮັກສາ

7.1 ການທໍາຄວາມສະອາດ

ເຊັດໜ່ວຍຫຼັກ ແລະ ເຊັນເຊີດ້ວຍຜ້າອ່ອນໆ, ເຊັດໃຫ້ສະອາດ.amp cloth. Do not use abrasive cleaners or solvents, as they may damage the plastic components and electronic circuits.

7.2 ການທົດແທນຫມໍ້ໄຟ

Replace batteries when the low battery indicator appears on the display. Always replace all batteries in a unit at the same time with new ones of the same type.

7.3 ການເກັບຮັກສາ

If the device will not be used for an extended period, remove the batteries from both the main unit and sensors to prevent leakage and damage.

8. ການແກ້ໄຂບັນຫາ

9. ຂໍ້ມູນຈໍາເພາະ

• ຍີ່ຫໍ້: Urageuxy
• ຕົວແບບ: WS0170BKY
• ຊ່ວງອຸນຫະພູມພາຍໃນ: 32°F ຫາ 140°F (0°C ຫາ 60°C)
• ຊ່ວງອຸນຫະພູມກາງແຈ້ງ: -40°F ຫາ 140°F (-40°C ຫາ 60°C)
• ຄວາມຖືກຕ້ອງຂອງອຸນຫະພູມ: ±2°F / ±1°C
• ລະດັບຄວາມຊຸ່ມ: 10% ຫາ 99% RH
• ຄວາມຖືກຕ້ອງຂອງຄວາມຊຸ່ມຊື່ນ: ±5% RH
• ໄລຍະການສົ່ງຜ່ານໄຮ້ສາຍ: ສູງເຖິງ 328 ຟຸດ (100 ແມັດ) ໃນພື້ນທີ່ເປີດ
• ແຫຼ່ງພະລັງງານ (ໜ່ວຍຫຼັກ): 3 x ຫມໍ້ໄຟ AAA (ບໍ່ລວມ)
• ແຫຼ່ງພະລັງງານ (ເຊັນເຊີໄລຍະໄກ): 2 x ຫມໍ້ໄຟ AAA (ບໍ່ລວມ)
• ຄຸນນະສົມບັດພິເສດ: Backlit LCD, Comfort Indicator, Min/Max Record, Fast Refresh
• ວັດສະດຸ: Acrylonitrile Butadiene Styrene (ABS)
• ຂະໜາດຜະລິດຕະພັນ (ໜ່ວຍຫຼັກ): 0.78"D x 4.33"W x 0.78"H (ປະມານ)
• ນ້ໍາຫນັກລາຍການ: 9.9 ອອນສ໌ (0.28 ກິ​ໂລ​ກຣາມ)

10. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

10.1 ຂໍ້ມູນການຮັບປະກັນ

Urageuxy products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship for a period of one year from the original purchase date. This warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.

10.2 ສະຫນັບສະຫນູນລູກຄ້າ

If you encounter any issues or have questions regarding your Urageuxy Wireless Indoor/Outdoor Thermometer, please contact our customer support team. For the quickest assistance, please refer to the contact information provided on the product packaging or the official Urageuxy webເວັບໄຊ.

ສະຫນັບສະຫນູນອອນໄລນ໌: ຢ້ຽມຢາມ Urageuxy Store on Amazon ສຳລັບຄຳຖາມທີ່ຖືກຖາມເລື້ອຍໆ ແລະ ຂໍ້ມູນຜະລິດຕະພັນ.
