1. ບົດແນະນຳ
This manual provides essential information for the safe operation, assembly, and maintenance of your Oryxearth 105CC 4-Stroke Gas Powered Mini Bike. Please read this manual thoroughly before operating the mini bike to ensure proper use and to prevent injury or damage.

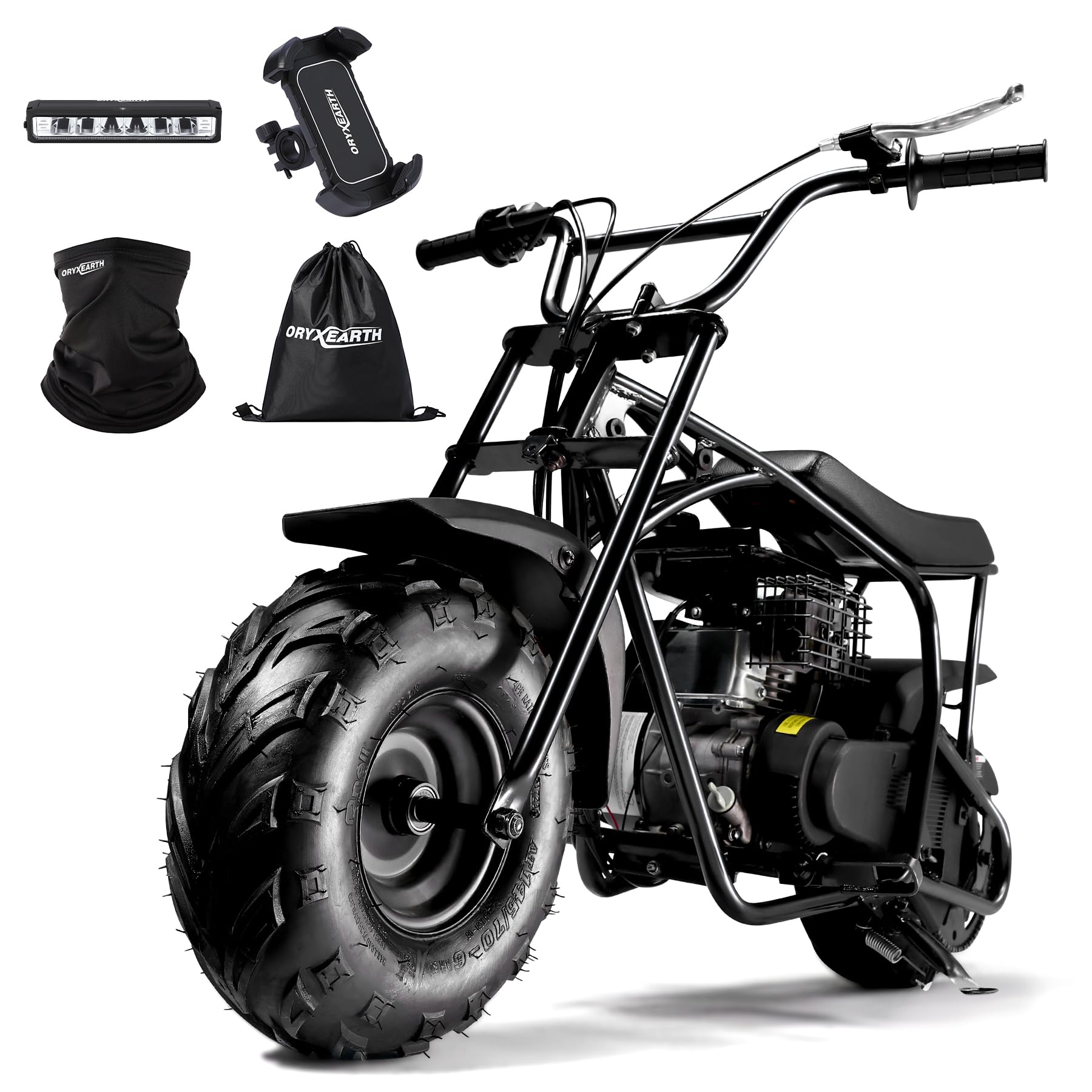

The Oryxearth 105CC 4-Stroke Mini Bike is designed for off-road use by individuals aged 8 and up, with a recommended height of 4.27FT-5.9FT and a maximum weight capacity of 185 LBS. It features a powerful 3.5HP 105CC 4-stroke OHV engine, automatic clutch drive system, 14.5-inch all-terrain tires, and a rear disc brake for reliable stopping power.
2. ຂໍ້ມູນຄວາມປອດໄພ
WARNING: Operating this mini bike can be dangerous. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and protective clothing. Adult supervision is required for riders under 16 years of age. Do not operate on public roads or highways.
- Always perform a pre-ride inspection.
- Ensure all nuts and bolts are tightened before each ride.
- Never operate the mini bike under the influence of alcohol or drugs.
- ຮັກສາໄລຍະຫ່າງທີ່ປອດໄພຈາກຜູ້ຂັບຂີ່ແລະອຸປະສັກອື່ນໆ.
- Be aware of your surroundings and terrain conditions.
- ຜະລິດຕະພັນນີ້ມີສານເຄມີທີ່ລັດ California ຮູ້ຈັກເພື່ອເຮັດໃຫ້ເກີດມະເລັງ, ຄວາມຜິດປົກກະຕິໃນການເກີດລູກຫຼືຜົນຮ້າຍຕໍ່ການຈະເລີນພັນອື່ນໆ.
3. ການຕິດຕັ້ງແລະການປະກອບ
Your Oryxearth Mini Bike is 90% pre-assembled. Only the handlebar clamp and front tire require assembly. Please follow these steps carefully.
3.1 Unboxing
Carefully open the packaging. Use a knife to slice through the tape sealing the outer box. Remove the top foam packaging and lift the mini bike out of the box. Check the package contents against the parts list in your included manual to ensure nothing is missing.
Video: Unboxing and initial assembly steps for the FRP GMB100 Mini Bike, demonstrating how to remove the bike from its packaging and verify all parts are present.
3.2 Front Fork and Handlebar Assembly
Tools required: 12mm, 15mm, 10mm, and 13mm wrenches, and a hex screwdriver.
- ຈັດດ້ານຂ້າງຂອງສ້ອມດ້ານໜ້າດ້ວຍກອບ.
- Thread the handlebar out from the front fork and set it aside. Ensure the handlebar is threaded out from the left side of the front fork and head tube, meaning it should be threaded out from the right side of the frame.
- Loosen the screws on the bearings. Insert the bearings into the connection between the front fork and the head tube.
- ຂັນສະກູໃຫ້ແໜ້ນ ແລະ ຮັດໃຫ້ແໜ້ນດ້ວຍປະແຈຂະໜາດ 12 ມມ ແລະ 15 ມມ.
- Loosen the screws on the handlebar presses and separate the upper handlebar press from the lower handlebar press.
- Place the lower pressure block beneath the handlebar.
- Insert the screws of the upper handlebar press into the screw holes of the lower handlebar press.
- ໃສ່ເຄື່ອງກົດຮາບທັງໝົດເຂົ້າໄປໃນຮູສະກູຂ້າງເທິງສ້ອມໜ້າ.
- Secure the handlebar press in place using a nut.
- Follow the same process with the second handlebar press.
- ປັບມຸມຂອງແຮນຈັບເພື່ອຍຶດຮານຈັບໃຫ້ຢູ່ກັບທີ່ຢ່າງແໜ້ນໜາ.
- ຂັນປຸ່ມກົດມືຖືໃຫ້ແໜ້ນດ້ວຍປະແຈຂະໜາດ 10 ມມ ແລະ 13 ມມ.
Video: Detailed steps for assembling the front fork and handlebar of the FRP GMB100 Mini Bike.
3.3 ການປະກອບຢາງລົດໜ້າ
Tools required: 14mm and 19mm wrenches.
- ຄາຍສະກູຢູ່ເທິງແບຣິ່ງ ແລະ ສອດແບຣິ່ງເຂົ້າໄປໃນໂຊ໊ກໜ້າ, ຕົວແຍກ, ແລະ ຢາງລົດຕາມລຳດັບ.
- ໃຫ້ແນ່ໃຈວ່າໜ້າຢາງລົດ, ໂດຍໃຫ້ຂອບແຫຼມ, ຫັນໜ້າໄປທາງໜ້າ.
- Please ensure that the bearings are inserted in the direction indicated by the arrow.
- ວາງຕົວແຍກອີກອັນໜຶ່ງໄວ້ທາງກົງກັນຂ້າມຂອງຢາງລົດ ແລະ ສອດລູກປືນຜ່ານມັນ.
- ສອດນັອດໃສ່ປາຍ ແລະ ຮັດມັນໃຫ້ແໜ້ນໂດຍໃຊ້ປະແຈຂະໜາດ 14 ມມ ແລະ 19 ມມ.
Video: Step-by-step guide for installing the front tire on the FRP GMB100 Mini Bike, including proper bearing and spacer placement.
3.4 ການປະກອບກະບະໜ້າ
Tools required: Hex screwdriver.
- ວາງບังໂຄນໜ້າໃສ່ສ້ອມໜ້າ.
- ຍຶດບັງລົດດ້ານໜ້າໃຫ້ແໜ້ນດ້ວຍສະກູ ແລະ ຂັນໃຫ້ແໜ້ນໂດຍໃຊ້ໄຂຄວງຫົກຫຼ່ຽມ.
Video: Instructions for attaching the front fender to the FRP GMB100 Mini Bike using a hex screwdriver.
3.5 Fuel and Oil
- Add engine oil with a 10W-30 or higher rating.
- Add gasoline with an octane rating of 87 or higher (non-ethanol). The tank capacity is 0.32 gallons.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
4.1 ການເລີ່ມຕົ້ນເຄື່ອງຈັກ
The mini bike features an easy pull-start mechanism. Ensure the kill switch is in the "ON" position before attempting to start.
Image: Close-up of the Oryxearth Mini Bike engine, highlighting the pull-start mechanism.
Video: Demonstration of starting the Oryxearth Mini Dirt Bike, showing the pull-start and handlebar controls.
4.2 Riding and Controls
The mini bike has an automatic clutch drive system, making it easy for beginners to operate. The maximum speed is approximately 28 Mph.
Image: Diagram highlighting key features like the adjustable handlebar, PU leather seat, sturdy metal frame, and rear disc brake.
Video: A rider demonstrating the operation of the 105CC Gas Mini Bike in a rust color, showcasing its handling and features.
4.3 ເບກ
The mini bike is equipped with a rear disc brake for effective and smooth stopping. Familiarize yourself with the brake lever location and feel before riding at higher speeds.
Image: The Oryxearth Mini Bike featuring wide off-road tires, suitable for various terrains like grass, gravel, and asphalt.
5. ບໍາລຸງຮັກສາ
Regular maintenance ensures the longevity and safe operation of your mini bike.
- ນ້ຳມັນເຄື່ອງ: Check engine oil levels regularly and change as recommended in the full owner's manual.
- ລະບົບຕ່ອງໂສ້: Keep the chain clean and properly lubricated. Inspect for wear and tension.
- ຢາງລົດ: Check tire pressure before each ride. The 14.5-inch all-terrain tires are designed for various surfaces.
- ເບກ: Inspect the rear disc brake for proper function and wear. Adjust as needed.
- ທໍາຄວາມສະອາດ: Clean the mini bike after each use, especially after riding in muddy or dusty conditions, to prevent rust and maintain components.
6. ການແກ້ໄຂບັນຫາ
If you encounter issues with your mini bike, consider the following common problems:
- ເຄື່ອງຈັກບໍ່ເລີ່ມຕົ້ນ: Check fuel level, oil level, and ensure the kill switch is in the "ON" position.
- ການສູນເສຍພະລັງງານ: Verify fuel quality and quantity. Check air filter for clogs.
- Brake issues: Inspect brake pads and cable tension.
For more complex issues, refer to the detailed troubleshooting section in your full owner's manual or contact customer support.
7. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ເຄື່ອງຈັກ | 105CC 4-Stroke OHV, 3.5HP |
| ຄວາມໄວສູງສຸດ | ສູງສຸດ 28 ໄມລ໌ຕໍ່ຊົ່ວໂມງ |
| ຄວາມອາດສາມາດນ້ໍາຫນັກ | ສູງສຸດ 185 ປອນ |
| ອາຍຸທີ່ແນະນໍາ | 8+ (Manufacturer recommended age: 13 years and up) |
| ປະເພດນໍ້າມັນເຊື້ອໄຟ | Gasoline with Octane Rating of 87 or Higher (non-ethanol) |
| ຄວາມອາດສາມາດຂອງຖັງນໍ້າມັນ | 0.32 ກາລອນ |
| ລະບົບເບກ | ເບກດິດຫລັງ |
| ຢາງລົດ | 14.5-inch All-Terrain Tires |
| ຂະໜາດ | 26 x 33 x 50 ນິ້ວ |
| ນ້ໍາຫນັກລາຍການ | 88.2 ປອນ |
| EPA ອະນຸມັດ | ແມ່ນແລ້ວ |
Image: Visual representation of the Oryxearth Mini Bike's dimensions and key specifications.
8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Oryxearth provides the following warranty and support for your mini bike:
- ການຮັບປະກັນຊິ້ນສ່ວນ: 60-day parts warranty.
- ການຮັບປະກັນເຄື່ອງຈັກ: 90-day engine warranty.
- ບໍລິການລູກຄ້າ: Dedicated customer service team available 24/7.
- ຊິ້ນສ່ວນທົດແທນ: Full part inventory in stock for complimentary replacement parts.
For any questions, concerns, or warranty claims, please contact Oryxearth customer support. Refer to your purchase documentation for specific contact details.
