ແນະນຳ
This manual provides detailed instructions for the TECKNET Wireless Mouse (Model B0DP2DCC6N). It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and user experience. This mouse offers dual connectivity (2.4G USB A and Bluetooth 5.0/3.0) and adjustable DPI settings for versatile use across various devices and operating systems.
Figure 1: TECKNET Wireless Mouse (Pink)
ເນື້ອໃນຊຸດ
- TECKNET Wireless Mouse
- USB A Receiver (stored inside the mouse)
- ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
ໝາຍເຫດ: 2 AAA batteries are not included and must be purchased separately.
ຄຸນສົມບັດຜະລິດຕະພັນ
- Dual Device Connection: Bluetooth (5.0/3.0) and 2.4G USB A.
- 6 Adjustable DPI Levels: 800/1200/1600/2400/3200/4800.
- Silent Click Operation: Designed for quiet environments.
- Ergonomic Design: Shaped for comfortable use.
- Automatic Sleep Technology: Extends battery life.
- Wide Compatibility: Supports Windows, macOS, Chrome, Linux. (Side buttons are not compatible with macOS).
Figure 2: Dual Connection Modes (2.4G USB A and Bluetooth)
Figure 3: Adjustable DPI Settings for Precise Control
ຄໍາແນະນໍາການຕິດຕັ້ງ
1. ການຕິດຕັ້ງຫມໍ້ໄຟ
- ຊອກຫາຊ່ອງໃສ່ຫມໍ້ໄຟຢູ່ດ້ານລຸ່ມຂອງຫນູ.
- ເປີດຝາປິດຫມໍ້ໄຟ.
- ໃສ່ໝໍ້ໄຟ AAA ສອງໜ່ວຍ, ຮັບປະກັນການຂົ້ວທີ່ຖືກຕ້ອງ (+/-).
- ປິດຝາປິດຫມໍ້ໄຟຢ່າງປອດໄພ.

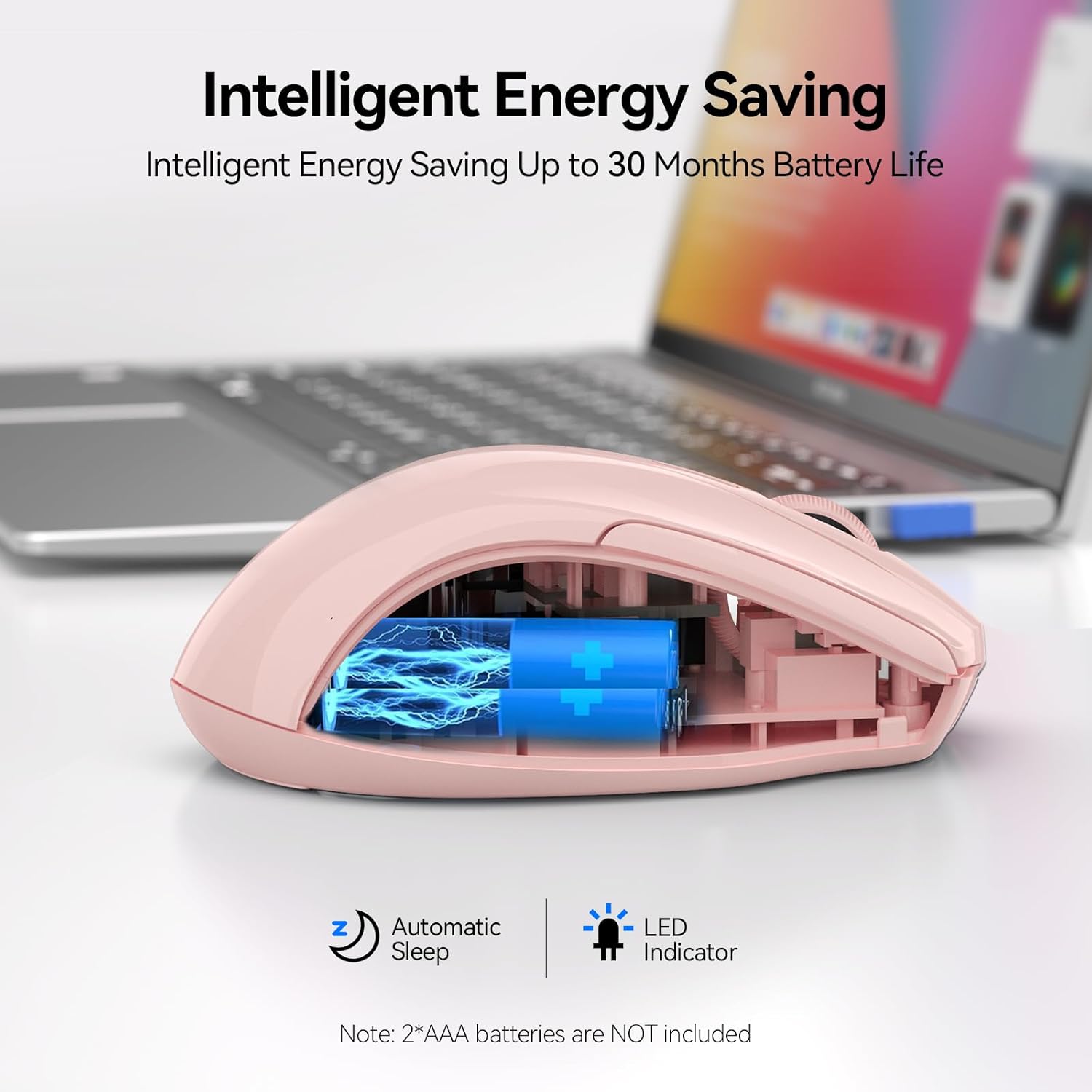

Figure 4: Battery Compartment (2 AAA batteries required)
2. ການເຊື່ອມຕໍ່ຫນູ
The TECKNET Wireless Mouse offers two connection methods: 2.4G USB A and Bluetooth.
2.1. 2.4G USB A Connection
- Locate the USB A receiver stored in the battery compartment of the mouse.
- Remove the USB A receiver.
- Plug the USB A receiver into an available USB port on your computer.
- Slide the power switch on the bottom of the mouse to the "2.4G" position.
- ຫນູຄວນເຊື່ອມຕໍ່ອັດຕະໂນມັດ.
Figure 5: 2.4G USB A Connection
2.2. ການເຊື່ອມຕໍ່ບູທູດ
- Slide the power switch on the bottom of the mouse to the "BT" position.
- Press and hold the Bluetooth pairing button (usually a small button near the power switch) until the LED indicator light starts blinking (blue).
- ໃນຄອມພິວເຕີ ຫຼືອຸປະກອນຂອງທ່ານ, ເປີດການຕັ້ງຄ່າ Bluetooth.
- ຊອກຫາ new devices and select "TECKNET Mouse" (or similar) from the list.
- ປະຕິບັດຕາມການກະຕຸ້ນໃນຫນ້າຈໍໃດຫນຶ່ງເພື່ອສໍາເລັດຂະບວນການການຈັບຄູ່.
ຮູບທີ 6: ການເຊື່ອມຕໍ່ Bluetooth
Video 1: Demonstration and setup of the Bluetooth wireless mouse.
ຄໍາແນະນໍາການດໍາເນີນງານ
1. ການປັບຄວາມອ່ອນໄຫວຂອງ DPI
The mouse features a DPI switch button, typically located near the scroll wheel. Press this button to cycle through 6 adjustable DPI settings (800/1200/1600/2400/3200/4800) to match your preference for cursor speed and precision.
Figure 7: DPI Switch Button for Sensitivity Adjustment
2. Silent Click ຄຸນນະສົມບັດ
This mouse is designed with silent click buttons, providing a quiet user experience. This is particularly beneficial in environments where noise reduction is desired, such as libraries or shared offices.
ຮູບທີ 8: ການໃຊ້ງານຄລິກແບບງຽບໆ
ວິດີໂອທີ 2: ກ່ຽວກັບview highlighting the silent click feature and ease of pairing.
3. ຮູບແບບການປະຫຍັດພະລັງງານ
The mouse incorporates automatic sleep technology to conserve battery life. After a period of inactivity, the mouse will enter a sleep mode. To reactivate, simply click any button.
Figure 9: Automatic Sleep Technology for Power Saving
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: ໃຊ້ຜ້າອ່ອນໆແຫ້ງເພື່ອທຳຄວາມສະອາດໜູ. ຫຼີກລ່ຽງສານເຄມີທີ່ຮຸນແຮງ ຫຼື ວັດສະດຸທີ່ມີສີຂັດ.
- ການປ່ຽນແບັດເຕີຣີ: Replace batteries when the low battery indicator lights up or when performance degrades. Refer to the "Battery Installation" section for instructions.
- ການເກັບຮັກສາ: When not in use for extended periods, turn off the mouse to further conserve battery life.
ການແກ້ໄຂບັນຫາ
1. ໜູບໍ່ຕອບສະໜອງ
- ກວດເບິ່ງວ່າເມົາສ໌ເປີດຢູ່.
- ໃຫ້ແນ່ໃຈວ່າມີການຕິດຕັ້ງຫມໍ້ໄຟຢ່າງຖືກຕ້ອງແລະບໍ່ຫມົດໄປ. ປ່ຽນແທນຖ້າຈໍາເປັນ.
- For 2.4G connection, ensure the USB A receiver is securely plugged into a working USB port.
- For Bluetooth connection, verify that Bluetooth is enabled on your device and the mouse is paired. Try re-pairing if connection is lost.
- Try connecting the mouse to a different USB port or another device to rule out port or device issues.
2. Cursor Movement is Erratic or Slow
- ເຮັດຄວາມສະອາດເຊັນເຊີ optical ຢູ່ດ້ານລຸ່ມຂອງຫນູ.
- Ensure you are using the mouse on a suitable surface. Optical mice perform best on non-reflective, uniform surfaces.
- Adjust the DPI sensitivity using the DPI switch button on the mouse.
3. Side Buttons Not Working on macOS
- As noted in the product features, side buttons are not compatible with macOS. This is expected behavior.
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຕົວແບບ | BM307 (Internal Model) / B0DP2DCC6N (ASIN) |
| ເຕັກໂນໂລຊີການເຊື່ອມຕໍ່ | Bluetooth (5.0/3.0), 2.4G Wireless (USB A) |
| ລະດັບ DPI | 800, 1200, 1600, 2400, 3200, 4800 |
| ເຕັກໂນໂລຍີກວດຈັບການເຄື່ອນໄຫວ | Optical |
| ຄຸນນະສົມບັດພິເສດ | Ergonomic Design, Silent Click, Automatic Sleep |
| ແຫຼ່ງພະລັງງານ | 2 x ຫມໍ້ໄຟ AAA (ບໍ່ລວມ) |
| ນ້ໍາຫນັກລາຍການ | 3.52 ອອນ |
| ຂະໜາດແພັກເກັດ | 4.49 x 3.23 x 1.73 ນິ້ວ |
| ຄວາມເຂົ້າກັນໄດ້ | Windows, macOS (side buttons not compatible), Chrome, Linux |
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
TECKNET offers a ຮັບປະກັນ 36 ເດືອນ for registered products. If you encounter any problems using the product, please contact our professional customer service team for assistance.
ຂໍ້ມູນຕິດຕໍ່: Refer to the product packaging or the official TECKNET webເວັບໄຊທ໌ສຳລັບລາຍລະອຽດການຕິດຕໍ່ຝ່າຍສະໜັບສະໜູນທີ່ທັນສະໄໝທີ່ສຸດ.
