Berrcom Wrist Blood Pressure Monitor User Manual

1. ຜະລິດຕະພັນເກີນview

The Berrcom Wrist Blood Pressure Monitor is an automatic digital device designed for convenient and accurate blood pressure measurement at home. It features a large LCD display, voice broadcast function, and memory storage for two users, making it suitable for family use.

Image: The Berrcom Wrist Blood Pressure Monitor, showcasing its large digital display and compact design.

2. ມີຫຍັງແດ່

Your Berrcom Wrist Blood Pressure Monitor package includes the following items:

• 1 x Berrcom Wrist Blood Pressure Monitor
• 1 x ຄູ່ມືຜູ້ໃຊ້
• 2 x AA ຫມໍ້ໄຟ
• 1 x Compact Storage Case

Image: A visual representation of the items included in the product package: the blood pressure monitor, user manual, batteries, and storage case.

3. ຕັ້ງຄ່າ

3.1. ການຕິດຕັ້ງຫມໍ້ໄຟ

1. ເປີດຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟຢູ່ດ້ານຫຼັງຂອງອຸປະກອນ.
2. ໃສ່ແບັດເຕີຣີ AA 2 ກ້ອນ, ຮັບປະກັນວ່າຂົ້ວທີ່ຖືກຕ້ອງ (+/-).
3. ປິດຝາປິດຊ່ອງໃສ່ຫມໍ້ໄຟຢ່າງປອດໄພ.

3.2. Initial Settings (Time/Date)

Refer to the detailed instructions in the included User Manual for setting the time and date. This ensures accurate record-keeping of your measurements.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

4.1. ການຈັດວາງ Cuff ທີ່ຖືກຕ້ອງ

Accurate readings depend on correct cuff placement. Follow these steps:

1. Adjust the cuff: Wear the wristband on your left wrist with your palm facing up.
2. Position the monitor: Ensure the distance between the edge of the wristband and the bottom of your palm is approximately one finger's width (about 1-2 cm).
3. Maintain proper posture: Sit up straight and relax. Keep your wrist at the same level as your heart during the measurement.

Image: Visual guide for wearing the wrist blood pressure monitor on the left wrist, with the device positioned at heart level for accurate readings.

Image: A four-step visual guide demonstrating the correct procedure for using the blood pressure monitor, from cuff adjustment to starting the measurement.

4.2. ການວັດແທກ

1. Once the cuff is correctly positioned and you are in a relaxed posture, press the ເລີ່ມ/ຢຸດ ປຸ່ມ.
2. The monitor will automatically inflate the cuff and begin the measurement.
3. Remain still and do not talk during the measurement process.
4. The results (Systolic, Diastolic, and Pulse) will be displayed on the large LCD screen and announced via voice broadcast.

Image: The blood pressure monitor displaying results, with an illustration indicating its voice broadcast capability for clear audio feedback.

4.3. Voice Broadcast and Mute Mode

The monitor features a clear voice broadcast function that guides you through the measurement process and announces the results. This is particularly helpful for users with visual impairments.

To enable or disable the voice broadcast (mute mode), refer to the specific instructions in your User Manual. This allows for discreet measurements when preferred.

4.4. Dual-User Memory Function

The Berrcom monitor supports two individual users, each with a memory capacity of 120 readings. This allows for tracking and comparing health trends over time for multiple family members.

To switch between User 1 and User 2, press the dedicated user selection button (often indicated by a person icon). The display will show which user's memory is currently active.

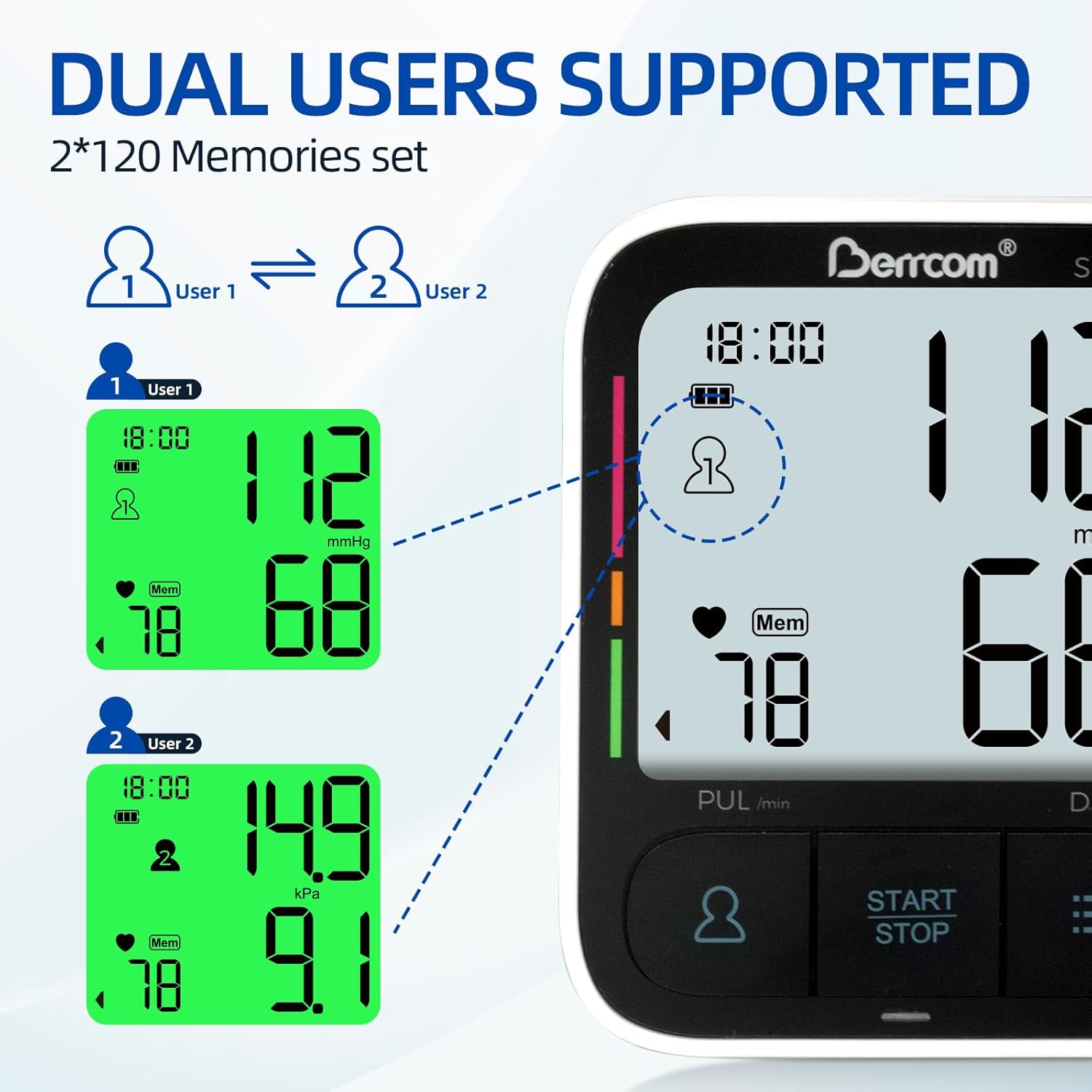

Image: The monitor's display illustrating the dual-user support, showing separate memory banks for User 1 and User 2, each capable of storing 120 readings.

4.5. Interpreting Results and Indicator Bar

The large backlit LCD display shows your Systolic (SYS), Diastolic (DIA) blood pressure, and Pulse (PUL) readings. An indicator bar on the side of the display provides a quick visual assessment of your blood pressure category:

• ສີແດງ: ຄວາມກົດດັນສູງ
• Orange/Yellow: Middle high pressure
• ສີຂຽວ: ຄວາມກົດດັນປົກກະຕິ

Image: The monitor's large LED screen clearly displaying blood pressure readings, alongside a color-coded indicator bar that visually represents the pressure level (high, middle high, normal).

5. ບໍາລຸງຮັກສາ

5.1. ທຳ ຄວາມສະອາດອຸປະກອນ

Wipe the monitor and cuff with a soft, dry cloth. If necessary, use a cloth lightly dampລ້າງອອກດ້ວຍນ້ຳ ຫຼື ຜົງຊັກຟອກອ່ອນໆ. ຢ່າໃຊ້ນ້ຳຢາທຳຄວາມສະອາດທີ່ມີສີຂັດ ຫຼື ຈຸ່ມອຸປະກອນລົງໃນນ້ຳ.

5.2. ການທົດແທນຫມໍ້ໄຟ

When the low battery indicator appears on the display, replace both AA batteries with new ones. Dispose of used batteries according to local regulations.

5.3. ການເກັບຮັກສາ

Store the blood pressure monitor in its compact storage case when not in use to protect it from dust and damage. Keep it in a cool, dry place away from direct sunlight and extreme temperatures.

Image: A person demonstrating the compact size of the blood pressure monitor by placing it into its included storage case, highlighting its portability.

6. ການແກ້ໄຂບັນຫາ

7. ຂໍ້ມູນຈໍາເພາະ

8. ຂໍ້ມູນຄວາມປອດໄພ

Please read all instructions carefully before use. This device is intended for home use and should not replace professional medical advice or treatment. Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.

Consult your physician if you have any concerns about your blood pressure readings or health condition.

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, technical support, or any product-related inquiries, please refer to the contact details provided in the included User Manual or visit the official Berrcom webເວັບໄຊ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.
