ແນະນຳ
This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your WALI CM4386-2S Dual Screen Ceiling TV Mount. Please read all instructions carefully before assembly and use. Keep this manual for future reference.
The WALI CM4386-2S is designed to securely hold two flat-screen televisions, ranging from 43 to 86 inches, with a combined weight capacity of up to 176 lbs (88 lbs per screen). It features adjustable height, tilt, and swivel functions to optimize viewing angles in various environments.
ຂໍ້ມູນຄວາມປອດໄພທີ່ສໍາຄັນ
- ຄວາມອາດສາມາດນ້ໍາຫນັກ: Do not exceed the maximum weight capacity of 176 lbs (88 lbs per screen). Exceeding this limit may result in serious injury or property damage.
- ຂະໜາດໂທລະພາບ: This mount is compatible with TVs between 43 and 86 inches. Ensure your TV's VESA pattern is within the supported range (200x200mm to 600x400mm).
- Ceiling Type: This mount is designed for installation on wood studs, solid concrete, or brick ceilings. DO NOT INSTALL ON DRYWALL ALONE. Ensure the ceiling structure can safely support the combined weight of the mount and your televisions.
- ການຕິດຕັ້ງແບບມືອາຊີບ: If you are unsure about the installation process or the structural integrity of your ceiling, consult a qualified professional installer.
- ເຄື່ອງມື: ໃຫ້ແນ່ໃຈວ່າທ່ານມີເຄື່ອງມືທີ່ຈຳເປັນທັງໝົດກ່ອນທີ່ຈະເລີ່ມການຕິດຕັ້ງ.
- ສະພາແຫ່ງ: Assemble the product exactly as described in this manual. Incorrect assembly can lead to product failure or injury.
- ຊິ້ນສ່ວນເຄື່ອນທີ່: Be cautious of pinch points during adjustment.
ເນື້ອໃນຊຸດ
ກວດສອບວ່າອົງປະກອບທັງໝົດມີຢູ່ ແລະ ບໍ່ເສຍຫາຍກ່ອນທີ່ຈະດໍາເນີນການຕິດຕັ້ງຕໍ່ໄປ. ຖ້າມີຊິ້ນສ່ວນໃດຂາດຫາຍໄປ ຫຼື ເສຍຫາຍ, ໃຫ້ຕິດຕໍ່ຝ່າຍບໍລິການລູກຄ້າຂອງ WALI.
- TV Ceiling Mount Assembly (x2)
- Mounting Hardware Kit (x2)
- ຄູ່ມືຜູ້ໃຊ້ (x1)

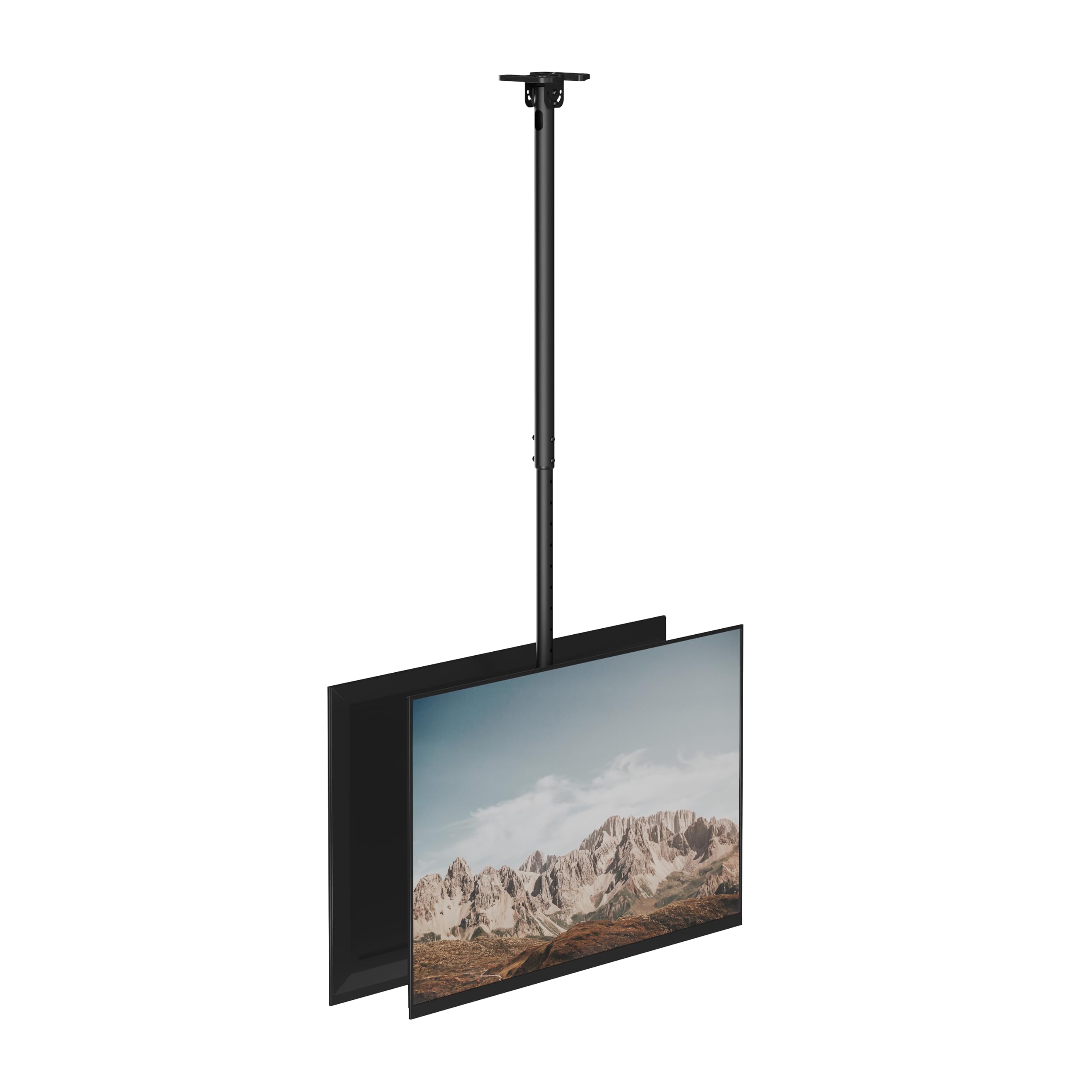

ຮູບພາບ: ຫຼາຍກວ່າview of the WALI CM4386-2S Dual Screen Ceiling TV Mount components.
ຄວາມເຂົ້າກັນໄດ້
TV Size and Weight
This mount is compatible with most LCD, LED, and OLED flat-screen TVs ranging from 43 ຫາ 86 ນິ້ວ. Each screen must not exceed 88 lbs (40 ກິໂລ), with a total combined weight capacity of 176 lbs (80 ກິໂລ).
Image: Visual representation of TV size and weight compatibility for the mount.
ຮູບແບບການຕິດຕັ້ງ VESA
The mount supports VESA mounting patterns from 200x200mm ຫາ 600x400mm. To determine your TV's VESA pattern, measure the horizontal and vertical distance between the mounting holes on the back of your TV.
- 200x200ມມ
- 300x200ມມ
- 400x200ມມ
- 300x300ມມ
- 400x300ມມ
- 400x400ມມ
- 600x400ມມ
Image: Illustration of VESA mounting hole measurements on the back of a TV.
ປະເພດເພດານ
The WALI CM4386-2S mount is compatible with the following ceiling types:
- Wood Stud Ceilings
- Solid Concrete Ceilings
Warning: Do not install on drywall alone. Always ensure the mounting surface can support the load.
Image: Visual guide to compatible ceiling types for installation.
ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
Follow these steps carefully for proper installation. It is recommended to have at least two people for installation due to the size and weight of the mount and televisions.
ຄູ່ມືການຕິດຕັ້ງຂັ້ນຕອນໂດຍຂັ້ນຕອນ
- ຕິດແຜ່ນເພດານ: Secure the ceiling plate to your chosen ceiling structure (wood stud, concrete, or brick) using appropriate hardware from the kit. Ensure it is firmly anchored and level.
- ປະກອບສ່ວນຂອງເສົາ: Connect the pole sections, adjusting to your desired height. Secure with screws.
- Attach Pole to Ceiling Plate: Mount the assembled pole to the ceiling plate.
- ປະກອບຂາຕັ້ງໂທລະທັດ: Attach the horizontal support arms to the main mounting plate.
- Attach VESA Brackets to TVs: Secure the VESA brackets to the back of each television using the appropriate screws and spacers from the hardware kit. Ensure screws are tightened securely but do not overtighten.
- Mount TVs to Pole Assembly: Carefully lift each TV and hook the VESA brackets onto the horizontal support arms of the pole assembly. Secure the TVs in place with the provided safety screws.
- ການຄຸ້ມຄອງສາຍໄຟ: Route TV cables through the integrated cable management channels in the pole for a clean appearance.
- ການປັບປຸງສຸດທ້າຍ: Perform tilt, swivel, and rotation adjustments as needed for optimal viewing.
Image: Visual guide illustrating the eight main steps for mount installation.
ວິດີໂອ: ຫຼາຍກວ່າview of the WALI CM4386-2S Dual Screen Ceiling TV Mount, demonstrating its features and potential applications.
ການດໍາເນີນງານແລະການປັບຕົວ
The WALI CM4386-2S mount offers several adjustment options to achieve optimal viewing angles for both screens.
ການປັບຄວາມສູງ
The mount features a telescoping pole that allows for height adjustment from 42.9 ນິ້ວ ຫາ 66.5 ນິ້ວ (measured from the ceiling to the center of the mounting plate). To adjust the height, loosen the locking mechanism on the pole, slide to the desired height, and re-secure the mechanism.
Image: Visual guide for adjusting the mount's height.
ການປັບຕົວອຽງ
Each TV can be individually tilted downwards by up to 20 ອົງສາ. This allows for glare reduction and improved viewing from different vertical positions. To adjust tilt, loosen the tilt locking knobs on the TV brackets, set the desired angle, and re-tighten.
Image: Illustration of tilt and swivel adjustment capabilities.
ການປັບ ໝູນ ວຽນ
The entire ceiling mount can swivel 360 ອົງສາ around the pole, providing flexibility to orient the screens in any direction. To swivel, gently rotate the TV assembly to the desired position.
Image: Diagram demonstrating the 360-degree swivel function.
ການປັບການotationູນວຽນ
The screens can be rotated ± 3 ອົງສາ to ensure they are perfectly level after installation. This fine-tuning adjustment helps correct any slight misalignments.
ການຈັດການສາຍ
Integrated cable management channels within the pole help conceal and organize cables, contributing to a neat and professional installation.

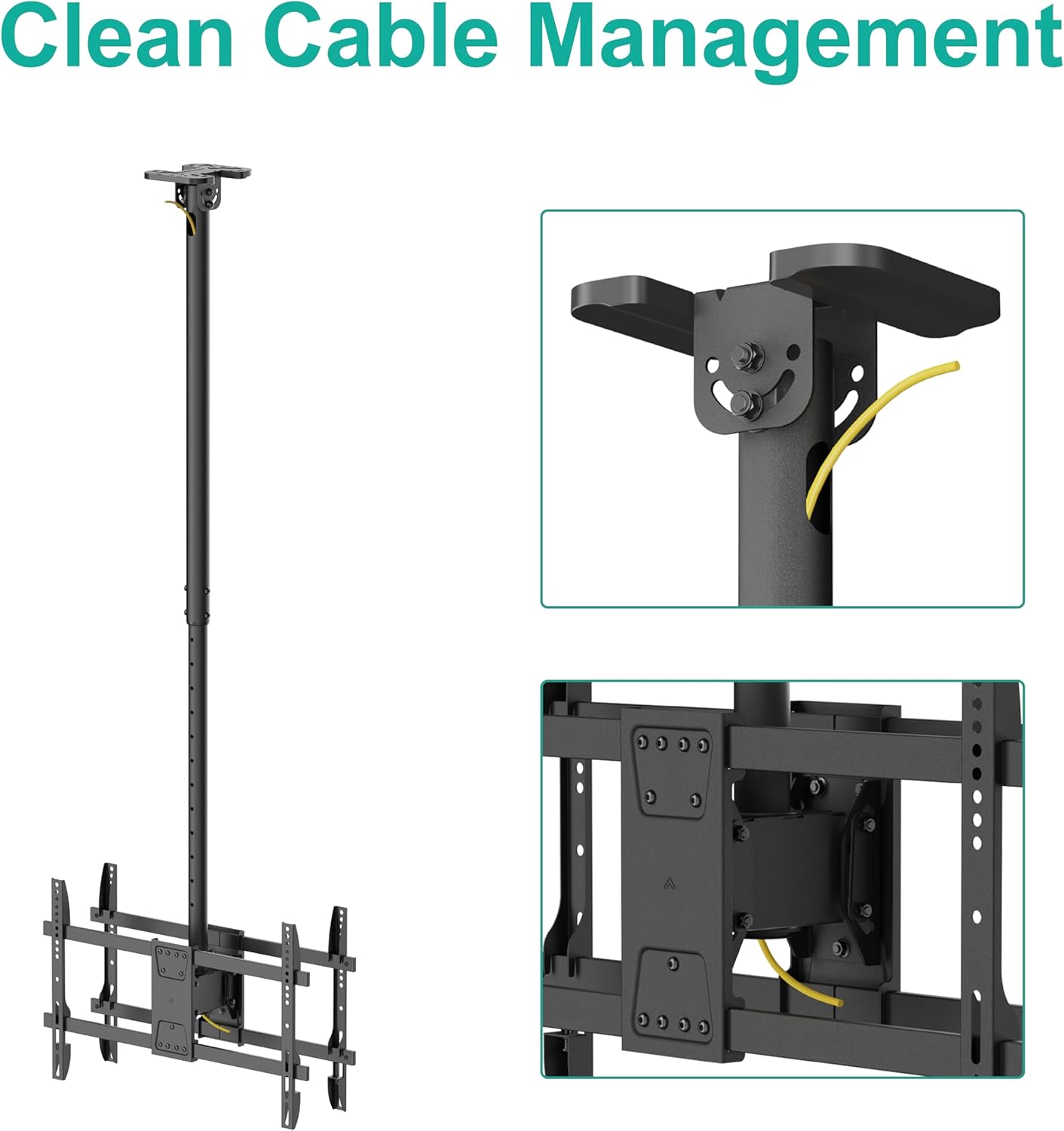

Image: Detail of the cable management system within the mount's pole.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: ທຳຄວາມສະອາດຕົວຍຶດດ້ວຍຜ້າອ່ອນໆແລະແຫ້ງ. ຫຼີກລ່ຽງນໍ້າຢາທຳຄວາມສະອາດທີ່ມີສີຂັດ ຫຼື ຕົວລະລາຍທີ່ອາດຈະທຳລາຍຊັ້ນເຄືອບໄດ້.
- ກວດສອບເປັນໄລຍະ: Periodically check all screws and connections to ensure they remain tight and secure. Over time, vibrations or adjustments may cause fasteners to loosen.
- ກວດສອບການເສຍຫາຍ: ກວດກາຕົວຍຶດເປັນປະຈຳເພື່ອເບິ່ງຮ່ອງຮອຍຂອງການສວມໃສ່, ຄວາມເສຍຫາຍ ຫຼື ການກັດກ່ອນ. ຖ້າພົບບັນຫາໃດໆ, ໃຫ້ຢຸດໃຊ້ ແລະ ຕິດຕໍ່ຝ່າຍຊ່ວຍເຫຼືອລູກຄ້າ.
ການແກ້ໄຂບັນຫາ
ພູບໍ່ໄດ້ລະດັບ
- Ensure the ceiling plate is installed level.
- Use the ±3 degree rotation adjustment feature to fine-tune the TV's level.
TVs are difficult to tilt or swivel
- Check if the tilt or swivel locking mechanisms are fully loosened before attempting to adjust.
- ຮັບປະກັນວ່າບໍ່ມີສາຍໄຟໃດໆກີດຂວາງການເຄື່ອນໄຫວ.
Mount ມີຄວາມຮູ້ສຶກບໍ່ຫມັ້ນຄົງ
- Immediately remove TVs from the mount.
- Re-check all mounting points and fasteners to ensure they are securely tightened.
- Verify that the ceiling structure is appropriate and can support the weight.
- Ensure the combined weight of the TVs does not exceed the mount's capacity.
- If instability persists, contact a professional installer or WALI customer support.
ຂໍ້ມູນຈໍາເພາະ
| ຍີ່ຫໍ້ | ວໍລີ |
| ຕົວແບບ | CM4386-2S |
| ຄວາມເຂົ້າກັນໄດ້ຂອງຂະ ໜາດ ໂທລະທັດ | 43 - 86 ນິ້ວ |
| ຄວາມອາດສາມາດນ້ໍາຫນັກ | 176 lbs (88 lbs per screen) |
| ຄວາມເຂົ້າກັນໄດ້ຂອງ VESA | 200x200mm ຫາ 600x400mm |
| ການປັບຄວາມສູງ | 42.9" to 66.5" (ceiling to center of mounting plate) |
| ມຸມອຽງ | Up to 20° downwards (each screen) |
| ຊ່ວງ Swivel Range | 360° |
| ການປັບການotationູນວຽນ | ±3° |
| ປະເພດການຕິດຕັ້ງ | ເພດານ Mount |
| ວັດສະດຸ | ໂລຫະ |
| ສີ | ດຳ |
| ນ້ໍາຫນັກລາຍການ | 20.5 ປອນ |
ການຮັບປະກັນ ແລະການຊ່ວຍເຫຼືອລູກຄ້າ
WALI is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, WALI offers experienced and friendly US-based customer support available to assist 7 days a week.
For any questions, missing parts, or assistance with installation or operation, please contact WALI customer support through the retailer where you purchased the product or visit the official WALI webເວັບໄຊສໍາລັບຂໍ້ມູນຕິດຕໍ່.
