ແນະນຳ
This manual provides essential instructions for the safe and efficient use of your SINGER M3500 Sewing Machine and its accompanying Universal Hard Carrying Case. The SINGER M3500 offers 110 stitch applications, suitable for a variety of fabrics and projects. The Universal Hard Carrying Case is designed to protect your sewing machine during storage and transport.
1. ຕັ້ງຄ່າ
1.1 ການຫຸ້ມຫໍ່ແລະການກວດກາ
Carefully remove all components from the packaging. Inspect the sewing machine and hard case for any signs of damage. Retain all packaging materials for future transport or service needs.
1.2 ອົງປະກອບຫຼາຍກວ່າview
Your SINGER M3500 Sewing Machine package includes:
- SINGER M3500 ເຄື່ອງຫຍິບ
- ຕີນ Pedal
- Accessory Kit (various presser feet, needles, bobbins, etc.)
- SINGER Universal Hard Carrying Case
ຮູບ 1: ດ້ານຫນ້າ view of the SINGER M3500 Sewing Machine.
Figure 2: Contents of the SINGER M3500 Accessory Kit.
1.3 ການເຊື່ອມຕໍ່ພະລັງງານ
- ວາງເຄື່ອງຢູ່ເທິງພື້ນທີ່ຮາບພຽງທີ່ຫມັ້ນຄົງ.
- Connect the foot pedal cord to the machine's power input jack.
- ສຽບສາຍໄຟເຂົ້າໄປໃນບ່ອນສຽບໄຟຟ້າທີ່ເຫມາະສົມ.
1.4 ການເກຍເຄື່ອງຈັກ
Follow the numbered threading path indicated on the machine. The SINGER M3500 features an automatic needle threader for simplified threading of the needle eye.
- ວາງຫຼອດດ້າຍໃສ່ກັບເຂັມຫຼອດດ້າຍ.
- Guide the thread through the upper tension discs and take-up lever.
- Use the automatic needle threader to thread the needle from front to back.
ຮູບທີ 3: ລາຍລະອຽດ view of the needle area, showing the threading path.
1.5 Winding the Bobbin ໄດ້
Proper bobbin winding ensures even stitch formation. Refer to the machine's markings for the correct bobbin winding path.
2. ຄໍາແນະນໍາການດໍາເນີນງານ
2.1 ການເລືອກ ແລະ ການປັບແຕ່ງຮອຍຕໍ່
The SINGER M3500 offers 110 stitch applications, including basic, stretch, and decorative stitches. Use the stitch selector dial to choose your desired stitch. Stitch width and length can be adjusted to customize stitches for various fabric types and project requirements.
2.2 Basic Sewing
- Raise the presser foot and place your fabric under it.
- ຫຼຸດລົງຕີນກົດ.
- Gently press the foot pedal to begin sewing. Control speed by varying pressure on the pedal.
Figure 4: The SINGER M3500 Sewing Machine set up on a workspace.
2.3 ລັກສະນະພິເສດ
- ເຂັມຂັດອັດຕະໂນມັດ: Simplifies threading the needle eye.
- ຮູກະດຸມຂັ້ນຕອນດຽວ: Provides consistent buttonhole results with minimal effort.
- Free Arm: Remove the accessory tray to access the free arm, ideal for sewing cuffs, sleeves, and other small, circular items.
2.4 Using the Universal Hard Carrying Case
The SINGER Universal Hard Carrying Case provides protection for your sewing machine.
- Ensure the sewing machine is turned off and unplugged.
- Place the machine onto the non-slip inner tray of the case.
- Secure the lid using the safety lock clasps.
- Use the integrated handle for easy transport.

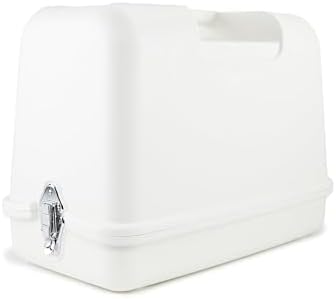

ຮູບ 5: ຂ້າງ view of the SINGER Universal Hard Carrying Case.

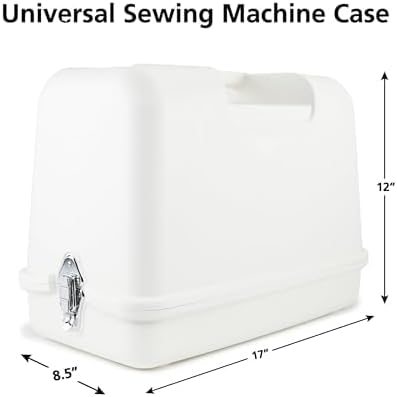

Figure 6: The Universal Hard Carrying Case showing approximate dimensions.
3. ບໍາລຸງຮັກສາ
3.1 ການທໍາຄວາມສະອາດ
Regular cleaning helps maintain machine performance.
- ຖອດປລັກເຄື່ອງກ່ອນທຳຄວາມສະອາດທຸກຄັ້ງ.
- ໃຊ້ແປງທີ່ອ່ອນໆເພື່ອເອົາຂີ້ຕົມ ແລະຂີ້ຝຸ່ນອອກຈາກບໍລິເວນ bobbin ແລະໃຫ້ອາຫານໝາ.
- ເຊັດພື້ນຜິວພາຍນອກດ້ວຍຜ້າອ່ອນໆ, ງamp ຜ້າ. ຫຼີກເວັ້ນການສານເຄມີທີ່ຮຸນແຮງ.
3.2 ການເກັບຮັກສາ
When not in use, store your SINGER M3500 Sewing Machine in its Universal Hard Carrying Case to protect it from dust, dirt, and accidental impacts. Store in a dry, temperate environment.
4. ການແກ້ໄຂບັນຫາ
ກ່ອນທີ່ຈະຕິດຕໍ່ສະຫນັບສະຫນູນລູກຄ້າ, review ບັນຫາທົ່ວໄປເຫຼົ່ານີ້ແລະການແກ້ໄຂ:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ເຄື່ອງບໍ່ເລີ່ມ | Power cord or foot pedal not connected; power switch off. | Check all connections; ensure power switch is ON. |
| ຂ້າມຮອຍຕໍ່ໄປແລ້ວ | Incorrect needle; needle bent or dull; improper threading. | Replace needle with correct type/size; re-thread machine. |
| ກະທູ້ແຕກ | Improper threading; tension too tight; poor quality thread. | Re-thread machine; adjust tension; use good quality thread. |
| Tangled thread (bird's nest) | Improper upper threading or bobbin winding. | Remove all thread, re-thread upper and bobbin correctly. |
5. ຂໍ້ມູນຈໍາເພາະ
- ໝາຍເລກຕົວແບບ: M3500
- ຄໍາຮ້ອງສະຫມັກ Stitch: 110
- Machine Dimensions (L x W x H): 15.16 x 7.35 x 10.9 ນິ້ວ
- ວັດສະດຸ: ໂລຫະ, ພາດສະຕິກ
- ແຫຼ່ງພະລັງງານ: Electric (Foot Pedal Controlled)
- Universal Hard Case Inside Dimensions: 18" x 9" x 12.5"
- Universal Hard Case Outside Dimensions: 20.5" x 11.8" x 14.8"
- ຄຸນສົມບັດ: Automatic Needle Threader, One-Step Buttonhole, Free Arm
6. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Your SINGER M3500 Sewing Machine is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical assistance, replacement parts, or further inquiries, please contact SINGER customer support through their official webເວັບໄຊ ຫຼືຂໍ້ມູນຕິດຕໍ່ທີ່ສະໜອງໃຫ້ຢູ່ໃນເອກະສານຜະລິດຕະພັນຂອງທ່ານ.
For additional resources and support, visit the official SINGER webເວັບໄຊ: www.singer.com
