ແນະນຳ
ຂອບໃຈສໍາລັບການຊື້asing the Greadio GB-W18 Portable CD Player Boombox. This device offers multiple audio playback options including CD, cassette, FM radio, Bluetooth, USB, AUX, and TF/SD card. Please read this manual carefully before using the product to ensure proper operation and to maximize your listening experience. Keep this manual for future reference.
ຂໍ້ມູນຄວາມປອດໄພ
- ຫ້າມບໍ່ໃຫ້ອຸປະກອນຖືກຝົນ ຫຼື ຄວາມຊຸ່ມຊື້ນເພື່ອປ້ອງກັນໄຟ ຫຼື ໄຟຟ້າຊັອດ.
- ຫ້າມເປີດຄasing. ອ້າງອີງການບໍລິການທັງໝົດໃຫ້ກັບບຸກຄະລາກອນທີ່ມີຄຸນວຸດທິ.
- ຫຼີກເວັ້ນການວາງເຄື່ອງໄວ້ໃກ້ກັບແຫຼ່ງຄວາມຮ້ອນ ຫຼືຢູ່ໃນແສງແດດໂດຍກົງ.
- ຮັບປະກັນການລະບາຍອາກາດທີ່ເຫມາະສົມຮອບຫນ່ວຍ.
- Use only the specified power adapter (if applicable) or charge with a compatible 5V/2A Type-C charger.
- ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.
ເນື້ອໃນຊຸດ
ກະລຸນາກວດເບິ່ງວ່າລາຍການທັງໝົດມີຢູ່:
- Greadio GB-W18 Portable CD Player Boombox
- ການຄວບຄຸມໄລຍະໄກ (1)
- ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
- ສາຍສາກ USB (Type-C)
ສິນຄ້າເກີນview
Familiarize yourself with the various parts and controls of your Greadio GB-W18 boombox.

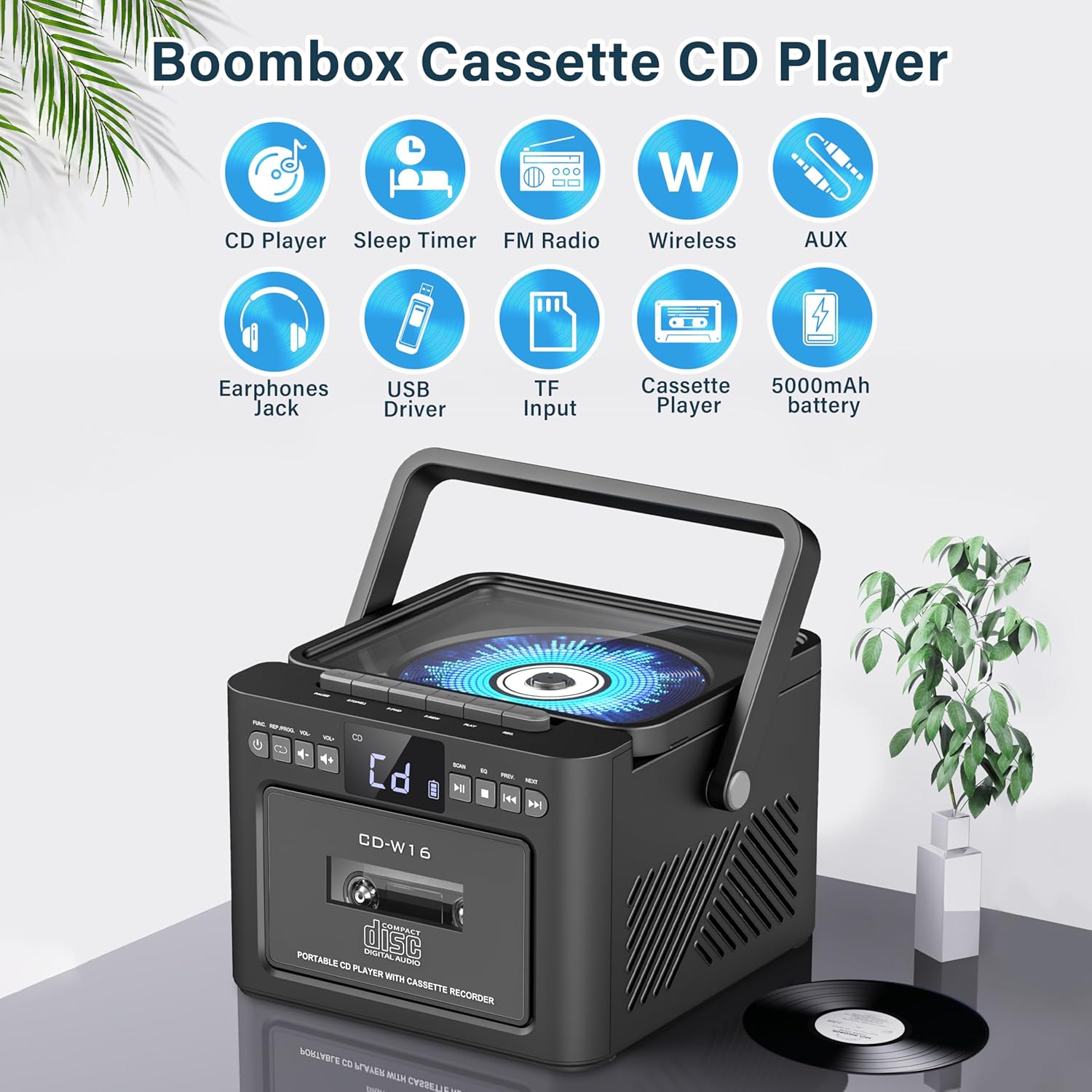

ຮູບພາບ: ເກີນview of the Greadio GB-W18 Portable CD Player Boombox, highlighting its multi-functional capabilities including CD, cassette, FM radio, Bluetooth, USB, TF/SD card, AUX, and a built-in 5000mAh rechargeable battery.
ການຄວບຄຸມກະດານດ້ານຫນ້າ
- ຈໍສະແດງຜົນ LED: Shows current mode, track number, frequency, etc.
- ປຸ່ມເປີດປິດ: ເປີດ/ປິດ ໜ່ວຍ.
- ປຸ່ມໂໝດ: Switches between CD, Cassette, FM, Bluetooth, USB, AUX, TF/SD modes.
- ການຄວບຄຸມລະດັບສຽງ: ປັບລະດັບສຽງອອກ.
- ປຸ່ມຫຼິ້ນ/ຢຸດຊົ່ວຄາວ: Controls playback for CD, USB, TF/SD, Bluetooth.
- ປຸ່ມຢຸດ: ຢຸດການຫຼິ້ນ.
- Skip/Search Buttons: Skips tracks or searches radio frequencies.
- ປຸ່ມບັນທຶກ: Initiates cassette recording.
Side/Rear Panel Ports
- ຊ່ອງ CD: ເຄື່ອງຫຼິ້ນ CD ຍອດນິຍົມ.
- ດາດຄາສເຊັດ (Casset Deck): Front-loading cassette player/recorder.
- ພອດ USB: ສໍາລັບການຫຼິ້ນ USB drive.
- ຊ່ອງໃສ່ບັດ TF/SD: For TF/SD card playback.
- AUX Input: Jack 3.5mm ສໍາລັບອຸປະກອນສຽງພາຍນອກ.
- ຫູຟັງ Jack: Jack 3.5mm ສໍາລັບການຟັງສ່ວນຕົວ.
- DC 5V Input (Type-C): ສໍາລັບການຊາດຫມໍ້ໄຟພາຍໃນ.
- ເສົາອາກາດ FM: Telescopic antenna for radio reception.
ຕັ້ງຄ່າ
ພະລັງງານຫນ່ວຍ
The Greadio GB-W18 can be powered by its built-in rechargeable battery or via a Type-C USB power source.
- ກຳລັງສາກແບັດເຕີຣີ: Connect the provided USB Type-C cable to the DC 5V input port on the unit and the other end to a compatible USB power adapter (e.g., car charger, power bank, computer USB port). The LED display will indicate charging status. A full charge provides extended portable use.
ຮູບພາບ: The Greadio GB-W18 boombox with its USB and TF/SD card slots highlighted, along with illustrations of various 5V Type-C charging methods: car charger, power bank, and computer.
ພະລັງງານເລີ່ມຕົ້ນ
ກົດ ພະລັງງານ button to turn on the unit. The LED display will light up, and the unit will typically default to the last used mode or CD mode.
ຄໍາແນະນໍາການດໍາເນີນງານ
ໃຊ້ ໂໝດ button to switch between different playback sources.
ການຫຼິ້ນ CD
- ກົດ ໂໝດ ກົດປຸ່ມຈົນກວ່າ 'CD' ຈະປາກົດຢູ່ເທິງໜ້າຈໍ.
- ເປີດຝາປິດຊ່ອງ CD.
- Place a CD (CD, CD-R, CD-RW) with the label side facing up onto the spindle.
- Close the CD compartment lid. The CD will begin to play automatically.
- ໃຊ້ ຫຼິ້ນ/ຢຸດຊົ່ວຄາວ, ຢຸດ, ແລະ ຂ້າມ/ຄົ້ນຫາ ປຸ່ມເພື່ອຄວບຄຸມການຫຼິ້ນ.
ຮູບພາບ: A user operating the Greadio GB-W18 boombox, demonstrating CD playback and the use of the remote control for convenient operation.
ການຫຼິ້ນ Cassette ແລະການບັນທຶກ
- ກົດ ໂໝດ button until 'TAPE' appears on the display.
- ເປີດປະຕູຄາສເຊັດ.
- ໃສ່ເທບເທບທີ່ມີຂອບເປີດຫັນໄປທາງເທິງ.
- ປິດປະຕູຊັ້ນດາດຟ້າ.
- ກົດ ຫຼິ້ນ button on the cassette deck controls to start playback.
- ເຖິງ ບັນທຶກ: Ensure a blank or recordable cassette is inserted. Select your desired input source (e.g., FM radio, AUX, Bluetooth). Press the ບັນທຶກ button on the unit. Press ຢຸດ ເພື່ອຢຸດການບັນທຶກ.
ຮູບພາບ: The Greadio GB-W18 boombox in a social setting, illustrating the cassette player function with a hand inserting a tape.
ການດໍາເນີນງານວິທະຍຸ FM
- Extend the telescopic FM antenna for optimal reception.
- ກົດ ໂໝດ ກົດປຸ່ມຈົນກ່ວາ 'FM' ປາກົດຢູ່ໃນຈໍສະແດງຜົນ.
- ກົດຄ້າງໄວ້ ຂ້າມ/ຄົ້ນຫາ buttons to automatically scan for available stations. The unit can preset up to 30 stations.
- ກົດ ຂ້າມ/ຄົ້ນຫາ buttons briefly to manually tune or cycle through preset stations.

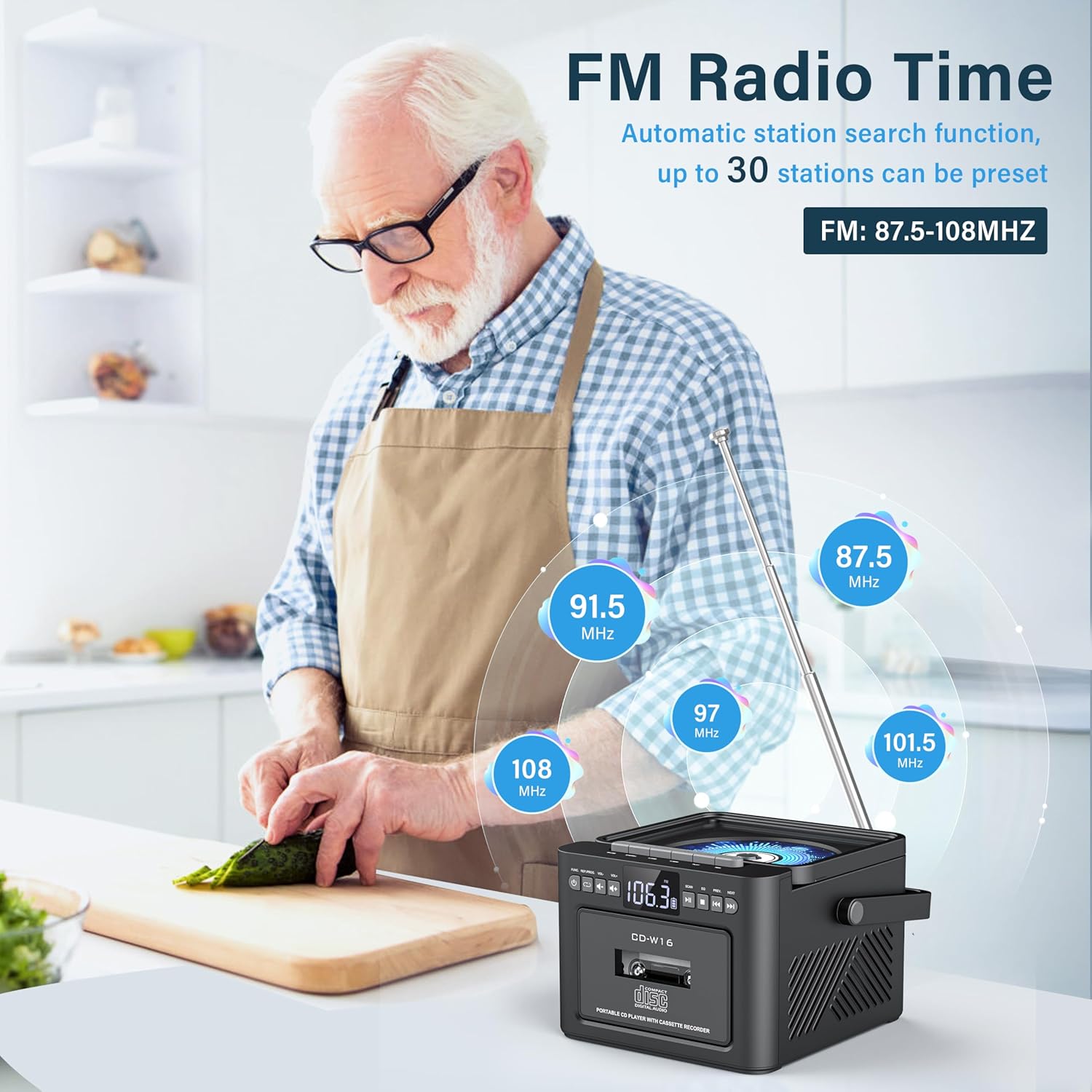

ຮູບພາບ: A user in a kitchen setting with the Greadio GB-W18 boombox, demonstrating its FM radio capabilities and the range of frequencies it can receive.
Bluetooth (Wireless Receiver)
- ກົດ ໂໝດ button until 'BLUE' or 'BT' appears on the display. The unit will enter pairing mode, indicated by a flashing Bluetooth icon.
- ໃນອຸປະກອນມືຖືຂອງທ່ານ (ໂທລະສັບສະຫຼາດ, ແທັບເລັດ, ແລະອື່ນໆ), ເປີດໃຊ້ Bluetooth ແລະຄົ້ນຫາອຸປະກອນທີ່ມີຢູ່.
- Select 'Greadio GB-W18' (or similar name) from the list to pair.
- ເມື່ອຈັບຄູ່ແລ້ວ, ທ່ານສາມາດຫຼິ້ນສຽງຈາກອຸປະກອນຂອງທ່ານຜ່ານ boombox ໄດ້.

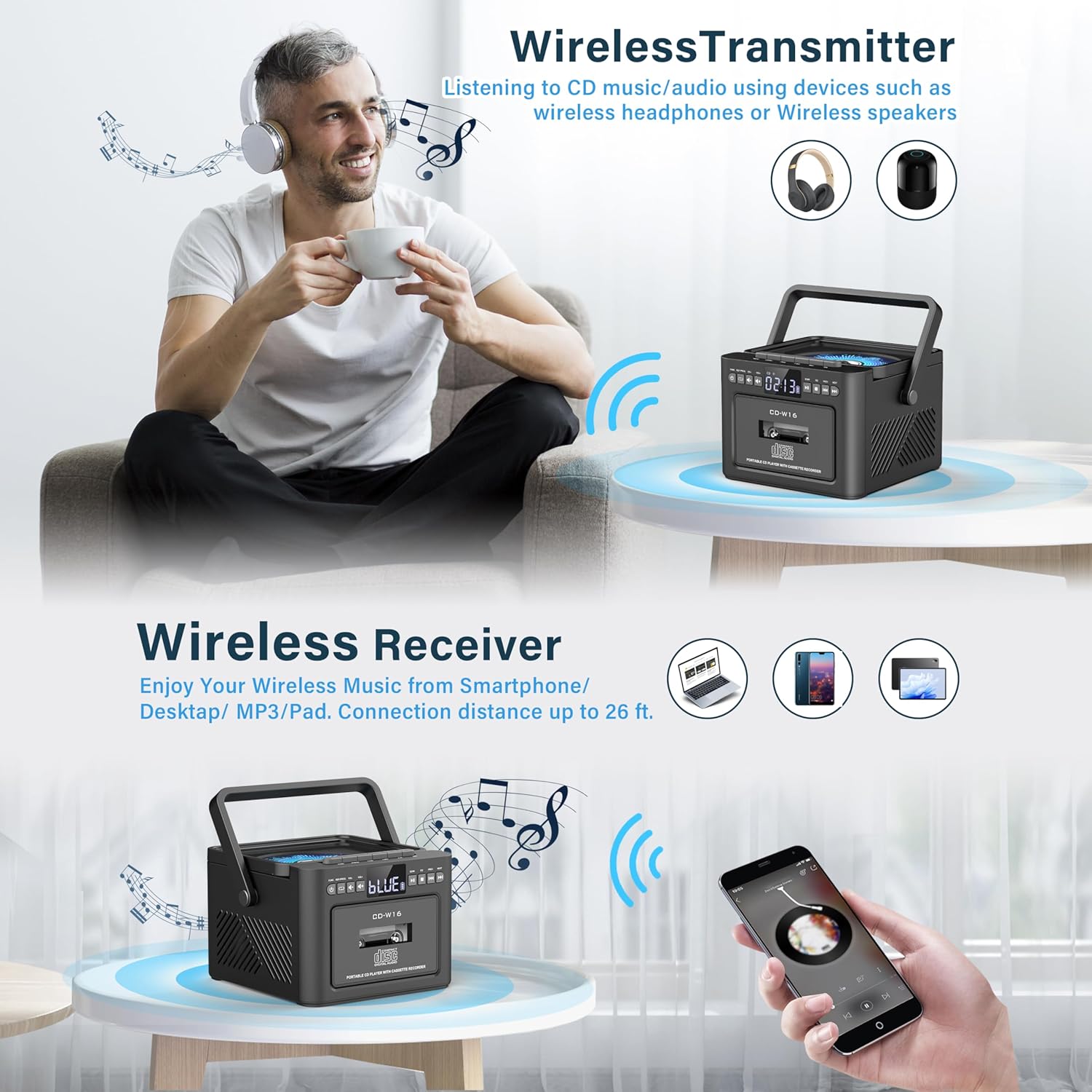

ຮູບພາບ: The Greadio GB-W18 boombox demonstrating its wireless capabilities, functioning as both a wireless transmitter (for headphones/speakers) and a wireless receiver (for streaming from smartphones/tablets).
USB Drive & TF/SD Card Playback
- Insert a USB drive into the USB port or a TF/SD card into the TF/SD card slot.
- ກົດ ໂໝດ button until 'USB' or 'TF' appears on the display.
- The unit will automatically detect and play MP3 files ຈາກອຸປະກອນເກັບຮັກສາ.
- ໃຊ້ ຫຼິ້ນ/ຢຸດຊົ່ວຄາວ, ຢຸດ, ແລະ ຂ້າມ/ຄົ້ນຫາ ປຸ່ມເພື່ອຄວບຄຸມການຫຼິ້ນ.
ການປ້ອນຂໍ້ມູນ AUX
- Connect an external audio device (e.g., MP3 player, smartphone) to the AUX input jack using a 3.5mm audio cable (not included).
- ກົດ ໂໝດ ກົດປຸ່ມຈົນກວ່າ 'AUX' ຈະປາກົດຢູ່ເທິງຈໍສະແດງຜົນ.
- ຫຼິ້ນສຽງຈາກອຸປະກອນພາຍນອກຂອງທ່ານ. ສຽງຈະຖືກສົ່ງອອກຜ່ານລຳໂພງບູມບັອກ.
ການຄວບຄຸມໄລຍະໄກ
The included remote control allows for convenient operation of most functions from a distance. Point the remote control directly at the front panel of the boombox. Functions include power on/off, mode selection, volume adjustment, playback controls (play, pause, stop, skip), and radio tuning.
ຈັບເວລານອນ
The unit features a sleep timer function. Refer to the remote control or specific button on the unit (if available) to set a timer for automatic power-off. This feature is useful for falling asleep to music.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: ໃຊ້ຜ້າປຽກແຫ້ງເພື່ອເຮັດຄວາມສະອາດດ້ານນອກຂອງເຄື່ອງ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
- CD Lens Care: ຖ້າມີບັນຫາການຫຼິ້ນຊີດີ, ໃຫ້ໃຊ້ແຜ່ນທຳຄວາມສະອາດເລນຊີດີແບບພິເສດ.
- ທໍາຄວາມສະອາດຫົວ Cassette: Regularly clean the cassette heads with a cotton swab lightly dampປະກອບດ້ວຍເຫຼົ້າ isopropyl ເພື່ອຮັບປະກັນຄຸນນະພາບສຽງທີ່ດີທີ່ສຸດແລະປ້ອງກັນຄວາມເສຍຫາຍຂອງ tape.
- ການດູແລຫມໍ້ໄຟ: For optimal battery life, avoid fully discharging the battery frequently. Charge the unit regularly, even if not in use for extended periods.
- ການເກັບຮັກສາ: When not in use for a long time, store the unit in a cool, dry place away from direct sunlight and extreme temperatures.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ຫນ່ວຍບໍລິການບໍ່ເປີດ. | ແບັດເຕີຣີໝົດ. | ເຊື່ອມຕໍ່ເຄື່ອງກັບແຫຼ່ງພະລັງງານໂດຍໃຊ້ສາຍ USB Type-C ແລະປ່ອຍໃຫ້ມັນສາກໄຟ. |
| ບໍ່ມີສຽງຈາກລຳໂພງ. | Volume is too low or muted. Incorrect mode selected. Headphones connected. | ເພີ່ມປະລິມານ. ກົດ ໂໝດ button to select the correct source. Disconnect headphones. |
| CD ຂ້າມ ຫຼື ບໍ່ຫຼິ້ນ. | CD ເປື້ອນ, ມີຮອຍຂີດຂ່ວນ, ຫຼືໃສ່ບໍ່ຖືກຕ້ອງ. ເລນ CD ເປື້ອນ. | Clean the CD. Reinsert the CD correctly. Use a CD lens cleaner. |
| ການຮັບວິທະຍຸ FM ບໍ່ດີ. | ເສົາອາກາດບໍ່ໄດ້ຍືດອອກ. ສັນຍານອ່ອນ. | ຂະຫຍາຍເສົາອາກາດ FM ຢ່າງສົມບູນ. ປັບຕັ້ງໜ່ວຍບໍລິການຄືນໃໝ່ເພື່ອຮັບທີ່ດີກວ່າ. |
| ອຸປະກອນ Bluetooth ບໍ່ສາມາດຈັບຄູ່ໄດ້. | Boombox not in pairing mode. Device too far. | Ensure boombox is in Bluetooth mode and flashing. Move device closer (within 26 ft). |
| Cassette playback distorted. | Cassette heads are dirty. Tape is old or damaged. | Clean cassette heads. Try a different tape. |
ຂໍ້ມູນຈໍາເພາະ
- ໝາຍເລກຕົວແບບ: GB-W18
- ຂະໜາດຜະລິດຕະພັນ: 7.56 x 7.56 x 5.16 ນິ້ວ
- ນ້ໍາຫນັກລາຍການ: 2.99 ປອນ
- ເຕັກໂນໂລຍີການເຊື່ອມຕໍ່: Bluetooth 5.0
- ປະເພດລຳໂພງ: ລຳໂພງສະເຕຣິໂອຄູ່
- ແບັດເຕີຣີ: Built-in 5000mAh Rechargeable Lithium Ion Battery
- ການປ້ອນຂໍ້ມູນພະລັງງານ: DC 5V (ປະເພດ-C)
- ສື່ມວນຊົນສະຫນັບສະຫນູນ: CD, CD-R, CD-RW, Cassette Tape, USB Drive (MP3 format, up to 32GB), TF/SD Card (MP3 format, up to 32GB), AUX Input
- ຄວາມຖີ່ວິທະຍຸ FM: 87.5-108 MHz
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Greadio products are designed for reliability and performance. For any questions, technical support, or warranty inquiries, please refer to the contact information provided with your purchase or visit the official Greadio webເວັບໄຊ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.
