1. ບົດແນະນຳ
The Retekess TT127 is a versatile audio tour guide system designed for various applications such as museums, churches, factories, and exhibitions. It integrates both manual tour guide and automatic tour guide functions into a single device, offering convenience and flexibility. With a 16GB memory card, it supports pre-recorded MP3 audio files and features main and vice speakers for comprehensive information transmission. The system supports 41 languages, making it suitable for diverse groups with language translation needs.
2. ຜະລິດຕະພັນເກີນview
The Retekess TT127 system includes a transmitter, receivers, microphones, earphones, charging cables, and a user manual. Below is an overview ຂອງສ່ວນປະກອບຫຼັກ.
2.1. ເຄື່ອງສົ່ງສັນຍານ
The transmitter is the primary device used by the tour guide to speak or play pre-recorded audio. It features a display, control buttons for mode selection, audio playback, volume, and mute. It also has a 16GB memory for storing audio files.
2.2. ຜູ້ຮັບ
Receivers are distributed to participants, allowing them to listen to the tour guide's explanations or pre-recorded audio. Each receiver is equipped with an earphone for clear audio reception.
2.3. Microphones and Earphones
The system includes a lavalier microphone for the tour guide and ear-hook earphones for participants, ensuring hands-free operation and comfort.
3. ຕັ້ງຄ່າ
3.1. ການສາກໄຟອຸປະກອນ
Ensure all transmitters and receivers are fully charged before use. The transmitter has a 1500mAh battery, providing approximately 12 hours of work time, while the receiver has a 1200mAh battery, offering up to 24 hours of work time.
3.2. ເປີດ / ປິດພະລັງງານ
To power on or off, long-press the power button on both the transmitter and receivers. The devices feature a one-key power-off function for convenience.
3.3. ການຈັບຄູ່ອຸປະກອນ
The TT127 system supports one-key pairing. Ensure both the transmitter and receivers are powered on and within range. Follow the on-screen instructions or refer to the specific pairing steps in the operation video.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
4.1. Explanation Modes
The TT127 offers two primary explanation modes:
- Manual Tour Guide: The guide speaks live through the transmitter, and participants listen via their receivers.
- Automatic Tour Guide (Pre-recorded Audio): The system plays pre-recorded MP3 audio files from its 16GB memory card. This is ideal for repeated explanations in fixed locations.
4.2. Audio Playback and Selection

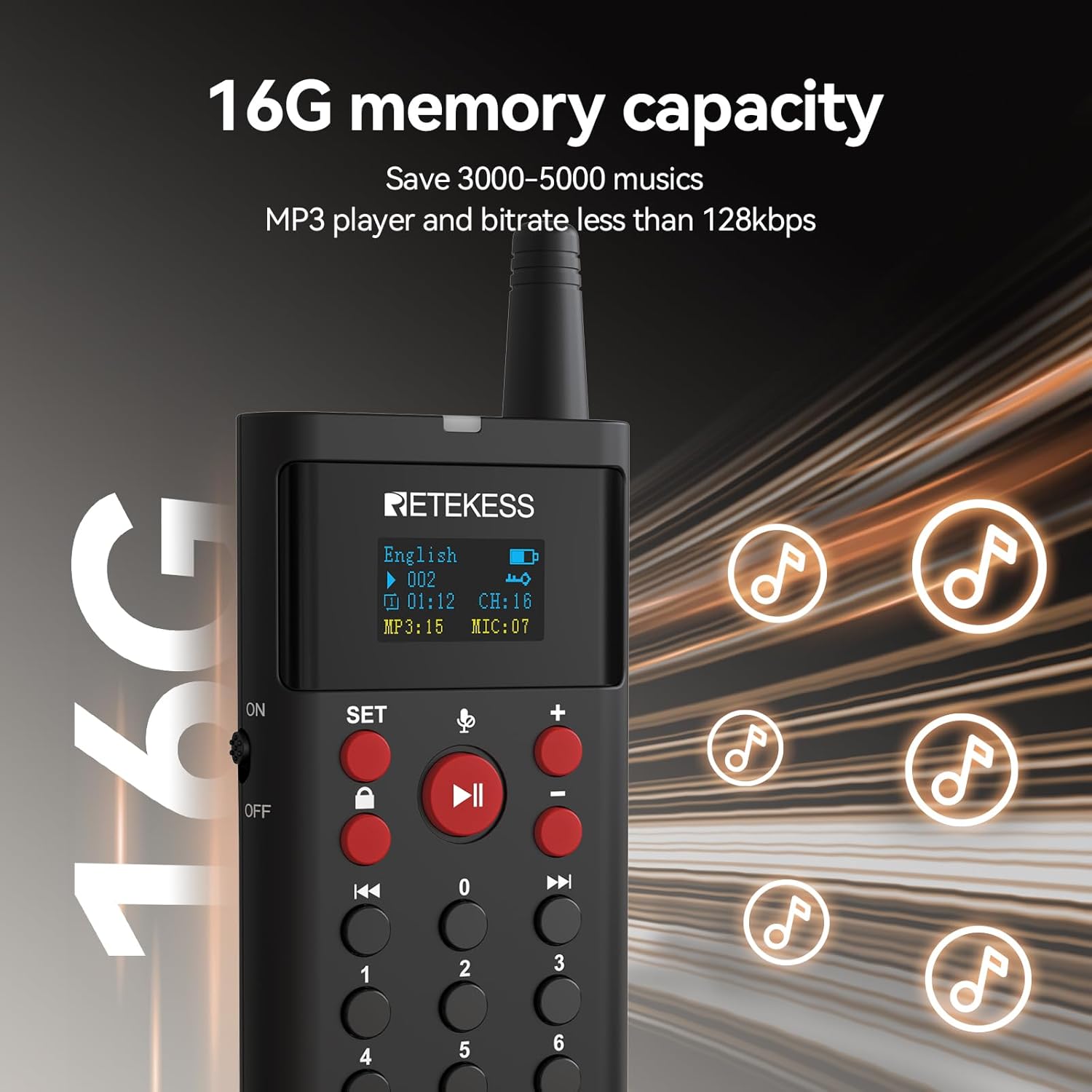

The transmitter's 16GB memory card can store 3000-5000 MP3 audio files (bitrate less than 128kbps). Use the navigation buttons on the transmitter to select and play desired audio tracks.
4.3. ການເລືອກພາສາ
The TT127 supports 41 basic languages. Audio files can be categorized by language, allowing for easy selection for multilingual groups.
4.4. Volume and Mute Control
Adjust the volume on both the transmitter and receivers using their respective volume buttons. The transmitter also has a one-key mute function to temporarily stop audio transmission.
5. ຄຸນສົມບັດ
- Multiple Explanation Modes: Integrates both manual and automatic tour guide functions.
- Large-Capacity Memory: 16GB memory card for pre-storing recorded MP3 audio files.
- Main and Vice Speakers: Allows for a division of labor in explanations, with a main speaker for core content and an assistant speaker for details or questions.
- 41 ສະໜັບສະໜູນພາສາ: Equipped with 41 basic languages and supports language classification of audio files.
- ລະດັບຄວາມກ້ວາງຂອງຄໍາຮ້ອງສະຫມັກ: Suitable for churches, schools, factories, museums, and other venues requiring repeated explanations.

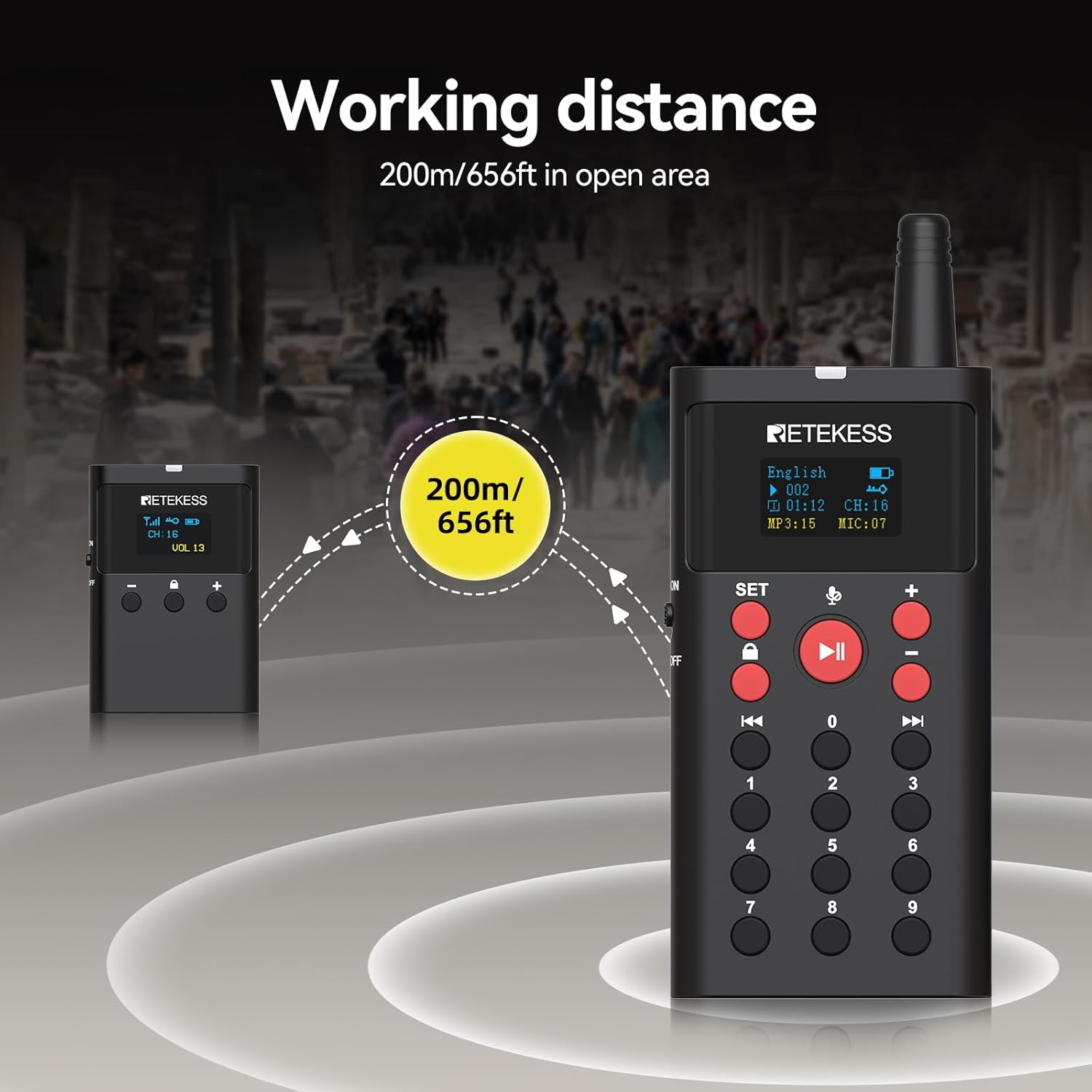

- ໄລຍະການສົ່ງຍາວ: Up to 200m/656ft in open areas.
6. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນລັກສະນະ | ມູນຄ່າ |
|---|---|
| ນ້ໍາຫນັກລາຍການ | 3.77 ປອນ |
| ຂະໜາດສິນຄ້າ | 10.04 x 7.36 x 6.69 ນິ້ວ |
| ໝາຍເລກຕົວແບບ | FF9661A-F9661BX10-F9604A |
| ໝໍ້ໄຟ | 11 ແບດເຕີຣີ Lithium Ion ຕ້ອງການ (ລວມ) |
| ປະເພດຫມໍ້ໄຟ | ລີທຽມໄອອອນ |
7. ບໍາລຸງຮັກສາ
To ensure the longevity and optimal performance of your Retekess TT127 system, follow these maintenance guidelines:
- ທໍາຄວາມສະອາດ: Use a soft, dry cloth to clean the devices. Avoid using abrasive cleaners or solvents that could damage the surface.
- ການເກັບຮັກສາ: ເກັບຮັກສາອຸປະກອນໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງ, ຫ່າງຈາກແສງແດດໂດຍກົງ ແລະອຸນຫະພູມທີ່ຮຸນແຮງ.
- ການດູແລຫມໍ້ໄຟ: For prolonged storage, ensure batteries are partially charged (around 50%) to prevent degradation. Recharge regularly if not in use for extended periods.
- ການຄຸ້ມຄອງສາຍໄຟ: Handle charging cables and audio cables with care to prevent kinks or damage.
8. ການແກ້ໄຂບັນຫາ
If you encounter issues with your Retekess TT127 system, refer to the following common troubleshooting steps:
- No Audio from Receiver:
- Check if the receiver is powered on.
- Ensure the earphone is properly connected and not damaged.
- Verify the receiver's volume is turned up.
- Confirm the receiver is paired to the correct transmitter channel.
- No Audio from Transmitter Microphone:
- Check if the microphone is securely plugged into the transmitter.
- Ensure the transmitter is not muted.
- Verify the transmitter's microphone volume is adjusted correctly.
- ຄຸນນະພາບສຽງ/ການລົບກວນບໍ່ດີ:
- Ensure devices are within the specified operating range (200m/656ft in open areas).
- Check for potential sources of electromagnetic interference.
- Try changing the channel on the transmitter if available.
- ອຸປະກອນບໍ່ເປີດ:
- Check the battery level and charge the device if necessary.
- If the device is completely unresponsive, try performing a reset (refer to the device's specific reset procedure if available).
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Retekess products are designed for reliability and performance. This product comes with a three-year service, ensuring peace of mind for your investment. For technical assistance, warranty claims, or further inquiries, please refer to the contact information provided with your purchase or visit the official Retekess webເວັບໄຊທ໌ສໍາລັບຊັບພະຍາກອນສະຫນັບສະຫນູນລາຍລະອຽດ.
