ແນະນຳ
The ZGCINE NPF-02 is a versatile NP-F battery charger and power adapter designed for photographers and videographers. It supports USB-C Power Delivery (PD) for both input and output, offering 25W fast charging capabilities. Additionally, it features two DC output ports, allowing it to supply power to various devices such as cameras and monitors.
This device is compatible with NP-F series batteries, including F550, F750, and F970 models, providing efficient charging and reliable power distribution for your equipment.
ເນື້ອໃນຊຸດ:
- 1x ZGCINE NPF-02 Charger/Adapter
- ຜ້າສະອາດ 1x
ສິນຄ້າເກີນview

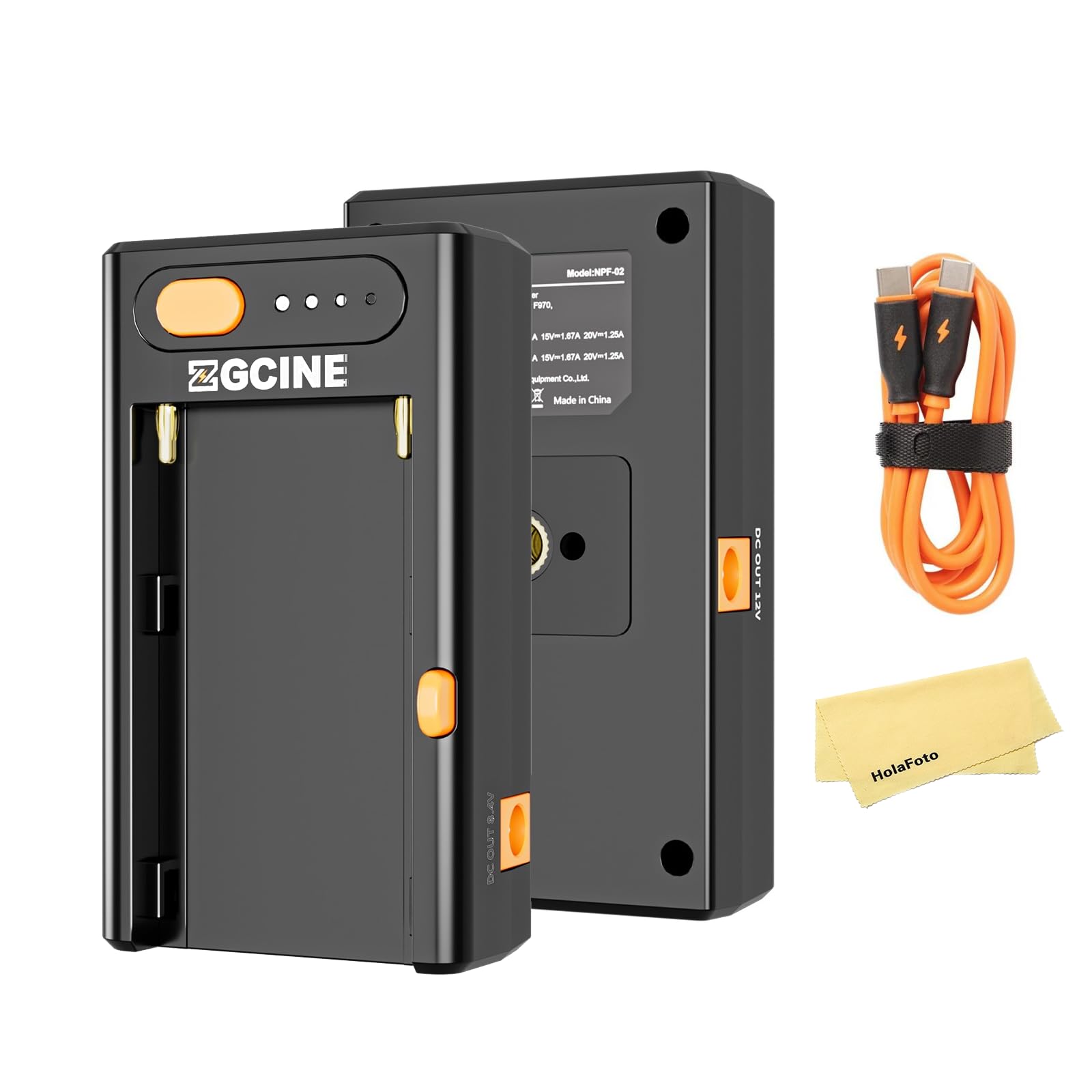

ດ້ານໜ້າ ແລະ ດ້ານຫຼັງ view of the ZGCINE NPF-02, showcasing ການອອກແບບທີ່ຫນາແຫນ້ນຂອງມັນແລະພອດຕ່າງໆ.
The ZGCINE NPF-02 with an NP-F battery inserted, ready for use.
The NPF-02 features a dedicated slot for NP-F batteries, a USB-C PD input/output port, and two DC output ports (8.4V and 12V). It also includes LED indicators to show battery status.
ຕັ້ງຄ່າ
- Insert NP-F Battery: Align your NP-F series battery (F550, F750, or F970) with the battery slot on the NPF-02. Gently slide the battery into place until it clicks securely.
- Connect Power Source (for charging): To charge an NP-F battery, connect a USB-C PD compatible power adapter (not included) to the USB-C PD IN/OUT port on the NPF-02 using a USB-C cable. The LED indicators will illuminate to show charging status.
- Connect External Devices (for power output):
- For cameras or monitors requiring 8.4V, connect them to the DC OUT 8.4V port.
- For cameras or monitors requiring 12V, connect them to the DC OUT 12V port.
- For mobile phones or other USB-C powered devices, connect them to the USB-C PD IN/OUT port.
Connecting the USB-C cable to the NPF-02 for charging or power output.
ຄໍາແນະນໍາການດໍາເນີນງານ
Charging NP-F Batteries
When an NP-F battery is inserted and a USB-C PD power source is connected, the NPF-02 will begin charging the battery. The LED indicators will show the current charge level. Charging times vary by battery model:
- F550 Battery: Approximately 78 minutes for a full charge.
- F750 Battery: Approximately 120 minutes for a full charge.
- F970 Battery: Approximately 200 minutes for a full charge.
Illustration of fast charging capabilities and approximate charging times for different NP-F battery models.
ການນໍາໃຊ້ເປັນແຫຼ່ງພະລັງງານ
With an NP-F battery inserted, the NPF-02 can act as a power source for other devices:
- ຜົນໄດ້ຮັບ DC: Connect your camera, monitor, or LED light to the appropriate DC OUT port (8.4V/3A or 12V/3A). Ensure the voltage matches your device's requirements.
- USB-C PD Output: Connect mobile phones, laptops, or other USB-C powered devices to the USB-C PD IN/OUT port. The NPF-02 supports various PD output profiles: 5V/3A, 9V/2.8A, 12V/2.1A, 15V/1.67A, 20V/1.25A.
The NPF-02 connected to a camera and a laptop, demonstrating its multi-functional power output capabilities.
ຕົວຊີ້ວັດລະດັບຫມໍ້ໄຟ
The four LED dots on the NPF-02 indicate the approximate battery charge level of the inserted NP-F battery. Press the orange button next to the LEDs to check the current level.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: Use the provided clean cloth or a soft, dry cloth to wipe the device. Avoid using harsh chemicals or abrasive materials.
- ການເກັບຮັກສາ: Store the NPF-02 in a cool, dry place away from direct sunlight and extreme temperatures. Remove the NP-F battery if storing for extended periods.
- ການຈັດການ: ຈັດການອຸປະກອນດ້ວຍຄວາມລະມັດລະວັງ. ຫຼີກລ້ຽງການປະຖິ້ມມັນຫຼືການຮັບຜົນກະທົບທີ່ເຂັ້ມແຂງ.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Device not charging / not powering external devices. |
|
|
| External device (e.g., camera) not entering PD charging mode or not receiving sufficient power. |
|
|
| NP-F battery drains quickly or device stops working after a short period. |
|
|
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຕົວແບບ | NPF-02 |
| ອິນພຸດ/ອອກ USB-C PD | 5V/3A, 9V/2.8A, 12V/2.1A, 15V/1.67A, 20V/1.25A (ສູງສຸດ 25W) |
| ຜົນໄດ້ຮັບ DC 1 | 8.4V/3A |
| ຜົນໄດ້ຮັບ DC 2 | 12V/3A |
| ແບດເຕີລີ່ທີ່ເຂົ້າກັນໄດ້ | NP-F series (F550, F750, F970) |
| F550 Charging Time | ປະມານ. 78 ນາທີ |
| F750 Charging Time | ປະມານ. 120 ນາທີ |
| F970 Charging Time | ປະມານ. 200 ນາທີ |
| ຂະໜາດ | 3.74 x 3.74 x 0.98 ນິ້ວ |
| ນ້ຳໜັກ | 5.3 ອອນ |
| ຜູ້ຜະລິດ | ZGCINE |
ວິດີໂອຜະລິດຕະພັນຢ່າງເປັນທາງການ
Watch this official video for a visual guide to the ZGCINE NPF-02's features and functionality, including its various ports and how it interacts with NP-F batteries.
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For any questions, technical assistance, or warranty inquiries regarding your ZGCINE NPF-02, please contact the seller directly. If you made your purchase through Amazon, navigate to your Amazon Order Page and click on "problem with this order." The seller, HolaFoto, aims to respond to inquiries within 24 hours during working days.
ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນໃດໆ.
