1. ບົດແນະນຳ
The Oryxearth 99CC 4-Stroke Mini Dirt Bike is designed for off-road recreational use, offering a powerful and efficient riding experience. This manual provides essential information for assembly, operation, maintenance, and safety to ensure optimal performance and longevity of your mini dirt bike.
This mini dirt bike features a 99CC 4-stroke OHV engine, providing reliable power with low noise and fuel consumption. It is equipped with wide, off-road pneumatic tires for stability on various terrains and a rear disc brake for effective stopping power. Recommended for users aged 13 and above, with a height between 4.27FT-5.9FT and weighing under 185LBS.
Figure 1: The Oryxearth Mini Dirt Bike, ready for adventure.
2. ຂໍ້ມູນຄວາມປອດໄພ
ຄຳເຕືອນ: This product contains small parts. Always ensure all components are securely fastened before operation. Read and understand all safety warnings and instructions before using the mini dirt bike.
- ໃສ່ອຸປະກອນຄວາມປອດໄພທີ່ເໝາະສົມສະເໝີ, ລວມທັງໝວກກັນກະທົບ, ອຸປະກອນປ້ອງກັນຕາ, ຖົງມື ແລະ ເກີບທີ່ແຂງແຮງ.
- Never operate the mini dirt bike under the influence of alcohol or drugs.
- Ensure the riding area is clear of obstacles and other individuals.
- ຢ່າຮັບນ້ຳໜັກເກີນ 185 ປອນ.
- Regularly inspect the bike for any loose parts, damage, or wear before each ride.
- This product is EPA approved. Follow all local regulations regarding off-road vehicle use.
3. ການຕິດຕັ້ງແລະການປະກອບ
Your Oryxearth Mini Dirt Bike requires minimal assembly. Please follow the steps below carefully. Refer to the assembly video for visual guidance.
Unboxing ແລະການກວດສອບອົງປະກອບ
- ລະມັດລະວັງເປີດການຫຸ້ມຫໍ່ແລະເອົາອົງປະກອບທັງຫມົດ.
- Verify that all parts, manuals, and tools are present as per the packing list.
Front Fork and Handlebar Installation
- Align the front fork with the frame, ensuring proper orientation.
- Thread the handlebar through the front fork and secure it using the provided hardware.
- Adjust the handlebar to a comfortable riding position and tighten all bolts securely.
Front Fender and Tire Installation
- Install the front tire onto the front fork, ensuring the tread pattern is facing forward.
- Attach the front fender using the hex screws.
Video 1: Detailed assembly instructions for the mini dirt bike, covering unboxing, front fork, handlebar, and tire installation.
Figure 2: Key components and features of the Oryxearth Mini Dirt Bike.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
Familiarize yourself with the controls and starting procedure before your first ride.
ກຳລັງເລີ່ມເຄື່ອງຈັກ
- Ensure the fuel valve lever is in the ON position (usually to the right).
- Push the choke lever to the START position (usually to the right).
- ຫັນສະຫຼັບຢຸດເຄື່ອງຈັກໄປຫາຕຳແໜ່ງ ON.
- Turn the throttle slightly, then pull the pull starter cord until the engine starts.
- Once started, gradually move the choke lever to the RUN position (usually to the left).
Riding and Stopping
- The mini dirt bike features an automatic clutch drive system, making it easy to operate without manual shifting.
- Use the twist throttle to control speed. The maximum speed is approximately 24 MPH.
- Apply the rear disc brake for smooth and fast stopping.
- To stop the engine, turn the engine stop switch to the OFF position.
Video 2: A tutorial demonstrating the correct procedure for starting the mini dirt bike engine.
ວິດີໂອ 3: ຫຼາຍກວ່າview of the Oryxearth 99CC Mini Dirt Bike in action, highlighting its features and ease of use.
5. ບໍາລຸງຮັກສາ
Regular maintenance is crucial for the performance and longevity of your mini dirt bike.
ນ້ຳມັນເຄື່ອງ
- The 99CC 4-stroke engine requires 10W30 mobile 1 motorcycle oil.
- ການປ່ຽນນ້ຳມັນເຄື່ອງເບື້ອງຕົ້ນ: Run the engine for 5 minutes, then change the oil. This is important for engine break-in.
- ການປ່ຽນແປງນ້ໍາມັນປົກກະຕິ: Change the oil approximately every 40-45 hours of run time, similar to a lawnmower or small engine.
Tires and Brakes
- Regularly check tire pressure and for any signs of wear or damage. The wide off-road pneumatic tires are designed for various terrains.
- Inspect the rear disc brake system for proper function and wear on the brake pads.
ຄວາມເຄັ່ງຕຶງຂອງຕ່ອງໂສ້
- Ensure the drive chain has proper tension. A loose chain can derail. Adjust the chain tensioner as needed. If necessary, a link may need to be removed using a chain breaker tool.
Figure 3: The powerful and efficient 99CC 4-stroke OHV engine.
Figure 4: Wide, off-road pneumatic tires for stability and comfort.
6. ການແກ້ໄຂບັນຫາ
ນີ້ແມ່ນບາງບັນຫາທົ່ວໄປ ແລະການແກ້ໄຂທີ່ເປັນໄປໄດ້ຂອງພວກມັນ:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ເຄື່ອງຈັກບໍ່ເລີ່ມຕົ້ນ | Fuel valve OFF, choke not set, engine stop switch OFF, no fuel/oil. | Check fuel valve, choke, engine stop switch. Ensure adequate fuel (87+ octane, non-ethanol) and proper oil level. |
| Chain derails frequently | ຄວາມກົດດັນຕ່ອງໂສ້ວ່າງ. | Adjust chain tensioner. If persistent, consider removing a link from the chain. |
| Tire issues (e.g., bulges) | Manufacturing defect, damage from rough terrain. | Inspect tires for damage. Replace if necessary. |
| ປະສິດທິພາບ/ຄວາມໄວຫຼຸດລົງ | Improper fuel, old oil, engine issues. | Ensure correct fuel type. Change oil regularly. Consult professional if issues persist. |
7. ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຜູ້ຜະລິດ | Oryxearth |
| ຕົວແບບ | HCf015A |
| ປະເພດເຄື່ອງຈັກ | 99CC 4-Stroke OHV |
| ຄວາມໄວສູງສຸດ | ສູງເຖິງ 24 MPH |
| ປະເພດນໍ້າມັນເຊື້ອໄຟ | Gasoline with Octane Rating of 87 or Higher (non-ethanol) |
| ຄວາມອາດສາມາດຂອງຖັງ | 0.47 ກາລອນ |
| ປະເພດເບກ | ເບກດິດຫລັງ |
| ຢາງລົດ | Wide, off-road low pressure pneumatic tires |
| ນ້ໍາຫນັກລາຍການ | 95 ປອນ |
| ຂະໜາດສິນຄ້າ | 15 x 27 x 40 ນິ້ວ |
| ອາຍຸທີ່ແນະນໍາ | 13+ |
| ຄວາມສູງຂອງຜູ້ໃຊ້ທີ່ແນະນໍາ | 4.27FT-5.9FT |
| ໂຫຼດສູງສຸດ | 185 LBS |

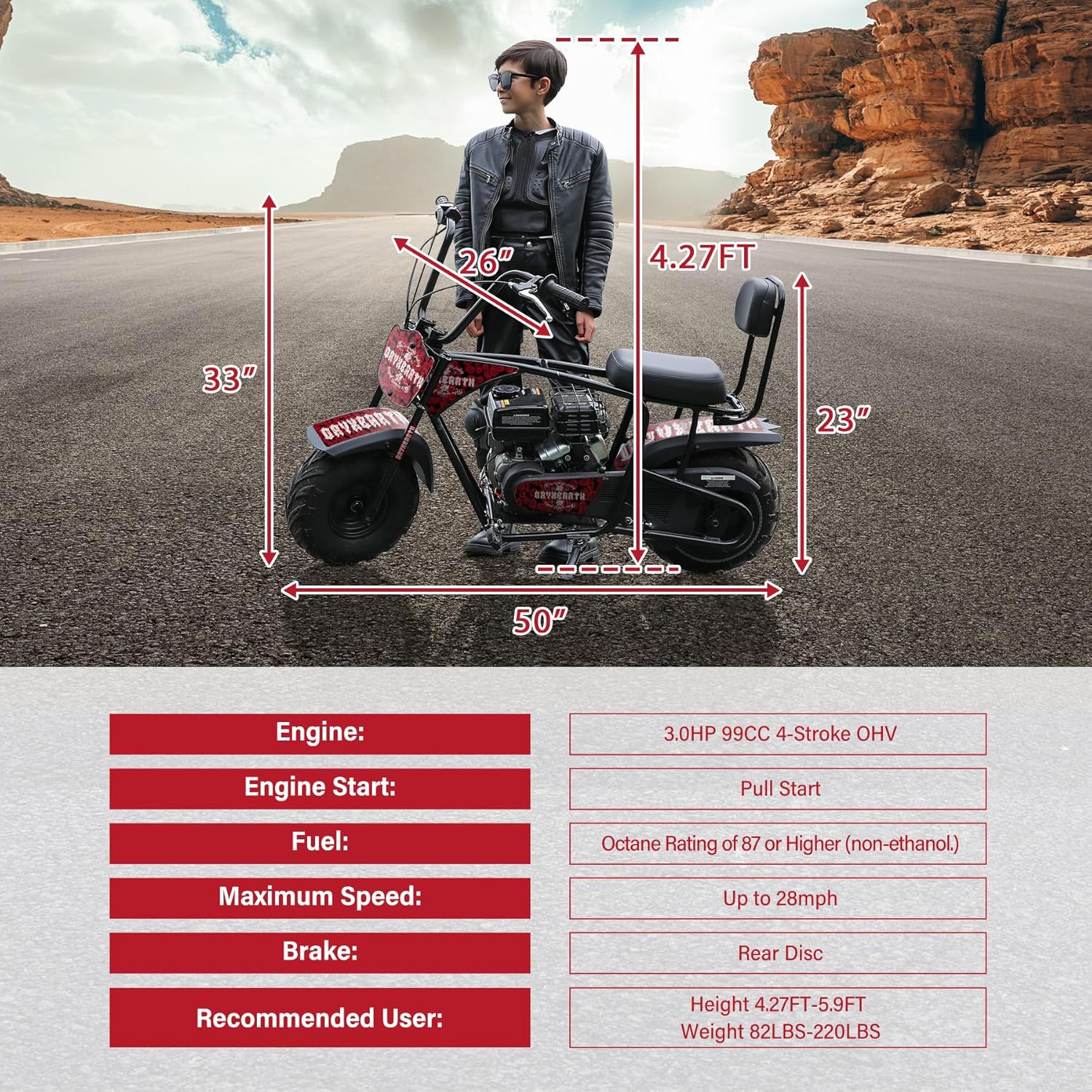

Figure 5: Key dimensions and user recommendations.
8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Oryxearth is committed to providing quality products and excellent customer service.
- ສົ່ງຄືນຟຣີ 60 ມື້: Enjoy peace of mind with our 60-day free return policy.
- 90-Day Engine Warranty: The engine is covered by a 90-day warranty.
- Free Parts: We offer free parts for eligible issues.
- ບໍລິການລູກຄ້າຕະຫຼອດ 24 ຊົ່ວໂມງ: Our dedicated customer service team is available 24 hours a day, 7 days a week to assist you with any problems or inquiries.
For support, please refer to the contact information provided with your purchase or visit the Oryxearth official webເວັບໄຊ.
