ແນະນຳ
The Paulmann Batuno LED Cabinet Light Set provides efficient and versatile lighting for your kitchen or other cabinet areas. This set of three lights offers adjustable light color temperatures from warm white to neutral white (2200 K to 4000 K) and dimming capabilities, all controlled via an included remote. The lights are designed for easy installation with a direct 230 V connection via a plug-in transformer, ensuring uniform illumination of work surfaces.
Paulmann Batuno LED cabinet lights installed under kitchen cabinets, illuminating a countertop.
ຂໍ້ມູນຄວາມປອດໄພ
- ອ່ານຄໍາແນະນໍາທັງຫມົດຢ່າງລະອຽດກ່ອນທີ່ຈະຕິດຕັ້ງແລະນໍາໃຊ້.
- ໃຫ້ແນ່ໃຈວ່າແຫຼ່ງຈ່າຍໄຟໄດ້ຖືກຕັດການເຊື່ອມຕໍ່ກ່ອນການຕິດຕັ້ງ ຫຼື ວຽກງານບຳລຸງຮັກສາໃດໆ.
- ຜະລິດຕະພັນນີ້ຖືກອອກແບບມາສໍາລັບການນໍາໃຊ້ພາຍໃນເຮືອນເທົ່ານັ້ນ.
- ຫ້າມເປີດໄຟໃຫ້ມີຄວາມຊຸ່ມຊື່ນຫຼືອຸນຫະພູມສູງເກີນໄປ.
- Only use the provided power adapter and components. Using unauthorized parts may void the warranty and pose a safety risk.
- Keep the remote control and small parts out of reach of children.
ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດທີ່ລະບຸໄວ້ຂ້າງລຸ່ມນີ້ແມ່ນລວມຢູ່ໃນຊຸດຂອງທ່ານ:
- 3 x Batuno LED Cabinet Lights
- 1 x ການຄວບຄຸມໄລຍະໄກ
- 1 x Wall Mount for Remote Control
- 1 x Plug-in Transformer (230V)
- ສາຍເຊື່ອມຕໍ່
- Mounting Screws and Adhesive Pads
- ຄໍາແນະນໍາການປະກອບ (ຄູ່ມືນີ້)
All components included in the Paulmann Batuno LED cabinet light set.
ການຕິດຕັ້ງ
The Batuno LED cabinet lights offer flexible installation options, either by screwing or using adhesive pads.
ຂັ້ນຕອນທີ 1: ວາງແຜນການຈັດວາງ
Determine the desired locations for your three cabinet lights. Ensure they are evenly spaced for optimal illumination of your work surface.
ຂັ້ນຕອນທີ 2: ການຕິດຕັ້ງໄຟ
Choose your preferred mounting method:
- Screw Mounting: Mark the screw positions for each light. Drill small pilot holes if necessary. Secure each light using the provided screws.
- ການຕິດຕັ້ງກາວ: Clean the mounting surface thoroughly to ensure it is dry and free of dust or grease. Apply the adhesive pads to the back of each light and firmly press the lights into position.
Step 3: Connecting the Lights
- Connect the individual LED lights to the provided connection cables.
- Connect the cables from the lights to the plug-in transformer.
- Plug the transformer into a standard 230V wall outlet.
Step 4: Remote Control Wall Mount
The remote control can be stored in its wall mount for easy access. Choose a convenient location near your lights and secure the wall mount using either screws or adhesive pads.
ຄໍາແນະນໍາການດໍາເນີນງານ
The Batuno LED cabinet lights are controlled using the included remote control.
ຟັງຊັນການຄວບຄຸມໄລຍະໄກ:
- ປຸ່ມເປີດ/ປິດ: ກົດເພື່ອເປີດ ຫຼືປິດໄຟ.
- Dimming Buttons (Sun icon with + / -): Use these buttons to increase or decrease the brightness of the lights. There are ten dimming levels available.
- White Switch Button (W icon): Press this button to cycle through the four available light color temperatures: warm white (2200 K) to neutral white (4000 K).
Lights set to warm white using the remote control.
Lights set to neutral white using the remote control.
ບໍາລຸງຮັກສາ
To ensure the longevity and optimal performance of your Paulmann Batuno LED cabinet lights, follow these simple maintenance guidelines:
- ທໍາຄວາມສະອາດ: Disconnect the power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surfaces of the lights. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electronic components.
- ການທົດແທນດອກໄຟ: The LED bulbs are integrated and not user-replaceable. If a light fails, the entire unit may need to be replaced.
- ການເກັບຮັກສາ: If storing the lights for an extended period, keep them in a dry, cool place away from direct sunlight.
ການແກ້ໄຂບັນຫາ
If you encounter issues with your Batuno LED cabinet lights, refer to the following common problems and solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ໄຟບໍ່ເປີດ. | ບໍ່ມີການສະຫນອງພະລັງງານ. ແບັດເຕີຣີຄວບຄຸມໄລຍະໄກຕາຍ. ການເຊື່ອມຕໍ່ວ່າງ. | Check if the transformer is properly plugged into a live outlet. ປ່ຽນແບັດເຕີລີຄວບຄຸມໄລຍະໄກ. ກວດໃຫ້ແນ່ໃຈວ່າສາຍທັງໝົດຖືກເຊື່ອມຕໍ່ຢ່າງປອດໄພ. |
| ໄຟກະພິບ ຫຼື ມືດລົງໂດຍບໍ່ຄາດຄິດ. | ການສະຫນອງພະລັງງານບໍ່ຫມັ້ນຄົງ. ການເຊື່ອມຕໍ່ຜິດພາດ. | Ensure the power outlet is stable. Try plugging into a different outlet. ກວດສອບການເຊື່ອມຕໍ່ສາຍໄຟທັງໝົດວ່າມີຄວາມແໜ້ນໜາຫຼືບໍ່. |
| ການຄວບຄຸມໄລຍະໄກບໍ່ຕອບສະຫນອງ. | ແບັດເຕີຣີຄວບຄຸມໄລຍະໄກຕາຍ. Obstruction between remote and lights. Remote not paired (unlikely for this product, but possible). | ປ່ຽນແບັດເຕີລີຄວບຄຸມໄລຍະໄກ. Ensure a clear line of sight between the remote and the lights. Refer to specific pairing instructions if provided (not typically required for this model). |
| Cannot change light color or brightness. | ແບັດເຕີຣີຄວບຄຸມໄລຍະໄກຕໍ່າ. ກົດປຸ່ມບໍ່ຖືກຕ້ອງ. | ປ່ຽນແບັດເຕີລີຄວບຄຸມໄລຍະໄກ. Ensure you are pressing the correct 'W' button for color and 'Sun' buttons for brightness. |
If the problem persists after trying these solutions, please contact Paulmann customer support.
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຍີ່ຫໍ້ | ພອນມະນີ |
| ໝາຍເລກຕົວແບບ | 92127 |
| ຂະໜາດສິນຄ້າ (L x W x H) | 7 x 7 x 1.5 cm (per light) |
| ນ້ໍາຫນັກລາຍການ | 39 g (per light) |
| ຈໍານວນລາຍການ | 3 (lights) |
| ສີ | ສີຂາວ |
| ສະບັບtage | 230 Volts (input), 24 Volts (output to lights) |
| ພະລັງງານ | 6.3 Watts (total for 3 lights, 3 x 2.1W) |
| ແສງສະຫວ່າງ Flux | 3 x 180 lm (total 540 lm) |
| ຄຸນນະສົມບັດພິເສດ | Dimmable, Adjustable White Color Temperature (2200 K - 4000 K) |
| ປະເພດສຽບ | AC (with plug-in transformer) |
| ປະເພດການຕິດຕັ້ງ | Under-cabinet (screw or adhesive mount) |
| ຕ້ອງໃຊ້ແບັດເຕີຣີ | No (for lights), Yes (for remote control, not included) |
| ປະເທດຕົ້ນກໍາເນີດ | ຈີນ |

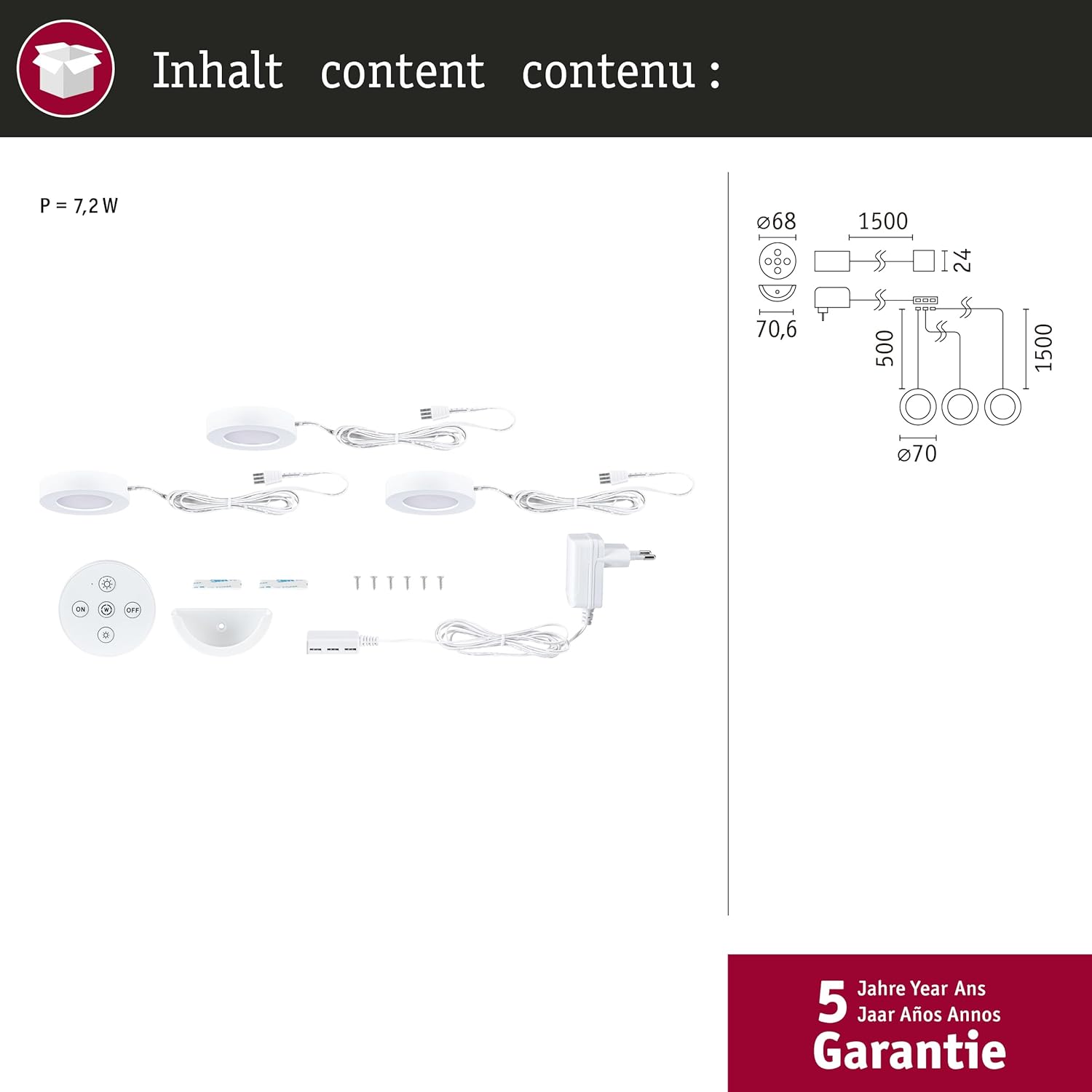

ຂະໜາດຜະລິດຕະພັນ ແລະ ສ່ວນປະກອບເທິງview.
ຮັບປະກັນ
The Paulmann Batuno LED Cabinet Light Set comes with a ຮັບປະກັນ 5 ປີ from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.
ການຊ່ວຍເຫຼືອລູກຄ້າ
For further assistance, technical support, or warranty inquiries, please contact Paulmann customer service. You can find contact information on the official Paulmann webເວັບໄຊທ໌ຫຼືຜ່ານຮ້ານຂາຍຍ່ອຍຂອງທ່ານ.
