Kimpex Premium Heated Grips and Thumbs Kit

1. ບົດແນະນຳ

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Kimpex Premium Heated Grips and Thumbs Kit, model 000418. Designed for ATVs with 22 mm (7/8") handlebars, this kit enhances riding comfort in cold conditions by providing adjustable heat to both the grips and the thumb throttle.

2. ຄຸນລັກສະນະຂອງຜະລິດຕະພັນ

• ລະດັບຄວາມຮ້ອນ: Independent 3+3 heat settings for grips and thumb warmer.
• ປະເພດການຕິດຕັ້ງ: ປອດໄພ clamping ring for easy installation without adhesive.
• ສີ: Black grips and components.
• Thumb Warmer: Integrated thumb warmer for complete hand warmth.
• Handlebar Compatibility: Designed for 22 mm (7/8") handlebars.
• ສະບັບtage: Operates on 12V systems.
• ທົນທານຕໍ່ສະພາບອາກາດ: Grips are designed to withstand various weather conditions.
• ການອອກແບບ Ergonomic: ສະຫນອງການຈັບທີ່ສະດວກສະບາຍແລະປອດໄພ.
• Sloped Wiring Exit: Wires are molded into the handle with a sloped exit for protection and proper orientation.

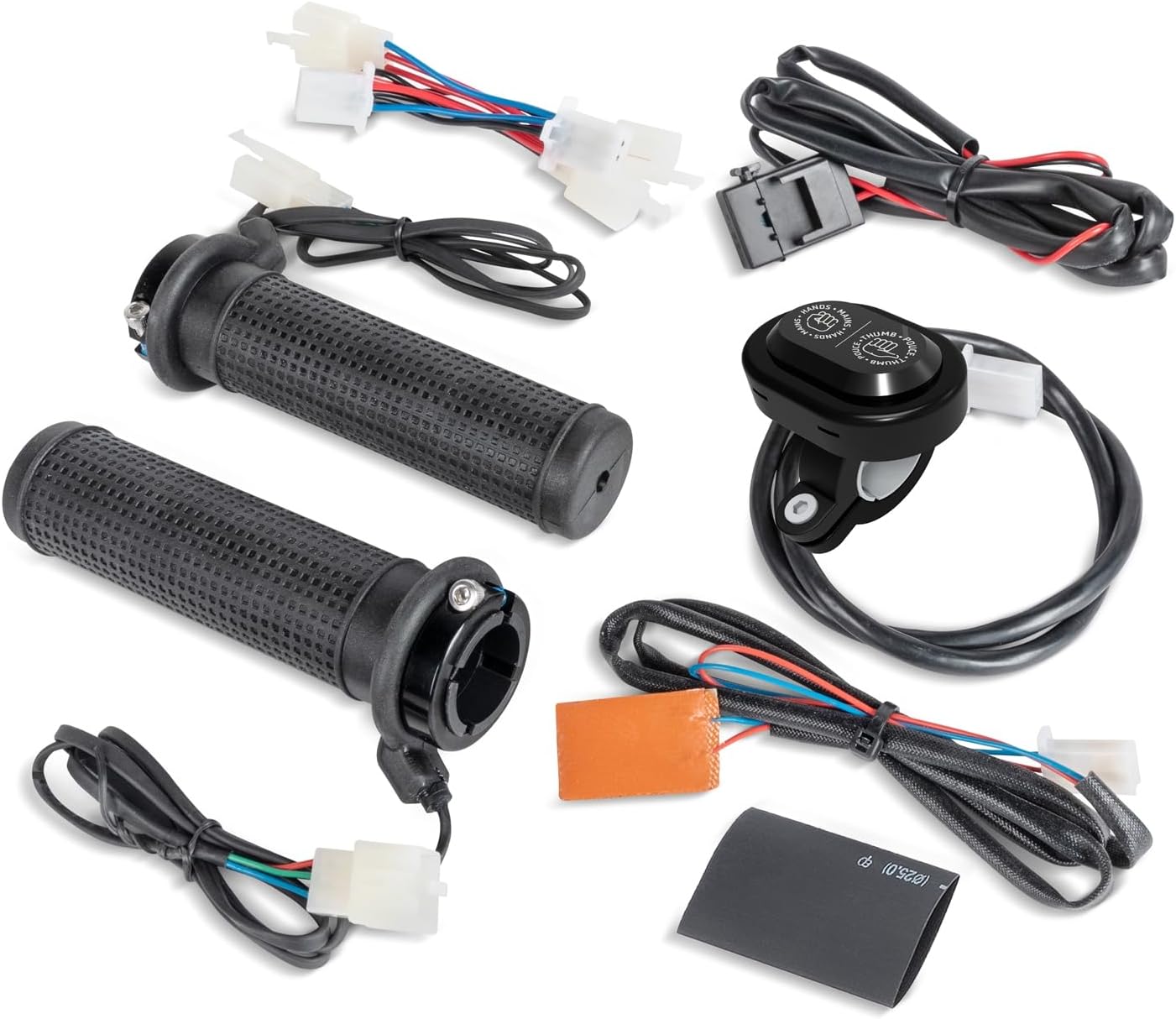

3. ເນື້ອໃນຊຸດ

ກວດສອບວ່າອົງປະກອບຕໍ່ໄປນີ້ລວມຢູ່ໃນຊຸດຂອງທ່ານ:

• Heated Grips (2)
• Thumb Warmer
• Heat Control Switch
• Wiring Harness with Fuse
• Mounting Bracket for Control Switch
• Adhesive Pad (for switch mounting)

The kit includes two heated grips, a separate thumb warmer, a heat control switch, and the necessary wiring harness with an inline fuse for protection. A mounting bracket and adhesive pad are provided for securing the control switch.

The grips feature a textured surface for improved handling and are designed for easy installation using a clamping ring mechanism, eliminating the need for adhesives. The wiring is integrated into the grips with a sloped exit to prevent damage and ensure proper routing.

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

Proper installation is crucial for the safe and effective operation of your heated grips. If you are unsure about any steps, consult a qualified technician.

4.1 ການກວດສອບການຕິດຕັ້ງກ່ອນ

• Ensure your ATV has a 12V electrical system.
• Verify your handlebars are 22 mm (7/8") in diameter.
• ຖອດແບັດເຕີລີຂອງລົດກ່ອນເລີ່ມການຕິດຕັ້ງເພື່ອປ້ອງກັນການເກີດໄຟຟ້າລັດວົງຈອນ.

4.2 Grip Installation

1. Carefully remove your existing grips from the handlebars.
2. Slide the new heated grips onto the handlebars. The clamping ring design allows for secure fitment without the need for adhesive.
3. Ensure the sloped wiring exit is positioned to allow for proper wire routing and protection from pinching or abrasion.

4.3 Thumb Warmer Installation

Attach the thumb warmer to the thumb throttle lever. Ensure it is positioned for optimal contact and comfort.

4.4 ການເຊື່ອມຕໍ່ສາຍໄຟ

1. Connect the wiring from the heated grips and thumb warmer to the main wiring harness. Ensure all connections are secure and properly insulated.
2. Connect the main wiring harness to a 12V power source on your ATV. It is recommended to connect to a switched power source (e.g., ignition switch) to prevent battery drain when the vehicle is off. The harness includes an inline fuse for circuit protection.
3. Route all wires away from moving parts, heat sources, and sharp edges to prevent damage. Use zip ties or cable clamps ເພື່ອຮັບປະກັນສາຍໄຟ.

4.5 Control Switch Mounting

The heat control switch can be mounted on the handlebars using the provided bracket or directly onto the vehicle console. No drilling is required for console mounting, as an adhesive pad is supplied.

After all connections are made and secured, reconnect the vehicle's battery.

4.6 ຄູ່ມືວິດີໂອການຕິດຕັ້ງ

ສຳລັບຄູ່ມືຮູບພາບກ່ຽວກັບຂະບວນການຕິດຕັ້ງ, ກະລຸນາເບິ່ງວິດີໂອຂ້າງລຸ່ມນີ້:

5. ຄໍາແນະນໍາການດໍາເນີນງານ

The Kimpex Premium Heated Grips and Thumbs Kit features an intuitive control switch for adjusting heat levels.

5.1 ການເປີດ/ປິດ

To power on the heated grips, press and hold the power button on the control switch. Repeat to power off.

5.2 ການປັບລະດັບຄວາມຮ້ອນ

The control switch allows for independent adjustment of heat intensity for the grips and the thumb warmer. There are three heat levels for each, indicated by different colors or illumination patterns on the switch.

• ຄວາມຮ້ອນຕໍ່າ: Indicated by a specific light color (e.g., white).
• ຄວາມຮ້ອນປານກາງ: Indicated by a specific light color (e.g., blue).
• ຄວາມ​ຮ້ອນ​ສູງ​: Indicated by a specific light color (e.g., red).

Press the respective button (hands or thumb) repeatedly to cycle through the heat settings until your desired level is reached.

5.3 ການພິຈາລະນາທີ່ສຳຄັນ

• Avoid prolonged use on the highest setting if it causes discomfort.
• ຕິດຕາມລະດັບແບັດເຕີຣີຂອງຍານພາຫະນະຂອງທ່ານtage during extended use, especially at higher heat settings, to prevent battery drain.

6. ບໍາລຸງຮັກສາ

Regular maintenance ensures the longevity and optimal performance of your heated grips.

• ທໍາຄວາມສະອາດ: Clean the grips and control switch with a damp ຜ້າແລະສະບູອ່ອນໆ. ຫຼີກເວັ້ນການສານເຄມີທີ່ຮຸນແຮງຫຼືເຄື່ອງເຮັດຄວາມສະອາດຂັດ.
• ການກວດກາສາຍໄຟ: Periodically inspect all wiring for signs of wear, fraying, or damage. Ensure all connections remain secure.
• ກວດຟິວ: If the grips stop working, check the inline fuse in the wiring harness. Replace with a fuse of the same rating if blown.
• ການເກັບຮັກສາ: If storing the vehicle for an extended period, ensure the heated grips are turned off and consider disconnecting the battery.

7. ການແກ້ໄຂບັນຫາ

8. ຂໍ້ມູນຈໍາເພາະ

ຍີ່ຫໍ້:

Kimpex

ຕົວແບບ:

Premium Heated Grips and Thumbs Kit

ໝາຍເລກຕົວແບບ:

000418

Handlebar Compatibility:

22 ມມ (7/8 ນິ້ວ)

ສະບັບtage:

12 ວ

ລະດັບຄວາມຮ້ອນ:

3+3 (independent for grips and thumb)

ປະເພດການຕິດຕັ້ງ:

Clampແຫວນວົງ

ສີ:

ດຳ

ນ້ໍາຫນັກລາຍການ:

14.4 ອອນ

ຂະໜາດຜະລິດຕະພັນ:

7.76 x 6.3 x 2.56 ນິ້ວ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For specific warranty information and customer support regarding your Kimpex Premium Heated Grips and Thumbs Kit, please refer to the documentation included with your purchase or contact Kimpex directly through their official webເວັບໄຊ ຫຼືຊ່ອງທາງການບໍລິການລູກຄ້າ.
