Dexnor Keyboard Case for Samsung Galaxy Tab S9/S9 FE/S10 Lite/S10 FE (Model DK005)

1. ບົດແນະນຳ

Thank you for choosing the Dexnor Keyboard Case. This manual provides essential information for setting up, operating, and maintaining your new keyboard case. Designed to enhance your Samsung Galaxy Tab experience, this case features a magnetic attachment, a precise multi-touch trackpad, a 7-color backlit QWERTZ keyboard, and convenient S Pen storage. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.

2. ຄວາມເຂົ້າກັນໄດ້

This keyboard case is exclusively designed for the following Samsung Galaxy Tab models:

• Samsung Galaxy Tab S10 Lite (Model SM-X400, SM-X406B)
• Samsung Galaxy Tab S10 FE 10.9" 2025 (Model SM-X520, SM-X526, SM-X526B)
• Samsung Galaxy Tab S9 FE 10.9" 2023 (Model SM-X510/SM-X516B/SM-X518U)
• Samsung Galaxy Tab S9 11" 2023 (Model SM-X710/SM-X716B/SM-X718U)

Note: This case is NOT compatible with Samsung Galaxy Tab S9+/S9 FE+ 12.4" or Samsung Galaxy Tab S11 (2025) 11". Please verify your tablet model before purchase.

Figure 2.1: Compatible and incompatible tablet models.

3. ເນື້ອໃນຊຸດ

ກະລຸນາກວດເບິ່ງຊຸດສຳລັບລາຍການຕໍ່ໄປນີ້:

• Dexnor Keyboard Case
• ສາຍສາກ USB-C
• ຄູ່ມືເລີ່ມຕົ້ນດ່ວນ
• ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)

4. ຕັ້ງຄ່າ

4.1 Attaching Your Tablet

The keyboard case features a strong magnetic hinge for secure attachment. Simply align your Samsung Galaxy Tab with the magnetic area on the case. The tablet will snap into place, transforming your device into a laptop-like setup.

Figure 4.1: Magnetic attachment and adjustable viewມຸມ ing.

4.2 Pairing the Keyboard via Bluetooth

1. ໃຫ້ແນ່ໃຈວ່າແປ້ນພິມຖືກສາກໄຟພຽງພໍ.
2. Turn on the keyboard by pressing the power button (usually located on the side or top edge of the keyboard). The indicator light will flash, indicating it's in pairing mode.
3. On your Samsung Galaxy Tab, go to ການຕັ້ງຄ່າ > ອຸປະກອນທີ່ເຊື່ອມຕໍ່ > Bluetooth and turn Bluetooth ON.
4. Your tablet will search for available devices. Select "Dexnor Keyboard" (or similar name) from the list.
5. ປະຕິບັດຕາມຄຳແນະນຳໃນໜ້າຈໍເພື່ອເຮັດສຳເລັດຂະບວນການຈັບຄູ່. ເມື່ອຈັບຄູ່ແລ້ວ, ໄຟສັນຍານເທິງແປ້ນພິມຈະຢຸດກະພິບ.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

5.1 ການປັບຕົວ Viewໃນ Angles

The robust aluminum alloy hinge allows for flexible viewing angles, transforming your tablet into a versatile workstation. Adjust the tablet's position to your preferred angle for typing, reading, or viewເນື້ອໃນ.

Figure 5.1: Tablet in floating cantilever position for optimal viewing.

5.2 Multi-Touch Trackpad

The integrated high-precision multi-touch trackpad supports various gestures for seamless navigation. Use multi-finger gestures for actions such as scrolling, swiping, and zooming, enhancing your productivity.

Figure 5.2: Multi-touch trackpad for precise control.

5.3 ແປ້ນພິມ Backlit

The keyboard features 7 different backlight colors and 3 adjustable brightness levels for comfortable typing in any lighting condition. Use the dedicated backlight key (often a sun icon or Fn + light key combination) to cycle through colors and adjust brightness.

Figure 5.3: Backlit QWERTZ keyboard with adjustable colors.

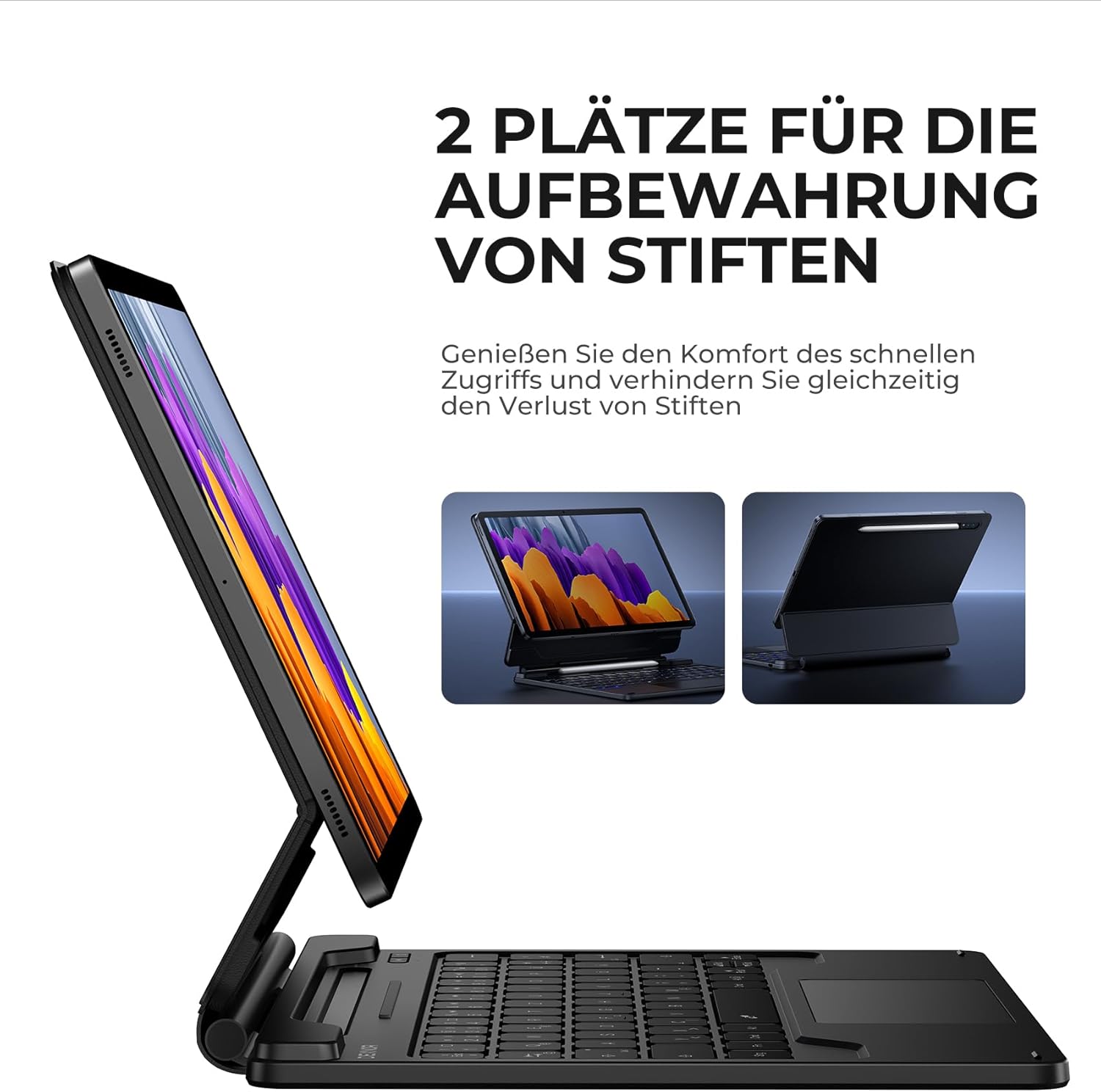

5.4 S Pen Holder

The case provides two convenient locations for your S Pen: an integrated magnetic holder within the keyboard for secure storage and a cutout slot at the rear of the case for charging and additional storage. This design ensures quick access and prevents loss.

Figure 5.4: Dual S Pen storage options.

5.5 DEX Mode

Combine your tablet with the keyboard case and activate Samsung DEX mode to transform your tablet into a desktop-like experience. This allows for enhanced multitasking and productivity, similar to a traditional laptop setup.

5.6 ປຸ່ມລັດ

The keyboard includes a series of convenient shortcut keys for quick control over media playback, volume, and other tablet functions. Refer to the keyboard layout for specific key functions.

Figure 5.5: Keyboard layout with shortcut keys.

5.7 Automatic Sleep/Wake Function

The case supports automatic sleep/wake functionality. Closing the case will put your tablet to sleep, and opening it will wake it up, conserving battery life for both your tablet and the keyboard.

6. ກຳລັງສາກແປ້ນພິມ

The keyboard is equipped with a long-lasting 650 mAh battery. To charge the keyboard:

1. Connect the provided USB-C charging cable to the charging port on the keyboard.
2. ເຊື່ອມຕໍ່ອີກສົ້ນຂອງສາຍກັບອະແດັບເຕີໄຟ USB (ບໍ່ລວມ) ຫຼືພອດ USB ຂອງຄອມພິວເຕີ.
3. The charging indicator light will illuminate during charging and turn off once fully charged. A full charge takes approximately 3.5 hours.

A single charge provides up to 200 hours of working time and 1200 hours of standby time.

Figure 6.1: USB-C charging port.

7. ບໍາລຸງຮັກສາ

To ensure the longevity and optimal performance of your Dexnor Keyboard Case:

• ທໍາຄວາມສະອາດ: ໃຊ້ອ່ອນ, ງamp cloth to wipe the exterior of the case. For the keyboard keys, use a soft, dry cloth or a specialized keyboard cleaner. Avoid harsh chemicals or abrasive materials.
• ການເກັບຮັກສາ: When not in use for extended periods, store the keyboard case in a cool, dry place. Ensure the case is closed to protect the tablet and keyboard.
• ຫຼີກ​ລ້ຽງ​ການ​ຂອງ​ແຫຼວ​: ຮັກສາແປ້ນພິມໃຫ້ຫ່າງຈາກຂອງແຫຼວເພື່ອປ້ອງກັນຄວາມເສຍຫາຍຕໍ່ອົງປະກອບພາຍໃນ.
• ຈັດການດ້ວຍຄວາມລະມັດລະວັງ: While durable, avoid dropping the case or subjecting it to excessive force.

8. ການແກ້ໄຂບັນຫາ

8.1 ແປ້ນພິມບໍ່ເຊື່ອມຕໍ່

• ກວດ​ສອບ​ຫມໍ້​ໄຟ​: ໃຫ້ແນ່ໃຈວ່າແປ້ນພິມຖືກສາກ.
• ຄູ່ໃໝ່: Delete the keyboard from your tablet's Bluetooth device list and attempt to pair it again (refer to Section 4.2).
• ຣີສະຕາດອຸປະກອນ: Restart both your tablet and the keyboard.
• ແຊກແຊງ: ຍ້າຍອອກໄປຈາກອຸປະກອນໄຮ້ສາຍອື່ນໆທີ່ອາດຈະເຮັດໃຫ້ເກີດການລົບກວນ.

8.2 Trackpad ບໍ່ຕອບສະໜອງ

• ກວດສອບການເຊື່ອມຕໍ່: ກວດໃຫ້ແນ່ໃຈວ່າແປ້ນພິມເຊື່ອມຕໍ່ຢ່າງຖືກຕ້ອງຜ່ານ Bluetooth.
• ແຜ່ນແທຣັກສະອາດ: ໃຫ້ແນ່ໃຈວ່າພື້ນຜິວແທຣັກແພັດສະອາດ ແລະບໍ່ມີສິ່ງເສດເຫຼືອ.
• ຣີສະຕາດ: Restart the keyboard and tablet.

8.3 Backlight ບໍ່ເຮັດວຽກ

• ກວດ​ສອບ​ຫມໍ້​ໄຟ​: Low battery can affect backlight functionality. Charge the keyboard.
• Toggle Backlight: Press the backlight key (or Fn + backlight key) to ensure it's not turned off or at the lowest brightness setting.

8.4 ບັນຫາການສາກໄຟ

• ກວດສອບສາຍ: Ensure the USB-C cable is securely connected to both the keyboard and the power source. Try a different USB-C cable if available.
• ແຫຼ່ງພະລັງງານ: ລອງໃຊ້ອະແດັບເຕີໄຟ ຫຼືພອດ USB ອື່ນ.

9. ຂໍ້ມູນຈໍາເພາະ

10. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Dexnor provides a 1-year manufacturer's warranty for this product. Additionally, lifetime technical support is available.

For warranty claims, technical assistance, or any product-related inquiries, please contact Dexnor customer support through the retailer's platform or visit the official Dexnor webເວັບໄຊສໍາລັບຂໍ້ມູນຕິດຕໍ່.
