ແນະນຳ
This manual provides detailed instructions for the setup, operation, and maintenance of your Prechen 10.1 inch Portable Touchscreen Monitor, Model HD-101. Please read this manual thoroughly before using the device to ensure proper functionality and to prevent damage.
ຄຸນສົມບັດຜະລິດຕະພັນ
- Portable Touchscreen: This 10.1-inch monitor is compact and lightweight, designed for portability. The touchscreen functionality allows for intuitive navigation and interaction, enhancing productivity on the go.
- ຈໍສະແດງຜົນ IPS ຄວາມລະອຽດສູງ: Features a 1920x1200 resolution with a 16:10 aspect ratio, delivering clear and vibrant visuals. IPS technology provides wide viewing angles and accurate color reproduction, suitable for various applications.
- ການເຊື່ອມຕໍ່ອະເນກປະສົງ: Equipped with HDMI and USB-C ports, offering flexible connection options. It can be easily connected to Windows PCs, laptops, and gaming consoles like Xbox. Note: USB-C is for touch functionality and power.
- ລໍາໂພງປະສົມປະສານ: Built-in speakers provide clear and dynamic audio, eliminating the need for external speakers during media consumption, gaming, or virtual meetings.
- VESA Mount ເຂົ້າກັນໄດ້: The monitor supports VESA mounting standards, allowing for attachment to compatible stands or arms for customized workspace setups and comfortable viewມຸມ.
ຕັ້ງຄ່າ
ເນື້ອໃນຊຸດ
ກວດສອບວ່າລາຍການທັງຫມົດແມ່ນມີຢູ່ໃນຊຸດ:
- Prechen 10.1 inch Portable Touchscreen Monitor
- ສາຍ HDMI
- ສາຍ USB-C ຫາ USB-C
- USB-A to USB-C Cable (for power/touch)
- Power Adapter
- ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
ການເຊື່ອມຕໍ່ Monitor
- ການເຊື່ອມຕໍ່ພະລັງງານ: Connect the provided power adapter to the DC Power Port on the monitor and plug it into a power outlet. Alternatively, if your device supports power delivery, connect a USB-C to USB-C cable to the USB-C (Power & Touch) port for both power and signal.
- ການເຊື່ອມຕໍ່ວິດີໂອ:
- HDMI: Connect one end of the HDMI cable to the HDMI port on the monitor and the other end to the HDMI output of your computer or device.
- USB-C (DisplayPort Alternate Mode): If your device supports DisplayPort Alternate Mode over USB-C, connect a USB-C to USB-C cable to the USB-C (Power & Touch) port on the monitor and your device. This single cable can provide video, power, and touch functionality.
- ການທໍາງານສໍາພັດ: For touch functionality, ensure the USB-C (Power & Touch) port is connected to your device. If using HDMI for video, you will also need to connect a USB-A to USB-C cable from your device's USB-A port to the monitor's USB-C (Power & Touch) port.
- ສຽງອອກ: If you wish to use external headphones or speakers, connect them to the 3.5mm Audio Port on the monitor.

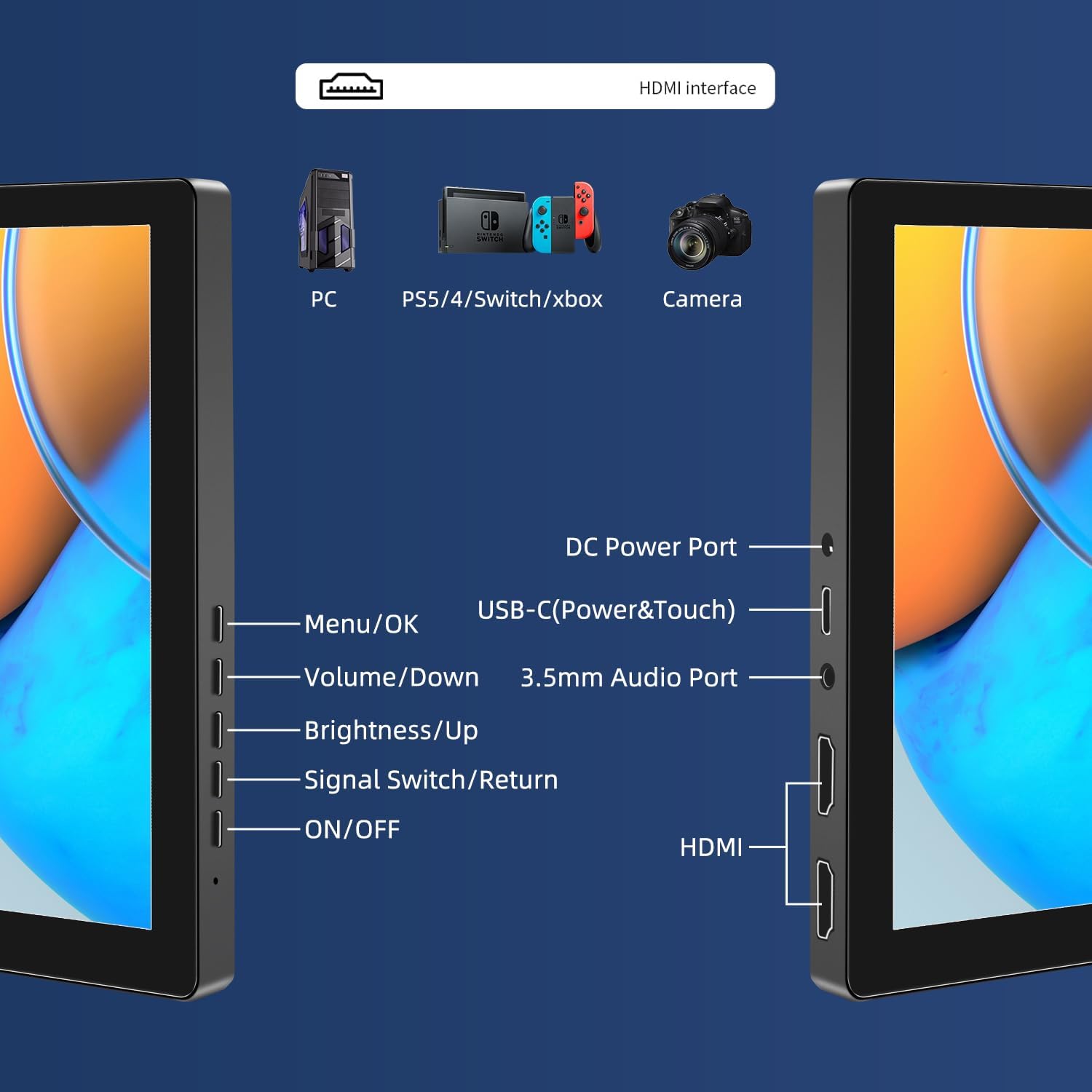

ຮູບພາບ: ຫຼາຍກວ່າview of the monitor's ports including DC Power, USB-C (Power & Touch), 3.5mm Audio, HDMI, and control buttons.
ຄໍາແນະນໍາການດໍາເນີນງານ
ເປີດ/ປິດ
- To power on the monitor, press the ເປີດ/ປິດ ປຸ່ມ.
- ເພື່ອປິດໄຟ, ກົດປຸ່ມແລະກົດປຸ່ມ ເປີດ/ປິດ button for a few seconds until the screen turns off.
ການໃຊ້ເມນູສະແດງ ໜ້າ ຈໍ (OSD)
The OSD menu allows you to adjust various display settings.
- ກົດ ເມນູ / OK ປຸ່ມເພື່ອເປີດເມນູ OSD.
- ໃຊ້ ປະລິມານ/ລົງ ແລະ ຄວາມສະຫວ່າງ/ຂຶ້ນ ປຸ່ມເພື່ອນຳທາງຜ່ານຕົວເລືອກເມນູ.
- ກົດ ເມນູ / OK ເພື່ອເລືອກຕົວເລືອກ ຫຼື ຢືນຢັນການຕັ້ງຄ່າ.
- ກົດ Signal Switch/Return button to go back to the previous menu or exit the OSD.
ການປັບແຕ່ງໂໝດການສະແດງຜົນ
The monitor supports multiple display modes when connected to a computer:
- ໂໝດຊໍ້າກັນ: Displays the same content on both your primary screen and the portable monitor.
- ຂະຫຍາຍໂໝດ: ຂະຫຍາຍເດັສທັອບຂອງທ່ານໄປທົ່ວທັງສອງໜ້າຈໍ, ເຊິ່ງສະໜອງພື້ນທີ່ເຮັດວຽກຫຼາຍຂຶ້ນ.
- ໂໝດໜ້າຈໍທີສອງ: ໃຊ້ພຽງແຕ່ຈໍພາບພົກພາເປັນຈໍສະແດງຜົນເທົ່ານັ້ນ.
These modes are typically configured through your operating system's display settings (e.g., Windows Display Settings, macOS System Preferences).

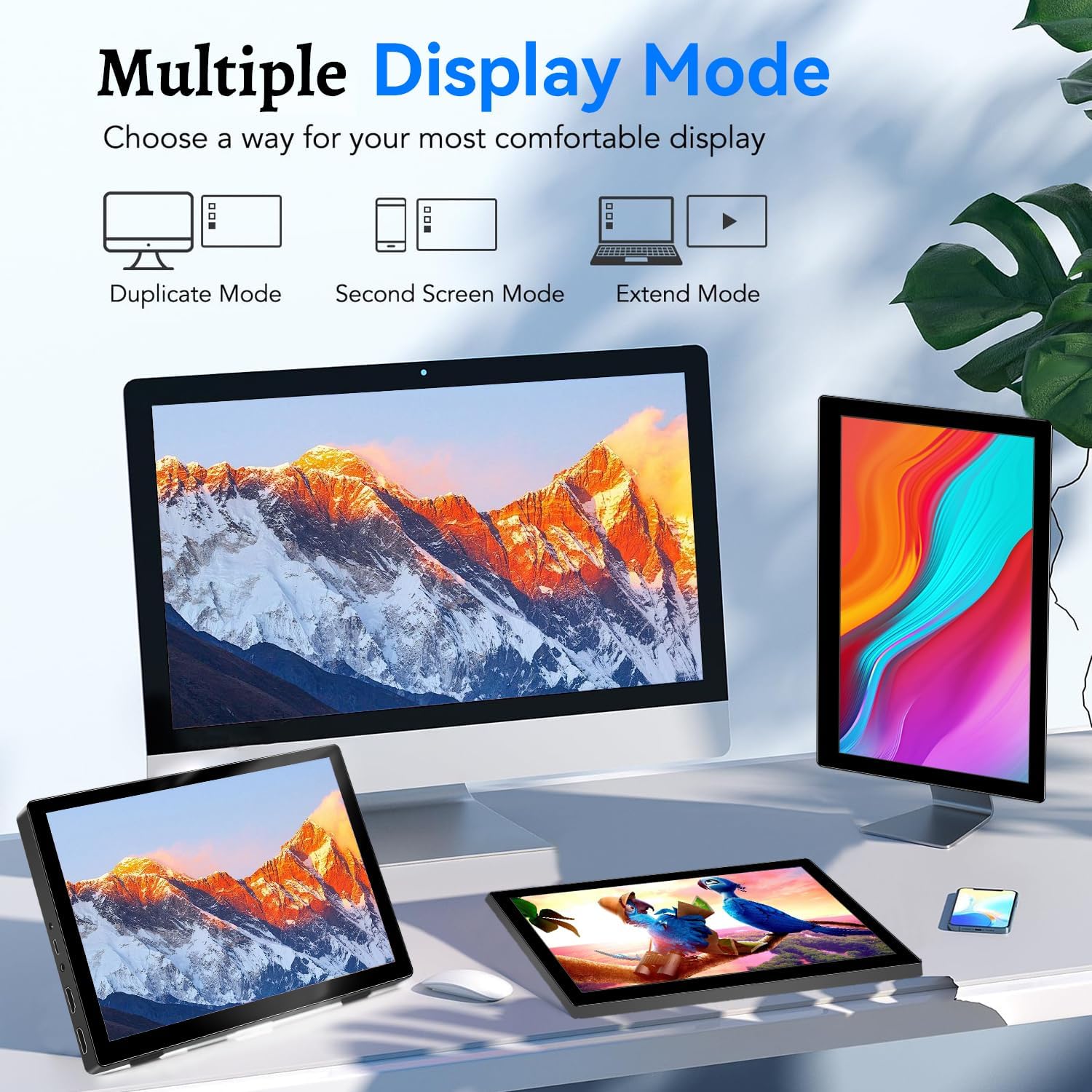

Image: Visual representation of Duplicate, Second Screen, and Extend display modes.
Using Touchscreen Functionality
The monitor supports 10-point touchscreen technology. Ensure the USB-C (Power & Touch) port is correctly connected to your device for touch input to function.
ຮູບພາບ: Examples of 10-point touchscreen gestures for interaction.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດຫນ້າຈໍ: ໃຊ້ຜ້າແພທີ່ອ່ອນໆ ທີ່ບໍ່ມີເສັ້ນດ່າງ dampຫຸ້ມດ້ວຍນ້ໍາຫຼືເຄື່ອງເຮັດຄວາມສະອາດຫນ້າຈໍທີ່ບໍ່ມີການຂັດ. ຢ່າສີດນໍ້າສະອາດໃສ່ໜ້າຈໍໂດຍກົງ.
- ທໍາຄວາມສະອາດ Casing: ເຊັດຈໍສະແດງຜົນ casing ດ້ວຍຜ້າອ່ອນ, ແຫ້ງ. ຫຼີກເວັ້ນການໃຊ້ຢາຊັກຟອກຫຼືສານລະລາຍທີ່ເຂັ້ມແຂງ.
- ການເກັບຮັກສາ: When not in use, store the monitor in a cool, dry place, away from direct sunlight and extreme temperatures.
- ການຈັດການ: Avoid dropping or subjecting the monitor to strong impacts. Do not place heavy objects on top of the monitor.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ບໍ່ມີຈໍສະແດງຜົນ/ສີດຳ |
|
|
| ໜ້າຈໍສຳຜັດບໍ່ຕອບສະໜອງ |
|
|
| ບໍ່ມີສຽງຈາກລຳໂພງ |
|
|
| ບັນຫາຄຸນນະພາບຮູບພາບ (ມົວ, ບິດເບືອນ) |
|
|
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຍີ່ຫໍ້ | Prechen |
| ໝາຍເລກຕົວແບບ | HD-101 |
| ຂະໜາດໜ້າຈໍ | 10.1 ນິ້ວ |
| ຄວາມລະອຽດ | 1920 x 1200 (UXGA Wide) |
| ອັດຕາສ່ວນ | 16:10 |
| ປະເພດແຜງ | IPS |
| ອັດຕາການໂຫຼດຂໍ້ມູນຄືນໃໝ່ | 60 Hz |
| ເວລາຕອບສະຫນອງ | 1 ມລ |
| ການເຊື່ອມຕໍ່ | 1x HDMI, 1x USB-C (Power & Touch), 1x 3.5mm Audio Jack, 1x DC Power Port |
| ຂະໜາດ (L x W x H) | 21.8 x 15.8 x 1.4 cm |
| ນ້ຳໜັກ | 990 ກຣາມ |
| ຜູ້ຜະລິດ | Shenzhen Kenowa Electronics Co., LTD |

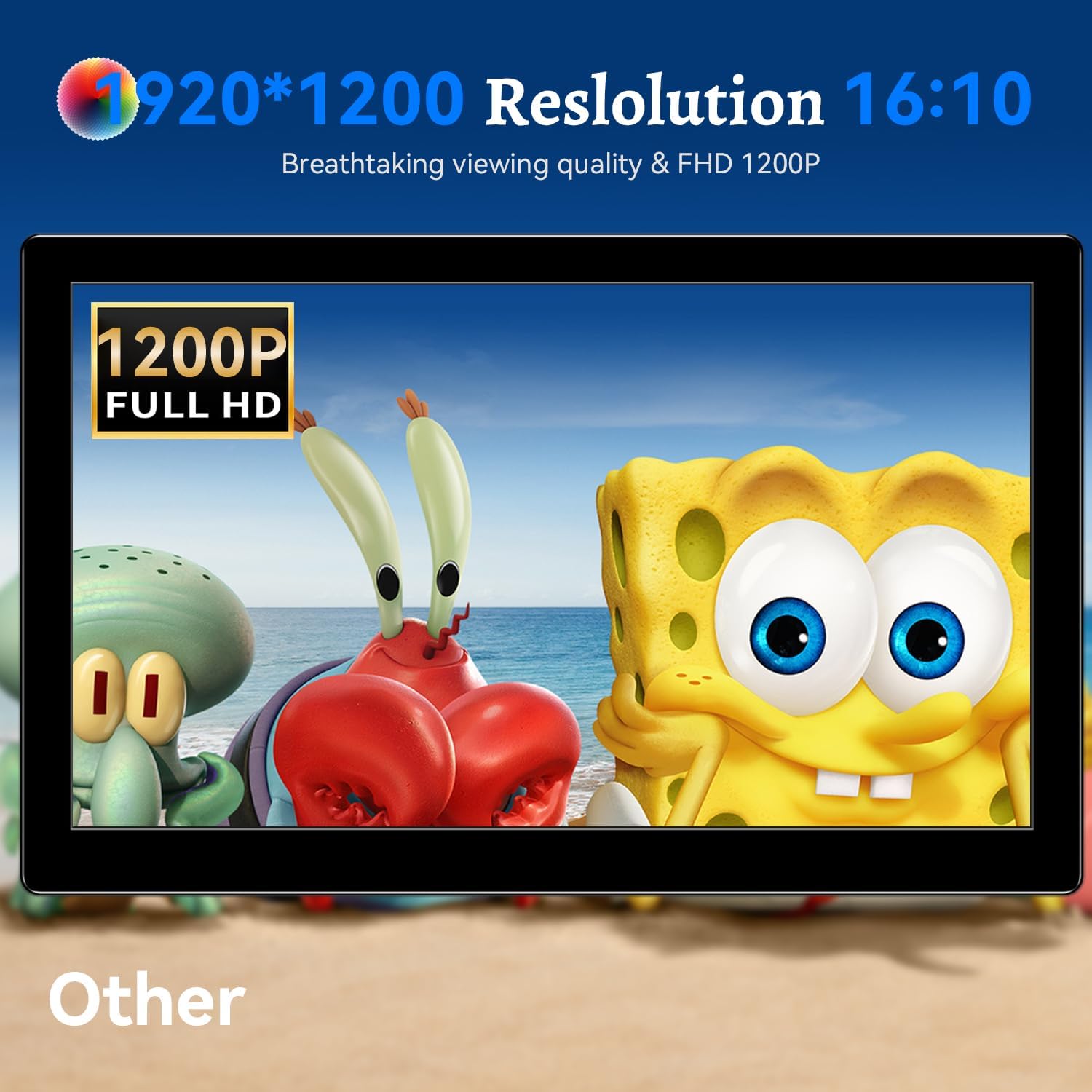

ຮູບພາບ: ຈໍສະແດງຜົນasing its 1920x1200 Full HD resolution.
Image: The monitor's IPS panel offering wide viewing angles and rich colors.
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For warranty information and technical support, please refer to the warranty card included with your product or contact Prechen customer service through their official website. Please have your model number (HD-101) and purchase details ready when contacting support.
