ແນະນຳ
Thank you for choosing the nipify Solar Spot Lights Outdoor Motion Sensor. This product is designed to provide efficient and reliable outdoor lighting for your garden, patio, walkway, and other landscape areas. Featuring 62 ultra-bright LEDs, a sensitive PIR motion sensor, and three distinct lighting modes, these lights offer versatile illumination and enhanced security. Their 2-in-1 design allows for both ground stake and wall-mounted installation, and the IP65 waterproof rating ensures durability in various weather conditions.
Please read this manual carefully before installation and operation to ensure optimal performance and longevity of your solar spot lights.

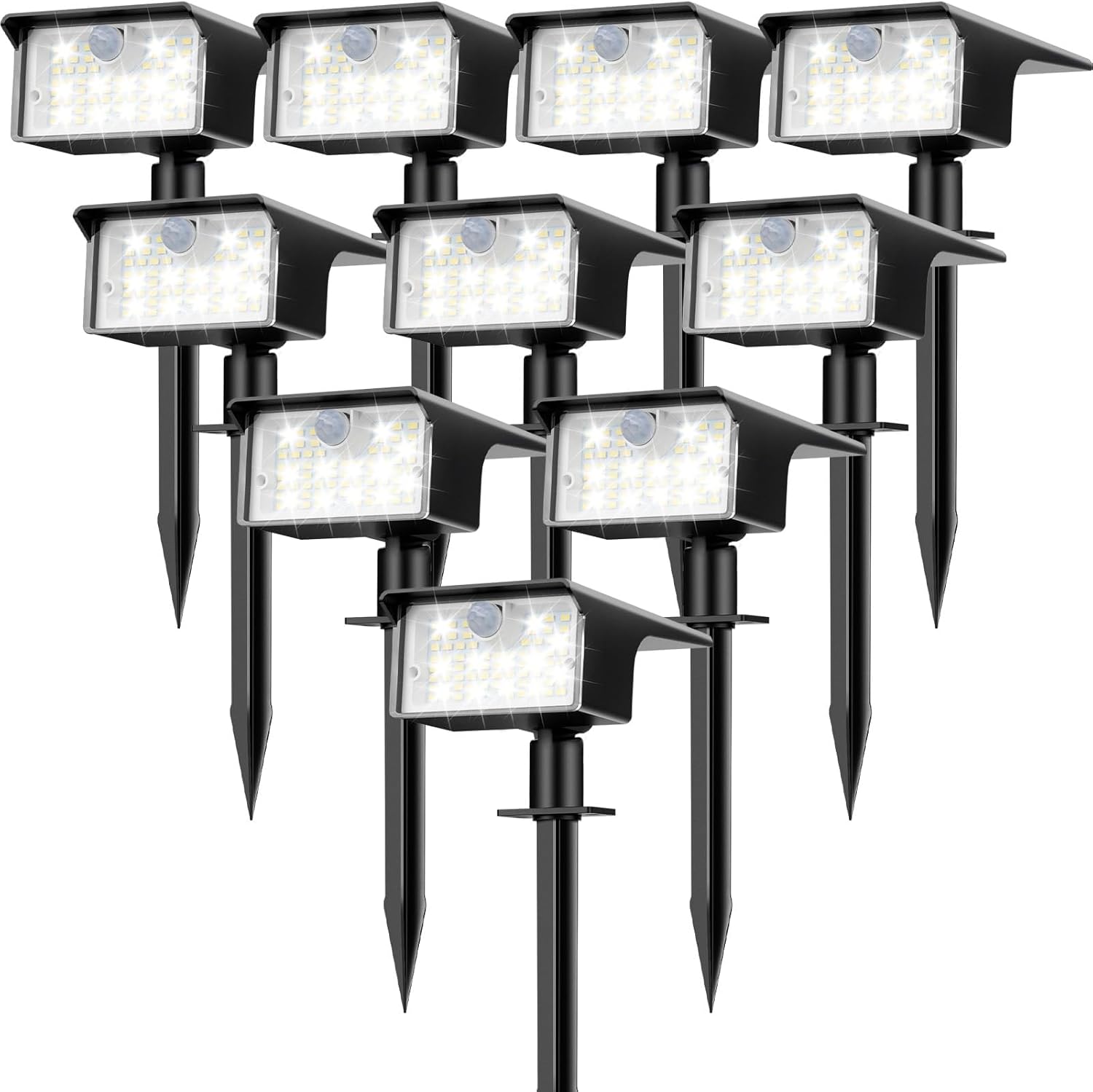

Image: A pack of ten nipify solar spot lights, showcasing ການອອກແບບ ແລະ ປະລິມານຂອງເຂົາເຈົ້າ.
ສິນຄ້າເກີນview
ສ່ວນປະກອບລວມ
- 10 x Solar spot lights outdoor
- 10 x ເສົາຫຼັກດິນ
- 20 x screws
- 20 x Expansion plugs
- 1 x ຄູ່ມືຜູ້ໃຊ້
Image: An illustration of all components included in the product package.
ຄຸນນະສົມບັດທີ່ສໍາຄັນ
- Ultra-Bright & PIR Motion Sensor: Each light is equipped with 62 LEDs, providing up to 1000 lumens of 6500K cool white light. The sensitive PIR motion sensor offers a 120° detection angle for timely and efficient lighting.
- 3 Option Modes and Auto ON/OFF: Lights automatically turn on at dusk and off at dawn. Three selectable lighting modes cater to different needs: dim brightness without motion sensor, dim brightness with motion sensor, and security motion sensor mode (light off until motion detected).
- 2-In-1 Function and Multi-Purpose: Can be installed as solar spotlights by inserting into the ground or as solar wall lights by mounting on a wall.
- High-Efficient and Waterproof: High-quality solar panels ensure a conversion rate of up to 22%. Made from durable ABS material with an IP65 waterproof rating, suitable for extreme weather conditions.
ຮູບພາບ: A close-up view highlighting the adjustable head, 62 LEDs, control button, and solar panel of the light.
ການຕິດຕັ້ງ
The nipify Solar Spot Lights offer two convenient installation methods:
Method 1: Ground Stake Installation
- Attach the ground stake to the main light unit. Ensure it is securely fastened.
- Select a location in your garden, yard, or pathway that receives direct sunlight for 6-8 hours daily.
- Gently push the assembled light into the ground until the stake is fully embedded and the light is stable.
- Adjust the angle of the solar panel and light head to optimize sun exposure and illumination direction.
Method 2: Wall Mount Installation
- Choose a wall location that receives ample direct sunlight and where the light is desired.
- Mark the positions for drilling using the light's mounting bracket as a template.
- Drill holes at the marked positions. Insert the expansion plugs into the drilled holes.
- Align the light's mounting bracket with the holes and secure it to the wall using the provided screws.
- Adjust the angle of the solar panel and light head for optimal performance.
ສຳຄັນ: For best performance, ensure the solar panel is clean and free from obstructions that might block sunlight. The initial charge may take 2-3 days of direct sunlight.
Image: Visual guide demonstrating both ground stake and wall mount installation methods.
Image: Guidance on selecting appropriate installation locations for optimal solar charging.
ການດໍາເນີນງານ
The nipify Solar Spot Lights are designed for automatic operation. They will charge during the day and illuminate at night. You can select from three distinct lighting modes using the button on the back of the light unit.
Initial Setup and Mode Selection
- Before first use, ensure the light is placed in direct sunlight for at least 6-8 hours to fully charge the battery.
- Locate the power/mode button on the back of the light unit.
- Press the button repeatedly to cycle through the three available modes:
- Mode 1: Dim Light Mode
The light stays at a dim brightness throughout the night without motion sensor activation. Ideal for continuous ambient lighting.
- ໂໝດ 2: ໂໝດເຊັນເຊີແສງມືດມົວ
The light stays at a dim brightness at night. When motion is detected, it switches to high brightness for a period, then returns to dim light.
- Mode 3: High Light Sensor Mode (Security Mode)
The light remains off at night. When motion is detected, it switches to high brightness for a period, then turns off again. This mode is ideal for security and energy saving.
The light will remember the last selected mode for subsequent nights.
Image: Visual representation of the three operational lighting modes with motion sensor functionality.
Image: Depiction of the automatic charging during daytime and lighting up at night.
ບໍາລຸງຮັກສາ
To ensure your nipify Solar Spot Lights continue to perform optimally, follow these maintenance guidelines:
- ແຜງແສງອາທິດສະອາດ: ເຊັດແຜງໂຊລາເຊວຢ່າງເປັນປົກກະຕິດ້ວຍການອ່ອນ, ງamp ຜ້າເພື່ອກຳຈັດຝຸ່ນ, ສິ່ງສົກກະປົກ, ໃບໄມ້ ຫຼື ຫິມະ. ແຜງທີ່ສະອາດຮັບປະກັນການດູດຊຶມແສງແດດສູງສຸດ ແລະ ການສາກໄຟທີ່ມີປະສິດທິພາບ.
- ສິ່ງກີດຂວາງທີ່ຈະແຈ້ງ: Ensure no trees, bushes, or other objects are blocking direct sunlight from reaching the solar panel, especially during peak charging hours.
- ກວດເບິ່ງສະຖານທີ່: Periodically check that the lights are securely installed, whether in the ground or on the wall, to prevent accidental damage or displacement.
- ຄວາມຕ້ານທານສະພາບອາກາດ: The lights are IP65 waterproof and designed to withstand various weather conditions (working temperature range -20°C to 50°C). However, during extreme weather events like heavy storms or prolonged freezing temperatures, it is advisable to bring them indoors if possible to extend their lifespan.
Image: Illustrates the product's resilience to various weather conditions, including rain, snow, and heat.
ການແກ້ໄຂບັນຫາ
If your nipify Solar Spot Lights are not functioning as expected, please refer to the following common issues and solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ແສງສະຫວ່າງບໍ່ເປີດໃນຕອນກາງຄືນ. | ຄ່າແສງຕາເວັນບໍ່ພຽງພໍ. | Ensure the solar panel receives 6-8 hours of direct sunlight daily. Relocate if necessary. |
| ແສງສະຫວ່າງບໍ່ເປີດໃນຕອນກາງຄືນ. | ແຜງໂຊລາເຊວເປື້ອນ ຫຼື ອຸດຕັນ. | ເຮັດຄວາມສະອາດໜ້າຜິວຂອງແຜງພະລັງງານແສງຕາເວັນ. ກຳຈັດສິ່ງເສດເຫຼືອ ຫຼື ສິ່ງກີດຂວາງຕ່າງໆອອກ. |
| ແສງແມ່ນມືດມົວ ຫຼືເປີດພຽງໄລຍະສັ້ນໆ. | Battery not fully charged or degrading. | Allow several days of full sunlight charging. If problem persists after extended use, battery may need replacement (contact support). |
| Motion sensor not working or too sensitive. | Incorrect mode selected or sensor obstructed. | Cycle through modes to ensure the correct motion sensor mode is active. Ensure the sensor lens is clean and unobstructed. |
| Water inside the light unit. | Seal integrity compromised (rare). | While rated IP65, extreme conditions or manufacturing defects can occur. If water ingress is observed, discontinue use and contact customer support. |
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ຍີ່ຫໍ້ | nipify |
| ຊື່ຕົວແບບ | solar spotlight solar wall lights (GS08-10) |
| ສີ | ສີຂາວເຢັນ |
| ວັດສະດຸ | Acrylonitrile Butadiene Styrene (ABS) |
| ປະເພດແຫຼ່ງແສງ | LED (62 LEDs ຕໍ່ແສງ) |
| ຄວາມສະຫວ່າງ | 1000 Lumens (each) |
| ແຫຼ່ງພະລັງງານ | ພະລັງງານແສງອາທິດ |
| ສະບັບtage | 12 ໂວນ (DC) |
| ປະສິດທິພາບການປ່ຽນພະລັງງານແສງຕາເວັນ | 22% |
| ລະດັບຄວາມຕ້ານທານນ້ໍາ | ກັນນໍ້າ IP65 |
| ຄຸນນະສົມບັດພິເສດ | Motion Sensor (PIR, 120° detection angle) |
| ປະເພດການຕິດຕັ້ງ | Wall Mounted / Ground Stake |
| ຂະໜາດສິນຄ້າ | 1"L x 1"W x 1"H (approximate, as per data) |
| ນ້ໍາຫນັກລາຍການ | 4.2 ປອນ (ສຳລັບ 10 ຊອງ) |
| ອຸນຫະພູມເຮັດວຽກ | -20°C ເຖິງ 50°C |
ການຮັບປະກັນ & ສະຫນັບສະຫນູນ
ການຮັບປະກັນ: The nipify Solar Spot Lights come with a Lifetime Warranty. For specific details regarding warranty claims or coverage, please refer to the warranty information provided with your purchase or contact nipify customer support directly.
ການຊ່ວຍເຫຼືອລູກຄ້າ: If you have any questions, concerns, or require assistance with your nipify Solar Spot Lights, please do not hesitate to contact our customer support team. You can typically find contact information on the product packaging, the official nipify webເວັບໄຊທ໌, ຫຼືຜ່ານແພລດຟອມການຊື້ຂອງທ່ານ.
ພວກເຮົາມຸ່ງຫມັ້ນທີ່ຈະສະຫນອງຜະລິດຕະພັນທີ່ມີຄຸນນະພາບສູງແລະການບໍລິການລູກຄ້າທີ່ດີເລີດ.
