EPEVER IPT 3000-12 Pure Sine Wave Inverter User Manual

1. ບົດແນະນຳ

The EPEVER IPT 3000-12 is a high-frequency pure sine wave inverter designed for converting 12V DC power to 230V AC power. It features a fully digital intelligent design with a dual closed-loop voltage and current control algorithm, ensuring fast response, high conversion efficiency, low total harmonic distortion (THD), and high operational reliability. This inverter is suitable for various off-grid DC-AC systems, including vehicle systems, security surveillance systems, emergency lighting, domestic electrical systems, and field electrical systems that require high-quality power.

Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage to the inverter or connected equipment.

2. ຄໍາແນະນໍາຄວາມປອດໄພ

ສັງເກດເບິ່ງຄວາມລະມັດລະວັງດ້ານຄວາມປອດໄພຕໍ່ໄປນີ້ໃນລະຫວ່າງການຕິດຕັ້ງ ແລະການດໍາເນີນງານ:

• Ensure the inverter is installed in a well-ventilated area, away from flammable materials, moisture, and direct sunlight.
• ຢ່າໃຫ້ອິນເວີເຕີຖືກຝົນ, ຫິມະ, ສະເປ, ຫຼື ຂອງແຫຼວໃດໆ.
• Ensure all wiring connections are tight and correct to prevent loose connections that can cause overheating.
• Do not connect the inverter to an AC utility power source or generator.
• Always disconnect the battery before performing any maintenance or wiring.
• inverter ສ້າງ vol ສູງtage. Do not open the casing or attempt to service the unit yourself. Refer all servicing to qualified personnel.
• ຮັກສາເດັກນ້ອຍຢູ່ຫ່າງຈາກ inverter ໄດ້.
• Use appropriate DC input cables and AC output cables with sufficient gauge for the power rating.

3. ຜະລິດຕະພັນເກີນview

3.1 ລັກສະນະທີ່ສໍາຄັນ

• ຜົນຜະລິດຄື້ນໄຊນບໍລິສຸດ.
• Electrical isolation between input and output.
• ຕົວຄູນພະລັງງານຜົນຜະລິດສູງເຖິງ 1.
• Input protection: low voltage, overvoltage.
• Output protection: overload, short circuit, over-temperature.
• RS485 communication port for remote monitoring.
• Remote ON/OFF control port (RJ11).
• High conversion efficiency and reliability.
• Low Total Harmonic Distortion (THD).

3.2 ການກໍານົດອົງປະກອບ

Familiarize yourself with the main components of the EPEVER IPT 3000-12 inverter.

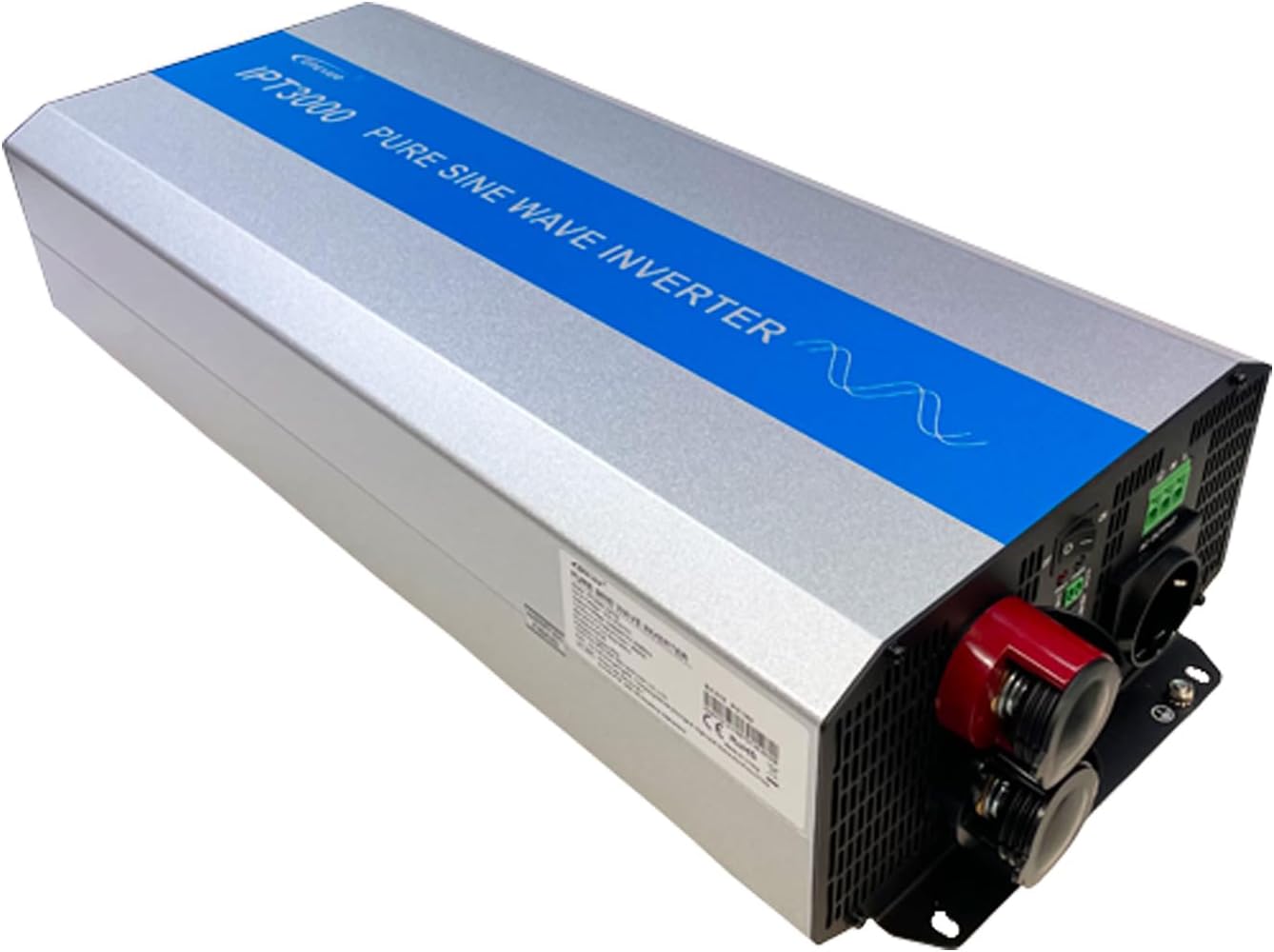

ຮູບທີ 1: ດ້ານໜ້າ view of the EPEVER IPT 3000-12 Pure Sine Wave Inverter. This image shows the overall design of the inverter, highlighting its compact and robust casing.

ຮູບທີ 2: Front panel of the EPEVER IPT 3000-12 Inverter. This view details the AC output sockets, DC input terminals (red for positive, black for negative), the ON/OFF switch, and communication ports (REMOTE, RS-485). Status indicators for 'FAULT' and 'POWER' are also visible.

ຮູບທີ 3: Rear panel of the EPEVER IPT 3000-12 Inverter. This image displays the two integrated cooling fans, essential for maintaining optimal operating temperature and preventing overheating.

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

4.1 ສະພາບແວດລ້ອມການຕິດຕັ້ງ

• Install the inverter indoors, protected from direct sunlight, rain, and moisture.
• Ensure adequate airflow around the inverter for proper cooling. Maintain at least 15 cm (6 inches) of clear space around the unit.
• Avoid installing the inverter in areas with corrosive gases, excessive dust, or high humidity.
• Mount the inverter horizontally on a stable, non-flammable surface.

4.2 ການເຊື່ອມຕໍ່ສາຍໄຟ

Follow these steps for connecting the inverter to your battery bank and AC loads. Always ensure the inverter is switched OFF before making any connections.

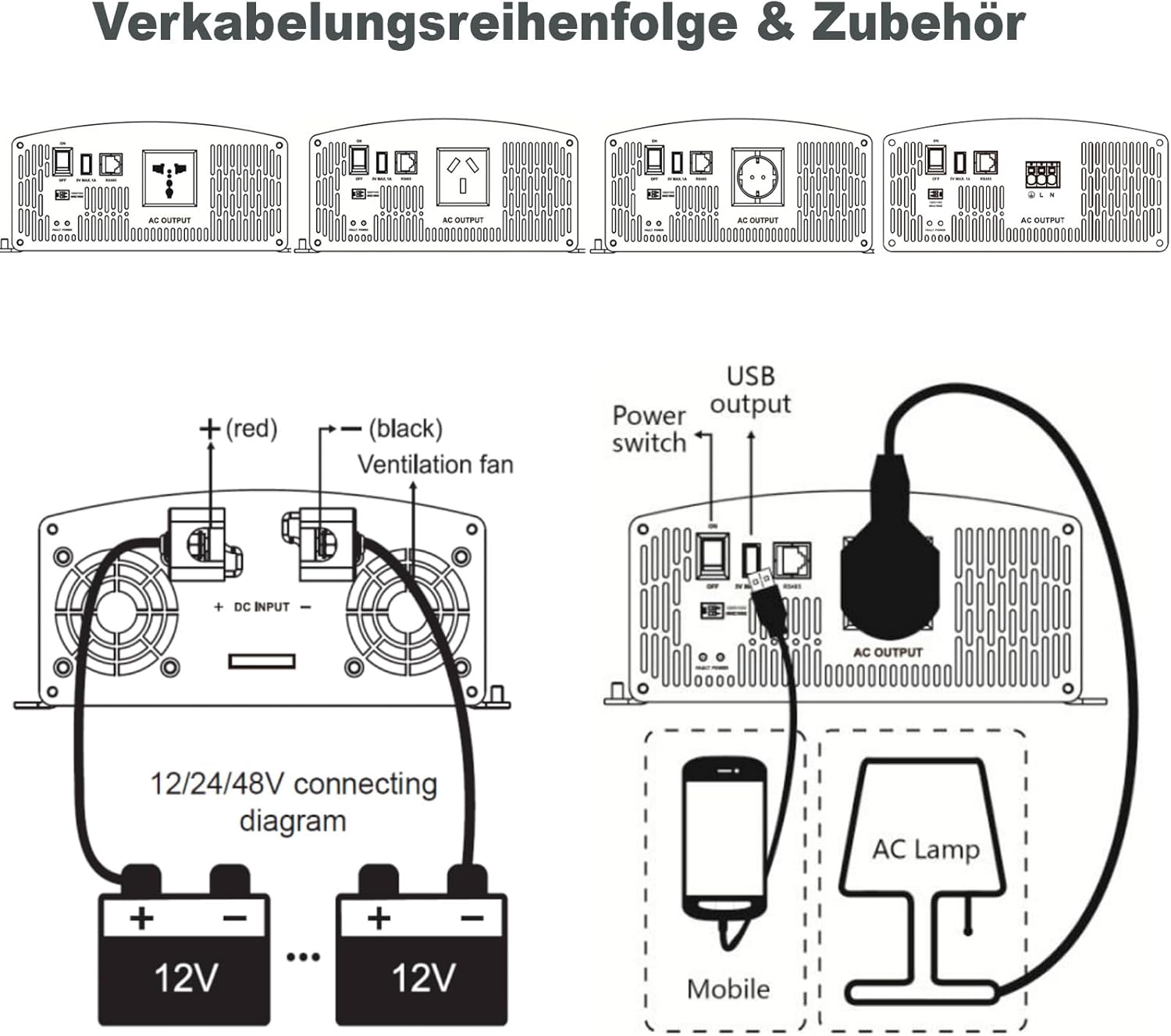

ຮູບທີ 4: Wiring diagram illustrating the connection of 12V batteries. It also depicts how AC loads like mobile devices and lamps are connected to the inverter's AC output.

ຮູບທີ 5: System diagram showing the EPEVER IPT inverter integrated into a typical solar power system. This includes a solar charge controller, battery bank, and both DC and AC loads. The RS485 communication link to an MT75 remote meter is also shown.

4.2.1 ການເຊື່ອມຕໍ່ຫມໍ້ໄຟ

1. Connect the positive (+) terminal of the 12V battery bank to the red DC input terminal of the inverter.
2. Connect the negative (-) terminal of the 12V battery bank to the black DC input terminal of the inverter.
3. Ensure the battery cables are of appropriate gauge and length to minimize voltage ຫຼຸດລົງ.
4. ຮັດການເຊື່ອມຕໍ່ທັງໝົດຢ່າງປອດໄພ.

4.2.2 AC Load Connection

1. Plug your AC appliances directly into the AC output sockets on the front panel of the inverter.
2. Ensure the total power consumption of all connected AC loads does not exceed the inverter's continuous power rating (3000W).
3. The inverter supports various AC outlet types, as shown in Figure 6.

ຮູບທີ 6: Illustration of different AC outlet configurations that can be supported by EPEVER inverters, demonstrating versatility for various regional standards.

4.2.3 Remote Control and Monitoring (Optional)

• Connect an external remote ON/OFF switch to the RJ11 port for convenient control.
• Utilize the RS485 communication port for remote monitoring with compatible EPEVER devices, such as the MT75 remote meter (see Figure 5).

5. ຄໍາແນະນໍາການດໍາເນີນງານ

5.1 Turning the Inverter On/Off

1. ເພື່ອເປີດ: After all connections are secure, switch the ON/OFF button on the inverter's front panel to the "ON" position. The "POWER" indicator should illuminate.
2. ປິດ: Switch the ON/OFF button to the "OFF" position. The "POWER" indicator should turn off.

When using the remote ON/OFF switch, ensure the main switch on the inverter is in the "ON" position for the remote switch to function.

5.2 ຕົວຊີ້ວັດສະຖານະ

• ຕົວຊີ້ວັດພະລັງງານ: ເຮັດໃຫ້ມີແສງໃນເວລາທີ່ inverter ເຮັດວຽກເປັນປົກກະຕິ.
• ຕົວຊີ້ວັດຄວາມຜິດ: Illuminates or flashes to indicate a fault condition (e.g., overload, over-temperature, low voltage). Refer to the Troubleshooting section for details.

6. ບໍາລຸງຮັກສາ

Regular maintenance ensures the longevity and optimal performance of your EPEVER IPT 3000-12 inverter.

• ທໍາຄວາມສະອາດ: Periodically clean the exterior of the inverter with a dry cloth. Ensure the cooling vents and fans (Figure 3) are free from dust and debris to maintain proper airflow.
• ການເຊື່ອມຕໍ່: Regularly check all wiring connections (DC input, AC output) to ensure they are tight and free from corrosion. Loose connections can cause overheating and damage.
• ສະພາບແວດລ້ອມ: Verify that the installation environment remains within recommended conditions (temperature, humidity, ventilation).
• ສຸຂະພາບຫມໍ້ໄຟ: Monitor the health of your battery bank, as poor battery performance can affect inverter operation.

ຢ່າພະຍາຍາມເປີດຕົວແປງໄຟຟ້າasing for internal cleaning or repairs. This should only be done by authorized service personnel.

7. ການແກ້ໄຂບັນຫາ

If the inverter is not functioning correctly, refer to the following table for common issues and their solutions.

If the problem persists after attempting these solutions, contact EPEVER customer support or your local dealer.

8. ຂໍ້ມູນຈໍາເພາະ

Technical specifications for the EPEVER IPT 3000-12 Pure Sine Wave Inverter:

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

9.1 ຂໍ້ມູນການຮັບປະກັນ

The EPEVER IPT 3000-12 Pure Sine Wave Inverter comes with a ການຮັບປະກັນຂອງຜູ້ຜະລິດ 2 ປີ from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized modifications, or natural disasters. Please retain your proof of purchase for warranty claims.

9.2 ສະຫນັບສະຫນູນລູກຄ້າ

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your authorized EPEVER dealer or visit the official EPEVER webເວັບ​ໄຊ​ສໍາ​ລັບ​ການ​ສະ​ຫນັບ​ສະ​ຫນູນ​.

EPEVER Official Webເວັບໄຊ: www.epever.com
