CITLLA L570 Wireless Bluetooth Mouse Instruction Manual

ແນະນຳ

Thank you for choosing the CITLLA L570 Wireless Bluetooth Mouse. This advanced multi-device mouse is designed for enhanced productivity and comfort across various platforms. Please read this manual carefully to ensure proper setup and optimal performance of your new mouse.

ຄຸນນະສົມບັດທີ່ສໍາຄັນ

• ການເຊື່ອມຕໍ່ຫຼາຍອຸປະກອນ: Connects to up to three devices via one 2.4G USB-A receiver and two independent Bluetooth channels.
• 4-Way Scrolling: Features a scroll wheel that supports both vertical (smart fly scroll) and horizontal movement for efficient navigation.
• DPI ທີ່ສາມາດປັບໄດ້: Four customizable DPI settings (1000/1600/2400/3000) for precision control.
• Silent Click: Designed with quiet buttons to minimize noise and distractions.
• ແບັດເຕີຣີທີ່ສາມາດສາກໄດ້: Equipped with a Type-C charging port and a long-lasting battery, providing approximately 60 days of use on a one-hour charge.
• ຄວາມເຂົ້າກັນໄດ້ຢ່າງກວ້າງຂວາງ: Supports Windows, Linux, Mac, Chrome OS, iOS, and Android operating systems.

ແມ່ນຫຍັງຢູ່ໃນກ່ອງ

• CITLLA L570 Wireless Mouse
• ສາຍໄຟແບບ Type-C
• Wireless USB-A Receiver
• ຄູ່ມືຜູ້ໃຊ້

ຄໍາແນະນໍາການຕິດຕັ້ງ

1. Connecting via 2.4G USB-A Receiver

1. Locate the USB-A receiver stored in the battery compartment of the mouse.
2. ສຽບເຄື່ອງຮັບສັນຍານ USB-A ເຂົ້າກັບພອດ USB ທີ່ມີຢູ່ໃນຄອມພິວເຕີ ຫຼື ອຸປະກອນຂອງທ່ານ.
3. Turn on the mouse using the ON/OFF switch located on the bottom. The mouse should automatically connect to your device.

2. ການເຊື່ອມຕໍ່ຜ່ານ Bluetooth

1. ເປີດເມົ້າໂດຍໃຊ້ປຸ່ມເປີດ/ປິດຢູ່ດ້ານລຸ່ມ.
2. Press and hold the device switch key (usually located near the scroll wheel or on the bottom) for three seconds until the Bluetooth indicator light starts flashing. This indicates the mouse is in pairing mode.
3. ໃນອຸປະກອນຂອງທ່ານ (ແລັບທັອບ, ແທັບເລັດ, ສະມາດໂຟນ), ໄປທີ່ການຕັ້ງຄ່າ Bluetooth ແລະຄົ້ນຫາອຸປະກອນໃໝ່.
4. Select "CITLLA L570" or a similar name from the list of available devices to pair.
5. Repeat steps 2-4 to connect to a second Bluetooth device using the other Bluetooth channel.

3. ສະຫຼັບລະຫວ່າງອຸປະກອນ

To switch between connected devices, simply press the device switch key on the mouse. The indicator light will show which connection (2.4G, BT1, BT2) is currently active.

Image: The CITLLA L570 mouse demonstrating its ability to connect to a desktop via 2.4G wireless, a tablet via Bluetooth 2, and a laptop via Bluetooth 1, with a visual indicator for the active connection.

ຄໍາແນະນໍາການດໍາເນີນງານ

1. 4-Way Scrolling

The L570 mouse features a versatile scroll wheel:

• Vertical Scrolling: Roll the scroll wheel up or down for standard vertical navigation. The smart fly scroll provides super-fast scrolling on long web ໜ້າ.
• Horizontal Scrolling: Press the scroll wheel to the left or right to enable horizontal scrolling across the page. Note that left and right scrolling is not high-speed.

ຮູບພາບ: A ລາຍລະອຽດ view of the CITLLA L570 mouse's 4-way scroll wheel, with arrows indicating left, right, up, and down movement for comprehensive navigation.

2. ການປັບຄວາມອ່ອນໄຫວຂອງ DPI

The mouse offers four adjustable DPI settings to match your preference and task:

• Press the DPI button (located near the scroll wheel) to cycle through the available settings: 1000, 1600, 2400, and 3000 DPI.
• Choose a lower DPI for precise tasks like graphic design, or a higher DPI for faster cursor movement in gaming or general browsing.

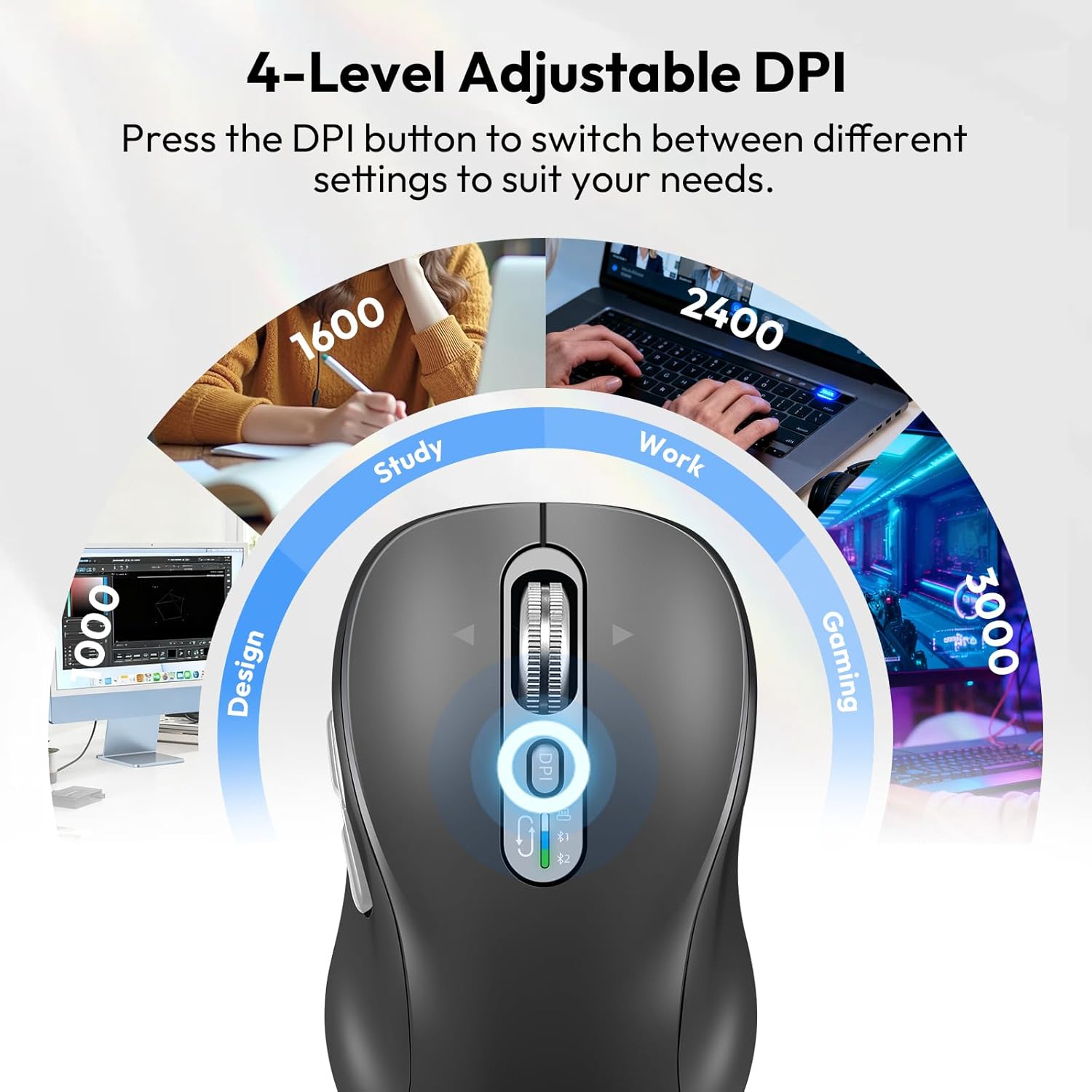

Image: The CITLLA L570 mouse with an overlay illustrating its four adjustable DPI levels (1000, 1600, 2400, 3000) and suggested applications like design, study, work, and gaming.

3. Silent Click Functionality

The L570 mouse is designed with silent click buttons to provide a quiet working environment, reducing distractions for you and those around you. The buttons have a lifespan of 10 million clicks.

Image: A user operating the CITLLA L570 mouse in a quiet office setting, highlighting the silent click feature that prevents disturbance.

ການສາກໄຟຂອງຫນູ

The CITLLA L570 mouse is equipped with a rechargeable battery and a Type-C charging port.

• Connect the included Type-C charging cable to the mouse's charging port and to a USB power source.
• A full charge takes approximately one hour and provides up to 60 days of normal use.
• The low power indicator will illuminate when the remaining power is sufficient for less than 7 days of use, giving you ample time to recharge.

Image: The CITLLA L570 mouse connected to a Type-C charging cable, with text indicating a 1.5-2 hour charge time for 90 days of use from its 500mAh battery.

ຄວາມເຂົ້າກັນໄດ້

The CITLLA L570 Wireless Bluetooth Mouse is compatible with a wide range of devices and operating systems:

• ລະບົບປະຕິບັດການ: Windows (8/10/11 and later), Mac OS (10.15 and later; USB: Mac OS 10.10 and later), Chrome OS (11 and later; USB: Chrome OS 9 and later), iOS (13.4 and later), Android (5.0 and later), Linux (10 and later; USB: Linux 8 and later).
• ອຸປະກອນ: Desktops, laptops, tablets, smartphones, all-in-one PCs.

Image: A graphic displaying the compatible operating systems for the CITLLA L570 mouse, including Windows, Mac OS, Linux, Chrome OS, iOS, and Android, with specific version requirements.

ການແກ້ໄຂບັນຫາ

• ເມົ້າບໍ່ຕອບສະໜອງ: Ensure the mouse is turned on and fully charged. Check if the USB receiver is securely plugged in or if Bluetooth is enabled and paired correctly on your device.
• ບັນຫາການເຊື່ອມຕໍ່: If using Bluetooth, ensure the mouse is in pairing mode (flashing indicator) and your device's Bluetooth is active. Try re-pairing the mouse. For 2.4G, try plugging the USB receiver into a different port.
• ການເຄື່ອນໄຫວຕົວກະພິບແມ່ນຜິດພາດ: Clean the optical sensor on the bottom of the mouse. Ensure you are using the mouse on a suitable surface. Adjust the DPI setting to a lower value if the cursor is too fast.
• ລູກ​ລໍ້​ເລື່ອນ​ບໍ່​ເຮັດ​ວຽກ: Check for any debris obstructing the scroll wheel. Ensure the mouse is properly connected.
• ຕົວຊີ້ບອກແບັດເຕີຣີຕໍ່າ: When the indicator lights up, connect the mouse to the Type-C charging cable to recharge.

ຂໍ້ມູນຈໍາເພາະ

ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, technical support, or any inquiries regarding your CITLLA L570 Wireless Bluetooth Mouse, please refer to the contact information provided with your product packaging or visit the official CITLLA webເວັບໄຊ. ຮັກສາໃບຮັບເງິນການຊື້ຂອງທ່ານສໍາລັບການຮ້ອງຂໍການຮັບປະກັນ.
