ແນະນຳ
This manual provides detailed instructions for the installation, operation, and maintenance of your FORIOUS Black Soap Dispenser. Designed for kitchen sinks, this dispenser features a durable stainless steel construction and a convenient top-refill design. Please read these instructions carefully before use to ensure proper function and longevity of your product.
Figure 1: FORIOUS Black Soap Dispenser
ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
The FORIOUS soap dispenser is designed for easy installation. Ensure you have the necessary tools before beginning.
ເນື້ອໃນຊຸດ
- Dispenser Pump Head
- 500ML/18OZ Bottle
- Mounting Nut and Washer
- ທໍ່ຂະຫຍາຍ

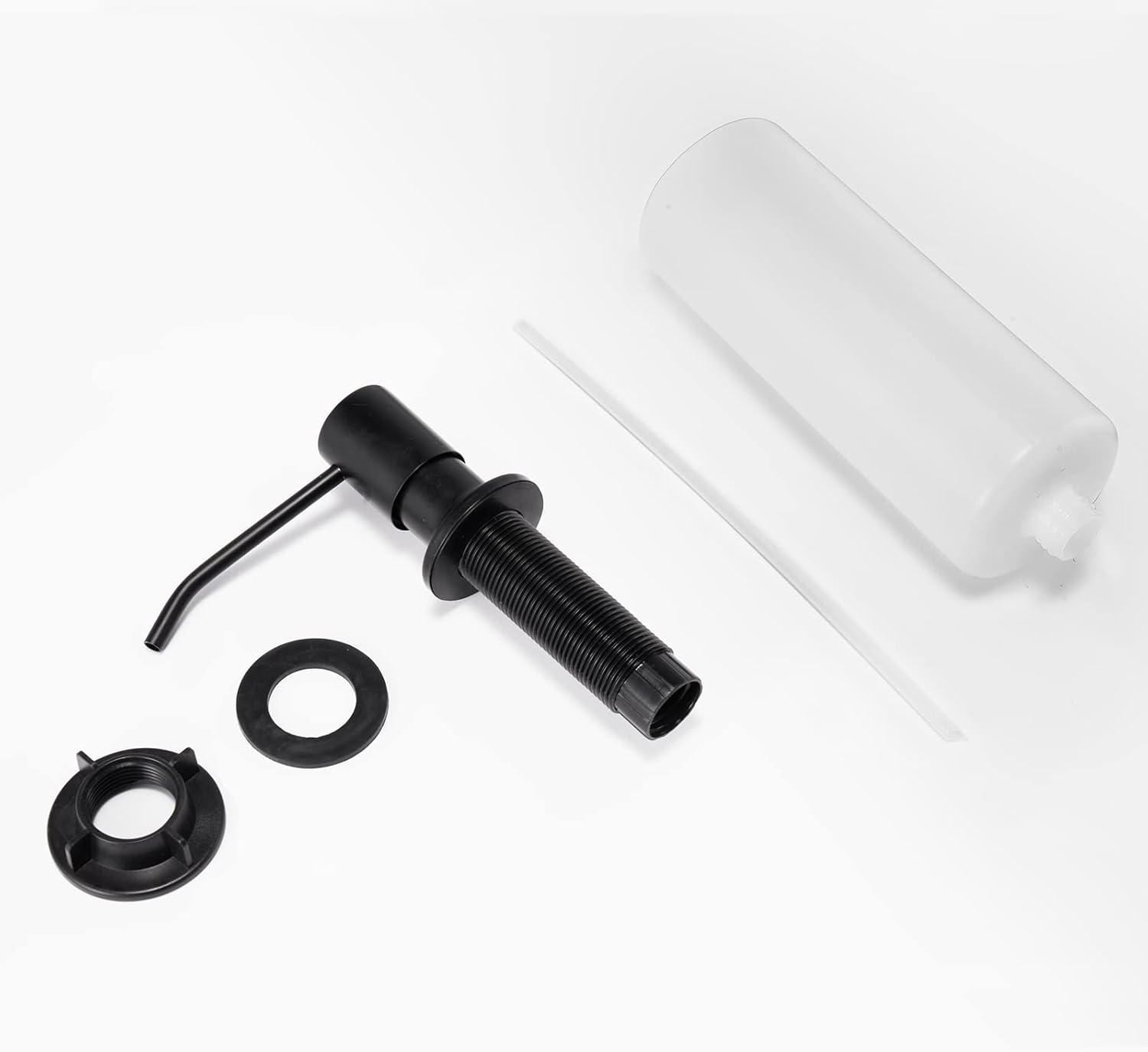

ຮູບທີ 2: ອົງປະກອບທັງໝົດລວມຢູ່ໃນຊຸດ.
ຂັ້ນຕອນການຕິດຕັ້ງ
- ການກະກຽມຂຸມ Sink: Ensure your sink has a suitable mounting hole. The required hole diameter is between 24mm and 38mm (approximately 1 inch to 1.5 inches). The maximum countertop thickness supported is 60mm (approximately 2.36 inches).
Figure 3: Critical dimensions for installation.
- Insert Dispenser Head: Place the dispenser pump head through the sink hole from the top.
Figure 4: Inserting the dispenser head.
- ປອດໄພຈາກດ້ານລຸ່ມ: From underneath the sink, slide the washer and then the mounting nut onto the threaded shaft of the dispenser. Tighten the nut securely to fix the dispenser in place.
- Attach Bottle: Screw the 500ML bottle onto the threaded shaft of the dispenser from underneath the sink. Ensure it is tightly secured to prevent leaks.
- ຕິດຕັ້ງປັ໊ມ: Insert the pump mechanism into the dispenser head from the top.
ຄໍາແນະນໍາການດໍາເນີນງານ
ແຈກຈ່າຍສະບູ່
To dispense soap, simply press down on the pump head. The pump head can rotate 360 degrees for convenient access.
Figure 5: Dispensing soap.
ການເຕີມເງິນໃນ Dispenser
The FORIOUS soap dispenser features a convenient top-refill design, eliminating the need to crawl under the sink.
- Remove Pump Head: Gently pull the dispenser pump head upwards to remove it from the base.
- Pour Liquid: Pour your desired liquid soap, dish soap, or lotion directly into the opening. The bottle has a capacity of 500ML (18OZ).
- Reinstall Pump Head: Place the pump head back into the base, ensuring it is seated properly.
Figure 6: Top-refill process.
ບໍາລຸງຮັກສາ
To ensure the longevity and optimal performance of your soap dispenser, follow these maintenance guidelines:
- ທໍາຄວາມສະອາດ: Wipe the exterior of the dispenser regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners or scouring pads, as these can damage the matte black finish.
- ວັດສະດຸ: The dispenser is constructed from premium SUS 304 stainless steel, known for its durability and corrosion resistance.
- Pump Care: If the pump mechanism feels stiff, flush it with warm water. For optimal performance, ensure the liquid soap is not excessively thick.

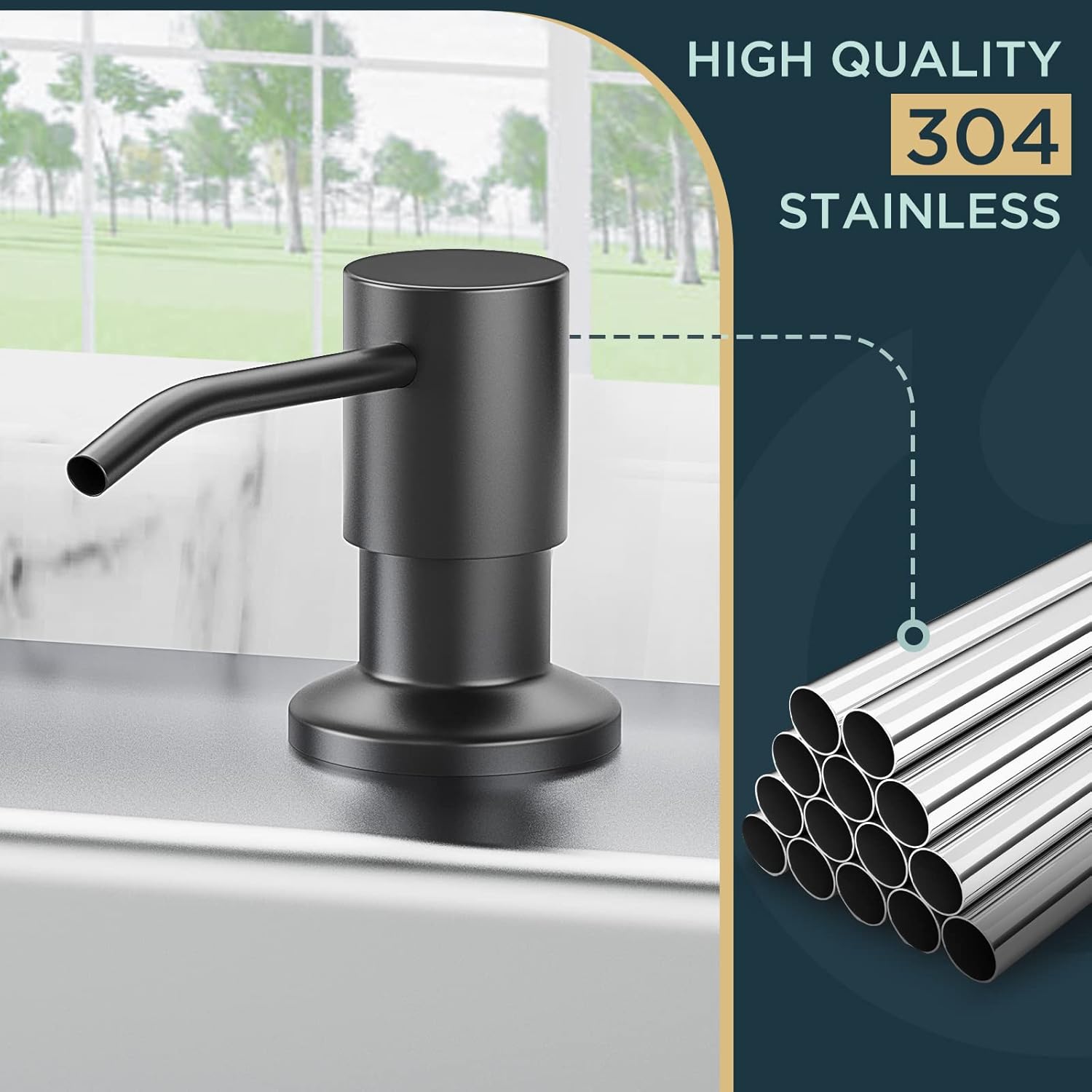

Figure 7: High-quality 304 Stainless Steel construction.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| Soap not dispensing or dispensing slowly | Liquid soap is too thick. | Dilute the liquid soap with a small amount of water to achieve a thinner consistency. |
| Pump head is stiff or stuck | Soap residue buildup or dried soap. | Remove the pump head and rinse thoroughly with warm water. Pump warm water through the mechanism until it moves freely. |
| ການຮົ່ວໄຫຼຈາກເຄື່ອງແຈກຈ່າຍ | Bottle or mounting nut not tightened sufficiently. | Ensure the bottle is securely screwed onto the dispenser shaft and the mounting nut is tightened firmly from underneath the sink. |
ຂໍ້ມູນຈໍາເພາະ
| ໝາຍເລກຕົວແບບ | FF71101B |
| ສີ | ສີດຳ |
| ວັດສະດຸ | SUS 304 ສະແຕນເລດ |
| ປະລິມານຂອງແຫຼວ | 500 ມິນລີລິດ (18 ອອນສ໌) |
| ຂະໜາດສິນຄ້າ | 4.33"L x 2.24"W x 10.6"H |
| ນ້ໍາຫນັກລາຍການ | 7 ອອນ |
| Hole Requirements | 24mm-38mm (1"-1.5") |
| ຄວາມໜາສູງສຸດຂອງເຄົາເຕີ້ | 60mm (2.36") |
| ປະເພດວັດສະດຸຟຣີ | ບໍ່ເສຍຄ່ານໍາ |
ຂໍ້ມູນການຮັບປະກັນ
Please refer to the product packaging or the official FORIOUS website for specific warranty details. Typically, FORIOUS products come with a limited warranty covering manufacturing defects.
ການຊ່ວຍເຫຼືອລູກຄ້າ
For further assistance, technical support, or to inquire about replacement parts, please contact FORIOUS customer service through the contact information provided on your product packaging or the official FORIOUS webເວັບໄຊ.
