ແນະນຳ
Thank you for choosing the iTOMA CKS213 Digital Alarm Clock. This manual provides detailed instructions for setting up, operating, and maintaining your new alarm clock. Please read this manual thoroughly before use to ensure proper function and to maximize your user experience.
ຂໍ້ມູນຄວາມປອດໄພ
- ຫ້າມບໍ່ໃຫ້ເຄື່ອງຢູ່ໃນອຸນຫະພູມສູງ, ແສງແດດໂດຍກົງ, dustຸ່ນ, ຫຼືຄວາມຊຸ່ມ.
- Ensure the power adapter is connected to an easily accessible outlet.
- Use only the provided power adapter. Using unauthorized adapters may damage the device and void the warranty.
- ຮັກສາອຸປະກອນໃຫ້ຫ່າງຈາກນ້ໍາຫຼືຂອງແຫຼວອື່ນໆ.
- Do not attempt to disassemble or modify the unit. This may cause damage or injury.
- The backup battery is for memory retention only; the clock requires main power for full operation.
ເນື້ອໃນຊຸດ
ກະລຸນາກວດເບິ່ງຊຸດສຳລັບລາຍການຕໍ່ໄປນີ້:
- iTOMA CKS213 Digital Alarm Clock
- Power Adapter (60-inch cable)
- CR2032 Backup Battery (pre-installed or included)
- ຄູ່ມືຜູ້ໃຊ້ (ເອກະສານນີ້)
ສິນຄ້າເກີນview
Familiarize yourself with the various features and controls of your iTOMA CKS213 Digital Alarm Clock.
ຕັ້ງຄ່າ
1. ການເຊື່ອມຕໍ່ພະລັງງານ
Connect the provided power adapter to the DC input port on the back of the alarm clock, then plug the adapter into a standard wall outlet. The clock display will illuminate.
2. Installing Backup Battery
The clock includes a pre-installed CR2032 battery for backup. This battery preserves time and alarm settings during a power outage. The clock will not operate on battery power alone; it requires main power for the display and alarm functions.
3. ການຕັ້ງເວລາເບື້ອງຕົ້ນ
Upon initial power connection, the clock may automatically set the time. If manual adjustment is needed, press and hold the 'CLOCK' button located on the top of the unit. Use the 'SETTING+' and 'SETTING-' buttons to adjust the hour and minute. Press 'CLOCK' again to confirm.
4. ຮູບແບບ 12/24 ຊົ່ວໂມງ
To switch between 12-hour and 24-hour time formats, press the '12/24H' button (often integrated with 'CLOCK' or 'SETTING' buttons, refer to the top panel diagram on your device). In 12-hour format, 'AM' or 'PM' indicators will be displayed.
ຄໍາແນະນໍາການດໍາເນີນງານ
1. Setting Dual Alarms (AL1 & AL2)
The iTOMA CKS213 features two independent alarms. Follow these steps to set an alarm:
- Press and hold the 'AL1' or 'AL2' button to enter alarm setting mode. The hour display will flash.
- Use the 'SETTING+' and 'SETTING-' buttons to adjust the desired alarm hour.
- Press 'AL1' or 'AL2' again to confirm the hour and move to minute adjustment. The minute display will flash.
- Use the 'SETTING+' and 'SETTING-' buttons to adjust the desired alarm minute.
- Press 'AL1' or 'AL2' again to confirm the minute and select the alarm mode.
- Use 'SETTING+' or 'SETTING-' to cycle through the 4 alarm modes:
- ALL-7-DAY: ສຽງປຸກທຸກວັນ.
- ວັນອາທິດ: Alarm sounds Monday to Friday.
- WEEKEND: Alarm sounds Saturday and Sunday.
- SINGLE DAY: Alarm sounds only on the selected day.
- Press 'AL1' or 'AL2' one last time to save the alarm settings and activate the alarm. An alarm icon will appear on the display.
2. ຟັງຊັນ Snooze
When an alarm sounds, press the large 'SNOOZE' button on the top of the clock to temporarily silence the alarm for 9 minutes. You can repeat this up to 6 times. To turn off the alarm completely, press the 'AL1 OFF' or 'AL2 OFF' button.
3. Display Brightness and Automatic Dimmer
The clock features a 0.9-inch orange LED display with adjustable brightness. You can manually set the brightness or enable the automatic dimmer function.
- ຄວາມສະຫວ່າງດ້ວຍຕົນເອງ: Press the 'DIMMER' button repeatedly to cycle through 3 brightness levels (High, Medium, Low).
- Automatic Dimmer: The built-in sensor automatically adjusts the display brightness based on ambient light conditions in the room. This feature ensures the display is not too bright in a dark room or too dim in a well-lit environment.
4. ການດໍາເນີນງານແສງສະຫວ່າງໃນຕອນກາງຄືນ
The clock includes a 2-level orange night light. To activate or adjust the night light, locate the 'NIGHT LED' button (or similar) on the top panel and press it to cycle through the brightness levels or turn it off.

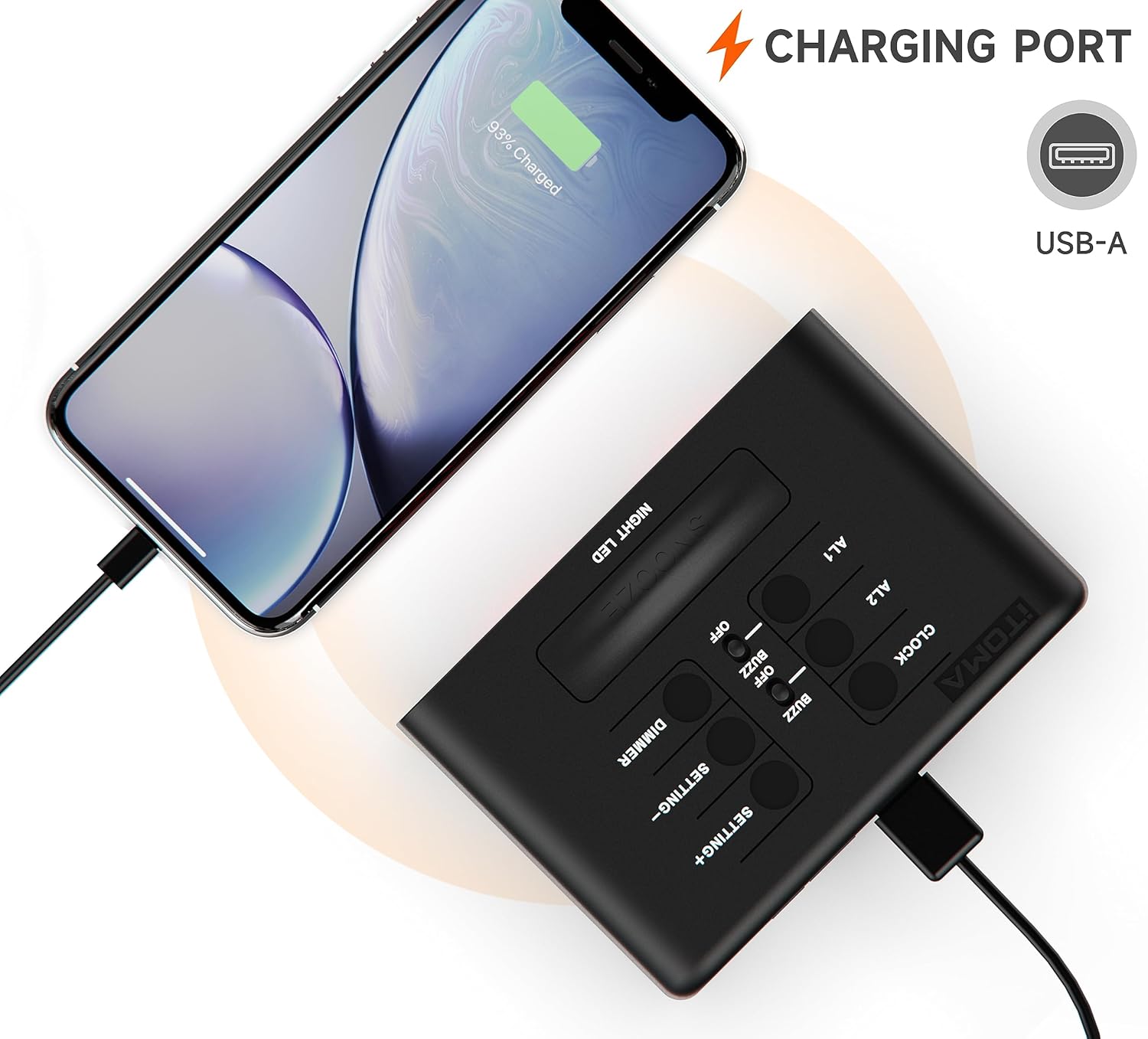

5. ພອດສາກ USB
A USB-A charging port is located on the back of the unit. You can use this port to charge your smartphone or other mobile devices. Connect your device's USB charging cable to this port. The output is typically 1A.
ບໍາລຸງຮັກສາ
- ທໍາຄວາມສະອາດ: ເຊັດໂມງດ້ວຍຜ້າອ່ອນໆ, ແຫ້ງ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
- ການປ່ຽນແບັດເຕີຣີ: If the backup battery needs replacement, open the battery compartment on the bottom of the unit and replace the CR2032 battery with a new one, observing polarity.
ການແກ້ໄຂບັນຫາ
| ບັນຫາ | ການແກ້ໄຂ |
|---|---|
| ໜ້າຈໍໂມງວ່າງເປົ່າ. | Ensure the power adapter is securely connected to both the clock and a working wall outlet. Check if the outlet has power. |
| ໂມງປຸກບໍ່ມີສຽງ. | Verify that the alarm is activated (alarm icon visible). Check the alarm time and ensure it is set correctly for the desired day(s) of the week. |
| ພອດສາກໄຟ USB ບໍ່ເຮັດວຽກ. | Ensure the clock is powered by the main adapter. Check the USB cable and the device being charged. The port is for charging only, not data transfer. |
| ເວລາ ຫຼືການຕັ້ງຄ່າຄືນໃໝ່ຫຼັງຈາກເປີດເຄື່ອງtage. | The CR2032 backup battery may be depleted and needs replacement. |
ຂໍ້ມູນຈໍາເພາະ
| ຄຸນສົມບັດ | ລາຍລະອຽດ |
|---|---|
| ໝາຍເລກຕົວແບບ | CKS213 |
| ປະເພດການສະແດງ | 0.9" Orange LED Digital Display |
| ຮູບແບບເວລາ | 12/24 Hour Selectable |
| ປຸກ | Dual Alarms with 4 Modes (7-Day, Weekday, Weekend, Single Day) |
| ເລື່ອນໄລຍະເວລາ | 9 Minutes (up to 6 times) |
| ການຄວບຄຸມຄວາມສະຫວ່າງ | 3 Manual Levels & Automatic Dimmer |
| ແສງກາງຄືນ | 2-Level Orange Night Light |
| ພອດສາກໄຟ USB | USB-A (Output: 1A) |
| ແຫຼ່ງພະລັງງານ | ເຄື່ອງປັບໄຟຟ້າ AC |
| ແບັດເຕີຣີສຳຮອງ | 1 x CR2032 (ລວມ) |
| ຂະໜາດສິນຄ້າ (L x W x H) | 8.2 x 3.81 x 6.2 ຊມ (3.23 x 1.5 x 2.44 ນິ້ວ) |
| ນ້ໍາຫນັກລາຍການ | 280 g |
| ວັດສະດຸ | Acrylonitrile Butadiene Styrene (ABS) |
ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
iTOMA products are designed for reliability and performance. For any questions, concerns, or technical support regarding your CKS213 Digital Alarm Clock, please refer to the contact information provided with your purchase or visit the official iTOMA webເວັບໄຊ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.
