SP621E Bluetooth Pixel Controller User Manual

ແນະນຳ

The Vrabocry SP621E Mini Bluetooth LED Controller is designed for controlling addressable LED strips such as WS2811, WS2812B, and WS2813. It offers stable operation, ease of use, and simple connectivity, making it ideal for various lighting applications. This controller supports a wide voltage input range of DC5V to 24V and features onboard current of 2.9A.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​ປະ​ກອບ​ມີ​:

• Certified by FCC, CE, RoHS, ensuring high quality and safety.
• Flame retardant shell resistant to high temperatures.
• Supports APP control for automatic device connection and re-connection.
• Built-in 142 dynamic effects with adjustable length.
• Function to collect and save favorite effects.
• Automatic saving of setting parameters.

Image: The SP621E Mini Bluetooth LED Controller, showing its compact size and integrated cables for power and LED strip connection.

ເນື້ອໃນຊຸດ

ກະລຸນາກວດສອບວ່າສິນຄ້າທັງໝົດມີຢູ່ໃນຊຸດ:

• 1 x SP621E Mini Controller
• 1 x ສາຍ USB

ຂໍ້ມູນຄວາມປອດໄພ

• ຮັບປະກັນປະລິມານການເຮັດວຽກtage is within the specified DC5V~24V range. Exceeding this range may damage the device.
• The controller is designed for indoor use. Avoid exposure to water or high humidity.
• Do not disassemble or modify the controller. This may void the warranty and pose safety risks.
• ຮັກສາໃຫ້ໄກຈາກເດັກນ້ອຍ.
• Ensure proper ventilation around the controller during operation.
• The power supply has an anti-reverse connection function, but always double-check polarity before connecting.

ຕັ້ງຄ່າ

1. ການເຊື່ອມຕໍ່ພະລັງງານ

Connect a DC5V~24V power adapter to the male DC power input connector of the SP621E controller. Ensure the power supply is appropriate for both the controller and the connected LED strip.

Image: The SP621E controller showing its male DC power input connector, ready to receive power from an external adapter.

2. LED Strip Connection

Connect your compatible LED strip (e.g., WS2811, WS2812B, WS2813) to the 3-pin output connector of the SP621E controller. Ensure the correct polarity (Data, Ground, VCC) matches the LED strip's input.

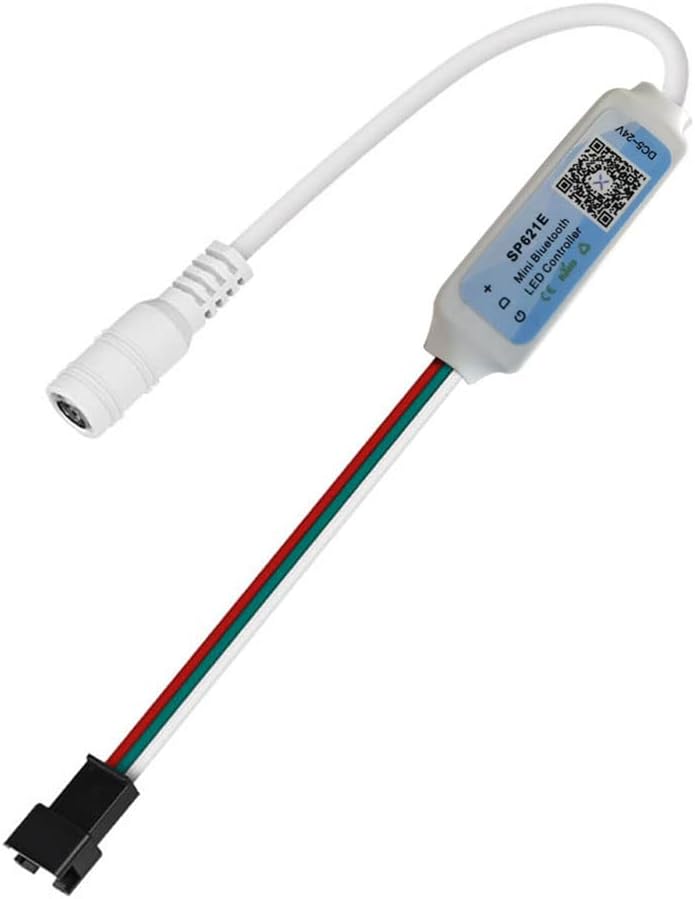

Image: The SP621E controller displaying its female DC power output connector and the 3-pin connector for connecting to an LED strip.

3. ການຕິດຕັ້ງແອັບຯ ແລະການເຊື່ອມຕໍ່ Bluetooth

Download the dedicated control application for the SP621E controller from your smartphone's app store (usually by scanning the QR code on the controller or packaging). Once installed, enable Bluetooth on your device and open the app. The app should automatically detect and connect to the SP621E controller. If not, follow the in-app instructions for manual pairing.

Image: A visual representation of the SP621E controller connected to a power source and an LED strip, with a smartphone displaying the control application interface.

ຄໍາແນະນໍາການດໍາເນີນງານ

Once connected via the app, you can control various aspects of your LED lighting:

• ຜົນກະທົບແບບໄດນາມິກ: The controller comes with 142 built-in dynamic effects. Browse through them and select your preferred lighting pattern.
• Effect Length Adjustment: Adjust the speed or duration of the selected dynamic effects to customize the lighting experience.
• Favorite Effects: Save your most frequently used or preferred effects for quick access.
• ຟັງຊັນຈັບເວລາ: Set schedules for your LED lights to turn on or off automatically.
• ການເລືອກສີ: Choose from a wide range of colors for static lighting modes.

ຮູບພາບ: A ລາຍລະອຽດ view of the SP621E control application interface on a smartphone, illustrating options for dynamic effects, color selection, and other settings.

ຮູບພາບ: ອື່ນ view of the SP621E control application, highlighting the timer function and the ability to save favorite lighting effects for easy recall.

ບໍາລຸງຮັກສາ

• ຮັກສາຕົວຄວບຄຸມໃຫ້ສະອາດແລະບໍ່ມີຝຸ່ນ. ໃຊ້ຜ້າອ່ອນໆ, ແຫ້ງເພື່ອທໍາຄວາມສະອາດ.
• Avoid placing the controller in direct sunlight or near heat sources.
• ຮັບປະກັນວ່າການເຊື່ອມຕໍ່ທັງໝົດແມ່ນປອດໄພເພື່ອປ້ອງກັນການເຮັດວຽກທີ່ບໍ່ຕໍ່ເນື່ອງ.
• ເກັບຮັກສາໄວ້ໃນບ່ອນທີ່ເຢັນ, ແຫ້ງເມື່ອບໍ່ໄດ້ໃຊ້ເປັນເວລາດົນນານ.

ການແກ້ໄຂບັນຫາ

• ການຄວບຄຸມບໍ່ໄດ້ເປີດ:
  • Check if the power adapter is correctly connected and providing DC5V~24V.
  • ໃຫ້ແນ່ໃຈວ່າປລັກສຽບໄຟເຮັດວຽກໄດ້.
• ແຖບ LED ບໍ່ສະຫວ່າງ:
  • Verify the LED strip is compatible (WS2811, WS2812B, WS2813).
  • Check the connection between the controller and the LED strip for correct polarity and secure fit.
  • ໃຫ້ແນ່ໃຈວ່າແຖບ LED ຕົວມັນເອງເຮັດວຽກໄດ້.
• ບັນຫາການເຊື່ອມຕໍ່ Bluetooth:
  • ໃຫ້ແນ່ໃຈວ່າ Bluetooth ຖືກເປີດໃຊ້ຢູ່ໃນໂທລະສັບສະຫຼາດຂອງທ່ານ.
  • ປິດເປີດແອັບຄືນໃໝ່ແລ້ວລອງເຊື່ອມຕໍ່ອີກຄັ້ງ.
  • If the app does not remember the pairing, you may need to disconnect and reconnect the controller's power to re-establish a connection.
  • Ensure the controller is within Bluetooth range.
• Effects not changing or responding:
  • Check if the app is properly connected to the controller.
  • ກວດໃຫ້ແນ່ໃຈວ່າແອັບໄດ້ຖືກອັບເດດເປັນເວີຊັນຫຼ້າສຸດ.
  • Try restarting the controller by disconnecting and reconnecting its power.

ຂໍ້ມູນຈໍາເພາະ

ຂໍ້ມູນການຮັບປະກັນ

For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the manufacturer, Vrabocry, directly. Typically, warranty covers defects in materials and workmanship under normal use.

ການຊ່ວຍເຫຼືອລູກຄ້າ

If you encounter any issues or have questions regarding your SP621E Bluetooth Pixel Controller that are not covered in this manual, please contact Vrabocry customer support through their official website or the retailer from whom you purchased the product. Please have your product model number (SP621E) and purchase details ready when contacting support.
