1. ບົດແນະນຳ
Thank you for choosing the Hisense HVC6464A Cordless 3-in-1 Foldable Stick Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.
The Hisense HVC6464A is a powerful and versatile 3-in-1 cordless vacuum cleaner designed for various cleaning tasks. It features a 25.2V lithium battery, offering strong suction power and up to 60 minutes of runtime. The appliance includes a motorized soft brush, front LED lights for enhanced visibility, and a range of accessories to tackle different surfaces and dirt levels.
2. ຄໍາແນະນໍາຄວາມປອດໄພ
ເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຈາກໄຟໄໝ້, ໄຟຟ້າຊັອດ, ຫຼື ການບາດເຈັບ, ໃຫ້ປະຕິບັດຕາມຂໍ້ຄວນລະວັງດ້ານຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີເມື່ອໃຊ້ເຄື່ອງໃຊ້ໄຟຟ້າ. ອ່ານຄຳແນະນຳທັງໝົດກ່ອນທີ່ຈະໃຊ້ເຄື່ອງດູດຝຸ່ນນີ້.
- Ensure the appliance is fully assembled before operation.
- ຢ່າໃຊ້ເຄື່ອງດູດຝຸ່ນເພື່ອດູດນໍ້າ ຫຼື ວັດສະດຸປຽກ.
- ຫ້າມເອົາຂອງແຫຼວທີ່ຕິດໄຟໄດ້ຫຼືໄຟໄໝ້ໄດ້, ເຊັ່ນນ້ຳມັນເຊື້ອໄຟ, ຫຼືໃຊ້ໃນບ່ອນທີ່ມີຢູ່.
- ຫ້າມເອົາສິ່ງຂອງທີ່ເປັນໄຟໄໝ້ ຫຼືສູບຢາເຊັ່ນຢາສູບ, ໄມ້ຂີດໄຟ, ຫຼືຂີ້ເຖົ່າຮ້ອນ.
- ຮັກສາຜົມ, ເຄື່ອງນຸ່ງວ່າງ, ນິ້ວມື, ແລະທຸກພາກສ່ວນຂອງຮ່າງກາຍໃຫ້ຫ່າງຈາກຊ່ອງເປີດ ແລະພາກສ່ວນທີ່ເຄື່ອນຍ້າຍ.
- ໃຊ້ພຽງແຕ່ຕາມທີ່ອະທິບາຍໄວ້ໃນຄູ່ມືນີ້. ໃຊ້ໄຟລ໌ແນບທີ່ແນະນໍາຂອງຜູ້ຜະລິດເທົ່ານັ້ນ.
- ຫ້າມໃຊ້ກັບສາຍໄຟ ຫຼືປລັກສຽບທີ່ເສຍຫາຍ. ຖ້າເຄື່ອງໃຊ້ບໍ່ໄດ້ເຮັດວຽກຕາມທີ່ຄວນ, ຖືກຖິ້ມ, ເສຍຫາຍ, ຖືກປະໄວ້ກາງແຈ້ງ, ຫຼືຕົກຢູ່ໃນນ້ໍາ, ໃຫ້ສົ່ງກັບສູນບໍລິການ.
- ຫ້າມດຶງ ຫຼືເອົາສາຍບື, ໃຊ້ສາຍເຊືອກເປັນມືຈັບ, ປິດປະຕູໃສ່ສາຍໄຟ, ຫຼືດຶງສາຍໄຟອ້ອມຮອບແຫຼມ ຫຼື ມຸມ. ຢ່າແລ່ນເຄື່ອງໃຊ້ສາຍໄຟ. ຮັກສາສາຍຢູ່ຫ່າງຈາກພື້ນຜິວທີ່ມີຄວາມຮ້ອນ.
- ປິດການຄວບຄຸມທັງໝົດກ່ອນທີ່ຈະຖອດສາຍອອກ.
- ຢ່າຈັບປລັກສຽບຫຼືເຄື່ອງໃຊ້ດ້ວຍມືປຽກ.
- ເຄື່ອງໃຊ້ນີ້ບໍ່ໄດ້ມີຈຸດປະສົງເພື່ອໃຊ້ໂດຍບຸກຄົນ (ລວມທັງເດັກນ້ອຍ) ທີ່ມີຄວາມສາມາດທາງຮ່າງກາຍ, ຄວາມຮູ້ສຶກ ຫຼືຈິດໃຈທີ່ຫຼຸດລົງ, ຫຼືຂາດປະສົບການ ແລະຄວາມຮູ້, ເວັ້ນເສຍແຕ່ວ່າພວກເຂົາໄດ້ຮັບການຊີ້ນໍາ ຫຼືຄໍາແນະນໍາກ່ຽວກັບການນໍາໃຊ້ເຄື່ອງໃຊ້ໂດຍບຸກຄົນທີ່ຮັບຜິດຊອບຄວາມປອດໄພຂອງເຂົາເຈົ້າ.
- ເດັກນ້ອຍຄວນໄດ້ຮັບການເບິ່ງແຍງເພື່ອຮັບປະກັນວ່າພວກເຂົາບໍ່ໄດ້ຫຼີ້ນກັບເຄື່ອງໃຊ້.
3. ຜະລິດຕະພັນເກີນview ແລະອົງປະກອບ
The Hisense HVC6464A is a versatile cleaning tool. Familiarize yourself with its main components and accessories.
ຮູບພາບ: ໂດຍລວມ view of the Hisense HVC6464A cordless vacuum cleaner, showing its dimensions (1112mm height, 250mm width of brush head, 255mm depth of brush head). Key features highlighted: New Generation, Cordless, Brushless Motor, Long Duration.
ອົງປະກອບຫຼັກ:
- ຫົວໜ່ວຍຫຼັກ: ປະກອບດ້ວຍມໍເຕີ, ຖັງຂີ້ເຫຍື້ອ, ແລະແຜງຄວບຄຸມ.
- ທໍ່ຂະຫຍາຍ: Connects the main unit to the floor brush, can be folded.
- Motorized Floor Brush: Equipped with a 2-in-1 rotating brush and front LED lights.
- 25.2V Lithium Battery: Provides power to the unit. Removable for charging.
- Wall-Mounted Charging Base: ເພື່ອຄວາມສະດວກໃນການເກັບຮັກສາແລະການສາກໄຟ.
- ຈໍສະແດງຜົນ LED: Shows battery life and dirt tank status.
ອຸປະກອນເສີມລວມ:
- ເຄື່ອງມື Crevice: ສໍາລັບຊ່ອງແຄບແລະມຸມ.
- ເຄື່ອງມື Upholstery: For cleaning sofas, beds, and other fabric surfaces.
- Motorized Mini Brush: Specific accessory for deep cleaning sofas and bedspreads.
- Articulated Hose: Provides extended reach for cleaning high areas or awkward angles.
- ເອກະສານຕິດຂັດ: Brush for vacuuming and water washing.
ຮູບພາບ: Demonstrates the 3-in-1 versatility of the Hisense HVC6464A, showing it configured as a handheld vacuum for upholstery, a stick vacuum for under furniture, a standard stick vacuum for floors, and with a crevice tool for high-reach cleaning.
ຮູບພາບ: ລະເບີດຂຶ້ນ view of the Hisense HVC6464A, illustrating its modular design and key components such as the dustbin, filter assembly, main unit, extension tube, and floor brush.
4. ຕັ້ງຄ່າ
4.1 ສະພາ
- ຄັດຕິດທໍ່ຂະຫຍາຍ: ໃສ່ທໍ່ຂະຫຍາຍເຂົ້າໄປໃນຕົວເຄື່ອງຫຼັກຈົນກວ່າມັນຈະຄລິກເຂົ້າທີ່.
- ຕິດຂັດພື້ນ: Connect the motorized floor brush to the other end of the extension tube, ensuring it locks securely.
- ຕິດຕັ້ງແບດເຕີລີ່: Slide the 25.2V lithium battery into the designated slot on the main unit until it clicks.
- ການຕິດຕັ້ງຕິດຝາ (ທາງເລືອກ): Choose a suitable location near a power outlet. Secure the wall-mounted charging base to the wall using the provided screws and anchors.
4.2 ການສາກແບັດເຕີຣີ
ກ່ອນທີ່ຈະໃຊ້ຄັ້ງທໍາອິດ, ສາກແບັດເຕີຣີໃຫ້ເຕັມ. ການສາກເຕັມໃຊ້ເວລາປະມານ 6 ຊົ່ວໂມງ.
- Connect the charger to the wall-mounted charging base or directly to the battery if removed from the unit.
- ສຽບສາຍສາກໃສ່ປລັກສຽບໄຟ.
- The LED display on the main unit will indicate the charging status. Once fully charged, the display will show a full battery icon.
ຮູບພາບ: A user demonstrating the removal of the battery from the Hisense HVC6464A vacuum cleaner, highlighting its removable design for flexible charging options.
5. ຄໍາແນະນໍາການດໍາເນີນງານ
5.1 ໂໝດເປີດ/ປິດ ແລະ ໂໝດດູດ
- ເປີດ: Press the power button on the main unit to start the vacuum cleaner.
- ປັບການດູດ: Use the mode selection button to cycle through the 3 available suction speeds (Low, Medium, High). The LED display will show the current mode and remaining battery life.
- ປິດພະລັງງານ: ກົດປຸ່ມເປີດປິດອີກຄັ້ງເພື່ອປິດເຄື່ອງໃຊ້.
ຮູບພາບ: A close-up of the Hisense HVC6464A's LED display, showing battery level, current suction mode (Low, Medium, High), and other indicators.
5.2 Using the Motorized Floor Brush
- The motorized floor brush is suitable for various floor types. The front LED lights illuminate the cleaning path, making dirt and debris more visible, especially in dark areas.
- The 2-in-1 rotating brush is designed for effective cleaning on both hard floors and carpets.
- The foldable handle allows for easy cleaning under furniture without excessive bending.

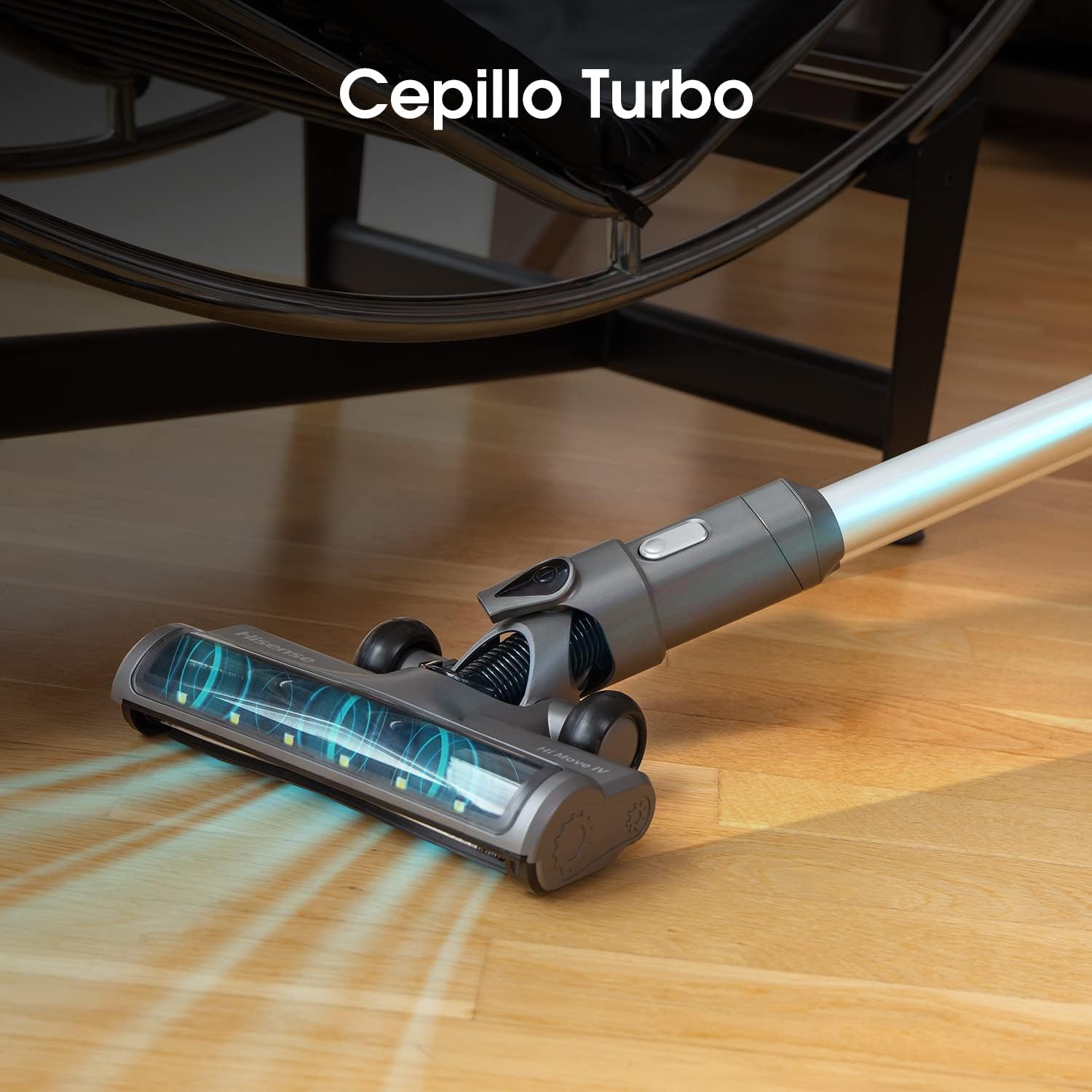

ຮູບພາບ: A close-up of the Hisense HVC6464A's motorized floor brush, also referred to as the Turbo Brush, showing its internal rotating mechanism and illuminated front LED lights during operation on a wooden floor.

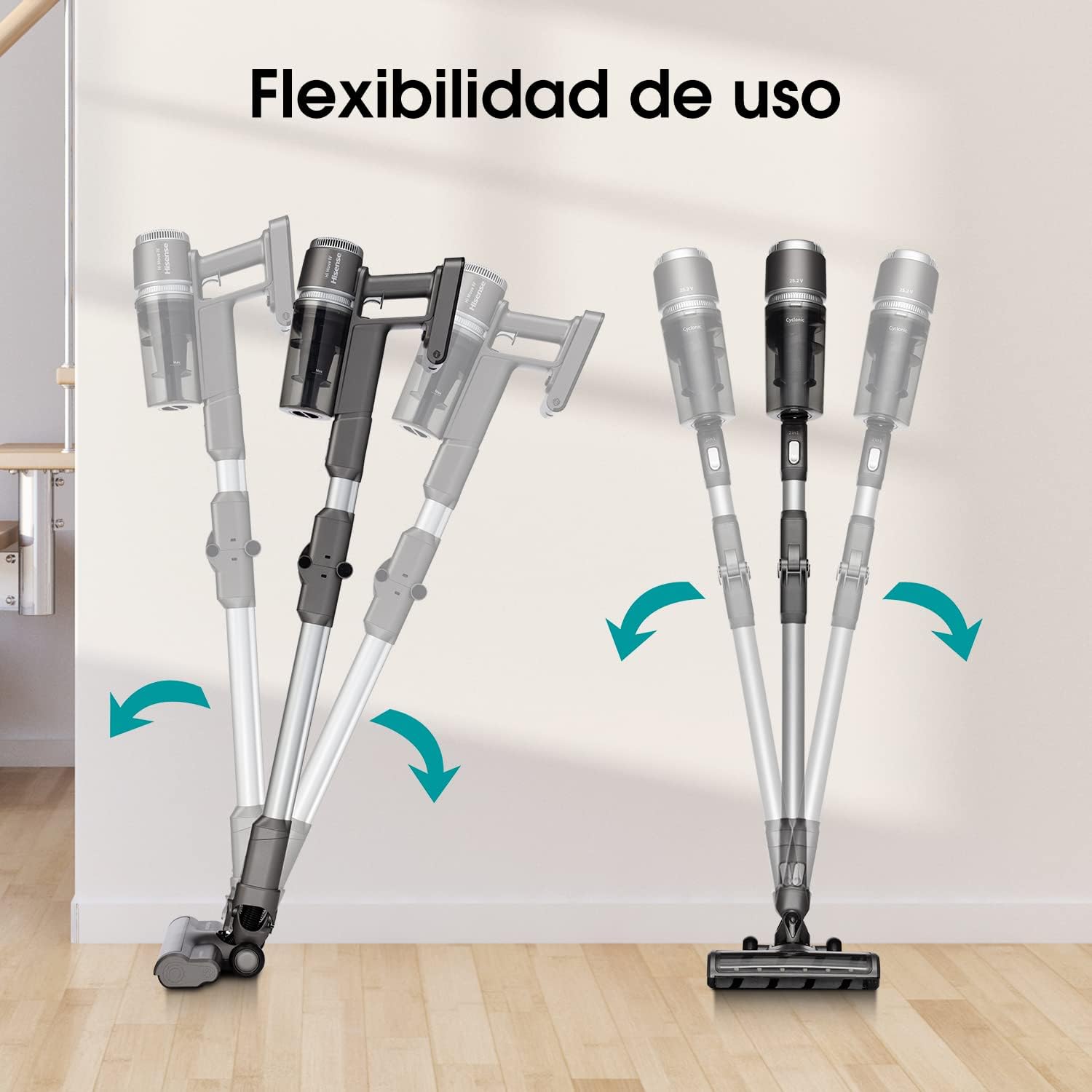

ຮູບພາບ: Illustrates the flexibility of use and the folding mechanism of the Hisense HVC6464A, allowing it to reach under furniture and for compact storage.
5.3 ການນໍາໃຊ້ອຸປະກອນເສີມ
To use accessories, detach the extension tube and/or floor brush from the main unit. Attach the desired accessory directly to the main unit or to the articulated hose.
- ເຄື່ອງມື Crevice: ເຫມາະສໍາລັບຊ່ອງແຫນ້ນ, ມຸມ, ແລະແຄມ.
- Upholstery Tool / Motorized Mini Brush: Use for cleaning fabric surfaces like sofas, car seats, and pet beds.
- Articulated Hose: Provides extended reach for cleaning high shelves, ceiling corners, or inside vehicles.
- ເອກະສານຕິດຂັດ: Attach the mop brush for combined vacuuming and wet cleaning. Ensure the water tank is filled according to its specific instructions (not detailed in product description, assume standard mop attachment use).
ຮູບພາບ: Shows the mop attachment being used with the Hisense HVC6464A, demonstrating its capability for combined vacuuming and wet cleaning on a hard floor. An inset shows the mop pad and attachment base.
6. ບໍາລຸງຮັກສາ
ການບໍາລຸງຮັກສາເປັນປົກກະຕິຮັບປະກັນການປະຕິບັດທີ່ດີທີ່ສຸດແລະຍືດອາຍຸຂອງເຄື່ອງດູດຝຸ່ນຂອງທ່ານ.
6.1 ການລ້າງຖັງຂີ້ເຫຍື້ອ
- The dustbin has a capacity of 0.5L. Empty it after each use or when the LED display indicates it is full.
- To empty, detach the dustbin from the main unit. Open the bottom flap and dispose of the contents into a waste bin.
- Reattach the dustbin securely.
ຮູບພາບ: A visual representation of the high-power cyclonic action within the dustbin of the Hisense HVC6464A, illustrating how dust and debris are separated from the airflow.
6.2 ການເຮັດຄວາມສະອາດຕົວກອງ HEPA
- The HEPA filter is washable and should be cleaned regularly to maintain suction performance.
- ເອົາການກັ່ນຕອງອອກຈາກຖັງຂີ້ຝຸ່ນ.
- ລ້າງຕົວກອງພາຍໃຕ້ນ້ຳທີ່ໄຫຼຈົນກວ່າຈະສະອາດ. ຫ້າມໃຊ້ຜົງຊັກຟອກ.
- ປ່ອຍໃຫ້ຕົວກອງແຫ້ງສະນິດຢ່າງໜ້ອຍ 24 ຊົ່ວໂມງກ່ອນທີ່ຈະໃສ່ກັບເຂົ້າໄປໃນເຄື່ອງດູດຝຸ່ນ. ຢ່າໃຊ້ເຄື່ອງດູດຝຸ່ນທີ່ມີຕົວກອງປຽກ.
ຮູບພາບ: A user demonstrating the cleaning of the washable HEPA filter under running water, emphasizing the ease of maintenance for the Hisense HVC6464A.
6.3 ການເຮັດຄວາມສະອາດແປງມໍເຕີຊັ້ນ
- Periodically check the rotating brush for tangled hair, threads, or debris.
- To remove the brush, follow the instructions in the diagram (refer to product diagrams if available, otherwise describe). Use scissors to cut away any tangled material.
- Ensure the brush is clean and rotates freely before reassembling.
ຮູບພາບ: Displays the 2-in-1 rotating brush of the Hisense HVC6464A, showing how it can be disassembled for cleaning and maintenance.
7. ການແກ້ໄຂບັນຫາ
If you encounter issues with your Hisense HVC6464A, refer to the following common problems and solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ສູນຍາກາດບໍ່ເປີດ. | ແບັດເຕີຣີບໍ່ໄດ້ສາກ ຫຼືບໍ່ໄດ້ຕິດຕັ້ງຢ່າງຖືກຕ້ອງ. | ກວດໃຫ້ແນ່ໃຈວ່າໄດ້ສາກແບັດເຕີຣີເຕັມ ແລະໃສ່ຢ່າງຖືກຕ້ອງ. |
| ພະລັງງານດູດຕ່ໍາ. | Dustbin is full, filter is clogged, or brush is obstructed. | Empty dustbin. Clean HEPA filter. Remove obstructions from the floor brush. |
| ແປງເຄື່ອງຈັກຢຸດການຫມຸນ. | Obstruction in the brush roll or brush is dirty. | ປິດສູນຍາກາດແລະເອົາຜົມທີ່ tangled ຫຼືສິ່ງເສດເຫຼືອອອກຈາກມ້ວນແປງ. |
| ເວລາແລ່ນແບັດເຕີຣີສັ້ນກວ່າທີ່ຄາດໄວ້. | Battery not fully charged, or operating in high suction mode. | Ensure battery is fully charged. High suction mode consumes battery faster. Battery performance may degrade over time. |
| ຈໍສະແດງຜົນ LED ສະແດງໃຫ້ເຫັນຂໍ້ຜິດພາດ. | Specific error code (refer to full manual for details). | Consult the comprehensive user manual for specific error code interpretations and solutions. |
8. ຂໍ້ມູນຈໍາເພາະ
| ຍີ່ຫໍ້ | Hisense |
| ໝາຍເລກຕົວແບບ | HVC6464A |
| ສີ | ສີເທົາ |
| ຂະໜາດສິນຄ້າ (L x W x H) | 25 x 11.6 x 73.5 cm |
| ນ້ຳໜັກ | 3.5 ກິໂລກຣາມ |
| ພະລັງງານ | 400 ວັດ-ຊົ່ວໂມງ |
| ສະບັບtage | 25.2 ໂວນ |
| ປະເພດຫມໍ້ໄຟ | 1 lithium-ion (ລວມ) |
| ເວລາແລ່ນ | ເຖິງ 60 ນາທີ |
| ລະດັບສຽງ | 80 Decibels |
| ຄວາມອາດສາມາດ Dustbin | 0.5 ລິດ |
| ປະເພດການກັ່ນຕອງ | ຕົວກອງ HEPA (ຊັກລ້າງໄດ້) |
| ຄຸນນະສົມບັດພິເສດ | Cordless, 3-in-1, Foldable Handle, LED Lights, Brushless Inverter Motor |
| ຄໍາແນະນໍາດ້ານຫນ້າ | ຊັ້ນທັງຫມົດ |
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
Hisense products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Hisense webເວັບໄຊສໍາລັບພາກພື້ນຂອງທ່ານ.
For technical support, spare parts, or service inquiries, please contact Hisense customer service. Contact details can typically be found on the Hisense webເວັບໄຊທ໌ຫຼືໃນເອກະສານທີ່ສະຫນອງໃຫ້ກັບຜະລິດຕະພັນຂອງທ່ານ.
Please have your model number (HVC6464A) and purchase date ready when contacting support.
