PACIFIC SC8830BS

PACIFIC Trusteam SC8830BS Under Cabinet Range Hood

ຄູ່ມືຜູ້ໃຊ້

ແບບ: SC8830BS

ແນະນຳ

This manual provides detailed instructions for the installation, operation, and maintenance of your PACIFIC Trusteam SC8830BS Under Cabinet Range Hood. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ

ຄໍາ​ເຕືອນ​: ເພື່ອ​ຫຼຸດ​ຜ່ອນ​ຄວາມ​ສ່ຽງ​ທີ່​ຈະ​ເກີດ​ໄຟ​ໄຫມ້​, ໄຟ​ຟ້າ​ຊ໊ອກ​, ຫຼື​ບາດ​ເຈັບ​, ໃຫ້​ສັງ​ເກດ​ດັ່ງ​ຕໍ່​ໄປ​ນີ້​:

  • ຕິດຕັ້ງເຄື່ອງດູດຄວັນນີ້ຕາມຄໍາແນະນໍາທີ່ລະບຸໄວ້ທັງໝົດ.
  • ຮັບປະກັນວ່າມີການລະບາຍອາກາດທີ່ເໝາະສົມສຳລັບອາຍແກັສເຜົາໄໝ້ຈາກອຸປະກອນເຜົາໄໝ້ເຊື້ອໄຟເພື່ອປ້ອງກັນການລະບາຍອາກາດກັບຄືນ.
  • Always disconnect power to the unit at the service panel before servicing or cleaning.
  • Do not use the range hood with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
  • ຢ່າ tamper with the internal components. All repairs should be performed by qualified service personnel.
  • Clean grease-laden surfaces frequently. Grease accumulation can lead to fire hazards.
  • ຫ້າມບໍ່ໃຫ້ອຸປະກອນພື້ນຜິວຖືກເອົາໃຈໃສ່ໃນການຕັ້ງຄ່າສູງ. Boilovers ເຮັດໃຫ້ເກີດການສູບຢາ ແລະ greasy spillovers ທີ່ອາດຈະ ignite.
  • Use appropriate size cookware. Always use cookware appropriate for the size of the surface element.

ແມ່ນຫຍັງຢູ່ໃນກ່ອງ

ກວດ​ສອບ​ວ່າ​ອົງ​ປະ​ກອບ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ກ່ອນ​ທີ່​ຈະ​ເລີ່ມ​ຕົ້ນ​ການ​ຕິດ​ຕັ້ງ​:

  • PACIFIC Trusteam SC8830BS Range Hood
  • 7'' to 7'' Damper
  • 7'' to 6'' Damper
  • Water Jar
  • Hardware Packet (screws, anchors, etc.)
  • ຝາປິດນ້ ຳ
  • ຄູ່ມືຜູ້ໃຊ້
Included components for Pacific Trusteam SC8830BS range hood: 7-inch damper, 7-to-6-inch damper, water inlet cover, water jar, hardware packet, and user manual.

Image: All components included in the PACIFIC Trusteam SC8830BS package.

ຂໍ້ມູນຈໍາເພາະຂອງຜະລິດຕະພັນ

ຄຸນສົມບັດ ຂໍ້ມູນຈໍາເພາະ
ຕົວແບບ SC8830BS
ຄວາມອາດສາມາດການໄຫຼວຽນຂອງອາກາດ 900 ລູກບາດຟຸດຕໍ່ນາທີ (CFM)
ວັດສະດຸ ສະແຕນເລດ
ປະເພດການຕິດຕັ້ງ ພາຍໃຕ້ Cabinet Mount
ປະເພດການຄວບຄຸມ Glass Touch Control
ສະບັບtage 120 ໂວນ
ຈໍານວນຄວາມໄວ 6
ປະເພດແຫຼ່ງແສງ LED (3 Dual-Level Light Strips)
ປະເພດການກັ່ນຕອງ ບໍ່ມີການກັ່ນຕອງ
ຂະໜາດສິນຄ້າ (ກວ້າງ x ຍາວ x ສູງ) 23" x 30" x 8"
ນ້ໍາຫນັກລາຍການ 57.6 ປອນ
ຄຸນນະສົມບັດພິເສດ Auto Steam Clean, High-Tech Touch Control, Oil Collector, Steam Cycle, Delayed Shut-Off
Detailed dimensions of the Pacific Trusteam SC8830 range hood, showing width, depth, and height measurements, including the 7-inch vent opening and water inlet location.

Image: Dimensional drawing of the SC8830BS range hood.

ຄູ່ມືການຕິດຕັ້ງ

Professional installation is recommended. Ensure all local codes and ordinances are followed. Refer to the included hardware packet for specific mounting components.

ຂັ້ນ​ຕອນ​ກ່ອນ​ການ​ຕິດ​ຕັ້ງ​:

  1. ຖອດ​ຫໍ່​ແລະ​ກວດ​ກາ​: Carefully remove the range hood and all components from the packaging. Inspect for any shipping damage.
  2. ຄວາມຕ້ອງການພະລັງງານ: Ensure a dedicated 120V, 60Hz electrical circuit is available.
  3. ທໍ່ນ້ຳ: Plan for appropriate ductwork. The hood supports 7-inch round ducting and includes a 7-inch to 6-inch damper for flexibility.
  4. ສະຖານທີ່ຕິດຕັ້ງ: The range hood is designed for under-cabinet mounting. Ensure sufficient clearance above the cooking surface. Recommended installation height is between 24 inches minimum and 30 inches maximum from the cooking surface to the bottom of the hood.
Diagram showing the recommended installation height for a 30-inch range hood above a stove, indicating a minimum of 24 inches and a maximum of 30 inches.

Image: Recommended installation height for the 30-inch range hood.

ການ​ຕິດ​ຕັ້ງ Hood ໄດ້​:

  1. ກະກຽມຕູ້: Mark and cut openings in the cabinet for electrical wiring and ductwork according to the hood's dimensions.
  2. ການຕິດຕັ້ງທີ່ປອດໄພ: Lift the hood into position and secure it to the underside of the cabinet using the provided hardware. Ensure it is level and firmly attached.
  3. ເຊື່ອມຕໍ່ທໍ່ລະບາຍອາກາດ: Attach the appropriate damper (7" or 7" to 6") to the exhaust outlet and connect it to your home's duct system. Ensure all connections are sealed.
  4. ການເຊື່ອມຕໍ່ໄຟຟ້າ: ເຊື່ອມຕໍ່ເຄື່ອງດູດຄວັນເຂົ້າກັບແຫຼ່ງຈ່າຍໄຟຟ້າຕາມລະຫັດໄຟຟ້າທ້ອງຖິ່ນ.
  5. ຊ່ອງໃສ່ນ້ໍາ: Locate the water inlet on the top of the hood. Ensure it is accessible for adding water for the steam cleaning function. Do not cover this inlet.

ຄໍາແນະນໍາການດໍາເນີນງານ

Your PACIFIC Trusteam range hood features a high-tech glass touch control panel for easy operation.

Close-up of the Pacific Trusteam range hood's glass touch control panel, showing buttons for Delay, Steam, Fan Speeds (Lo, 2, 3, 4, 5, Hi), Light, and On/Off. An arrow points to the Steam button, indicating 'One Click Auto Steam Cleaning'.

Image: High-Tech Touch Control Panel.

ຟັງຊັນແຜງຄວບຄຸມ:

  • ເປີດ/ປິດ (U): ກົດເພື່ອເປີດ ຫຼື ປິດເຄື່ອງດູດຄວັນ.
  • Fan Speed (Lo, 2, 3, 4, 5, Hi): Select from 6 different fan speeds to adjust suction power. 'Lo' provides whisper-quiet operation, while 'Hi' offers maximum extraction for heavy cooking.
  • ແສງ (O): Press to turn the LED lights on or off. The hood features dual-level LED light strips for adjustable brightness.
  • Steam Clean (SSS): Initiates the auto steam cleaning cycle. Ensure the water jar is filled with distilled water before activating.
  • Delay Shut-Off (L): Activates a timed delay before the hood automatically shuts off, allowing for continued ventilation after cooking.

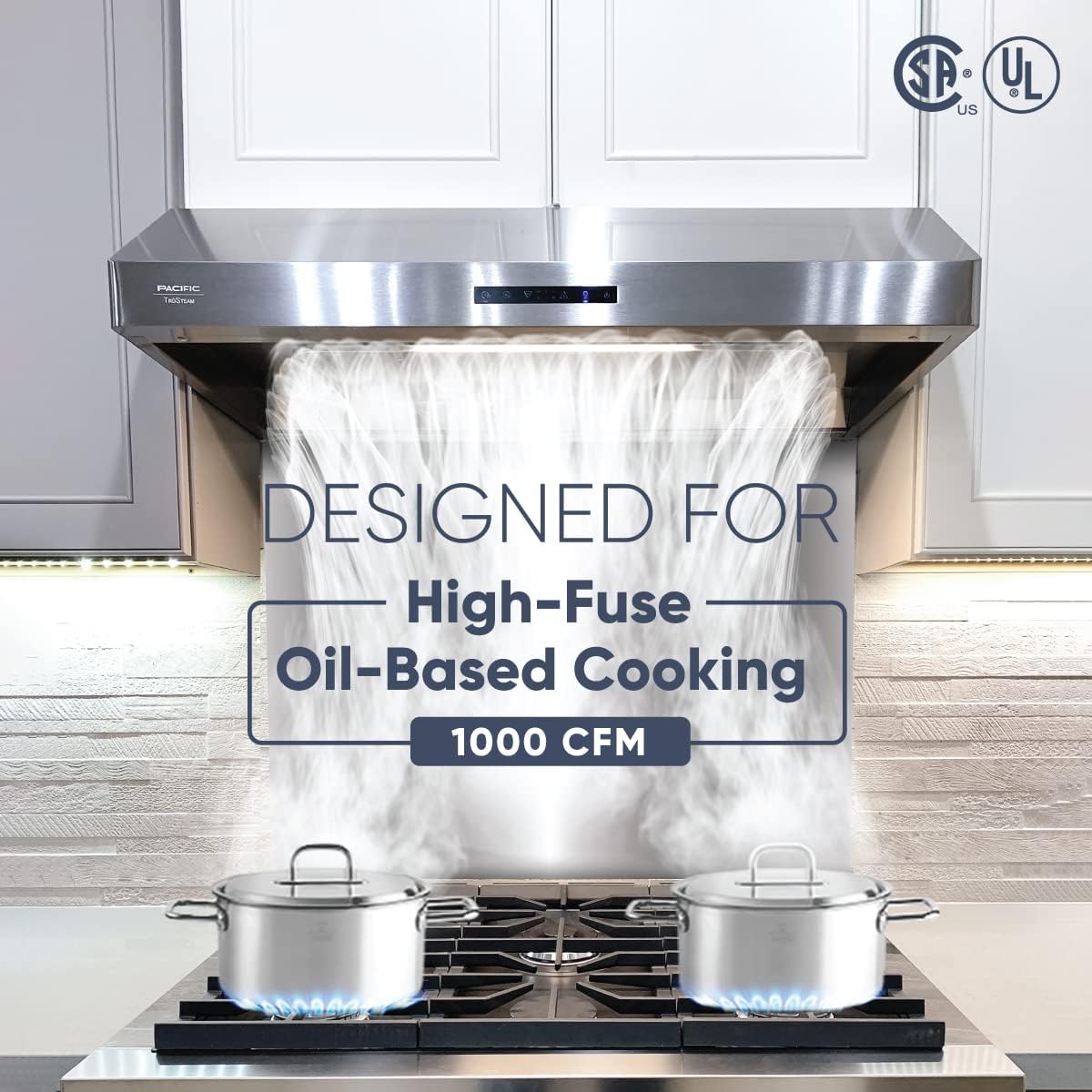

Pacific Trusteam under cabinet range hood installed above a stove with two pots, showing strong upward suction of steam and smoke. The image highlights its design for high-fume, oil-based cooking with 1000 CFM.

Image: Range hood in operation, demonstrating powerful suction.

ບໍາລຸງຮັກສາ

ການບຳລຸງຮັກສາເປັນປະຈຳຮັບປະກັນປະສິດທິພາບທີ່ດີທີ່ສຸດ ແລະ ອາຍຸການໃຊ້ງານທີ່ຍາວນານຂອງເຄື່ອງດູດຄວັນຂອງທ່ານ.

ການທໍາຄວາມສະອາດ Steam ອັດຕະໂນມັດ:

The TruSteam feature simplifies internal cleaning. This filter-less design directs grease into a residue cup, preventing build-up on internal components.

  1. Fill Water Jar: Ensure the water jar is filled with ນ້ຳກັ່ນ. Using tap water may lead to mineral build-up and blockages.
  2. ເປີດໃຊ້: Press the Steam Clean button on the control panel. The hood will spray 266°F (130°C) steam onto the fan blades and interior housing, followed by a hot water rinse.
  3. ໄລຍະເວລາ: The cycle typically takes about 10 minutes.
Illustration of the Pacific Trusteam range hood's auto steam cleaning function, showing high-temperature steam (130°C/266°F) being sprayed onto the fan blades to effortlessly self-clean the hood interior.

Image: Auto Steam Cleaning process.

Cleaning the Oil Collector:

The advanced centrifugal blower funnels smoke and deposits grease into a leak-proof residue cup. This cup should be emptied and cleaned regularly.

  1. ສະຖານທີ່: The oil collector is typically located at the rear of the hood's interior.
  2. ເອົາອອກ: Carefully slide out the oil collector.
  3. ສະອາດ: Wash the collector with warm, soapy water. It is dishwasher safe.
  4. ຕິດຕັ້ງຄືນໃໝ່: Ensure the collector is dry before reinserting it securely into its position.

ການອະນາໄມພາຍນອກ:

Wipe the exterior stainless steel surfaces with a soft cloth and a mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that can scratch the finish.

ການແກ້ໄຂບັນຫາ

ກ່ອນ​ທີ່​ຈະ​ຕິດ​ຕໍ່​ຫາ​ສະ​ຫນັບ​ສະ​ຫນູນ​ລູກ​ຄ້າ​, ກະ​ລຸ​ນາ​ເບິ່ງ​ບັນ​ຫາ​ທົ່ວ​ໄປ​ດັ່ງ​ຕໍ່​ໄປ​ນີ້​ແລະ​ການ​ແກ້​ໄຂ​:

ບັນຫາ ສາເຫດທີ່ເປັນໄປໄດ້ ການແກ້ໄຂ
ໝວກບໍ່ເປີດ No power supply; Circuit breaker tripped; Loose wiring Check power connection; Reset circuit breaker; Consult a qualified electrician to check wiring.
ພະລັງງານດູດຕ່ໍາ Ductwork obstruction; Incorrect duct size; Damper stuck; Excessive distance from cooking surface Check ductwork for blockages; Ensure correct duct size (7" or 6" with adapter); Verify damper opens freely; Adjust hood height if possible (within 24-30 inches).
ສຽງດັງເກີນໄປ Loose mounting; Obstruction in fan; Damaged motor Ensure hood is securely mounted; Check for foreign objects in the fan area (with power off); If motor is damaged, contact customer support.
Steam clean not working Water jar empty; Using tap water; Water inlet blocked Fill water jar with distilled water; Check water inlet for blockages.

ການຮັບປະກັນ ແລະການຊ່ວຍເຫຼືອລູກຄ້າ

ຂໍ້ມູນການຮັບປະກັນ:

Your PACIFIC Trusteam SC8830BS Range Hood comes with a Lifetime warranty on the motor ແລະ ກ ການຮັບປະກັນ 10 ປີກ່ຽວກັບພາກສ່ວນ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.

ການຊ່ວຍເຫຼືອລູກຄ້າ:

For technical assistance, warranty service, or to order replacement parts, please contact PACIFIC customer support. Refer to the contact information provided on the PACIFIC webເວັບໄຊ ຫຼືເອກະສານການຊື້ຂອງທ່ານ.

When contacting support, please have your model number (SC8830BS) and date of purchase readily available.
