1. ບົດແນະນຳ
Thank you for choosing the ADVITI FRENIT Modern Outdoor Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new outdoor lighting fixture. The ADVITI FRENIT is a modern, energy-efficient outdoor luminaire designed to provide reliable illumination with integrated motion sensing and dimming capabilities. Its robust IP65 rating ensures durability in various outdoor conditions.

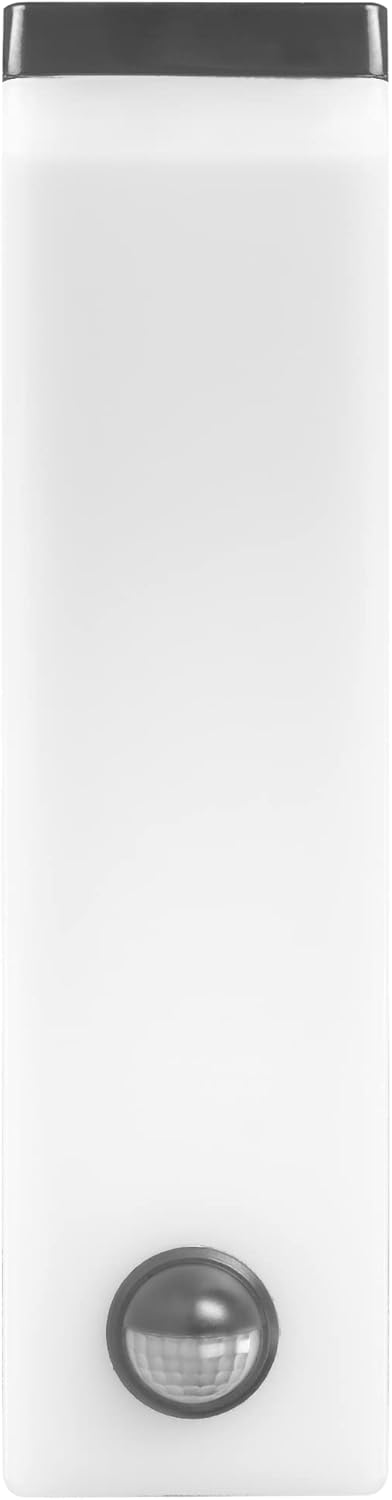

ຮູບ 1: ດ້ານຫນ້າ view of the ADVITI FRENIT Modern Outdoor Light.
2. ຂໍ້ມູນຄວາມປອດໄພ
ກະລຸນາອ່ານຄຳແນະນຳຄວາມປອດໄພທັງໝົດຢ່າງລະມັດລະວັງກ່ອນການຕິດຕັ້ງ ແລະນຳໃຊ້. ການບໍ່ປະຕິບັດຕາມຄໍາແນະນໍາເຫຼົ່ານີ້ອາດຈະເຮັດໃຫ້ໄຟຟ້າຊ໊ອກ, ໄຟໄຫມ້, ຫຼືອັນຕະລາຍອື່ນໆ.
- ຄວາມປອດໄພທາງໄຟຟ້າ: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the power supply is disconnected at the circuit breaker before any installation, maintenance, or repair work.
- ການນໍາໃຊ້ກາງແຈ້ງ: This product is designed for outdoor use and has an IP65 rating, indicating protection against dust and low-pressure water jets. However, ensure all connections are properly sealed and protected from direct water ingress during installation.
- ການຈັດການ: Do not drop or subject the fixture to severe impact. Inspect the fixture for any damage before installation.
- ແຫຼ່ງແສງ: The light source is an integrated SMD LED. Do not attempt to replace the LEDs yourself. Contact qualified personnel for service.
- ອຸນຫະພູມປະຕິບັດການ: Ensure the operating environment is within suitable temperature ranges for electronic devices.
3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ
The ADVITI FRENIT light is designed for wall mounting. Follow these steps for proper installation:
- ການກະກຽມ: Disconnect power at the main circuit breaker. Choose a suitable mounting location on a solid surface, ensuring it is within reach of the power supply (230V~, 50Hz).
- ການຕິດຕັ້ງວົງເລັບ: The fixture's backplate serves as the mounting bracket. Mark the drilling points on the wall using the backplate as a template. Drill holes and insert appropriate wall plugs (not supplied).
- ສາຍໄຟ: Connect the electrical wires from your power supply to the terminals on the fixture's backplate. Ensure correct polarity (Live, Neutral, Earth) and secure all connections. Use appropriate waterproof connectors for outdoor wiring.
- ຮັບປະກັນ Fixture: Align the fixture with the mounted backplate and secure it using the provided screws. Ensure a tight seal to maintain the IP65 rating.
- ເປີດ: ເມື່ອການຕິດຕັ້ງສໍາເລັດແລະການເຊື່ອມຕໍ່ທັງຫມົດແມ່ນປອດໄພ, ຟື້ນຟູພະລັງງານຢູ່ທີ່ຕົວຕັດວົງຈອນ.

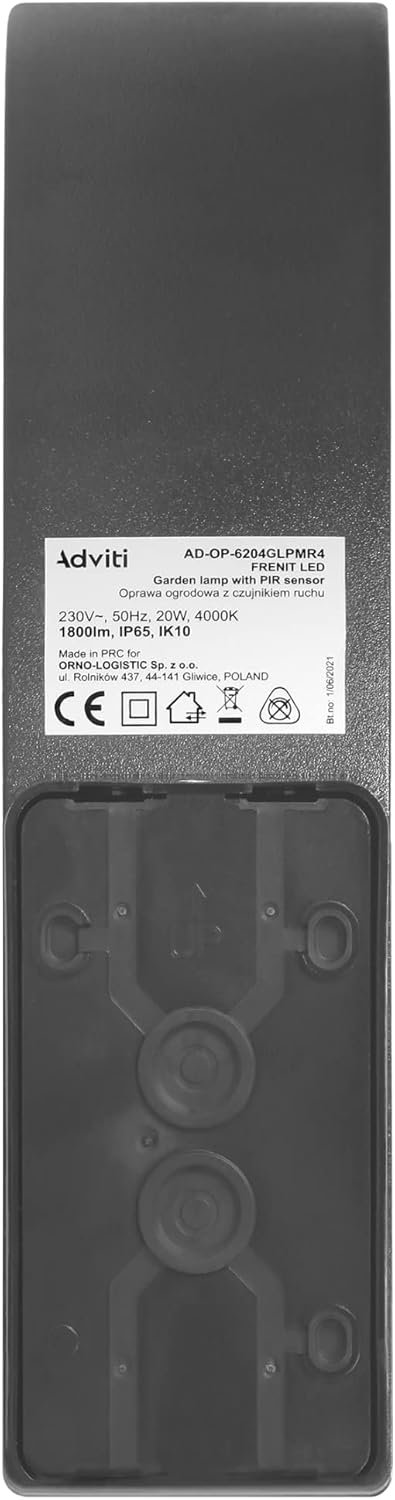

ຮູບ 2: ດ້ານຫລັງ view of the light fixture, indicating mounting points.
ຮູບ 3: Side profile of the light, illustrating its mounted position.
4. ຄໍາແນະນໍາການດໍາເນີນງານ
The ADVITI FRENIT light features an integrated motion sensor and dimming function. Adjustments are made via controls located on the top of the unit.
ຮູບທີ 4: ທາງເທິງ view showing the adjustment dials for sensor settings.
- ເຊັນເຊີກວດຈັບການເຄື່ອນໄຫວ (PIR): The light is equipped with a Passive Infrared (PIR) sensor that detects movement within its detection field (up to 9 meters, 140° viewing angle). The light will activate when motion is detected.
- ການຕັ້ງຄ່າ LUX: This dial (labeled "LUX") controls the ambient light level at which the motion sensor becomes active.
- ຫັນໜ້າໄປທາງ ☼ (sun icon) for the sensor to activate in brighter conditions (daylight).
- ຫັນໜ້າໄປທາງ ☽ (moon icon) for the sensor to activate only in darker conditions (night).
- Adjustment range: <3 - 2000 lux.
- ການຕັ້ງຄ່າເວລາ: This dial (labeled "TIME") adjusts how long the light remains on after motion is detected and no further motion is sensed.
- Minimum setting: 10 seconds ± 3 seconds.
- Maximum setting: 5 minutes ± 1 minute.
- SENS Setting: The product specifications indicate "SENS detection adjustment range: no". This implies the sensitivity of the motion sensor is fixed and not adjustable via a dial.
- ຟັງຊັນ Dimming: The product description mentions a "dimming function". This typically refers to the light's ability to operate at a lower intensity when no motion is detected, or to gradually dim after the set TIME period. Specific controls for this function are not detailed in the provided information, suggesting it might be an automatic feature or integrated with the sensor logic.
Figure 5: Detail of the integrated motion sensor.
5. ບໍາລຸງຮັກສາ
Regular maintenance ensures optimal performance and longevity of your ADVITI FRENIT light.
- ທໍາຄວາມສະອາດ: ຕັດການເຊື່ອມຕໍ່ໄຟຟ້າກ່ອນທີ່ຈະທໍາຄວາມສະອາດ. ໃຊ້ອ່ອນ, ງamp cloth to wipe the exterior of the fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or polycarbonate diffuser.
- ການກວດກາ: Periodically inspect the fixture for any signs of damage, loose connections, or wear. Ensure the mounting remains secure.
- ໄຟ LED: The integrated SMD LEDs are designed for a long lifespan (50,000 hours). They are not user-replaceable.
6. ການແກ້ໄຂບັນຫາ
If you encounter issues with your ADVITI FRENIT light, refer to the following common troubleshooting steps:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ແສງບໍ່ໄດ້ເປີດ. | No power supply; incorrect wiring; LUX setting too high (daylight); sensor malfunction. | Check circuit breaker and wiring connections. Adjust LUX setting towards the moon icon. Test sensor by moving in front of it. |
| ແສງຕິດຢູ່ຢ່າງຕໍ່ເນື່ອງ. | Constant motion detected; TIME setting too long; sensor malfunction. | Ensure no continuous motion in detection area. Adjust TIME setting to a shorter duration. |
| ແສງເປີດໃນລະຫວ່າງມື້. | LUX setting too low (towards moon icon). | Adjust LUX setting towards the sun icon to require more darkness for activation. |
| ລະດັບການກວດພົບບໍ່ດີ. | Obstructions; sensor dirty; incorrect mounting height. | Clear obstructions. Clean sensor lens. Ensure mounting height is appropriate for optimal detection. |
If the problem persists after trying these steps, contact a qualified electrician or the product supplier for assistance.
7. ຂໍ້ມູນຈໍາເພາະ
Detailed technical specifications for the ADVITI FRENIT Modern Outdoor Light:
- ຕົວແບບ: AD-OP-6204GLPMR4
- ພະລັງງານ: 20 ວ
- ການສະຫນອງ Voltage: 230 V ~, 50 Hz
- ແຫຼ່ງແສງ: Integrated SMD LED light sources
- ຟລັກແສງ: 1800 ລມ
- ອຸນຫະພູມສີ: 4000K (ສີຂາວກາງ)
- Color Rendering Index (Ra/CRI): ≥85
- ລະດັບການປົກປ້ອງ (IP): IP65 (Dust tight and protected against low-pressure water jets from any direction)
- Impact Protection (IK): IK10
- ປະເພດເຊັນເຊີ: PIR (Passive Infrared)
- ໄລຍະການກວດຫາ: ສູງສຸດທີ່ເຄຍ. 9 ມ
- Viewໃນມຸມ: 140°
- LUX Sensor Adjustment Range: <3 - 2000 lux
- Timer Adjustment Range: Min: 10 sec. ± 3 sec., Max: 5 min. ± 1 min.
- ຂະໜາດ (ກວ້າງ x ສູງ x ຍາວ): 250 mm x 188 mm x 66 mm (25 x 18.8 x 6.6 cm)
- ນ້ຳໜັກ: 531 g
- ວັດສະດຸໜ້າຈໍ: PC (ໂພລີຄາບອນ)
- ວັດສະດຸທີ່ຢູ່ອາໄສ: ອາລູມີນຽມ
- ອາຍຸການ: 50,000 ຊົ່ວໂມງ
ຮູບ 6: ດ້ານຫນ້າ view of the ADVITI FRENIT light.
Figure 7: Energy efficiency label (Class F). For more details, visit ຖານຂໍ້ມູນ EPREL.
Figure 8: Product packaging highlighting key features like 50,000h lifespan, IK10 impact protection, max 9m motion sensor range, and 140° detection angle.
8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
For warranty information, please refer to the terms and conditions provided by your retailer or contact Adviti directly. Keep your proof of purchase for any warranty claims.
For technical support or further assistance, please contact the customer service department of your point of purchase or visit the official Adviti webເວັບໄຊ.
