Essl SA-32 Single Door Access Control System User Manual

1. ບົດແນະນຳ

The Essl SA-32 is a robust single-door access control system designed for secure entry management. It supports multiple access methods including proximity card, PIN, or a combination of both. This manual provides essential information for the proper installation, operation, and maintenance of your SA-32 device.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• User Capacity: Up to 1000 users (Card and PIN)
• Access Modes: Card, PIN, Card + PIN
• ການເຊື່ອມຕໍ່: ມີສາຍ
• Outputs: 1 Relay output, 1 PUSH (low) output, 1 Bell Output, 1 Alarm Output
• Inputs: 1 Door button port, 1 Doorbell port
• Programmable lock release time

2. ຜະລິດຕະພັນເກີນview

Familiarize yourself with the components of the SA-32 access control unit.

ຮູບທີ 1: Front Panel of Essl SA-32. This image displays the numeric keypad, the '*' and '#' keys, and the integrated card reader symbol at the top. A bell icon is also visible at the bottom.

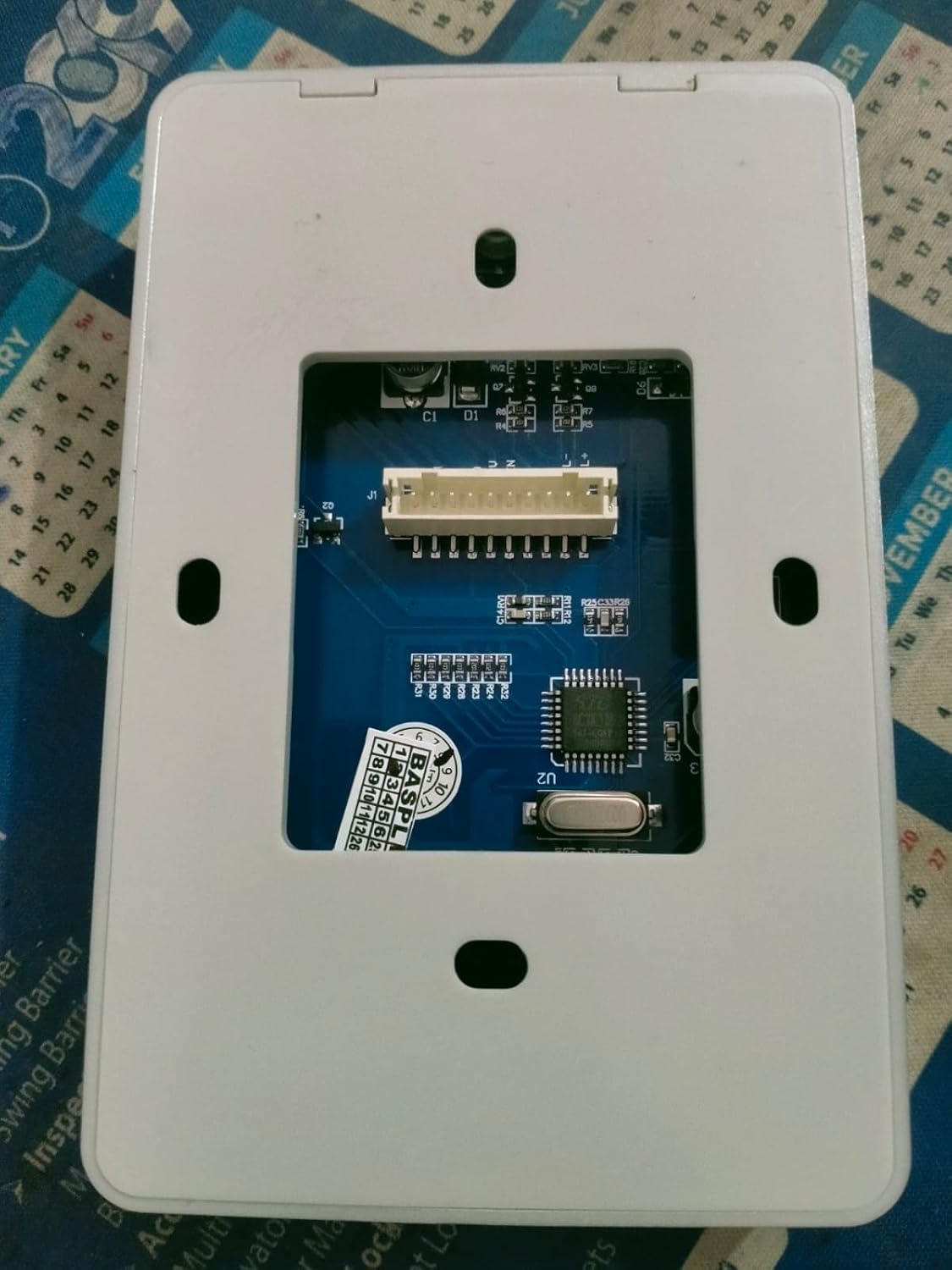

ຮູບທີ 2: Back Panel of Essl SA-32. This image shows the internal circuit board with a multi-pin connector for wiring, along with mounting holes for installation.

3. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

Proper installation is crucial for the reliable operation of the SA-32 system. It is recommended that installation be performed by a qualified technician.

3.1 ການຫຸ້ມຫໍ່

Carefully unpack the contents and verify that all components are present:

• Essl SA-32 Access Control Unit
• ສະກູຕິດຕັ້ງ ແລະ ປລັກຕິດຝາ (ໂດຍປົກກະຕິແລ້ວຈະມີໃຫ້)
• Wiring Harness (typically included)
• (Note: A detailed wiring diagram is essential for proper installation. Refer to the diagram provided with your unit.)

3.2 ການຕິດຕັ້ງຫນ່ວຍງານ

1. Choose a suitable indoor location near the door, away from direct sunlight or moisture.
2. Mark the drilling points on the wall using the unit's back plate as a template.
3. ເຈາະຮູແລະສຽບໃສ່ຝາ.
4. ຍຶດແຜ່ນຫຼັງໃສ່ຝາໂດຍໃຊ້ສະກູທີ່ໃຫ້ໄວ້.
5. Attach the SA-32 unit to the secured back plate.

3.3 ການເຊື່ອມຕໍ່ສາຍໄຟ

The SA-32 requires a 12V DC power supply. Connect the unit to your door lock, exit button, and doorbell according to the wiring diagram provided with your product. Incorrect wiring can damage the device or connected components.

ການເຊື່ອມຕໍ່ທີ່ສໍາຄັນ:

• ການປ້ອນຂໍ້ມູນພະລັງງານ: Connect to a stable 12V DC power source.
• ຜົນໄດ້ຮັບ Relay: Connects to the electric door lock (e.g., NO/NC contacts).
• PUSH (Low) Output: Provides a low signal for specific applications.
• Door Button Port: Connects to an external exit button.
• Doorbell Port: Connects to an external doorbell.

Important: Ensure all power is disconnected before making any wiring connections. Refer to the specific wiring diagram included with your SA-32 unit for detailed instructions.

3.4 ການເປີດເຄື່ອງເບື້ອງຕົ້ນ

1. After all wiring is complete and verified, connect the 12V DC power supply.
2. The unit should power on, indicated by an LED or audible beep.
3. The device will typically enter a standby mode, ready for programming.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

This section outlines the basic operation and user management for the SA-32 access control system.

4.1 Access Modes

The SA-32 supports the following access methods:

• Card Only: Present a registered EM card to the reader.
• PIN Only: Enter a registered PIN on the keypad.
• ບັດ + ລະຫັດ PIN: Present a registered EM card, then enter the associated PIN.

4.2 User Management (General Steps)

Note: Specific programming codes and sequences are typically found in the detailed programming manual provided with the device. The following are general steps.

ເຂົ້າສູ່ໂໝດການຂຽນໂປຣແກຣມ:

Usually involves entering a master code followed by a specific key (e.g., * or #).

ເພີ່ມບັດຜູ້ໃຊ້:

1. ເຂົ້າສູ່ໂໝດການຂຽນໂປຣແກຣມ.
2. Select the 'Add User Card' option (e.g., by pressing a specific number).
3. Present the new EM card to the reader.
4. ອອກຈາກໂໝດການຂຽນໂປຣແກຣມ.

ການເພີ່ມ PIN ຜູ້ໃຊ້:

1. ເຂົ້າສູ່ໂໝດການຂຽນໂປຣແກຣມ.
2. Select the 'Add User PIN' option.
3. Enter the desired PIN (e.g., 4-6 digits), then confirm.
4. ອອກຈາກໂໝດການຂຽນໂປຣແກຣມ.

ການລຶບຜູ້ໃຊ້:

Users can typically be deleted individually by card/PIN or by user ID, or all users can be reset. Refer to your specific programming manual.

4.3 ການປ່ອຍປະຕູ

Upon successful authentication (card, PIN, or card+PIN), the SA-32 will activate its relay output for a pre-programmed duration, releasing the door lock. The door can also be opened from the inside using the connected exit button.

5. ບໍາລຸງຮັກສາ

Regular maintenance ensures the longevity and optimal performance of your SA-32 access control system.

• ທໍາຄວາມສະອາດ: Wipe the unit's surface with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• ການກວດສອບສາຍ: Periodically check all wiring connections for signs of wear or damage. Ensure connections are secure.
• ການທົດສອບການທໍາງານ: Regularly test all access methods (card, PIN) and the exit button to ensure they are working correctly.
• ການສະຫນອງພະລັງງານ: Ensure the 12V DC power supply is stable and free from fluctuations.

6. ການແກ້ໄຂບັນຫາ

This section addresses common issues you might encounter with the SA-32 unit.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, please contact Essl customer support or a qualified technician.

7. ຂໍ້ມູນຈໍາເພາະ

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information, please refer to the documentation included with your purchase or contact Essl customer service directly. An extended warranty option may be available from third-party providers.

For technical support or further assistance, please visit the official Essl webເວັບໄຊ ຫຼືຕິດຕໍ່ຊ່ອງທາງການຊ່ວຍເຫຼືອລູກຄ້າຂອງເຂົາເຈົ້າ.
