Hansgrohe Vernis Blend Electronic Basin ເຄື່ອງປະສົມ

1. ຜະລິດຕະພັນເກີນview

The Hansgrohe Vernis Blend electronic basin mixer is designed for hygienic and efficient cold water delivery. Featuring an infrared sensor for contactless operation, this battery-powered faucet is ideal for public and semi-public washrooms, as well as private settings where hygiene and water conservation are priorities. Its EcoSmart technology enriches the water with air, providing a full, soft jet while significantly reducing water consumption. The pre-set temperature function ensures safe and comfortable hand washing without the need for a separate control lever.

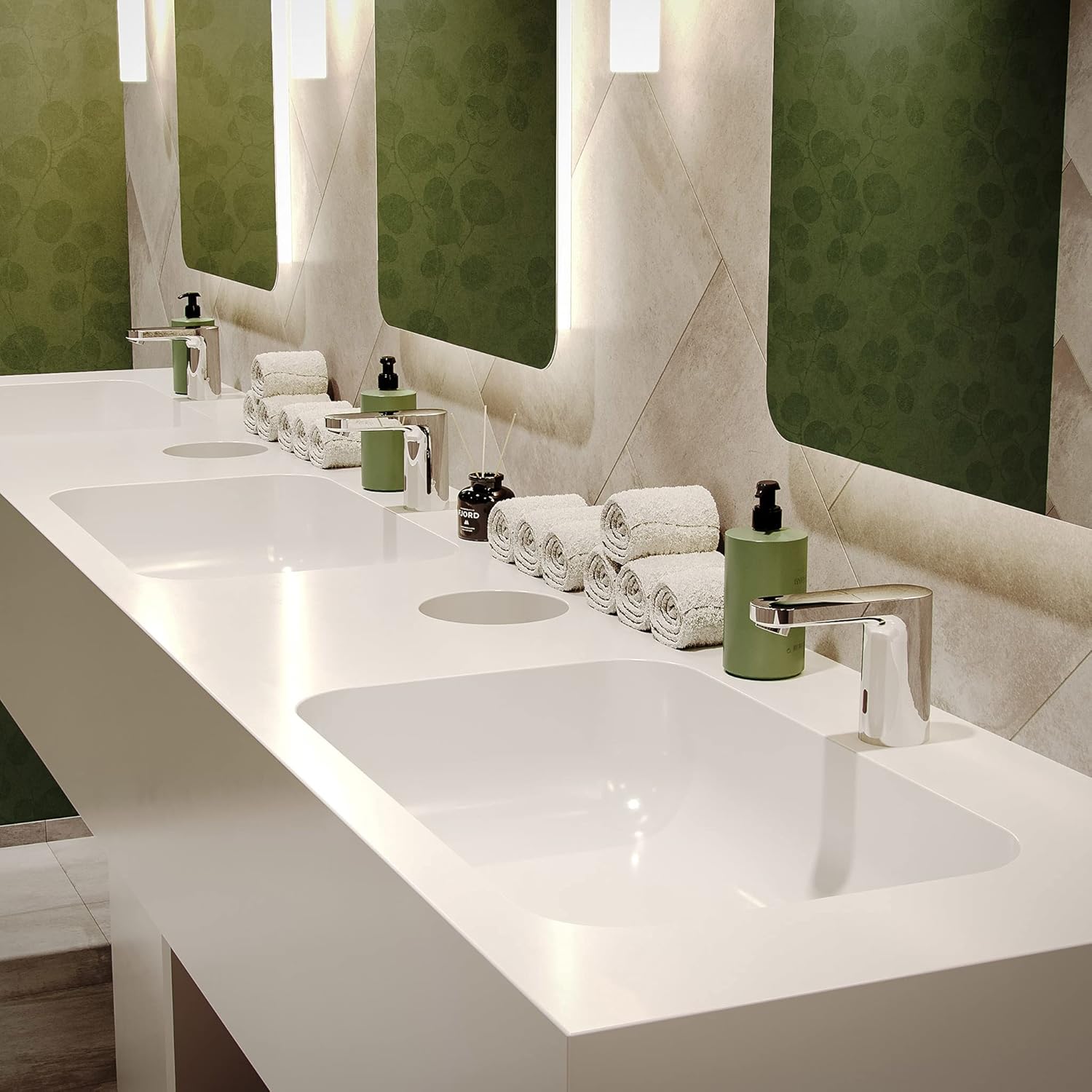

Image: Hansgrohe Vernis Blend electronic basin mixer in a public restroom setting.

2. ຂໍ້ມູນຄວາມປອດໄພ

Please read this manual carefully before installation and use. Keep these instructions for future reference.

• Ensure all installation steps are performed by qualified personnel and in accordance with local plumbing and electrical codes.
• Do not modify the product. Use only genuine Hansgrohe spare parts.
• ປົກປ້ອງຜະລິດຕະພັນຈາກອາກາດຫນາວ.
• The battery compartment must remain dry. Do not expose the battery to excessive heat or direct sunlight.
• Clean the product only with recommended cleaning agents to avoid damage to the chrome finish.

3. ເນື້ອໃນຊຸດ

ກວດ​ສອບ​ວ່າ​ອົງ​ປະ​ກອບ​ທັງ​ຫມົດ​ແມ່ນ​ມີ​ຢູ່​ກ່ອນ​ທີ່​ຈະ​ເລີ່ມ​ຕົ້ນ​ການ​ຕິດ​ຕັ້ງ​:

• Electronic basin ເຄື່ອງປະສົມ
• ອຸປະກອນການຕິດຕັ້ງ
• Connection hoses (flexible, G 3/8)
• Dirt strainers
• ໄສ້ຕອງໄສ້ຕອງ
• 1 x CR-P2 6V Lithium battery

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

This section outlines the general installation procedure. Refer to the detailed technical drawing for precise measurements and connections.

1. ກະກຽມສະຖານທີ່ຕິດຕັ້ງ: Ensure the mounting surface is clean and stable. The mixer is designed for surface mounting.
2. Install the Mixer: ຮັບປະກັນຄວາມປອດໄພຂອງ basin mixer to the sink or countertop using the provided mounting material. Ensure the mixer is centered and stable.
3. ເຊື່ອມຕໍ່ການສະຫນອງນ້ໍາ: Connect the flexible G 3/8 connection hoses to the cold water supply line (DN15). Ensure all connections are tight to prevent leaks.
4. ຕິດຕັ້ງແບດເຕີລີ່: Open the battery compartment, insert the included CR-P2 6V Lithium battery, and close the compartment securely.
5. Flush Lines: Before final use, briefly flush the water lines to remove any debris.
6. ການ​ທໍາ​ງານ​ຂອງ​ການ​ທົດ​ສອບ​: Turn on the water supply and test the sensor functionality.

Image: Technical drawing with dimensions (in mm) for installation planning.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

The Vernis Blend electronic basin mixer operates automatically via an infrared sensor.

• ການເປີດໃຊ້ເຊັນເຊີ: Place your hands within the sensor's detection range (typically below the spout). The water flow will start automatically.
• ປິດອັດຕະໂນມັດ: The water flow will stop automatically once your hands are removed from the sensor's range. The mixer can be configured for specific flow durations (10, 20, or 30 seconds) to optimize water usage.
• EcoSmart Technology: The integrated EcoSmart technology mixes air into the water stream, creating a voluminous and soft jet while reducing water consumption.
• ອຸນຫະພູມທີ່ຕັ້ງໄວ້ລ່ວງໜ້າ: This model delivers cold water only, with a pre-set temperature for consistent use.

Image: Sensor activation for hygienic use.

Image: AirPower technology for less water splashing.

6. ບໍາລຸງຮັກສາ

Regular maintenance ensures optimal performance and longevity of your basin ເຄື່ອງປະສົມ.

• ທໍາຄວາມສະອາດ: Clean the chrome finish regularly with a soft cloth and a mild, non-abrasive cleaning agent. Avoid cleaners containing acids, chlorine, or abrasive particles, as these can damage the surface.
• ການປ່ຽນແບັດເຕີຣີ: When the battery is low, the sensor's indicator light may flash, or the water flow may become inconsistent. Replace the CR-P2 6V Lithium battery as needed.
• Dirt Strainers: Periodically check and clean the dirt strainers located in the connection hoses to prevent reduced water flow.
• ການຂ້າເຊື້ອຄວາມຮ້ອນ: The mixer supports thermal disinfection procedures. Consult a professional for details on performing this function if required for public health standards.

7. ການແກ້ໄຂບັນຫາ

If you encounter issues with your basin mixer, refer to the following common problems and solutions:

If these solutions do not resolve the issue, please contact Hansgrohe customer support.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

Hansgrohe provides a comprehensive warranty and support for its products.

• ການຮັບປະກັນຂອງຜູ້ຜະລິດ: ຜະລິດຕະພັນນີ້ມາພ້ອມກັບການຮັບປະກັນຂອງຜູ້ຜະລິດ 5 ປີ. ກະລຸນາຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນ.
• ຄວາມພ້ອມຂອງອາໄຫຼ່: Hansgrohe ensures the availability of spare parts for up to 15 years after the discontinuation of the product line, providing long-term support for your investment.
• ການຊ່ວຍເຫຼືອລູກຄ້າ: For technical assistance, warranty claims, or further information, please visit the official Hansgrohe webເວັບໄຊ ຫຼືຕິດຕໍ່ພະແນກບໍລິການລູກຄ້າຂອງເຂົາເຈົ້າ.
