ຄູ່ມືຜູ້ໃຊ້ເຄື່ອງດູດຄວັນແບບຕິດຝາຜະໜັງ PACIFIC PR9930AS

1. ບົດແນະນຳ

Thank you for choosing the PACIFIC PR9930AS Wall-mount Range Hood. This manual provides essential information for the safe installation, operation, and maintenance of your new appliance. Please read this manual thoroughly before installation and use, and keep it for future reference.

The PACIFIC PR9930AS is a 30-inch wall-mount range hood featuring a Euro design with a glass chimney, 750 CFM powerful suction, 3-speed touch control, and a 5-minute auto delay-off function. It is designed to efficiently remove smoke, odors, and grease from your kitchen environment.

ຮູບພາບ 1.1: ດ້ານຫນ້າ view of the PACIFIC PR9930AS Wall-mount Range Hood.

2. ຂໍ້ມູນຄວາມປອດໄພ

ເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຈາກໄຟໄໝ້, ໄຟຟ້າຊັອດ, ຫຼື ການບາດເຈັບ, ໃຫ້ປະຕິບັດຕາມດັ່ງຕໍ່ໄປນີ້:

• ອ່ານຄໍາແນະນໍາທັງຫມົດກ່ອນທີ່ຈະດໍາເນີນການເຄື່ອງໃຊ້ນີ້.
• ວຽກງານຕິດຕັ້ງ ແລະສາຍໄຟຟ້າຈະຕ້ອງເຮັດໂດຍຜູ້ມີຄຸນວຸດທິຕາມລະຫັດ ແລະມາດຕະຖານທັງໝົດ, ລວມທັງການກໍ່ສ້າງທີ່ຕິດໄຟ.
• Sufficient air is needed for proper combustion and exhausting of gases through the chimney of fuel-burning equipment to prevent back-drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
• ເມື່ອຕັດຫຼືເຈາະເຂົ້າໄປໃນກໍາແພງຫຼືເພດານ, ຢ່າທໍາລາຍສາຍໄຟຟ້າແລະອຸປະກອນອື່ນໆທີ່ເຊື່ອງໄວ້.
• ພັດລົມທີ່ມີທໍ່ຕ້ອງຖືກລະບາຍອາກາດອອກສູ່ພາຍນອກສະເໝີ.
• ຢ່າໃຊ້ໜ່ວຍນີ້ກັບອຸປະກອນຄວບຄຸມຄວາມໄວແບບ solid-state ພາຍນອກໃດໆ.
• ເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຕໍ່ການເກີດໄຟໄຫມ້, ໃຊ້ພຽງແຕ່ທໍ່ໂລຫະ.
• ຫ້າມບໍ່ໃຫ້ອຸປະກອນພື້ນຜິວຖືກໃສ່ໃນການຕັ້ງຄ່າສູງ. Boilovers ເຮັດໃຫ້ເກີດການສູບຢາ ແລະ greasy spillovers ທີ່ອາດຈະ ignite. ຄວາມຮ້ອນນໍ້າມັນຊ້າໆໃນການຕັ້ງຄ່າຕ່ໍາຫຼືຂະຫນາດກາງ.
• ເຮັດຄວາມສະອາດພັດລົມລະບາຍອາກາດເລື້ອຍໆ. ນໍ້າມັນບໍ່ຄວນຈະຖືກອະນຸຍາດໃຫ້ສະສົມຢູ່ເທິງພັດລົມຫຼືການກັ່ນຕອງ.
• ໃຊ້ຂະຫນາດກະປ໋ອງທີ່ເຫມາະສົມ. ສະເຫມີໃຊ້ເຄື່ອງປຸງອາຫານທີ່ເຫມາະສົມສໍາລັບຂະຫນາດຂອງອົງປະກອບຂອງພື້ນຜິວ.

3. ເນື້ອໃນຊຸດ

ກວດສອບວ່າອົງປະກອບທັງໝົດມີຢູ່ ແລະບໍ່ມີຄວາມເສຍຫາຍກ່ອນທີ່ຈະເລີ່ມການຕິດຕັ້ງ.

• PACIFIC PR9930AS Range Hood Assembly
• Glass Chimney Sections
• 5-Layer Aluminum Mesh Filters (Quantity: 2)
• ຮາດແວຕິດຕັ້ງ (ສະກູ, ຍຶດຕິດຝາ)
• Ducting Adapter
• ຄູ່ມືຜູ້ໃຊ້

Image 3.1: The included 5-layer aluminum mesh filter.

4. ຂໍ້ມູນຈໍາເພາະ

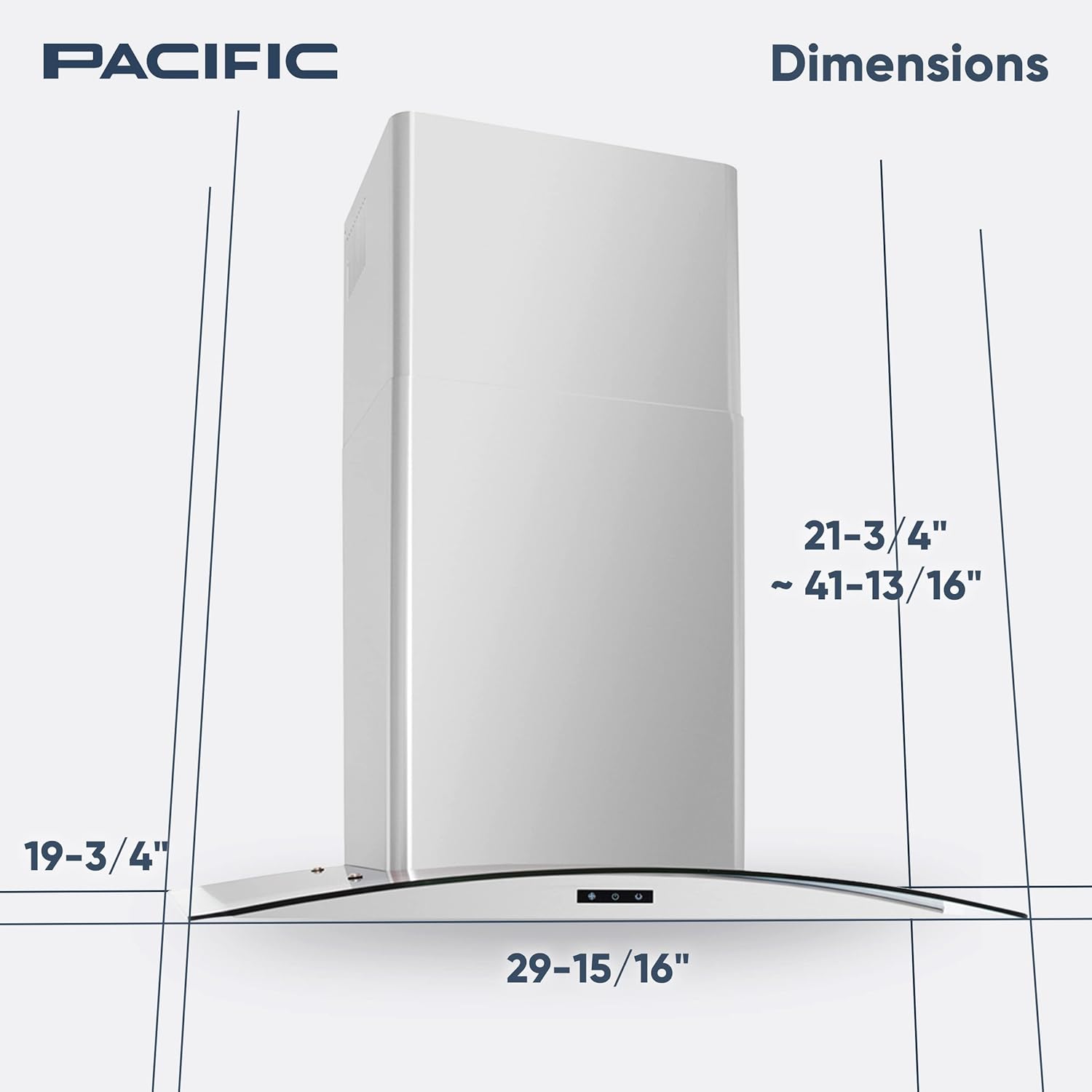

Image 4.1: Dimensional diagram of the range hood.

5. ການຕິດຕັ້ງ

Professional installation is recommended. Ensure all local building codes and electrical regulations are followed.

5.1 ເຄື່ອງມື ແລະວັດສະດຸທີ່ຕ້ອງການ

• ເຈາະແລະເຈາະ
• ການວັດແທກ tape ແລະ pencil
• ລະດັບ
• ຊຸດ screwdriver
• ເທບທໍ່ຫຼື clamps for ductwork
• ແວ່ນຕາຄວາມປອດໄພ ແລະຖົງມື

5.2 ສະຖານທີ່ຕັ້ງ

• The range hood should be mounted directly above the cooking surface.
• Ensure there is adequate clearance between the cooking surface and the bottom of the range hood (typically 24-30 inches, refer to local codes).
• Locate wall studs for secure mounting. If studs are not available, use appropriate wall anchors for the weight of the unit.

5.3 ຂັ້ນຕອນການຕິດຕັ້ງ

1. ການ​ກະ​ກຽມ​ກໍາ​ແພງ​ຫີນ​: Mark the desired mounting height and the locations for mounting screws based on the hood's mounting bracket. Ensure the marks are level.
2. ຕິດຕັ້ງຕົວຍຶດຕິດ: ຕິດຕົວຍຶດຕິດກັບຝາຢ່າງປອດໄພໂດຍໃຊ້ສະກູແລະສະມໍທີ່ເຫມາະສົມ.
3. Mount the Hood Body: Carefully lift the range hood body and hang it onto the installed mounting bracket. Ensure it is securely seated.
4. ເຊື່ອມຕໍ່ທໍ່ລະບາຍອາກາດ: Attach the ducting adapter to the top of the hood. Connect the ductwork (not included) from the hood to the exterior vent opening. Ensure all connections are sealed to prevent air leaks.
5. ການເຊື່ອມຕໍ່ໄຟຟ້າ: Have a qualified electrician connect the range hood to a dedicated electrical circuit in accordance with local electrical codes. Ensure the power is off at the circuit breaker before wiring.
6. Install Chimney Sections: Assemble and attach the upper and lower chimney sections to cover the ductwork and mounting hardware.
7. Install Mesh Filters: Insert the aluminum mesh filters into their designated slots on the underside of the hood.

6. ການດໍາເນີນງານ

The PACIFIC PR9930AS features intuitive touch controls for easy operation.

Image 6.1: Touch control panel and LED lighting.

6.1 ການທໍາງານຂອງກະດານຄວບຄຸມ

• ປຸ່ມເປີດປິດ (⏻): ກົດເພື່ອເປີດ ຫຼື ປິດຝາປິດ.
• Fan Speed Control (🌬): Press repeatedly to cycle through 3 fan speeds (Low, Medium, High). The current speed will be indicated on the display.
• Light Control (💡): Press to turn the LED lights on or off. The lights have two brightness levels.
• Delay-Off Function: While the fan is running, press and hold the fan speed button for a few seconds to activate the 5-minute auto delay-off timer. The fan will continue to run for 5 minutes and then automatically shut off.

6.2 ການນໍາໃຊ້ທີ່ດີທີ່ສຸດ

• Turn on the range hood a few minutes before cooking to establish airflow.
• Use higher fan speeds for heavy cooking, frying, or grilling.
• Use lower fan speeds for simmering or light cooking.
• Allow the hood to run for a few minutes after cooking to clear any remaining smoke or odors. The delay-off function is useful for this purpose.

Image 6.2: The range hood in operation, demonstrating effective steam extraction.

7. ການບໍາລຸງຮັກສາແລະການທໍາຄວາມສະອາດ

Regular maintenance ensures optimal performance and extends the life of your range hood.

7.1 ການເຮັດຄວາມສະອາດຕົວກອງແບບຕາໜ່າງ

The 5-layer aluminum mesh filters should be cleaned regularly, depending on cooking frequency. They are dishwasher safe.

1. ເອົາການກັ່ນຕອງອອກ: Locate the release latches on each filter. Push or pull the latch to release the filter and carefully remove it.
2. ລ້າງການກັ່ນຕອງ:
   • ເຄື່ອງລ້າງຈານ: Place the filters in a dishwasher on a normal cycle. Avoid using harsh detergents.
   • ລ້າງມື: Soak filters in hot water with a mild detergent. Use a soft brush to gently scrub away grease and residue. Rinse thoroughly.
3. ຕາກແຫ້ງ ແລະ ຕິດຕັ້ງຄືນໃໝ່: Allow filters to dry completely before reinstalling them. Ensure they click securely into place.

7.2 ການອະນາໄມພາຍນອກ

• ເຊັດພື້ນຜິວສະແຕນເລດດ້ວຍຜ້າອ່ອນໆ dampຖອກໃສ່ດ້ວຍນ້ໍາອຸ່ນແລະຜົງຊັກຟອກອ່ອນໆ.
• For glass surfaces, use a glass cleaner and a soft cloth.
• Avoid abrasive cleaners, steel wool, or scouring pads, as these can scratch the surfaces.
• ສະເຫມີເຊັດໃນທິດທາງຂອງເມັດສະແຕນເລດ.

8. ການແກ້ໄຂບັນຫາ

Before contacting customer service, refer to the following troubleshooting guide for common issues.

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The PACIFIC PR9930AS Wall-mount Range Hood comes with a ການຮັບປະກັນ 10 ປີຈໍາກັດກ່ຽວກັບຊິ້ນສ່ວນ. ການຮັບປະກັນນີ້ກວມເອົາຂໍ້ບົກພ່ອງຂອງວັດສະດຸແລະການເຮັດວຽກພາຍໃຕ້ການນໍາໃຊ້ປົກກະຕິ.

For warranty claims, technical support, or to order replacement parts, please contact PACIFIC customer service. Keep your proof of purchase and model number (PR9930AS) readily available when contacting support.

ຕິດຕໍ່ບໍລິການລູກຄ້າ: Please refer to the PACIFIC official webເວັບໄຊຫຼືເອກະສານການຊື້ຂອງທ່ານສໍາລັບຂໍ້ມູນຕິດຕໍ່ໃນປະຈຸບັນຫຼາຍທີ່ສຸດ.
