1. ບົດແນະນຳ
This manual provides essential instructions for the safe and effective use, maintenance, and care of your VGR V-390 Professional Electric Shaver. Please read this manual thoroughly before first use and retain it for future reference.
2. ຜະລິດຕະພັນເກີນview
The VGR V-390 is a compact, rechargeable electric shaver designed for face and beard care. It features a reciprocating blade system and a convenient pop-up trimmer.
Image 2.1: VGR V-390 Electric Shaver, including the device, USB charging cable, and cleaning brush.
ອົງປະກອບທີ່ສໍາຄັນ:
- Protection Cap: Covers the shaving head when not in use, protecting the foil and blades.
- Close Cut Blade: The primary shaving mechanism for a smooth finish.
- ປັອບເມີແບບປັອບອັບ: Integrated trimmer for detailing sideburns, mustaches, or longer hairs.
- ພອດສາກໄຟ USB: For convenient recharging of the device.
ຮູບພາບ 2.2: ລາຍລະອຽດ view of the VGR V-390's main features, including the protection cap, close-cut blade, pop-up trimmer, and USB charging port.
3. ການສາກອຸປະກອນ
Before initial use, fully charge the shaver. The VGR V-390 is equipped with a Lithium Ion battery for cordless operation.
ຄໍາແນະນໍາການສາກໄຟ:
- ໃຫ້ແນ່ໃຈວ່າເຄື່ອງໂກນຫນວດປິດແລ້ວ.
- Connect the provided USB charging cable to the shaver's USB port.
- Plug the other end of the USB cable into a compatible USB power source (e.g., computer, laptop, USB wall adapter, power bank).
- ໂດຍປົກກະຕິການສາກເຕັມຈະໃຊ້ເວລາປະມານ 8 ຊົ່ວໂມງ.
- Once fully charged, the shaver provides approximately 45 minutes of cordless operation.
Image 3.1: Charging specifications, indicating an 8-hour charge time for 45 minutes of operation, and compatibility with various USB power sources.
Image 3.2: The shaver being charged via a laptop's USB port, demonstrating convenient charging options.
4. ຕັ້ງຄ່າ
The VGR V-390 shaver is designed for immediate use after charging. No assembly is required.
- ຄ່າ ທຳ ນຽມ: Fully charge the device as described in Section 3 before its first use.
- ກວດກາ: Before each use, visually inspect the shaving foil for any damage. Do not use the shaver if the foil is damaged, as this may cause injury.
5. ຄໍາແນະນໍາການດໍາເນີນງານ
The VGR V-390 is suitable for shaving facial hair and maintaining beards.
Using the Main Shaver:
- Remove the protection cap from the shaving head.
- ກົດປຸ່ມເປີດປິດເພື່ອເປີດເຄື່ອງໂກນຫນວດ.
- ຖືກະໂກນໜວດໃຫ້ຢູ່ໃນມຸມຂວາ (90 ອົງສາ) ກັບຜິວໜັງຂອງທ່ານ.
- Gently stretch your skin with your free hand and move the shaver against the direction of hair growth.
- Apply light pressure. Do not press too hard, as this can irritate the skin or damage the foil.
- After shaving, press the power button to turn off the shaver and replace the protection cap.
Image 5.1: A user demonstrating the application of the VGR V-390 shaver for facial hair removal.
ການໃຊ້ເຄື່ອງຕັດแต่งແບບປັອບອັບ:
- Locate the slide button for the pop-up trimmer on the side of the shaver.
- Slide the button upwards to activate the trimmer.
- Use the trimmer for precise detailing of sideburns, shaping mustaches, or trimming longer hairs before shaving.
- After use, slide the button back down to retract the trimmer.
Image 5.2: Visual guide to the pop-up trimmer mechanism and overall dimensions of the shaver.
6. ການບໍາລຸງຮັກສາແລະການທໍາຄວາມສະອາດ
ການເຮັດຄວາມສະອາດເປັນປະຈຳຮັບປະກັນປະສິດທິພາບທີ່ດີທີ່ສຸດ ແລະ ຍືດອາຍຸການໃຊ້ງານຂອງເຄື່ອງໂກນໜວດຂອງທ່ານ.
Cleaning the Shaving Head:
- Ensure the shaver is turned off and disconnected from the charging cable.
- Gently detach the shaving head from the shaver body. This design allows for easy cleaning.
- Use the provided cleaning brush to remove any accumulated hair from the foil and the inner blades.
- For a more thorough cleaning, the detachable head can be rinsed under running water. Ensure the shaver body does not get wet.
- Allow all parts to air dry completely before reattaching the shaving head to the shaver body.

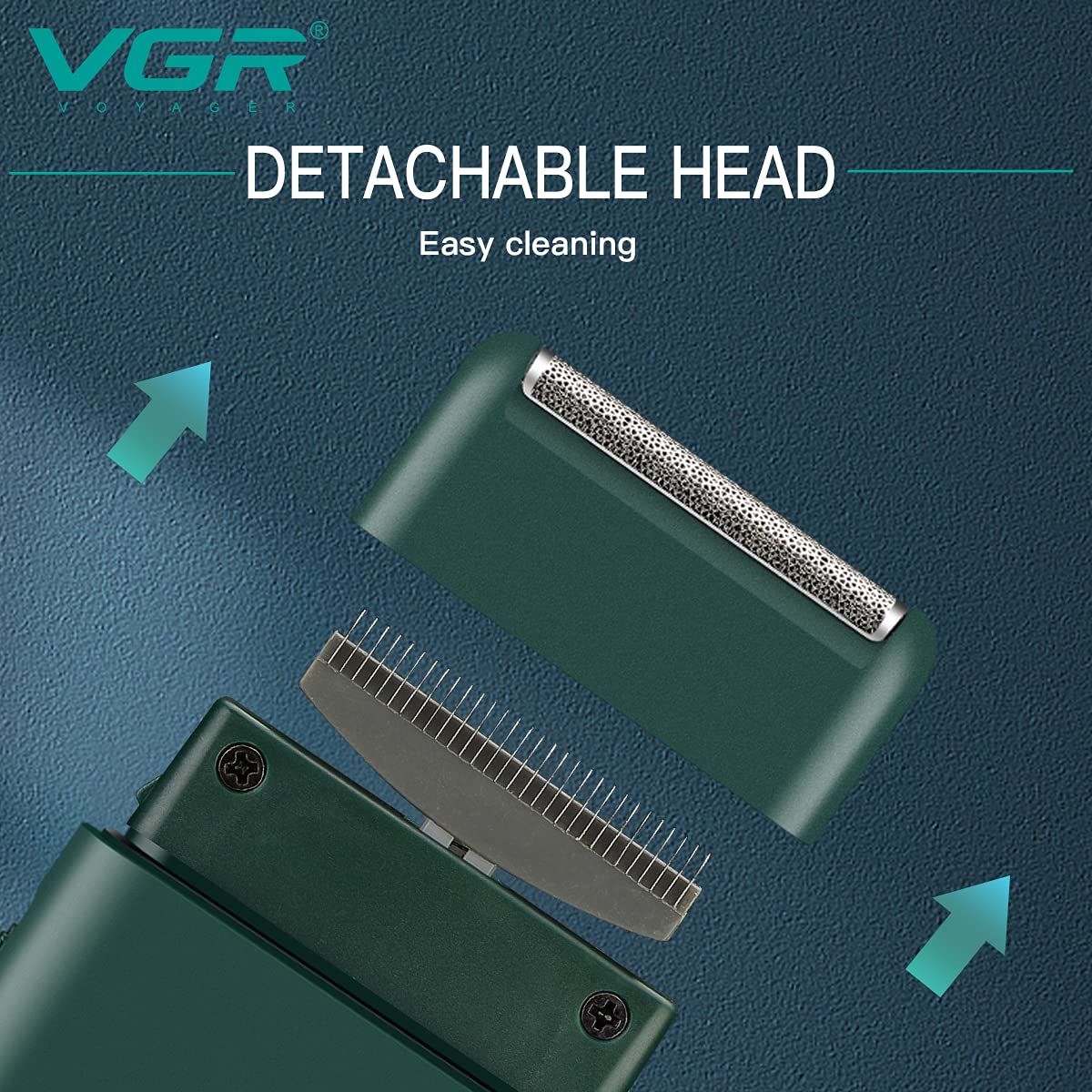

Image 6.1: Illustration of the detachable head feature, facilitating easy cleaning and maintenance.
Image 6.2: Demonstrates the ease of cleaning the shaver head by rinsing it under water.
7. ການແກ້ໄຂບັນຫາ
If you encounter issues with your VGR V-390 shaver, please refer to the following common solutions:
| ບັນຫາ | ສາເຫດທີ່ເປັນໄປໄດ້ | ການແກ້ໄຂ |
|---|---|---|
| ເຄື່ອງໂກນຫນວດບໍ່ເປີດ. | ແບັດເຕີຣີໝົດ. | ສາກເຄື່ອງໂກນຫນວດເປັນເວລາ 8 ຊົ່ວໂມງ. |
| Reduced shaving performance. | Hair accumulation in the shaving head. | Clean the shaving head thoroughly as per Section 6. |
| Shaver ດຶງຜົມຫຼືເຮັດໃຫ້ເກີດການລະຄາຍເຄືອງ. | Foil or blades are dull or damaged. | Inspect the foil for damage. If damaged, discontinue use and consider replacing the shaving head. Ensure proper shaving technique (Section 5). |
| ຕົວຊີ້ວັດການສາກໄຟບໍ່ເຮັດວຽກ. | ສາຍສາກໄຟ ຫຼື ແຫຼ່ງໄຟມີບັນຫາ. | ລອງໃຊ້ສາຍ USB ຫຼືແຫຼ່ງພະລັງງານອື່ນ. |
8. ຂໍ້ມູນຈໍາເພາະ
- ຕົວແບບ: VGR - V390
- ຂະໜາດ (LxWxH): 7 x 4 x 13 cm
- ນ້ໍາຫນັກລາຍການ: 190 g
- ແຫຼ່ງພະລັງງານ: ສາກແບັດເຕີຣີ (ສາມາດສາກໄດ້)
- ປະເພດຫມໍ້ໄຟ: ລີທຽມໄອອອນ
- ເວລາສາກໄຟ: ປະມານ 8 ຊົ່ວໂມງ
- ຊີວິດຫມໍ້ໄຟ: ປະມານ 45 ນາທີ
- ວັດສະດຸແຜ່ນ: ສະແຕນເລດ
- ຄຸນນະສົມບັດພິເສດ: Cordless, Pop-up Trimmer, Detachable Head for Cleaning
- ອົງປະກອບລວມ: Shaver, USB Charging Cable, Cleaning Brush
9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ
The VGR V-390 Professional Electric Shaver comes with a 12-month quality warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product meets quality standards.
If you experience any issues with your product or are not satisfied, please contact VGR customer service. Our support team aims to respond within 24 hours to provide assistance and a satisfactory resolution.
For warranty claims or support, please refer to the contact information provided with your purchase documentation or visit the official VGR webເວັບໄຊ.
