Philips Series 8000 Portable Garment Steamer GC810/20 User Manual

1. ບົດແນະນຳ

Thank you for choosing the Philips Series 8000 Portable Garment Steamer GC810/20. This manual provides essential information for the safe and effective use of your appliance. Please read it thoroughly before first use and keep it for future reference.

2. ຂໍ້ມູນຄວາມປອດໄພທີ່ສໍາຄັນ

ປະຕິບັດຕາມຄວາມລະມັດລະວັງດ້ານຄວາມປອດໄພຂັ້ນພື້ນຖານສະເໝີເມື່ອໃຊ້ເຄື່ອງໃຊ້ໄຟຟ້າເພື່ອຫຼຸດຜ່ອນຄວາມສ່ຽງຕໍ່ການເກີດອັກຄີໄພ, ໄຟຟ້າຊອດ ແລະ ການບາດເຈັບສ່ວນບຸກຄົນ.

ຮັບປະກັນ voltage ຊີ້ບອກຢູ່ໃນເຄື່ອງໃຊ້ແມ່ນກົງກັບເຄື່ອງສາຍໃນທ້ອງຖິ່ນຂອງເຈົ້າtage ກ່ອນທີ່ຈະເຊື່ອມຕໍ່.
ຢ່າເອົາເຄື່ອງໃຊ້, ປລັກສຽບ, ຫຼືສາຍໄຟໃສ່ໃນນໍ້າ ຫຼືຂອງແຫຼວອື່ນໆ.
ເກັບໝໍ້ຫນື້ງໃຫ້ຫ່າງຈາກເດັກນ້ອຍ ແລະ ສັດລ້ຽງ.
ຫ້າມສົ່ງໄອນ້ຳໂດຍກົງໃສ່ຄົນ ຫຼື ສັດ. ໄອນ້ຳຮ້ອນ ແລະ ສາມາດເຮັດໃຫ້ເກີດການໄໝ້ໄດ້.
Always unplug the appliance during filling and cleaning, and when not in use.
ໃຊ້ພຽງແຕ່ນ້ໍາກັ່ນຫຼື demineralized ເພື່ອປ້ອງກັນການສ້າງປູນຂາວ.
ຢ່າໃຊ້ເຄື່ອງໃຊ້ຫາກປລັກ, ສາຍໄຟ, ຫຼືເຄື່ອງໃຊ້ເອງເສຍຫາຍ.

3. ອົງປະກອບຂອງຜະລິດຕະພັນ

Familiarize yourself with the parts of your Philips Series 8000 Portable Garment Steamer.

**ຮູບທີ 1:** ເກີນview of the Philips Series 8000 Portable Garment Steamer GC810/20. This image displays the main body of the steamer, including the handle, steam head, water tank, power button, and steam mode selector (ECO/MAX).

ຫົວຫນ້າອາຍ: Emits steam for wrinkle removal.
ຖັງນໍ້າ: ຖັງທີ່ສາມາດຖອດອອກໄດ້ສຳລັບຕື່ມນໍ້າ.
ປຸ່ມເປີດປິດ: ເປີດ ແລະ ປິດເຄື່ອງໃຊ້.
Steam Mode Selector: Allows selection between ECO (energy-saving) and MAX (maximum steam) modes.
ສາຍໄຟ: Connects the steamer to the electrical outlet.

4. ຕັ້ງຄ່າ

Before using your garment steamer, follow these steps for proper setup.

ຕື່ມນໍ້າໃສ່ຖັງນໍ້າ: Remove the water tank from the appliance. Open the filling cap and fill the tank with distilled or demineralized water up to the MAX indication. Close the cap securely and reattach the tank to the steamer.

Philips GC810/20 Steamer with water tank visible — **ຮູບທີ 2:** The Philips GC810/20 steamer standing upright, showcasing its transparent water tank at the base. This view helps in understanding how to detach and fill the water tank.

ເຊື່ອມຕໍ່ກັບພະລັງງານ: ສຽບສາຍໄຟໃສ່ບ່ອນສຽບໄຟຟ້າທີ່ມີດິນ.
ເປີດ: Press the power button. The indicator light will illuminate, and the steamer will begin to heat up. The appliance has a heat-up time of approximately 60 seconds.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

Learn how to effectively use your garment steamer for wrinkle removal.

ການທຳຄວາມຮ້ອນລ່ວງໜ້າ: Wait until the indicator light stops blinking and remains steadily lit, indicating the steamer is ready for use.
ເລືອກໂໝດ Steam: Use the steam mode selector to choose between ECO mode for lighter fabrics and energy saving, or MAX mode for heavier fabrics and stubborn wrinkles.
ເຄື່ອງນຸ່ງຫົ່ມ Steaming:
- ການອົບແນວຕັ້ງ: Hang your garment on a hanger. Hold the steam head close to the fabric, but not touching, and move it up and down. Gently pull the fabric taut with your free hand for better results.

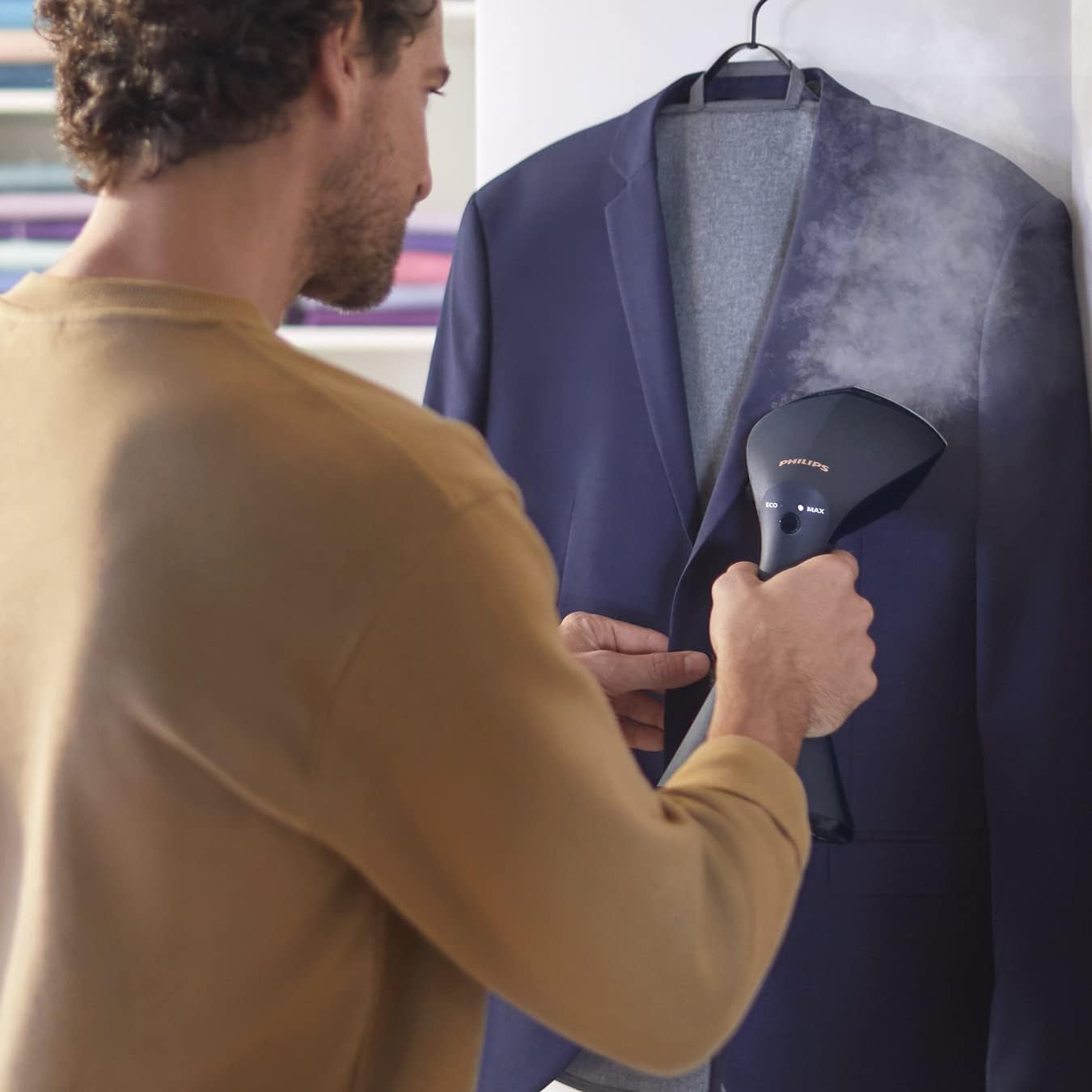

Man vertically steaming a jacket with Philips GC810/20 — **ຮູບທີ 3:** A man is shown using the Philips GC810/20 steamer to vertically steam a jacket hanging on a hanger. This demonstrates the ease of use for garments in a hanging position.

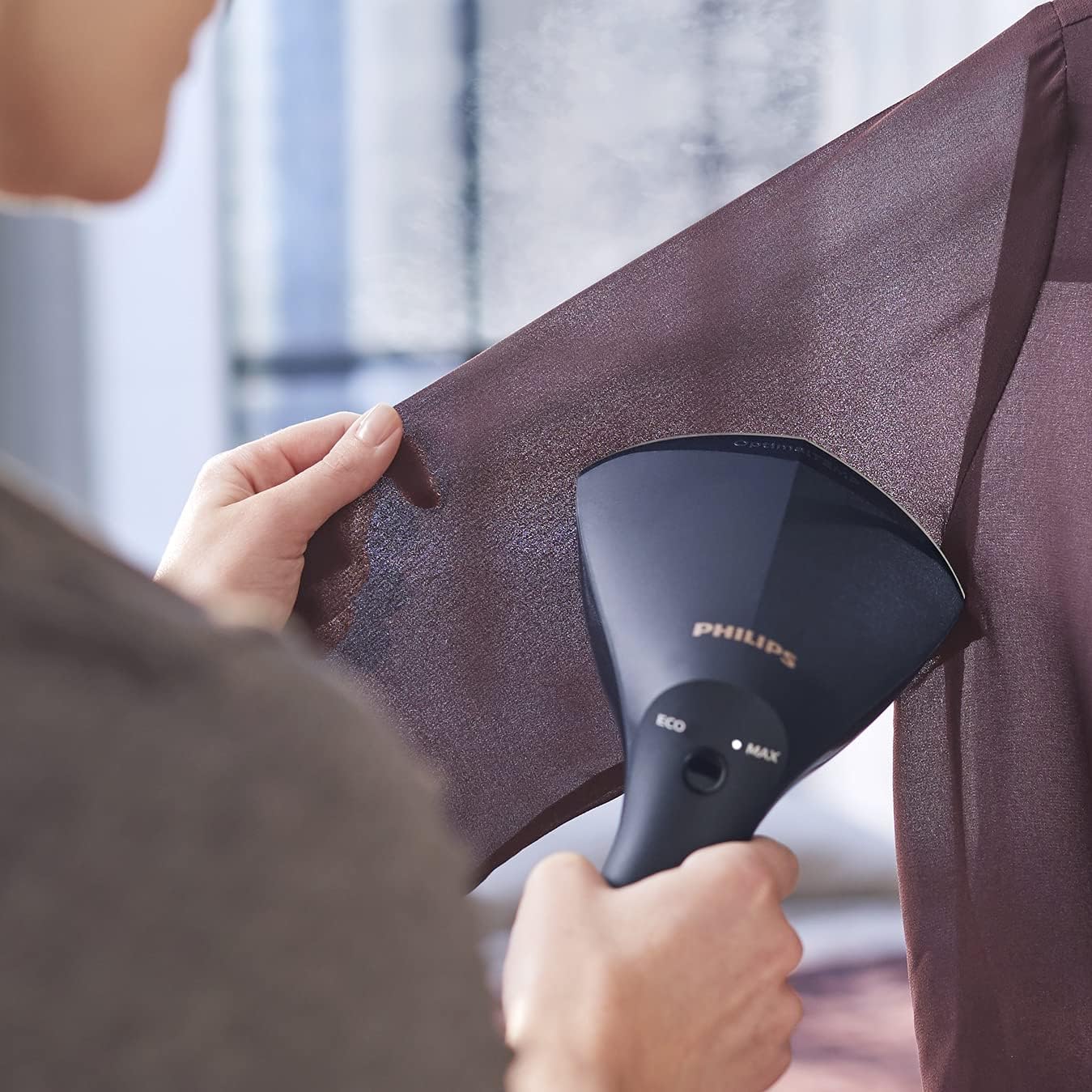

Person steaming a garment sleeve with Philips GC810/20 — **ຮູບທີ 4:** ໃກ້ຊິດ view of the Philips GC810/20 steamer being used to smooth wrinkles from a garment sleeve. The steam head is directed at the fabric, illustrating precise application.

- ອາຍແນວນອນ: For more precise results or for items like collars and cuffs, place the garment on a flat, heat-resistant surface. Press the steam head gently onto the fabric and move it across the surface.

Philips GC810/20 Steamer used for horizontal steaming on a flat surface — **ຮູບທີ 5:** The Philips GC810/20 steamer is shown being used in a horizontal position on a flat surface, smoothing a blue fabric. This demonstrates its versatility for both vertical and horizontal steaming.

Steam being emitted from Philips GC810/20 steamer — **ຮູບທີ 6:** A clear shot of steam being powerfully emitted from the nozzle of the Philips GC810/20 steamer, highlighting its wrinkle-removing capability.

ສໍາເລັດຮູບ: After steaming, allow the garment to cool down before wearing or storing.
ປິດພະລັງງານ: Press the power button to turn off the appliance. Unplug the power cord from the outlet.

6. ບໍາລຸງຮັກສາ

ການບໍາລຸງຮັກສາເປັນປົກກະຕິຮັບປະກັນປະສິດທິພາບທີ່ດີທີ່ສຸດແລະຍືດອາຍຸຂອງ steamer ຂອງທ່ານ.

ຖັງນ້ໍາເປົ່າ: ຫຼັງຈາກການນໍາໃຊ້ແຕ່ລະຄັ້ງ, ລ້າງນ້ໍາທີ່ຍັງເຫຼືອອອກຈາກຖັງເພື່ອປ້ອງກັນການສ້າງແຮ່ທາດ.
ທໍາຄວາມສະອາດພາຍນອກ: ເຊັດດ້ານນອກຂອງເຄື່ອງໃຊ້ອ່ອນໆ, ງamp ຜ້າ. ຢ່າໃຊ້ເຄື່ອງເຮັດຄວາມສະອາດຂັດຫຼືສານລະລາຍ.
ການປັບຂະ ໜາດ: The Philips Series 8000 features descaling technology. Refer to the specific descaling instructions in the full manual for your model. Regular descaling is crucial, especially in hard water areas, to maintain steam performance and prevent blockages.
ການເກັບຮັກສາ: Store the appliance in a dry, safe place, away from direct sunlight and out of reach of children. Ensure the power cord is neatly wrapped.

7. ການແກ້ໄຂບັນຫາ

If you encounter issues with your steamer, refer to the following common problems and solutions.

ບັນຫາ	ສາເຫດທີ່ເປັນໄປໄດ້	ການແກ້ໄຂ
ບໍ່ມີໄອນ້ໍາຫຼືໄອນ້ໍາອ່ອນໆ	Water tank is empty; appliance not heated up; limescale buildup.	Fill water tank; wait for indicator light to be steady; perform descaling.
ນ້ໍາຮົ່ວອອກຈາກຫົວໄອນ້ໍາ	Appliance not hot enough; condensation.	Allow steamer to fully heat up; hold steamer vertically to allow condensation to drain.
ເຄື່ອງບໍ່ເປີດ	ບໍ່ສຽບ; ບັນຫາປລັກສຽບໄຟ.	Ensure power cord is securely plugged in; check power outlet with another appliance.

ຖ້າບັນຫາຍັງຄົງຢູ່ຫຼັງຈາກລອງໃຊ້ວິທີແກ້ໄຂເຫຼົ່ານີ້, ກະລຸນາຕິດຕໍ່ຝ່າຍຊ່ວຍເຫຼືອລູກຄ້າ Philips.

8. ຂໍ້ມູນຈໍາເພາະ

Key technical specifications for the Philips Series 8000 Portable Garment Steamer GC810/20.

ຍີ່ຫໍ້: ຟີລິບ
ໝາຍເລກຕົວແບບ: GC810/20
ຂະໜາດສິນຄ້າ (L x W x H): 24.8 x 36.6 x 16 cm
ນ້ໍາຫນັກລາຍການ: 2 ກິໂລກຣາມ
ຄວາມອາດສາມາດຂອງຖັງນໍ້າ: 230 ມິນລີລິດ
ພະລັງງານ: 1600 ວັດ
ສະບັບtage: 230 ໂວນ
ເວລາຄວາມຮ້ອນ: 60 ວິນາທີ
ຜົນປະໂຫຍດຜະລິດຕະພັນ: ການກຳຈັດຮອຍຫ່ຽວ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

ສໍາລັບຂໍ້ມູນການຮັບປະກັນ ແລະການຊ່ວຍເຫຼືອລູກຄ້າ, ກະລຸນາເບິ່ງບັດຮັບປະກັນທີ່ມາພ້ອມກັບຜະລິດຕະພັນຂອງທ່ານ ຫຼືເຂົ້າໄປທີ່ Philips ຢ່າງເປັນທາງການ webເວັບໄຊ. ຮັກສາຫຼັກຖານການຊື້ຂອງທ່ານສໍາລັບການຮຽກຮ້ອງການຮັບປະກັນໃດໆ.

ສະຫນັບສະຫນູນອອນໄລນ໌: www.philips.com/support
