Northair 3.5 Cu Ft Chest Freezer - User Manual

1. ຄໍາແນະນໍາຄວາມປອດໄພທີ່ສໍາຄັນ

Please read all instructions carefully before using your Northair Chest Freezer. Keep this manual for future reference.

• ຄວາມປອດໄພທາງໄຟຟ້າ: Ensure the freezer is connected to a properly grounded electrical outlet. Do not use extension cords or multi-outlet adapters. If the power cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
• ການຈັດວາງ: Position the freezer on a firm, level surface away from direct sunlight and heat sources (e.g., stoves, heaters, other appliances like refrigerators). Ensure adequate ventilation around the unit. Avoid placing in areas where the ambient temperature falls below 37°F (3°C) or exceeds 80°F (27°C).
• ການລະບາຍອາກາດ: Maintain at least 4 inches (10 cm) of space around the back and sides of the freezer for proper air circulation.
• ຄວາມ​ປອດ​ໄພ​ຂອງ​ເດັກ​ນ້ອຍ​: ເຄື່ອງໃຊ້ນີ້ບໍ່ໄດ້ມີຈຸດປະສົງເພື່ອໃຊ້ໂດຍບຸກຄົນ (ລວມທັງເດັກນ້ອຍ) ທີ່ມີຄວາມສາມາດທາງຮ່າງກາຍ, ຄວາມຮູ້ສຶກ ຫຼືຈິດໃຈທີ່ຫຼຸດລົງ, ຫຼືຂາດປະສົບການ ແລະຄວາມຮູ້, ເວັ້ນເສຍແຕ່ວ່າພວກເຂົາໄດ້ຮັບການຊີ້ນໍາ ຫຼືຄໍາແນະນໍາກ່ຽວກັບການນໍາໃຊ້ເຄື່ອງໃຊ້ໂດຍບຸກຄົນທີ່ຮັບຜິດຊອບຄວາມປອດໄພຂອງເຂົາເຈົ້າ. ເດັກນ້ອຍຄວນໄດ້ຮັບການເບິ່ງແຍງເພື່ອຮັບປະກັນວ່າພວກເຂົາບໍ່ໄດ້ຫຼີ້ນກັບເຄື່ອງໃຊ້.
• ວັດສະດຸທີ່ຕິດໄຟໄດ້: ຫ້າມເກັບມ້ຽນວັດຖຸລະເບີດເຊັ່ນ: ກະປ໋ອງແອໂຣໂຊລ ທີ່ມີສານກະຕຸ້ນໄວໄຟໃນເຄື່ອງໃຊ້ນີ້.
• ການຫລອກລວງ: Always unplug the freezer before defrosting or cleaning.

2. ຜະລິດຕະພັນເກີນview

The Northair 3.5 Cu Ft Chest Freezer is designed for optimal food storage with energy efficiency and quiet operation.

ຄຸນ​ນະ​ສົມ​ບັດ​ທີ່​ສໍາ​ຄັນ​:

• ການ​ປັບ​ອຸນ​ຫະ​ພູມ​ງ່າຍ​ດາຍ​: External adjustable thermostat with settings from 1 (Off) to 7 (Coldest), offering temperatures between -4°F and 6.8°F.
• ການເກັບຮັກສາທີ່ດີທີ່ສຸດ: Compact yet spacious 3.5 cubic feet capacity, including two removable baskets for organization.
• ການປະຫຍັດພະລັງງານ: Low energy consumption of 0.45 kWh/24h.
• Perfectly Quiet: Operates with a whisper-quiet compressor at approximately 38 dB.
• ປະສົບການຜູ້ໃຊ້ Premium: Steady lid holds open between 45° and 90° angles for hands-free access, with a quiet door mechanism.

ອົງປະກອບ:

ລາຍລະອຽດຮູບພາບ: ລະເບີດຂຶ້ນ view diagram of the Northair Chest Freezer, highlighting key components such as the door handle, door gasket, auto holder hinges, aluminum liner, wire basket, integral frame, drain outlet, and control panel.

ລາຍລະອຽດຮູບພາບ: ມຸມທາງໜ້າ view of the black Northair 3.5 Cu Ft Chest Freezer, showcasing its compact design and indicating the inclusion of two baskets.

3. ຕັ້ງຄ່າ

ການຫຸ້ມຫໍ່ ແລະການຈັດວາງ:

• ເອົາອຸປະກອນການຫຸ້ມຫໍ່ທັງຫມົດ, ລວມທັງພື້ນຖານໂຟມແລະ tape adhesive.
• ທຳຄວາມສະອາດພາຍໃນ ແລະ ພາຍນອກຂອງຕູ້ແຊ່ແຂງດ້ວຍໂຄສະນາamp cloth and mild detergent before use.
• Place the freezer on a flat, stable surface in a well-ventilated area. Ensure there is at least 4 inches (10 cm) of space around the unit for proper air circulation.
• ສຳຄັນ: After transportation, allow the freezer to stand upright for at least 11 hours before plugging it in. This allows the refrigerant fluids to settle, preventing potential damage to the cooling system.

ການເຊື່ອມຕໍ່ພະລັງງານ:

• Plug the freezer into a dedicated 110-volt, grounded electrical outlet.
• Do not use extension cords or power strips. If the existing outlet is not suitable, consult a qualified electrician for installation.

ລາຍລະອຽດຮູບພາບ: The Northair 3.5 Cu Ft Chest Freezer is shown integrated into a kitchen setting, demonstrating its compact size and suitability for various placements.

4. ຄໍາແນະນໍາການດໍາເນີນງານ

ການຄວບຄຸມອຸນຫະພູມ:

The temperature of your Northair Chest Freezer is controlled by an external adjustable thermostat. The dial is located on the front of the unit.

• Turn the dial to select a temperature setting from 1 (Off) to 7 (Coldest).
• Temperature range: -4°F to 6.8°F. Adjust the setting based on your desired freezing level for different foods.
• The red light indicates power, and the green light indicates the compressor is running.

ລາຍລະອຽດຮູບພາບ: ລາຍລະອຽດ view of the freezer's control panel, showing the temperature control dial and indicator lights for power (red) and operation (green). Text overlays highlight "Temp. Control" and "Quiet. Operates very quietly at 38dB."

ການເກັບຮັກສາອາຫານ:

• Utilize the two removable baskets for organizing smaller items or frequently accessed foods.
• Ensure food items are properly sealed to prevent freezer burn and maintain freshness.
• Avoid overfilling the freezer, as this can impede air circulation and affect cooling efficiency.

ລາຍລະອຽດຮູບພາບ: The Northair Chest Freezer is shown with its lid open, revealing various food items stored inside. The image emphasizes the "Excellent Refrigerating Capacity" and "FAST COOLING" capabilities.

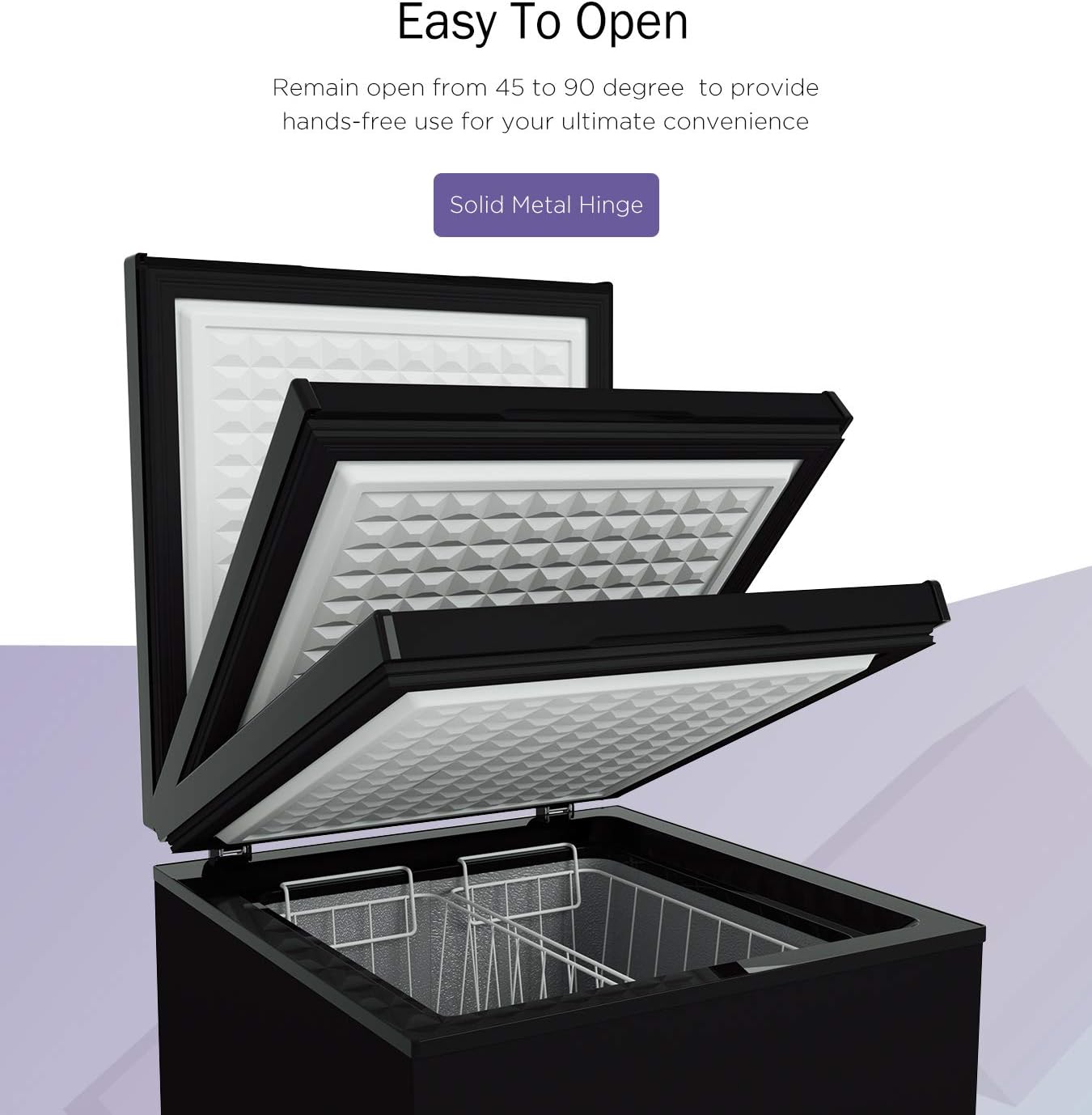

ລາຍລະອຽດຮູບພາບ: A visual demonstration of the freezer's lid, which can remain open at 45 and 90-degree angles, facilitated by solid metal hinges for hands-free access.

5. ບໍາລຸງຮັກສາ

ການຫລອກລວງ:

Defrost the freezer when ice buildup on the walls reaches approximately 0.2 inches (5 mm) thick. Excessive ice reduces cooling efficiency.

1. ຖອດຕູ້ແຊ່ແຂງອອກຈາກປລັກສຽບໄຟ.
2. ເອົາລາຍການອາຫານທັງໝົດອອກ ແລະເກັບໄວ້ໃນຕູ້ແຊ່ເຢັນ ຫຼືຕູ້ເຢັນອື່ນ.
3. Locate the internal drain plug at the bottom of the freezer and the external drain plug on the lower front side. Remove both plugs to allow water to drain.
4. Place a shallow pan or towel under the external drain to collect water.
5. ປ່ອຍໃຫ້ນ້ຳກ້ອນລະລາຍຕາມທຳມະຊາດ. ຢ່າໃຊ້ວັດຖຸແຫຼມ ຫຼື ອຸປະກອນຄວາມຮ້ອນເພື່ອເລັ່ງການລະລາຍນ້ຳກ້ອນ ເພາະສິ່ງນີ້ສາມາດເຮັດໃຫ້ຕູ້ແຊ່ແຂງເສຍຫາຍໄດ້.
6. Once defrosted, clean and dry the interior thoroughly. Replace the drain plugs.
7. Plug the freezer back in and allow it to cool down for several hours before returning food.

ທໍາຄວາມສະອາດ:

• Regularly clean the interior with a solution of mild detergent and warm water. Rinse with clean water and dry thoroughly.
• ເຮັດຄວາມສະອາດດ້ານນອກດ້ວຍຜ້າອ່ອນໆແລະຜົງຊັກຟອກອ່ອນໆ.
• Periodically vacuum the condenser coils at the back of the freezer to ensure efficient operation.

6. ການແກ້ໄຂບັນຫາ

7. ຂໍ້ມູນຈໍາເພາະ

• ຍີ່ຫໍ້: ພາກ ເໜືອ
• ຊື່ຕົວແບບ: Northair 3.5 Cu Ft Chest Freezer
• ໝາຍເລກຕົວແບບ: BG-30004N2
• ສີ: ດຳ
• ຄວາມອາດສາມາດ Freezer: 3.5 ລູກບາດຟຸດ
• ຂະໜາດສິນຄ້າ (L x W x H): 21.18" x 21.77" x 30.94"
• ນ້ໍາຫນັກລາຍການ: 50.7 ປອນ
• ລະດັບສຽງລົບກວນ: 38 dB
• ປະເພດການຕິດຕັ້ງ: ອິດສະລະ
• ສະບັບtage: 110 ໂວນ
• ປະຕູຮົ້ວ: ເທິງ
• ປະເພດວັດສະດຸປະຕູ: ສະແຕນເລດ
• ຊັ້ນວາງ: 1 (internal liner)
• ອົງປະກອບລວມ: 3.5 Cu Ft Freezer, 2 Baskets
• ຄ່າໃຊ້ຈ່າຍພະລັງງານປະຈໍາປີໂດຍປະມານ: $23 (based on 193 kWh/year)

ລາຍລະອຽດຮູບພາບ: A diagram illustrating the precise dimensions of the Northair 3.5 Cu Ft Chest Freezer in inches, along with a visual representation of the included accessories: a plug, a scoop, and two storage baskets.

ລາຍລະອຽດຮູບພາບ: The official U.S. Government EnergyGuide label for the Northair Compact Chest Freezer (Model BD-100B-E, 3.5 CU.FT), indicating an estimated yearly energy cost of $23 and 193 kWh of electricity use.

8. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

For warranty information or technical support, please refer to the documentation included with your purchase or contact Northair customer service directly. Keep your proof of purchase for any warranty claims.

9. ວິດີໂອຜະລິດຕະພັນ

No official seller videos are available for direct embedding. However, you can find various product reviews and demonstrations online by searching for "Northair 3.5 Cu Ft Chest Freezer".

ລາຍລະອຽດວິດີໂອ: Videos typically showcase the freezer's compact size, quiet operation, internal storage capacity with baskets, and the ease of temperature adjustment. Some videos may also demonstrate the lid's ability to stay open at various angles and the process of defrosting using the drain plugs.
