LiTime 10 Amp Lithium Battery Charger (Model L12V10A) Instruction Manual

1. ການແນະນໍາ ແລະຫຼາຍກວ່າview

The LiTime 10 Amp Lithium Battery Charger is designed for 12V (12.8V) LiFePO4 batteries, delivering stable charging through CC/CV modes. It supports 0V activation to revive batteries under BMS protection. This charger is equipped with a built-in cooling fan for efficient operation in various temperature conditions (-4°F to 104°F) and features multiple safety protections. It is suitable for RVs, trucks, cars, and solar systems.

Figure 1: LiTime 10 Amp Lithium Battery Charger.

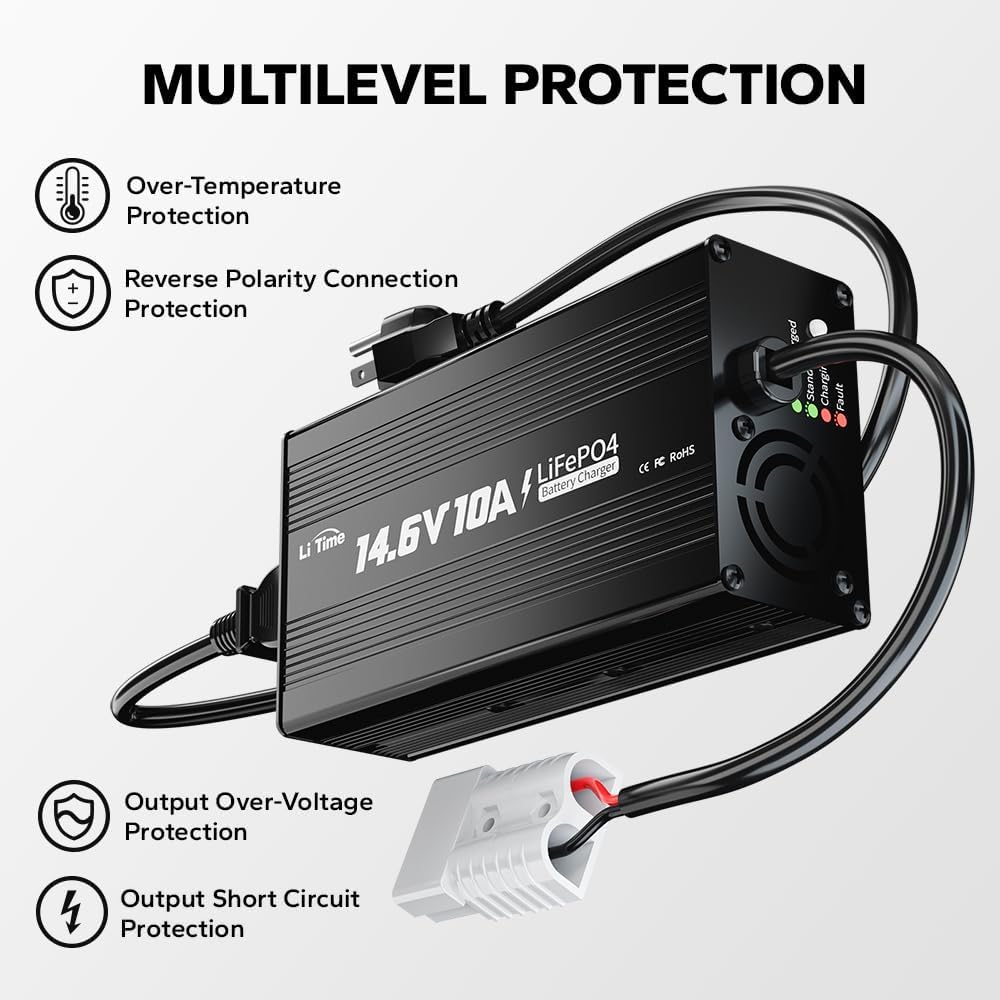

Figure 2: Multi-level protection features of the charger.

2. ການຕິດຕັ້ງແລະການເຊື່ອມຕໍ່

Before connecting, ensure the battery voltage matches the charger's output voltage (14.6V for 12V LiFePO4 batteries). The charger comes with an AC input cable and a DC output cable with an Anderson connector. An M8 terminal adapter is also included for direct battery post connection.

ຂັ້ນຕອນການເຊື່ອມຕໍ່:

1. Ensure the charger's power switch is in the OFF position.
2. Connect the DC output cable (with Anderson connector or M8 terminals) to your LiFePO4 battery. Ensure connections are firm to prevent overheating.
3. Connect the AC input cable to a standard 100V-240V AC power outlet.
4. Turn the charger's power switch to the ON position. The charger will begin charging, indicated by the LED status.

Figure 3: Charger connections including Anderson connector and M8 terminals.

Figure 4: Visual guide for connecting the charger to the battery and power source.

Figure 5: Contents of the product package, including charger, cables, and manual.

3. ຄໍາແນະນໍາການດໍາເນີນງານ

ສະຖານະຕົວຊີ້ບອກ LED:

• LED Always on Red: ແບັດເຕີຣີກຳລັງສາກຢູ່.
• LED Always on Green: ແບັດເຕີຣີຖືກສາກເຕັມແລ້ວ.
• LED Flashes Green: Charger is on standby.
• LED Flashes Red: Charger fault or under protection (e.g., over-temperature, reverse polarity, output short-circuit, output over-voltagແລະ).

Figure 6: Explanation of LED indicator lights for charging status.

3-ສtage Charging Mode:

The charger utilizes a 3-stage charging process for optimal battery health and efficiency:

1. Pre-Charge Stage (T1 - Activating): ຖ້າຫມໍ້ໄຟ voltage is low, the charger will apply a limited current to activate it. This stage also supports 0V activation to revive batteries under BMS protection.
2. ການສາກໄຟຄົງທີ່ Stage (T2 - 10A Current Charging): When the battery is in the main charging time, the charger will charge the battery with a 10A current. The battery voltage rises above the set value, and the charger automatically switches to the next stage.
3. Vol ຄົງທີ່tage ການ​ສາກ​ໄຟ Stage (T3 - Current Reducing & Charging Completed): ເຄື່ອງສາກປ່ຽນເປັນ vol ຄົງທີ່tage charging. The charging current gradually decreases. When the charging voltage ຫຼືປະຈຸບັນເຖິງມູນຄ່າທີ່ກໍານົດໄວ້, charger ປິດອັດຕະໂນມັດຜົນຜະລິດ voltage ແລະການສາກໄຟຫມໍ້ໄຟແມ່ນສໍາເລັດ.

ຮູບທີ 7: ແຜນວາດສະແດງໃຫ້ເຫັນເຖິງ 3-stage ຂະບວນການສາກໄຟ.

Figure 8: The charger's ability to activate 0V batteries after BMS protection.

ລະບົບເຮັດຄວາມເຢັນທີ່ມີປະສິດທິພາບ:

The charger is equipped with a built-in cooling fan to maintain stable charging efficiency and prevent overheating, extending the life of the charger and battery.

Figure 9: Internal cooling fan for temperature regulation during charging.

4. ຂໍ້ຄວນລະວັງຄວາມປອດໄພ

Always prioritize safety when operating the charger. This charger is designed with multilevel protections to prevent over-temperature, reverse polarity connection, output short-circuit, and output over-voltage.

• Check the battery specifications carefully before charging to ensure that the LiFePO4 battery matches the charger's technical data.
• Make sure the charger is properly connected to the battery. Avoid a short circuit.
• ຖອດສາຍສາກເຂົ້າ/ຂາອອກຂອງເຄື່ອງສາກທັນທີເມື່ອເຄື່ອງສາກ ຫຼືແບັດເຕີຣີພົບວ່າຜິດປົກກະຕິ ຫຼືເສຍຫາຍໃນລະຫວ່າງການສາກ.
• Do not use other input cables or extend the output connection cable personally, or please contact LiTime customer service.
• ຫ້າມເປີດ, ຖອດ ຫຼືດັດແປງເຄື່ອງສາກ.
• ຢ່າໃຊ້ມັນໃນພາຍຸຝົນ.
• ກະລຸນາຮັກສາສາຍສາກ ແລະແບັດໄວ້ຫ່າງຈາກນໍ້າ, ແຫຼ່ງຄວາມຮ້ອນ, ດອກໄຟ, ແປວໄຟ, ແກ໊ສໄວໄຟ, ແລະສານເຄມີອັນຕະລາຍ.
• Do not place rods or other metal objects in vents or other openings.
• Place the charger in a well-ventilated area with sufficient heat dissipation to prevent overheating and damage.
• Do not puncture, drop, crush, burn, penetrate, shake, strike, or throw it with force.
• This 12 volt 10 amp lithium battery charger is not waterproof - not suitable for Marine environments such as boats, ships, yachts, trolling motors, etc.

Figure 10: Visual guide for important safety precautions.

5. ການແກ້ໄຂບັນຫາ

ບັນຫາທົ່ວໄປ ແລະການແກ້ໄຂ:

Figure 11: Troubleshooting table for common charger issues.

Charger Won't Start?

If your inverter is plugged in, it may be blocking the charger's initial "wake-up" pulse. Follow these steps:

1. Unplug the inverter from the battery.
2. Let the charger activate the battery.
3. Reconnect the inverter after charging is complete.

Figure 12: Steps to resolve charger not starting due to inverter interference.

6. ຂໍ້ມູນຈໍາເພາະຂອງຜະລິດຕະພັນ

7. ການຮັບປະກັນແລະການສະ ໜັບ ສະ ໜູນ

LiTime Battery Charger comes with a 2-year quality warranty. For technical support and customer service, you can reach out via phone or online services. Quick feedback is typically provided within 24 hours.

Contact: service@litime.com
