SAHAUHY EBL-4 Four Beam Effect RGB DJ Stage ຄູ່ມືການສອນແສງສະຫວ່າງ

1. ຜະລິດຕະພັນເກີນview

The SAHAUHY EBL-4 is a versatile four-beam RGB DJ stage light designed for various event settings. It features red, green, and blue beam lights, along with red and green pattern lights, offering over 150 patterns and 350 effects. This unit supports multiple operating modes including master-slave, sound control, DMX, and automatic mode, making it suitable for both professional and novice users.

Image 1.1: The SAHAUHY EBL-4 DJ Stage Light showcasing its dynamic light effects.

2. ຄໍາແນະນໍາຄວາມປອດໄພ

• ການສະຫນອງພະລັງງານ: ຮັບປະກັນ voltage is within the specified range of 100V-240V. Always connect to a grounded power outlet.
• ຄວາມປອດໄພຕາ: Avoid direct eye exposure to the laser beams. Lasers can cause eye damage. Do not look directly into the light sources.
• ການລະບາຍອາກາດ: Ensure adequate ventilation around the unit to prevent overheating. Do not block the fan or ventilation openings.
• ການຈັດວາງ: Install the light in a stable location, away from flammable materials, excessive heat, moisture, or dust.
• ການຈັດການ: ຫ້າມເປີດຄasing. ອ້າງອີງການບໍລິການທັງໝົດໃຫ້ກັບບຸກຄະລາກອນທີ່ມີຄຸນວຸດທິ.
• ເດັກນ້ອຍ: ຮັກສາອຸປະກອນໃຫ້ໄກຈາກເດັກນ້ອຍ.

3. ອົງປະກອບ ແລະ ຂະໜາດຂອງຜະລິດຕະພັນ

Familiarize yourself with the main components and dimensions of your SAHAUHY EBL-4 stage ແສງ.

Image 3.1: Product dimensions of the SAHAUHY EBL-4. The unit measures approximately 13.4 inches in length, 5.9 inches in width, and 2.83 inches in height.

ຮູບພາບ 3.2: ດ້ານຫນ້າ view of the light, indicating the Red Patterns Light, Green Patterns Light, Red Beam Light, and Blue Beam Light outputs.

ຮູບພາບ 3.3: ດ້ານຫລັງ view of the light, showing the Display Panel, DMX IN, DMX OUT, Fan, and Power input.

4. ການຕິດຕັ້ງແລະການຕິດຕັ້ງ

The SAHAUHY EBL-4 is designed for easy setup.

1. ການຫຸ້ມຫໍ່: Carefully remove the light from its packaging and inspect for any damage.
2. ການຈັດວາງ: Choose a suitable location for the light. It can be placed on a flat surface or mounted on a wall or truss using its integrated handle. Ensure the surface is stable and can support the weight of the unit.
3. ການເຊື່ອມຕໍ່ພະລັງງານ: Connect the power cord to the unit and then to a standard 100V-240V AC power outlet.
4. ການເຊື່ອມຕໍ່ DMX (ທາງເລືອກ): If using DMX control, connect a DMX cable from your DMX controller to the DMX IN port on the light. For multiple units, daisy-chain them by connecting the DMX OUT of the first unit to the DMX IN of the next.
5. ເປີດ: Once connected, power on the unit. The display panel will illuminate.

5. ຮູບແບບການເຮັດວຽກ

The SAHAUHY EBL-4 offers four distinct operating modes, selectable via the display panel buttons.

• ໂໝດອັດຕະໂນມັດ: The light will cycle through its pre-programmed patterns and effects automatically. This mode is ideal for quick setup and continuous light shows without external input.
• ໂໝດຄວບຄຸມສຽງ: In this mode, the light's patterns, colors, and beam effects react to the beat of music or ambient sound. Use the built-in microphone for sound detection.
• ໂໝດ DMX: For professional control, connect the light to a DMX-512 controller. The unit utilizes 11 DMX channels, allowing precise control over patterns, colors, rotation, and other effects. Refer to the DMX channel chart (usually provided in a separate DMX manual or online) for detailed control parameters.
• ຮູບແບບ Master-Slave: Connect multiple EBL-4 units using DMX cables. Set one unit as the "Master" and the others as "Slave" units. The slave units will then mirror the operation of the master unit, creating synchronized light shows across multiple devices.

ຮູບພາບ 5.1: ຕົວຢ່າງamples of the diverse laser patterns and effects achievable with the EBL-4 light.

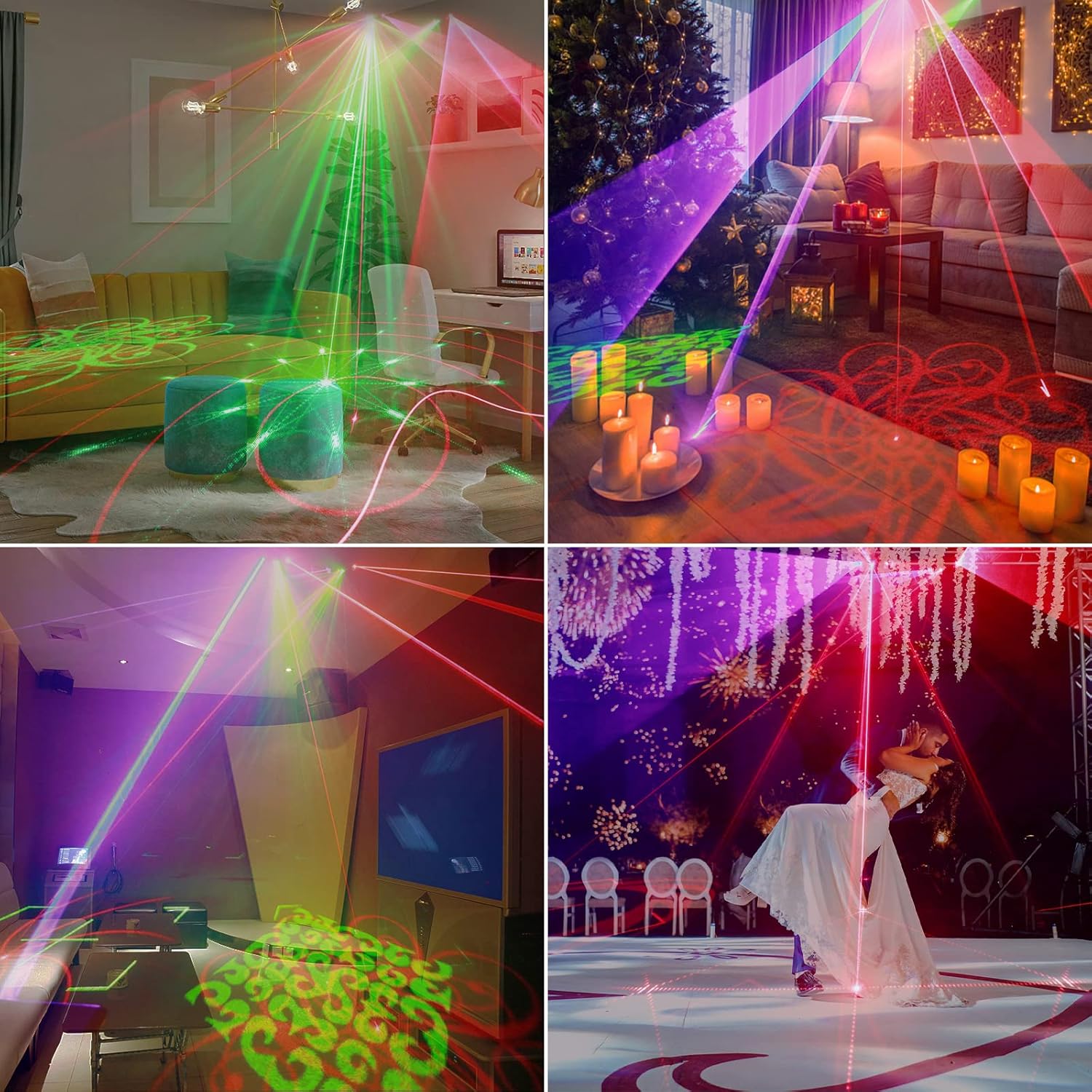

Image 5.2: The EBL-4 light creating dynamic atmospheres in different environments.

6. ບໍາລຸງຮັກສາ

Regular maintenance ensures optimal performance and longevity of your SAHAUHY EBL-4 light.

• ທໍາຄວາມສະອາດ: Periodically clean the exterior of the unit with a soft, dry cloth. Ensure the lens and light output areas are free from dust and debris for clear projection.
• ການລະບາຍອາກາດ: Regularly check that the fan and ventilation openings are clear and unobstructed to prevent overheating.
• ການເກັບຮັກສາ: When not in use for extended periods, store the light in a cool, dry place, protected from dust and extreme temperatures.
• ການກວດກາ: Before each use, inspect the power cord and DMX cables for any signs of damage.

7. ການແກ້ໄຂບັນຫາ

If you encounter issues with your SAHAUHY EBL-4, refer to the following common problems and solutions.

8. ຂໍ້ມູນຈໍາເພາະ

9. ການຮັບປະກັນແລະການສະຫນັບສະຫນູນ

The SAHAUHY EBL-4 Stage Light is covered by a ນະໂຍບາຍການກັບຄືນ 30 ມື້ ແລະ ກ 360-day repair warranty ຈາກວັນທີ່ຊື້.

For any questions, technical assistance, or warranty claims, please contact the SAHAUHY after-sales support team. They aim to reply within 24 hours to assist with any issues.

ຂໍ້ມູນຕິດຕໍ່: Please refer to your purchase documentation or the official SAHAUHY webເວັບໄຊສໍາລັບລາຍລະອຽດຕິດຕໍ່ໃນປະຈຸບັນ.
