Berkeley CHLOE Styling Station Instruction Manual

1. ບົດແນະນຳ

This manual provides detailed instructions for the assembly, operation, and maintenance of your Berkeley CHLOE Styling Station. Please read this manual thoroughly before assembly and use to ensure proper function and longevity of the product. Retain this manual for future reference.

ຮູບພາບ 1.1: ດ້ານຫນ້າ view of the Berkeley CHLOE Styling Station. This image displays the overall design of the styling station, featuring a brown cabinet with a silver top, a lockable drawer, and integrated appliance holders on the right side of the countertop.

2. ຂໍ້ມູນຄວາມປອດໄພ

• ໃຫ້ແນ່ໃຈວ່າອົງປະກອບທັງໝົດຖືກມັດໄວ້ຢ່າງແໜ້ນໜາກ່ອນການນຳໃຊ້ສະເໝີ.
• Do not overload drawers or cabinets.
• Keep keys for the lockable drawer in a safe place, away from children.
• Avoid placing hot appliances directly on the cabinet surface; use the designated appliance holders.
• ຫນ່ວຍບໍລິການນີ້ຖືກອອກແບບມາ ສຳ ລັບໃຊ້ພາຍໃນເຮືອນເທົ່ານັ້ນ.
• ກວດເບິ່ງທຸກສະກູແລະການເຊື່ອມຕໍ່ເປັນໄລຍະສໍາລັບຄວາມແຫນ້ນຫນາ.

3. ເນື້ອໃນຊຸດ

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, contact Berkeley customer support.

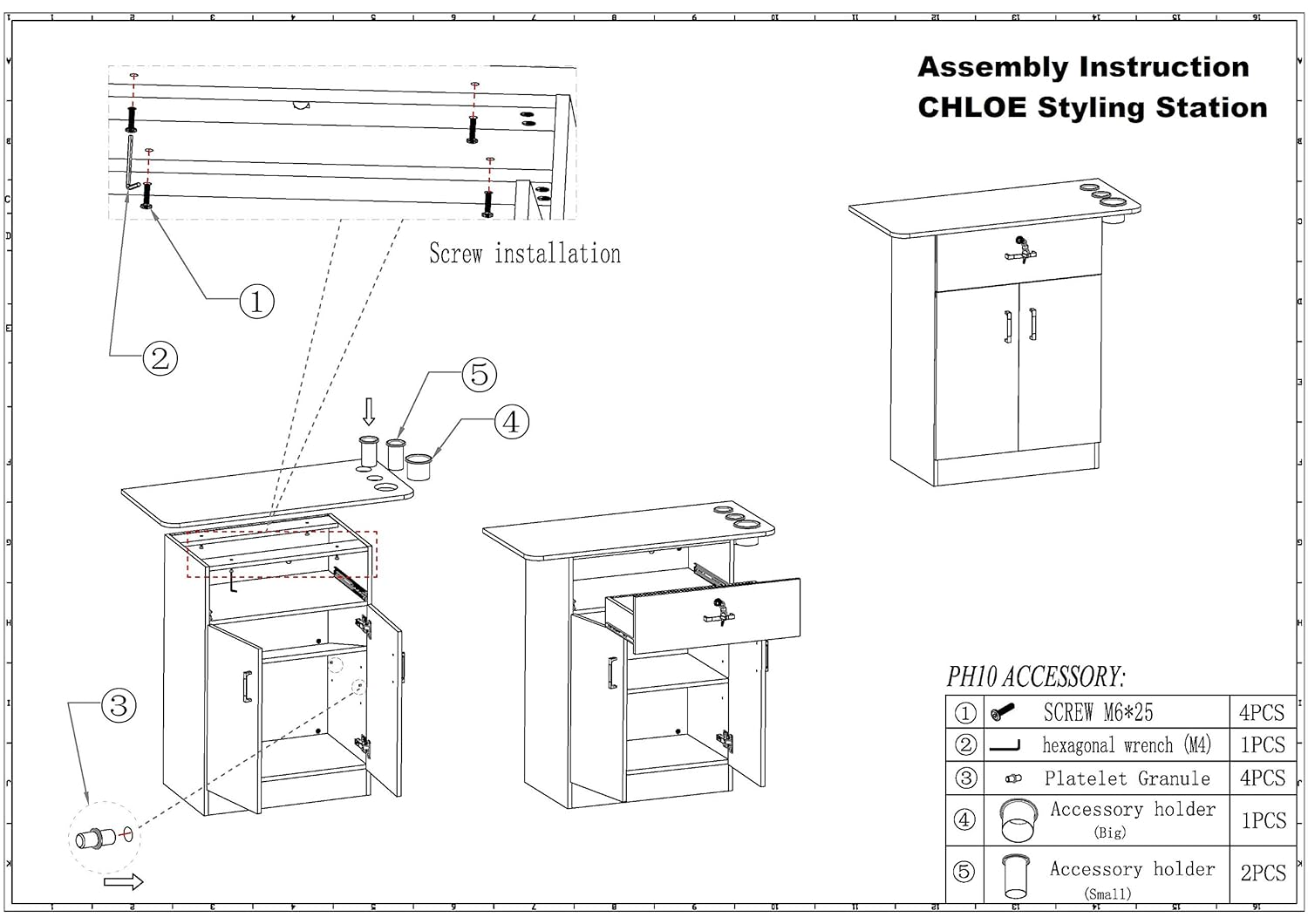

Image 3.1: Assembly instruction diagram for the CHLOE Styling Station. This diagram illustrates the various components and hardware required for assembly, including screws, a hexagonal wrench, platelet granules, and accessory holders.

ອຸປະກອນເສີມລວມ:

• SCREW M6*25: 4 PCS
• Hexagonal wrench (M4): 1 PCS
• Platelet Granule: 4 PCS
• Accessory holder (Big): 1 PCS
• Accessory holder (Small): 1 PCS

4. ການຕິດຕັ້ງແລະການປະກອບ

Follow these steps carefully to assemble your Berkeley CHLOE Styling Station. Refer to Image 3.1 for visual guidance.

1. ການກະກຽມອົງປະກອບ: Unpack all components and hardware. Identify the main cabinet body, top panel, drawer, and accessory holders.
2. ຕິດຕັ້ງແຜງດ້ານເທິງ: Align the top panel with the main cabinet body. Secure the top panel using the provided SCREW M6*25 (labeled as '1' in Image 3.1) into the designated holes. Ensure the screws are tightened with the hexagonal wrench (labeled as '2').
3. Insert Platelet Granules: Place the Platelet Granules (labeled as '3') into their respective slots on the cabinet. These typically act as shelf supports or decorative covers.
4. Attach Accessory Holders: Insert the large accessory holder (labeled as '4') and the small accessory holder (labeled as '5') into the pre-drilled holes on the side of the top panel. Ensure they are firmly seated.
5. ຕິດຕັ້ງລິ້ນຊັກ: Slide the drawer into its designated slot in the cabinet. Ensure it operates smoothly. The lock mechanism should be functional upon installation.
6. ກວດສອບຄັ້ງສຸດທ້າຍ: Verify that all screws are tight and the station is stable.

5. ຄໍາແນະນໍາການດໍາເນີນງານ

5.1 Lockable Drawer

The styling station features a lockable drawer for secure storage of valuable tools and personal items.

• ເປີດ: Insert the key into the lock and turn it to the unlocked position. Pull the drawer handle to open.
• ປິດ ແລະ ລັອກ: Push the drawer completely shut. Insert the key and turn it to the locked position. Remove the key.

Image 5.1: The lockable drawer of the styling station shown in an open position with the key inserted. This illustrates the drawer's capacity and the locking mechanism.

5.2 Double Door Cabinet

The lower section of the styling station includes a double-door cabinet for larger storage needs.

• ເປີດ: Pull the handles on both doors simultaneously.
• ໃກ້: Push both doors firmly until they are fully closed.

Image 5.2: The double-door cabinet of the styling station shown with both doors open, revealing the interior storage space and a shelf. This demonstrates the cabinet's storage capacity.

5.3 Appliance Holders

Three integrated appliance holders are located on the side of the top panel, designed to safely store hot styling tools.

• Insert styling tools such as hair dryers, curling irons, or flat irons into the appropriate sized holders.
• Ensure tools are cooled sufficiently before storing for extended periods.

6. ບໍາລຸງຮັກສາ

• ທໍາຄວາມສະອາດ: ເຊັດພື້ນຜິວໃຫ້ອ່ອນໆ, ງamp ຜ້າ ແລະ ນໍ້າຢາທໍາຄວາມສະອາດທີ່ອ່ອນໂຍນ ແລະ ບໍ່ເຮັດໃຫ້ຂັດ. ຫຼີກລ່ຽງສານເຄມີຮຸນແຮງທີ່ອາດຈະທໍາລາຍສີຜິວ.
• ການຮົ່ວໄຫລ: ເຮັດຄວາມສະອາດຂີ້ເຫຍື້ອທັນທີເພື່ອປ້ອງກັນບໍ່ໃຫ້ເກີດຮອຍເປື້ອນຫຼືຄວາມເສຍຫາຍຕໍ່ການສໍາເລັດຮູບໄມ້.
• ຮາດແວ: Periodically check all screws and fasteners to ensure they remain tight. Tighten as necessary with the hexagonal wrench.
• Drawer Slides: If the drawer becomes stiff, apply a small amount of silicone-based lubricant to the drawer slides.

7. ການແກ້ໄຂບັນຫາ

7.1 Drawer Not Locking/Opening

• Ensure the drawer is fully closed before attempting to lock.
• ກວດສອບວ່າກະແຈຖືກສຽບໃສ່ ແລະ ໝຸນຢ່າງຖືກຕ້ອງແລ້ວຫຼືບໍ່.
• Inspect the lock mechanism for any obstructions.

7.2 Cabinet Doors Not Closing Properly

• Check for any items obstructing the doors from closing.
• Inspect hinges for damage or misalignment. Adjust if necessary.

7.3 Station Instability

• Verify that all assembly screws are securely tightened.
• Ensure the station is placed on a flat, level surface.

8. ຂໍ້ມູນຈໍາເພາະ

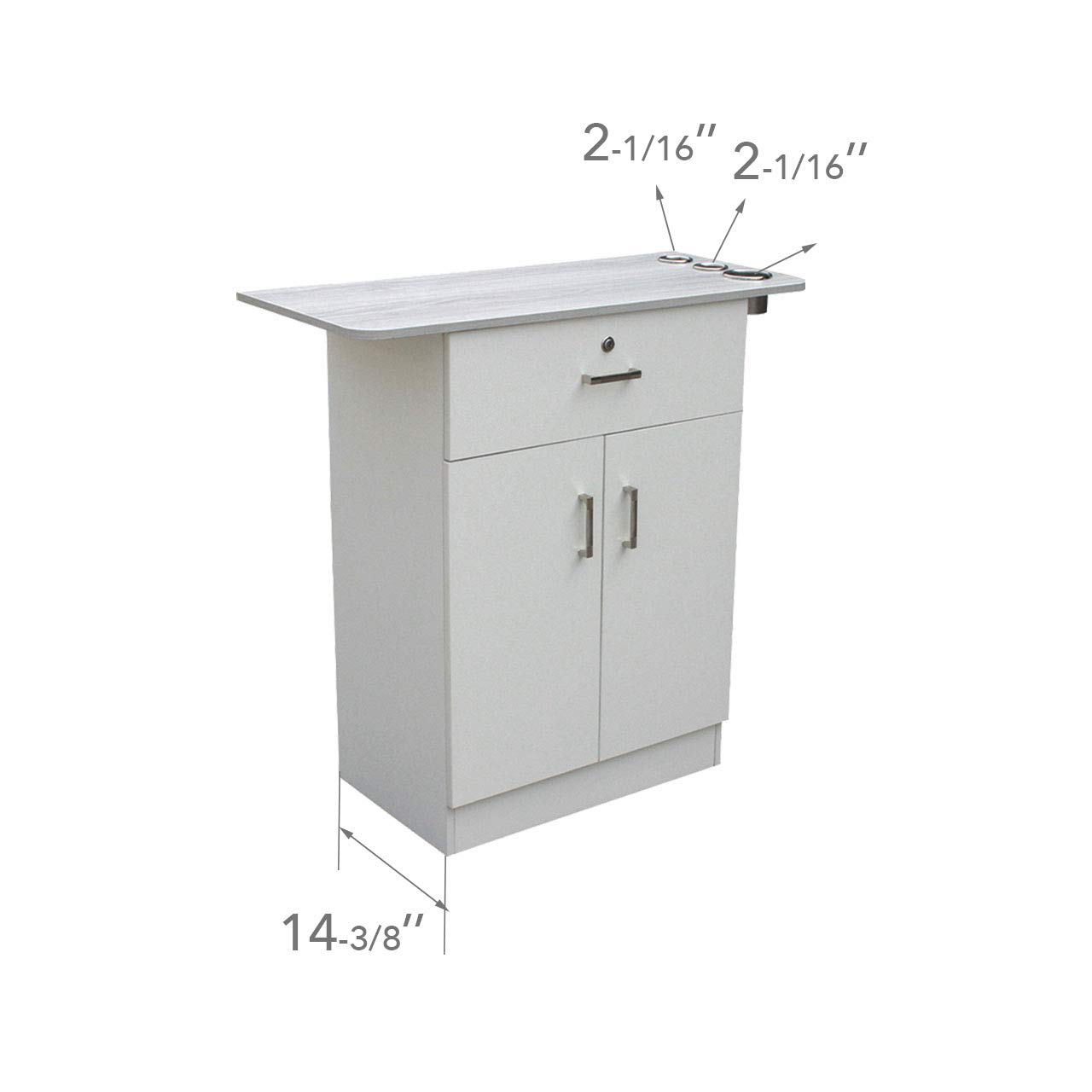

Image 8.1: Detailed dimensions diagram of the styling station. This image provides specific measurements for the overall height, width, depth, and individual sections of the unit, including the top, drawer, and cabinet.

9. ຂໍ້ມູນການຮັບປະກັນ

Specific warranty details for the Berkeley CHLOE Styling Station are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please contact Berkeley customer support directly or refer to the product packaging or purchase documentation.

10. ການຊ່ວຍເຫຼືອລູກຄ້າ

If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact Berkeley customer support.

• ສະຫນັບສະຫນູນອອນໄລນ໌: Visit the official Berkeley store on Amazon: Berkeley Store
• Refer to your purchase invoice or product packaging for additional contact information.
